Amelia Oak Bed Frame - LFE

Assembly instructions for Amelia Oak Bed Frame - LFE by Time4Sleep

Product Information

Amelia Oak Bed Frame - LFE

The Amelia low foot end bed is a beautiful French inspired frame which combines the beauty of weathered oak, with a natural linen look fabric to create a design that is elegant and sophisticated. Each frame is carefully crafted with subtle hand carved detailing that gives the bed a luxurious and opulent feel. Classically styled, the bed will work equally well in either a traditional or more contemporary interior. The Amelia features a traditional wooden slatted base system which helps to support your mattress and ensure you have a better nights sleep. The underbed clearance on this bed frame is 26cm approx.

View product

SKU: amelialfe-1, amelialfe-2, AmeliaLFE60

	Double
Width	147 cm
Length	214 cm
Head End Height	120 cm
Foot End Height	40 cm

Product details

TitleAmelia Oak Bed Frame - LFE
WebsiteView on website (opens in new tab)

Tools

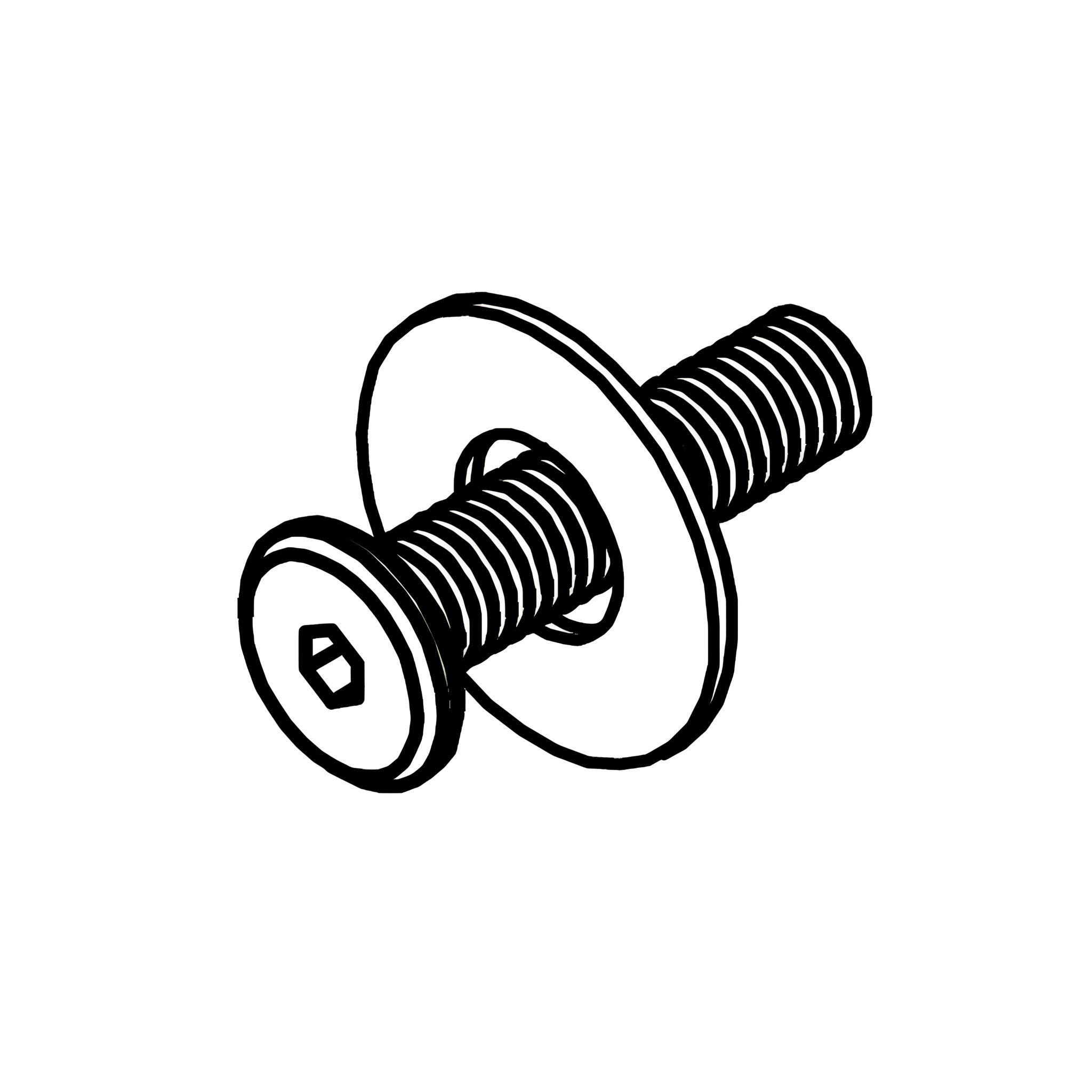

H1 Screws

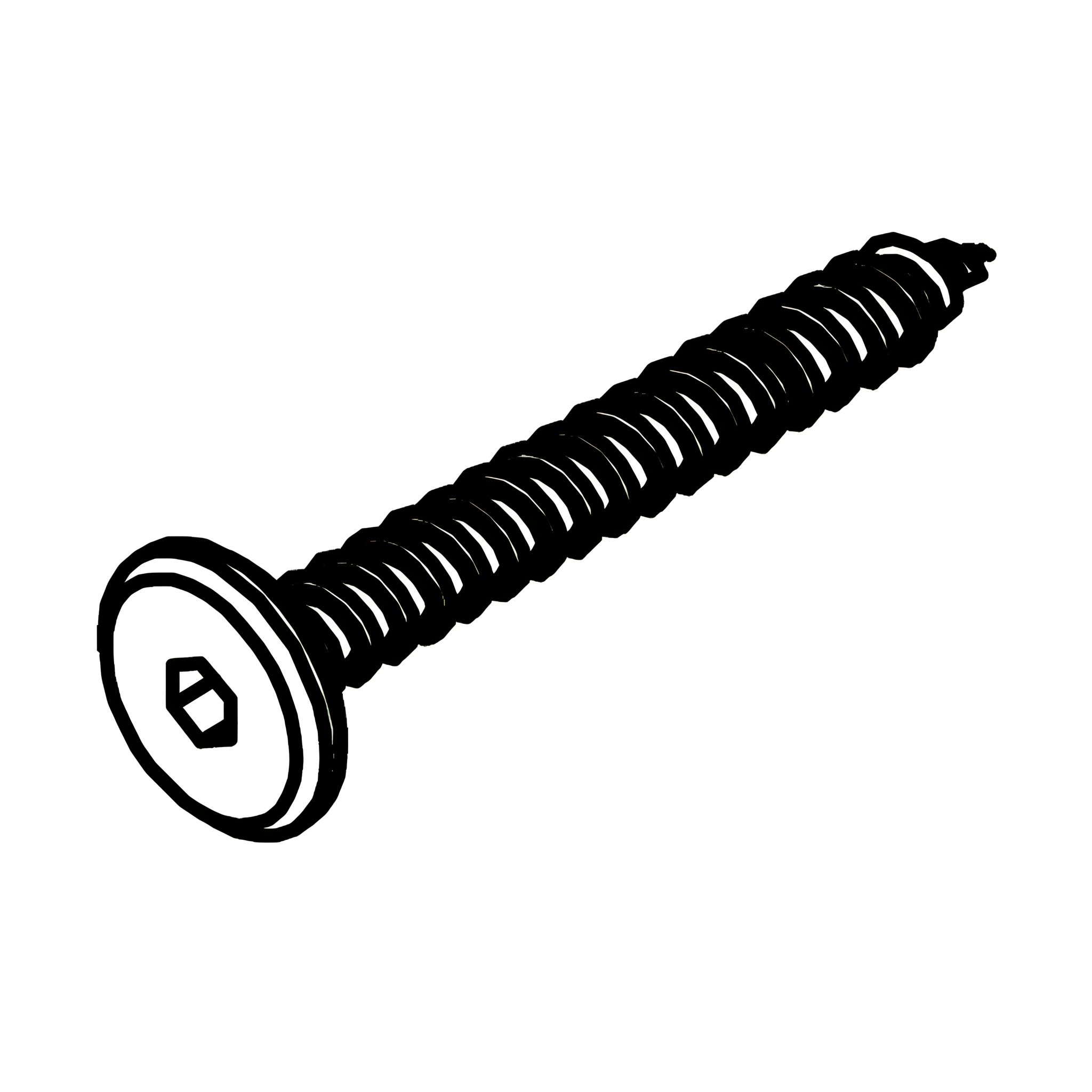

H2 Screw

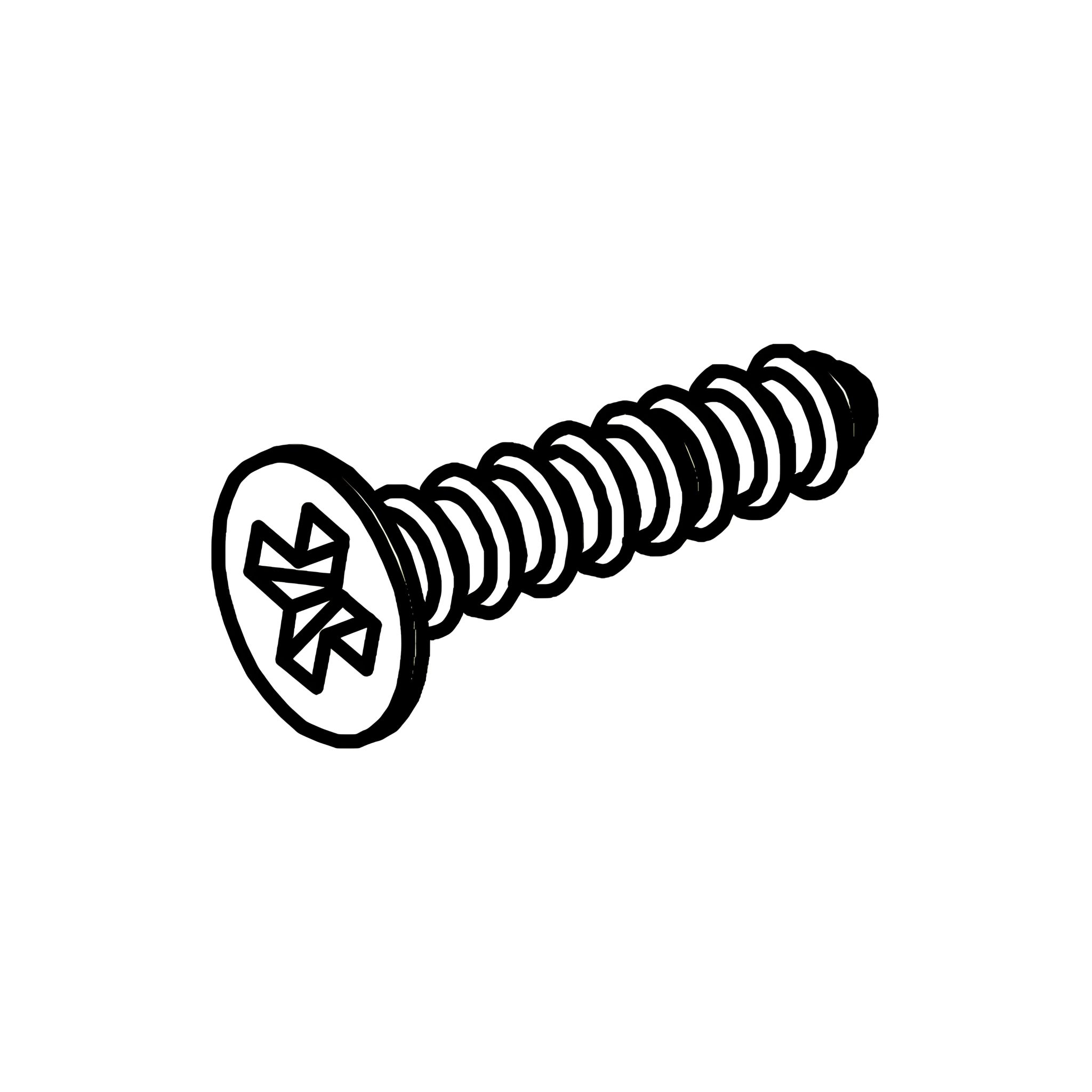

H3 Screws

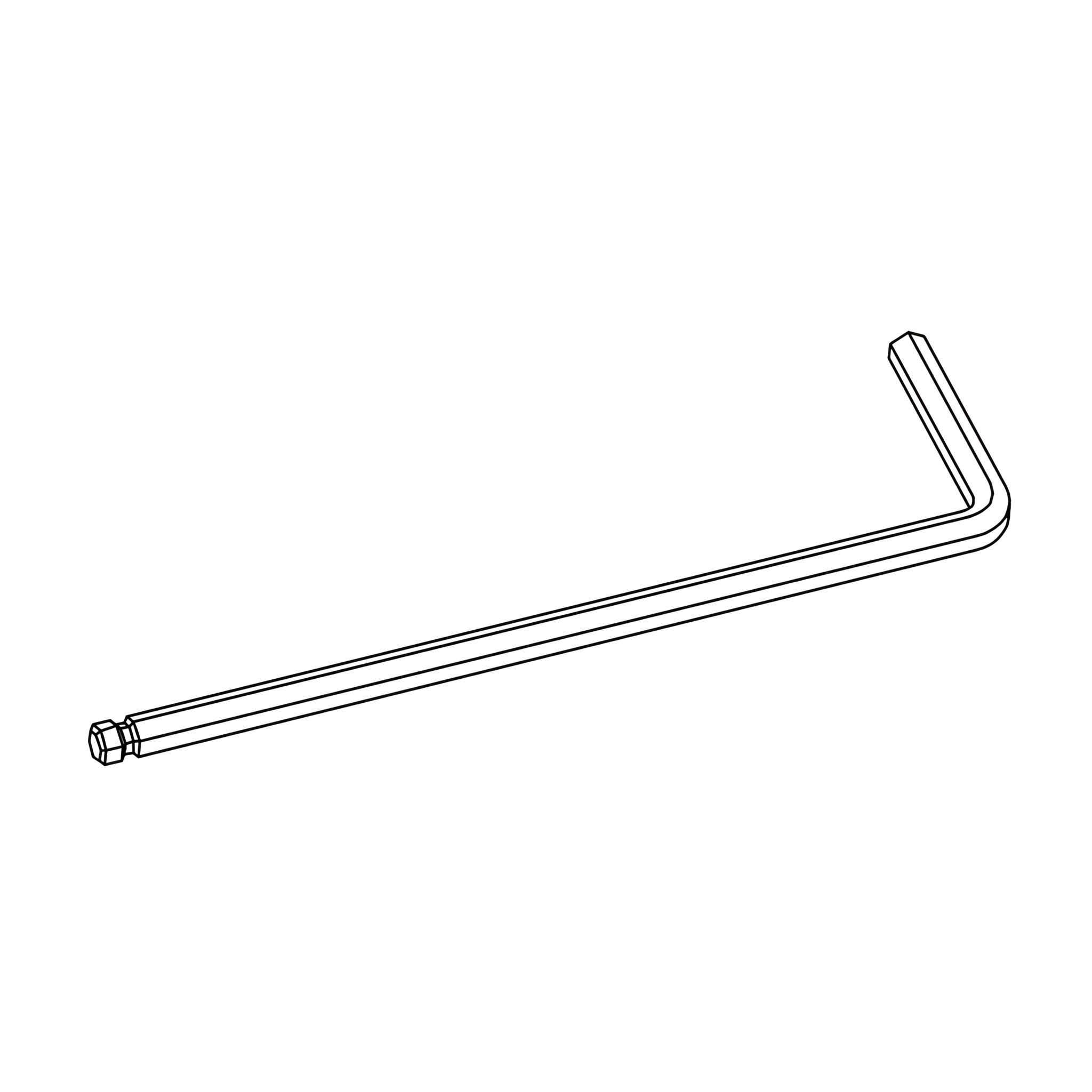

H4 Allen Key

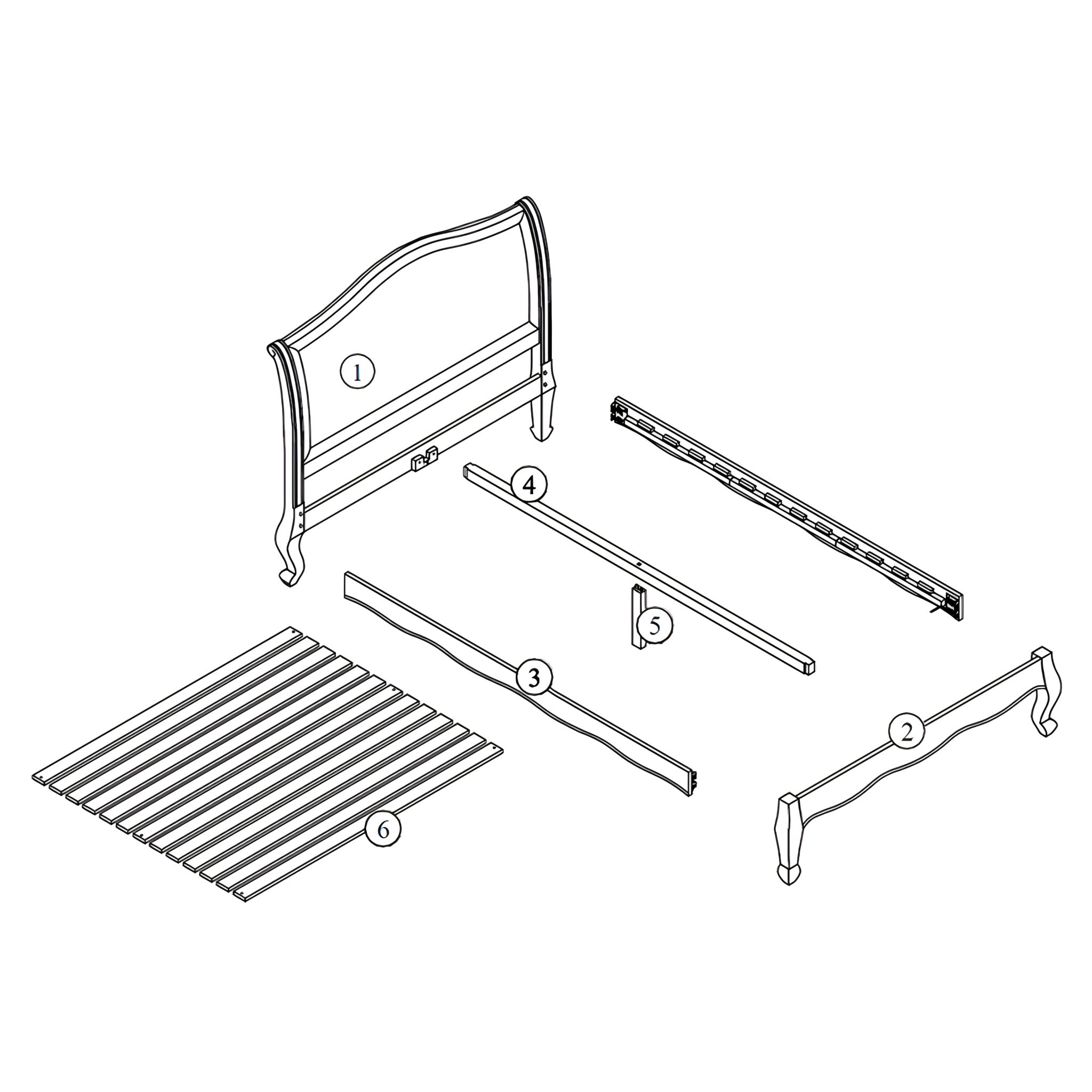

Parts

1Headboard

2Footboard

3Side Rails

4Center Support Beam

5Center Support Leg

6Slats

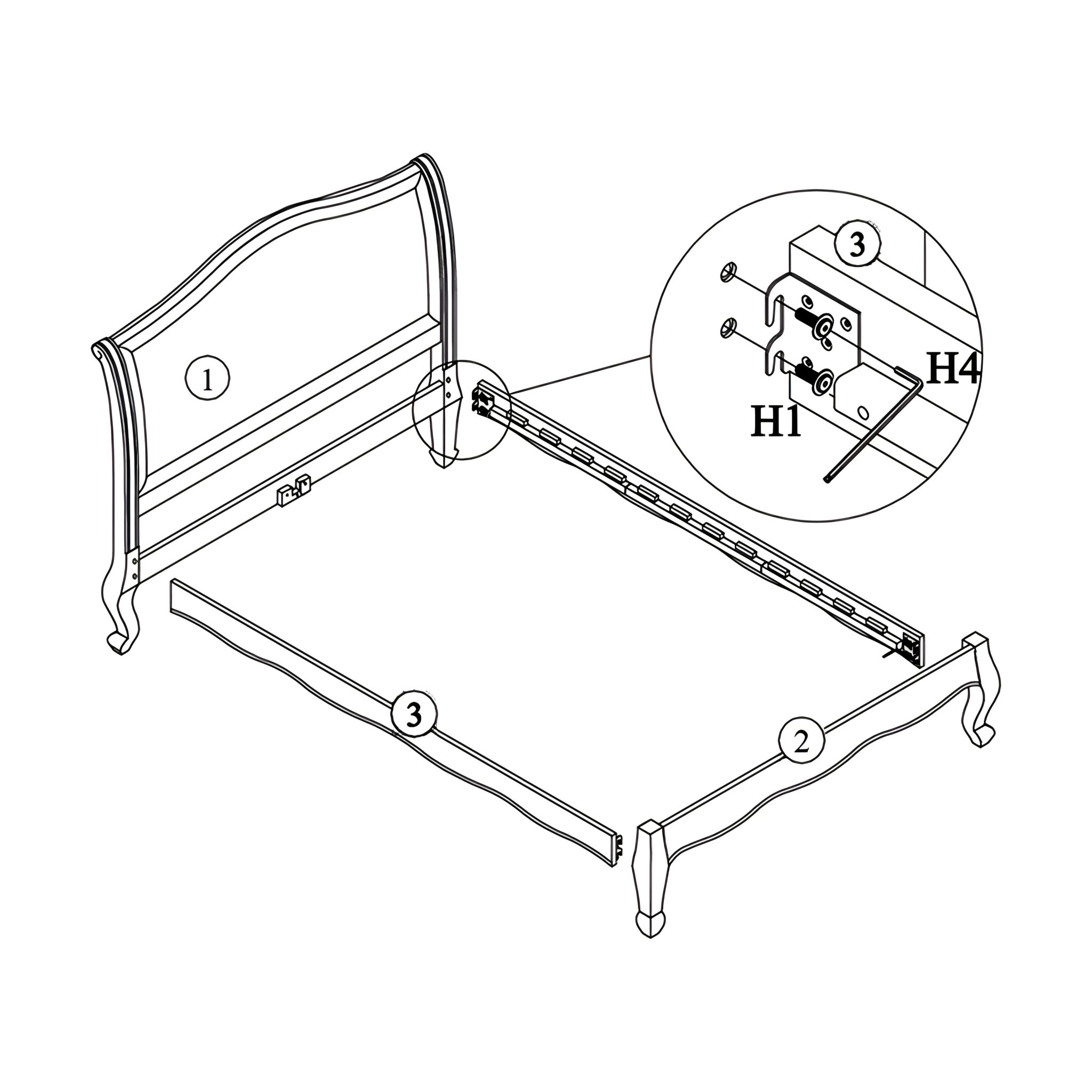

1. Attach the Side Rails

Attach the Side Rails to the Headboard and Footboard

1. Position the side rails (3) between the headboard (1) and footboard (2).
2. Align the brackets on the side rails with the mounting points on the headboard and footboard.
3. Secure the side rails using screws (H1) and tighten them with the Allen key (H4), as shown in the close-up detail.

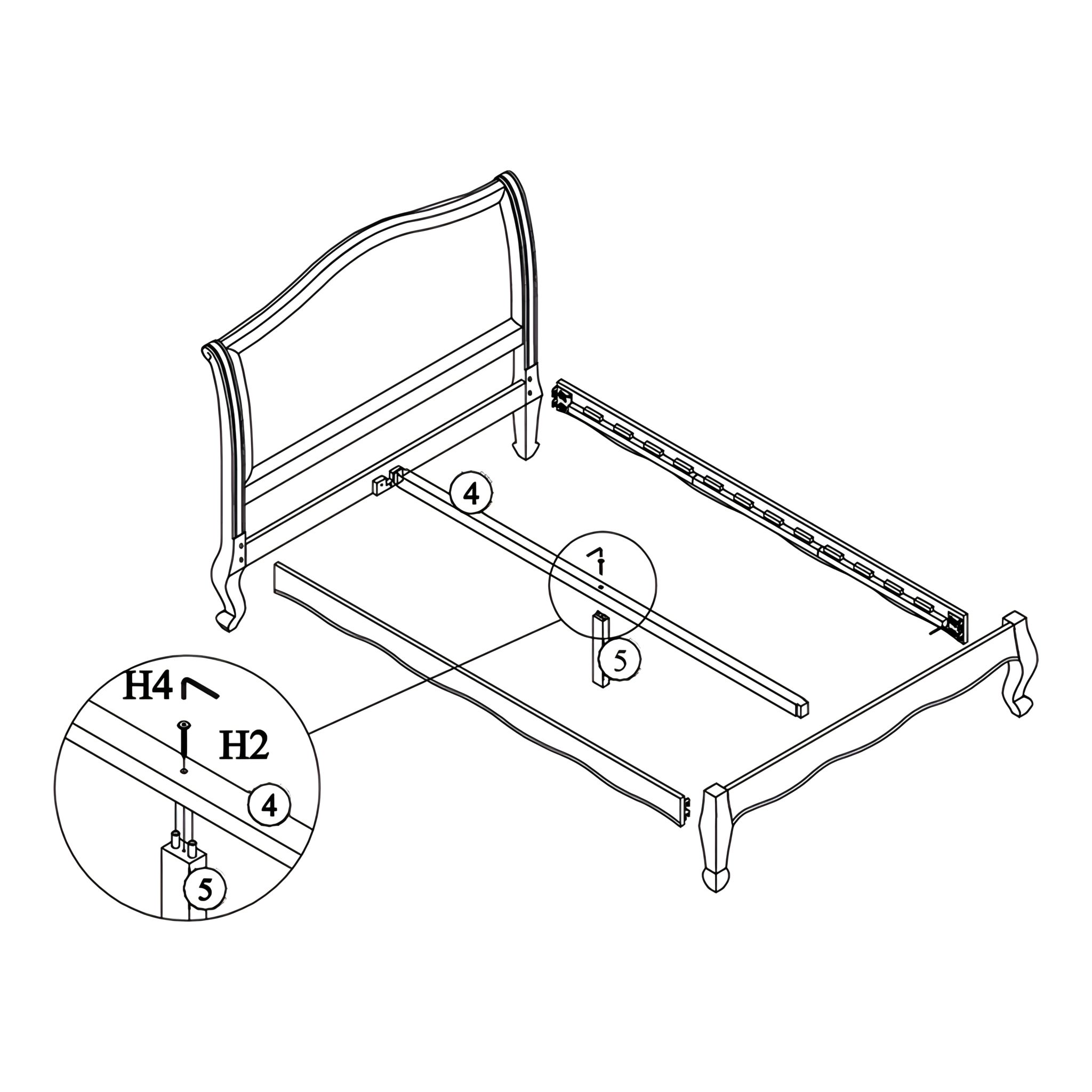

2. Center Support Beam

Install the Center Support Beam

1. Place the center support beam (4) across the middle section of the bed frame.
2. Attach the center leg (5) to the bottom of the support beam.
3. Secure the center leg (5) using screw (H2) and tighten it with the Allen key (H4) as shown in the close-up detail.

3. Slats

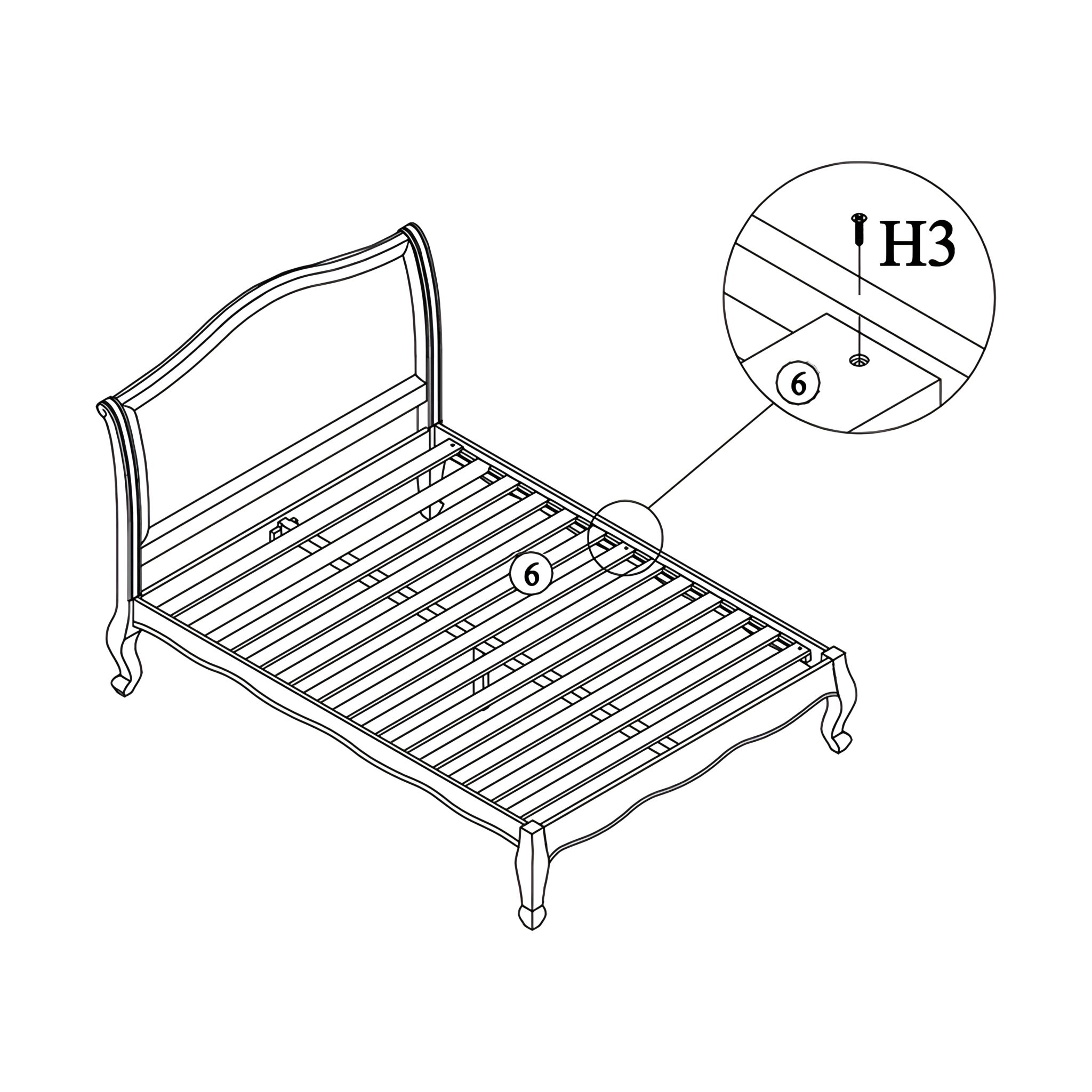

Install the Slats

1. Lay out all the slats (6) evenly across the bed frame, ensuring they are aligned properly with the side rails and center support.
2. Using the H3 screws, fasten the six slats with pre-drilled holes to the side rails.
3. Check that the attached slats provide adequate support and stability for the mattress.

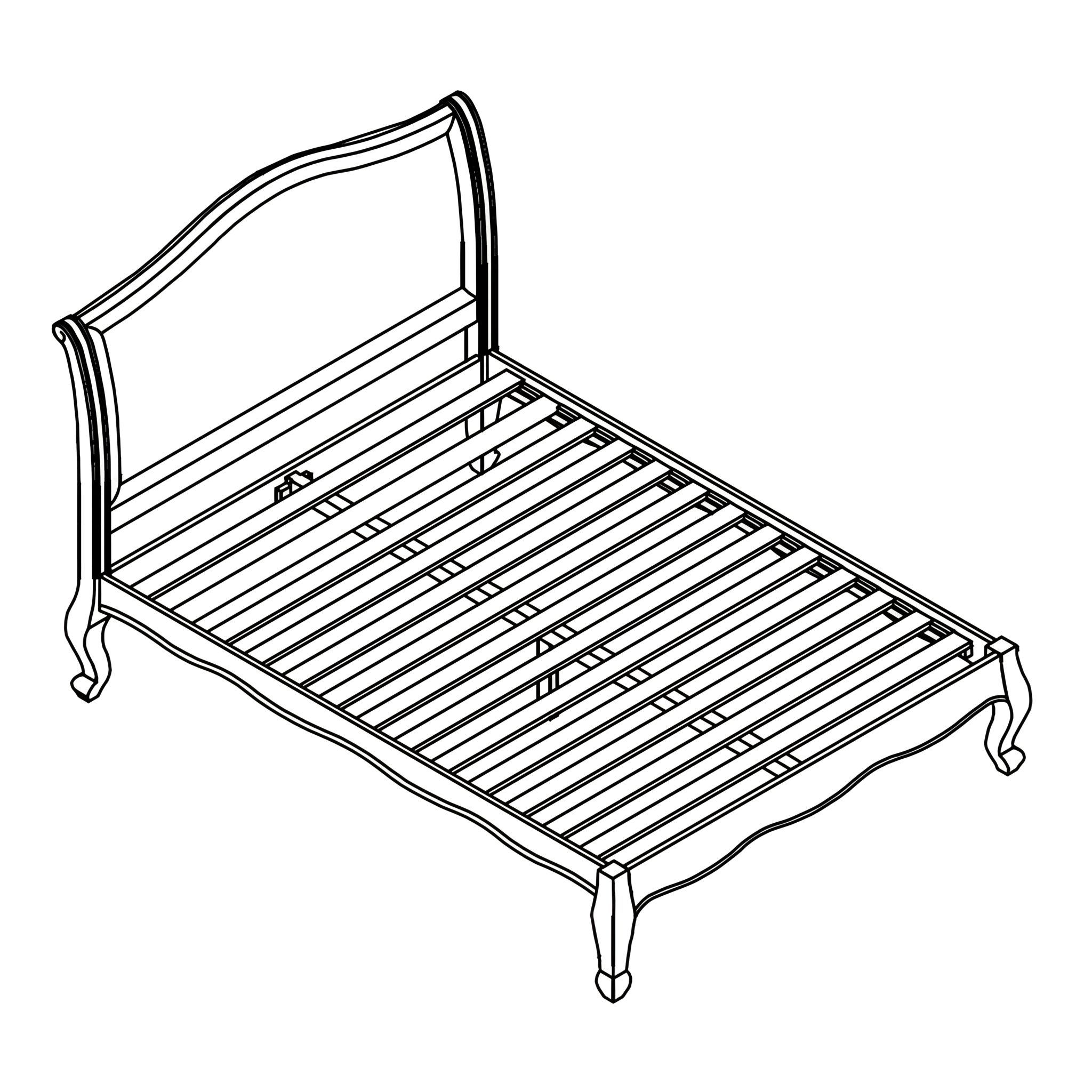

4. Final Check

Verify that all slats are securely fastened and evenly spaced.
Check for any loose connections and tighten the screws if necessary.
