Charleston Solo White Bed With Liv & Lou Guest UnderBed

Assembly instructions for Charleston Solo White Bed With Liv & Lou Guest UnderBed by Time4Sleep.

Product Information

Charleston Solo White Bed With Liv & Lou Guest UnderBed

A classical design that will work well what ever the style of your home. The Charleston bed with under bed trundle combines functionality with good looks. The underbed can be simply wheeled out on the easy glide castors to accommodate sleep overs. This bed is manufactured from solid rubber work for durability and a superior painted finish and comes compete with solid wooden slats.

View product

SKU: charlestonguest1

	Single
Width	96cm
Lenght	202cm
Head End Height	96cm
Foot End Height	72cm

Please note that the price quoted is excluding mattresses.

The upper bed frame is designed for a standard UK mattress 90cm x 190cm (3'0 x 6'3), whilst the under bed is designed to stow under the main bed and is 75cm x 180cm 2'6 x 6'0. The underbed mattress should not exceed 17cm in height.

Important - Please read these instructions fully before starting assembly

Check you have all the components and tools listed.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to lay out the parts before starting.
Do not stand or put weight on the product, this could cause damage.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Parts of the assembly will be easier with 2 people.
We do not recommend the use of power drills/drivers for inserting screws as this could damage the unit. Only use hand screwdrivers.
Dispose all packaging carefully and responsibly.

Tools

A - JCBB Bolt (M8 × 20mm)

B - CSK C/B Screw (M4 × 32mm)

C - Allen Key (M5 × 60mm)

A - JCBC Bolt (M6 X 35MM) for Underbed

C - CSK C/B Screw (M4 X 32MM) for Underbed

D - Allen Key (M4 X 60MM) for Underbed

Crosshead Screwdriver

Parts

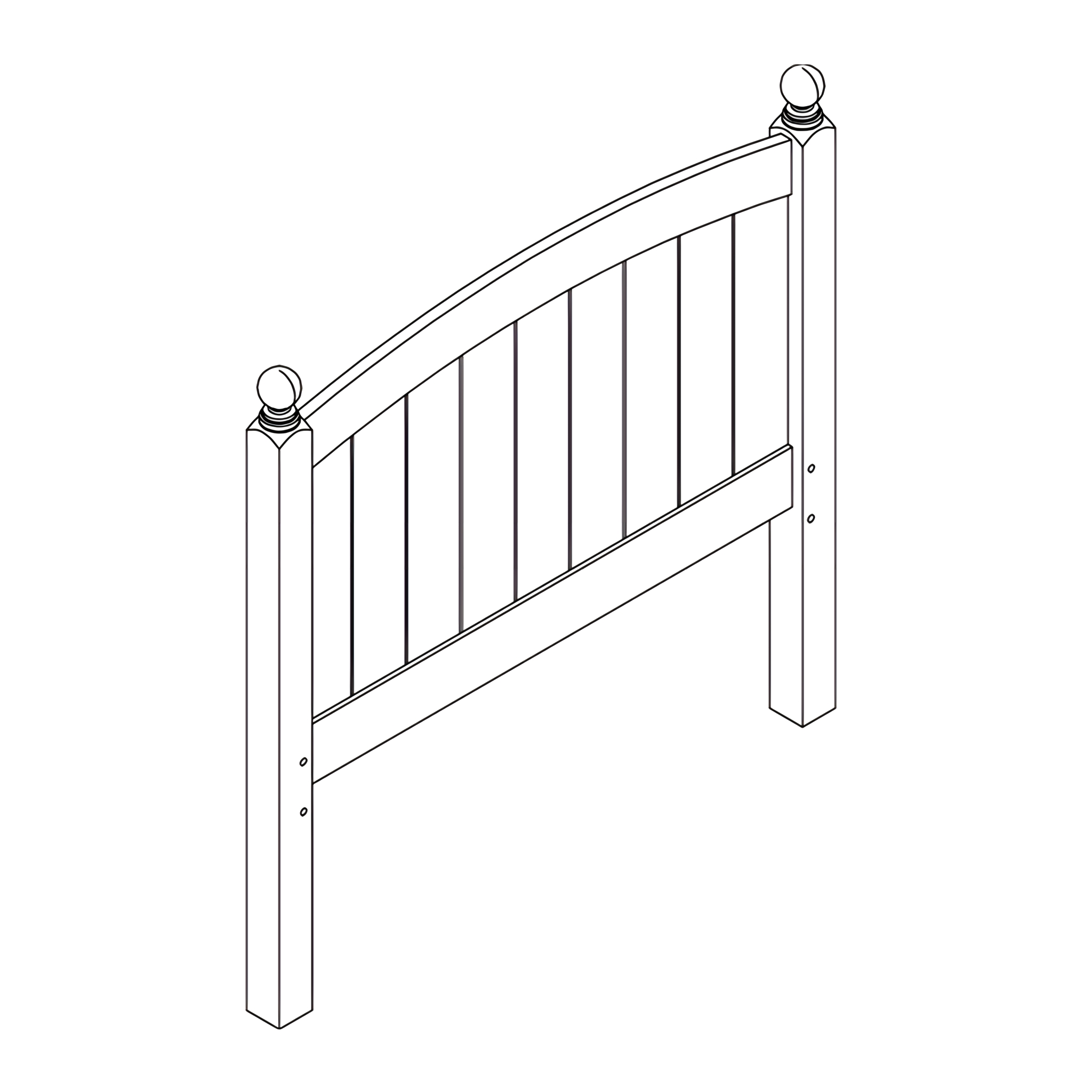

Headboard

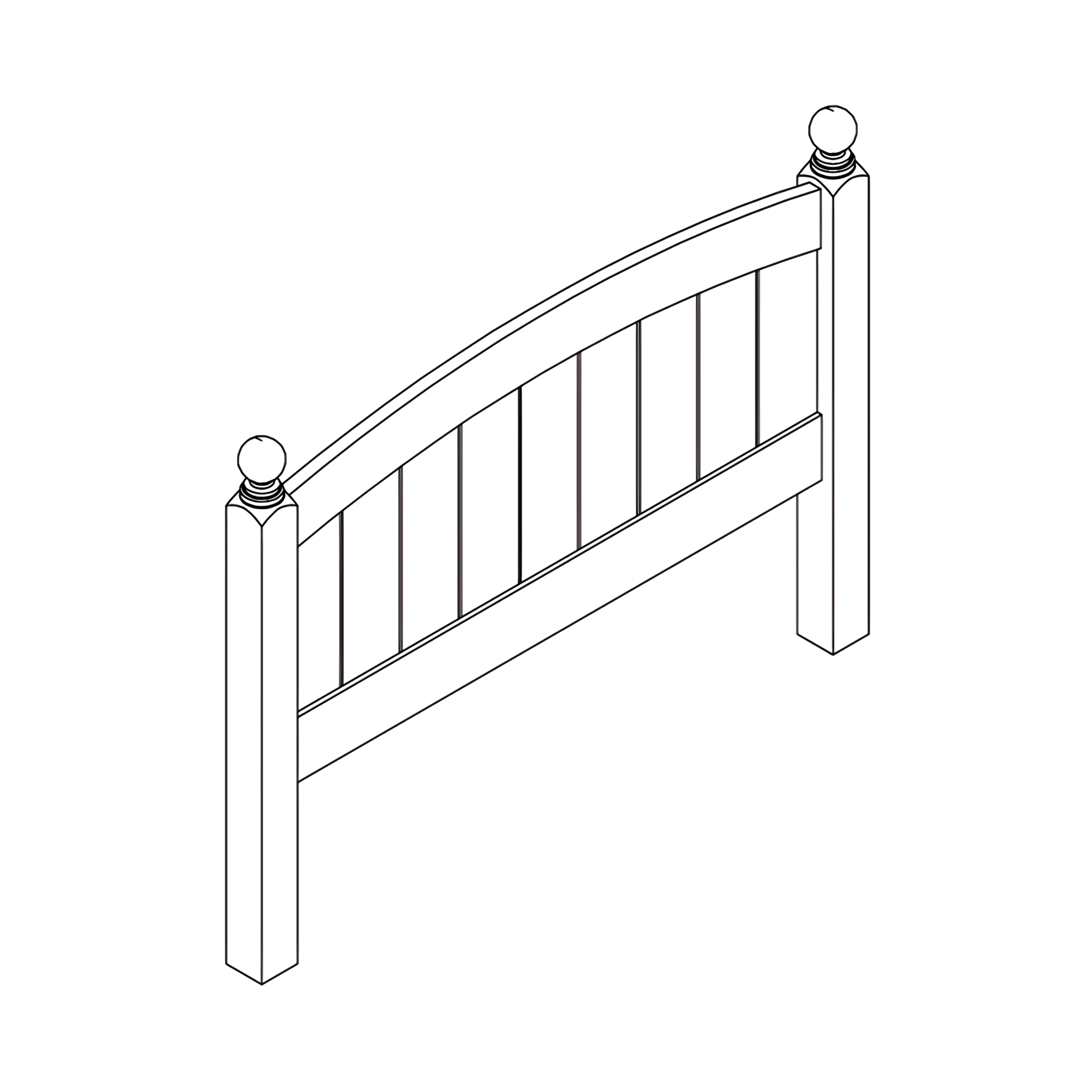

Footboard

Side Rails

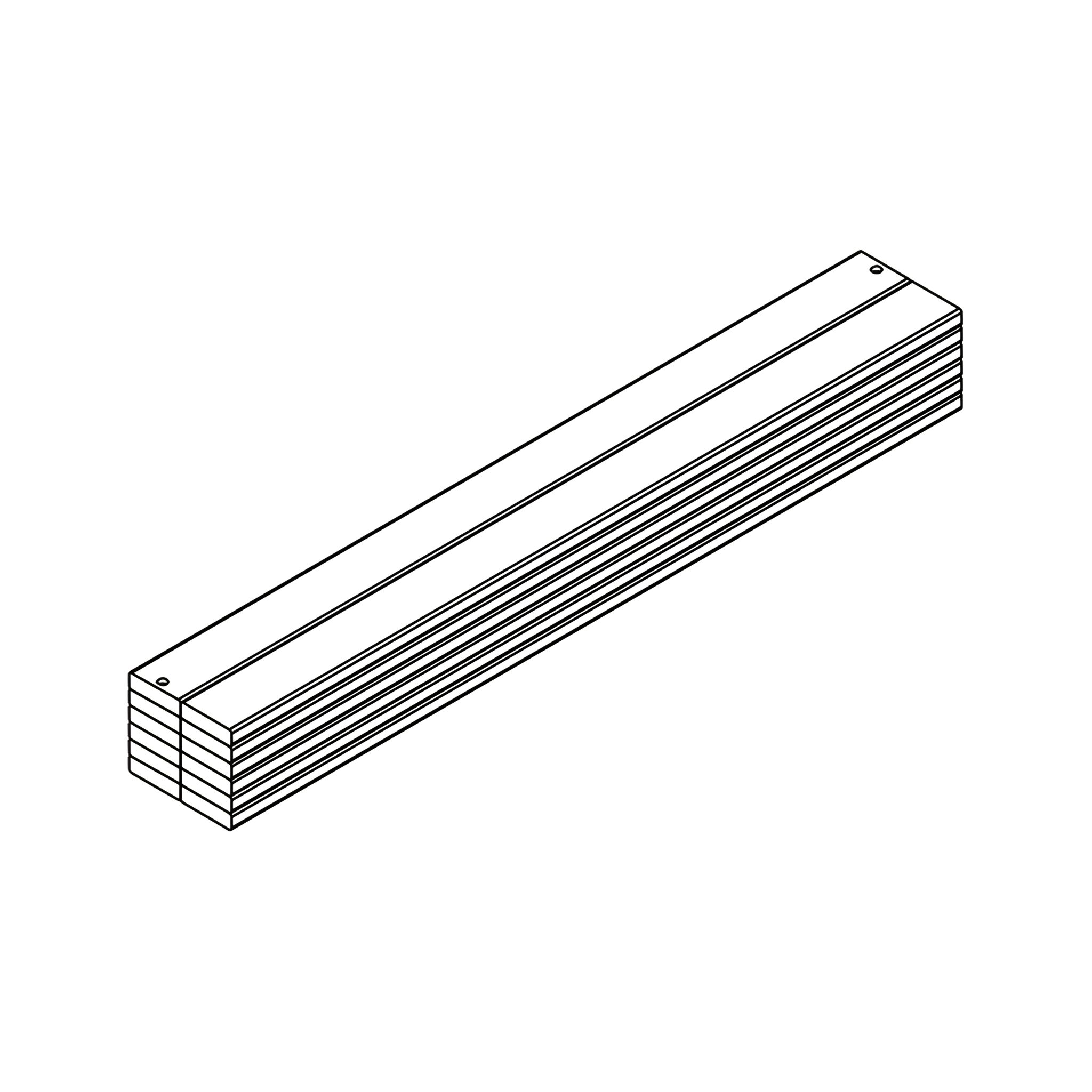

Wooden Slats for Bed

Front Panel for Underbed

Rear Panel for Underbed

Side Panel for Underbed

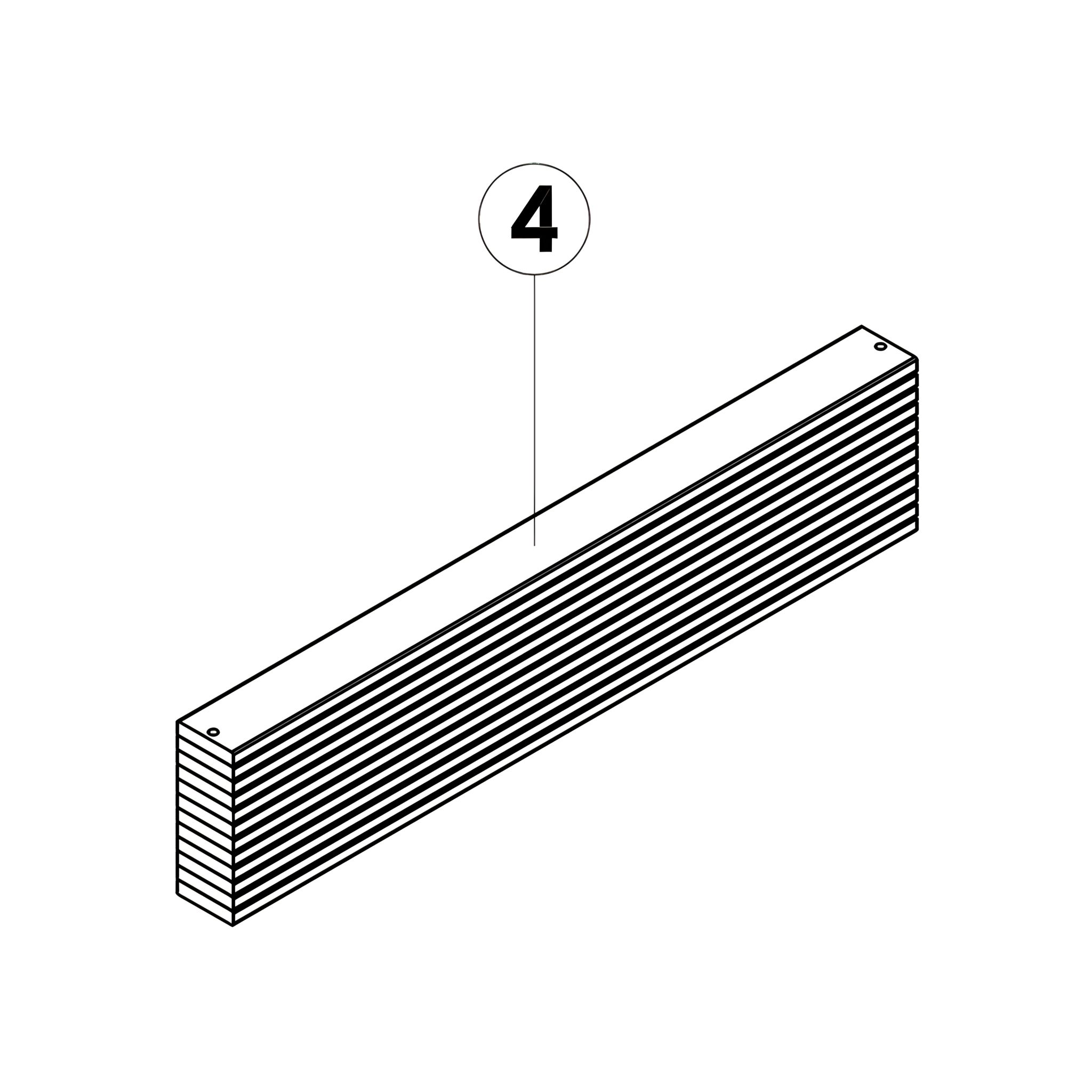

Wooden Slats for Underbed

1. Attach Side Rails to Headboard & Footboard

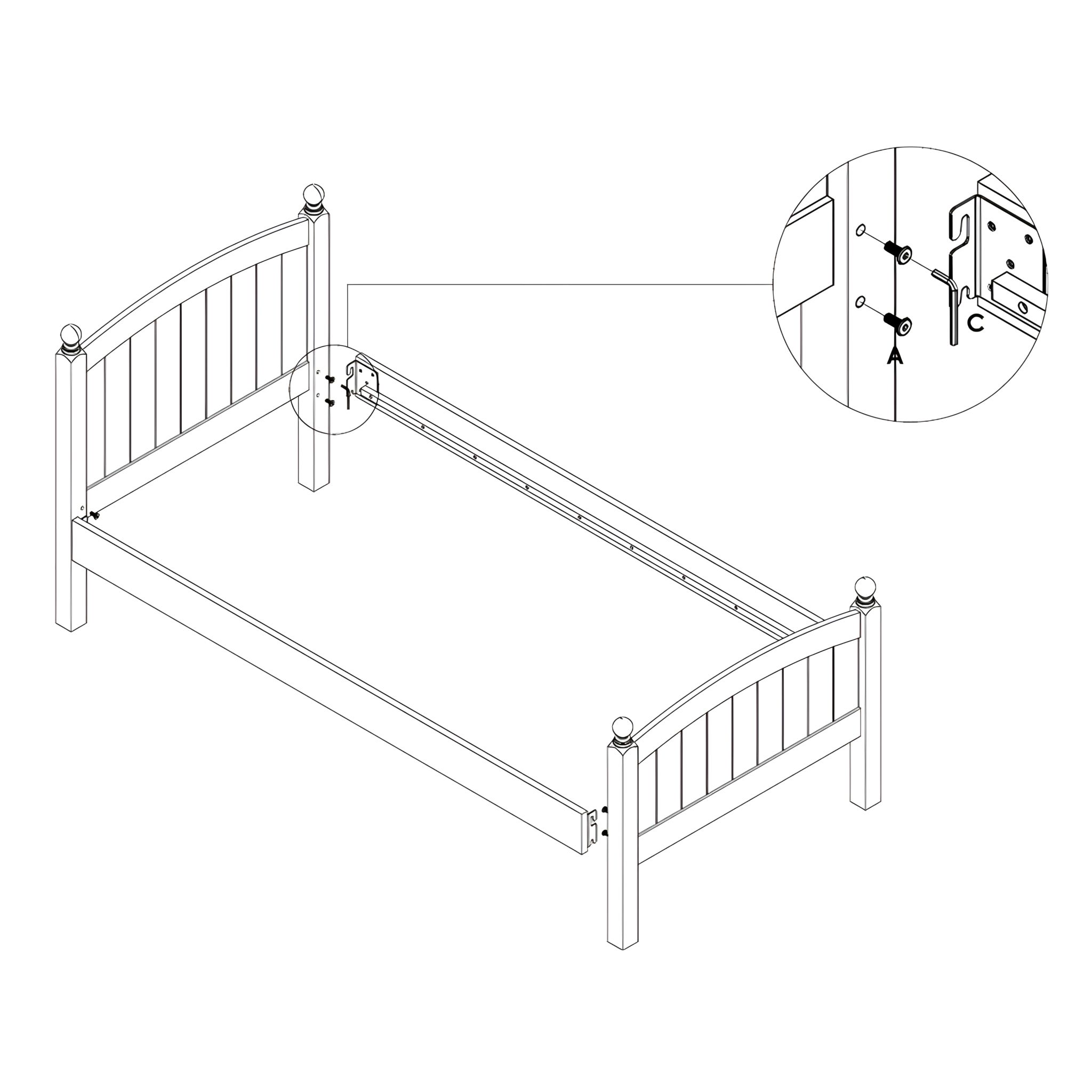

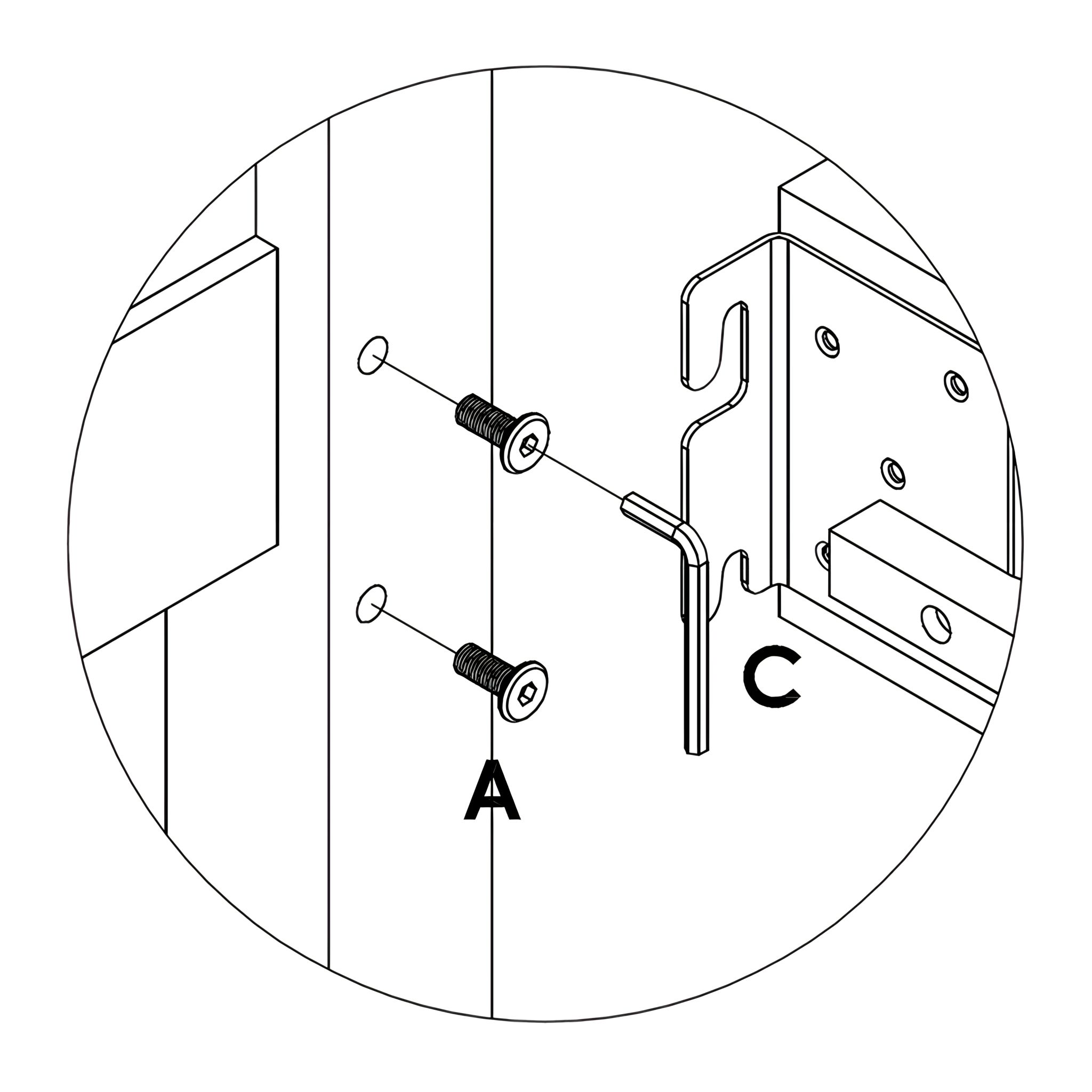

1. Insert JCBB Bolts (A) into the designated holes on the Headboard and Footboard, but DO NOT fully tighten them yet.
2. Align the Side Rails with the bolts and slot them into place.
3. Once the rails are properly positioned, use the Allen Key (C) to fully tighten the bolts.

2. Attach Wooden Slats

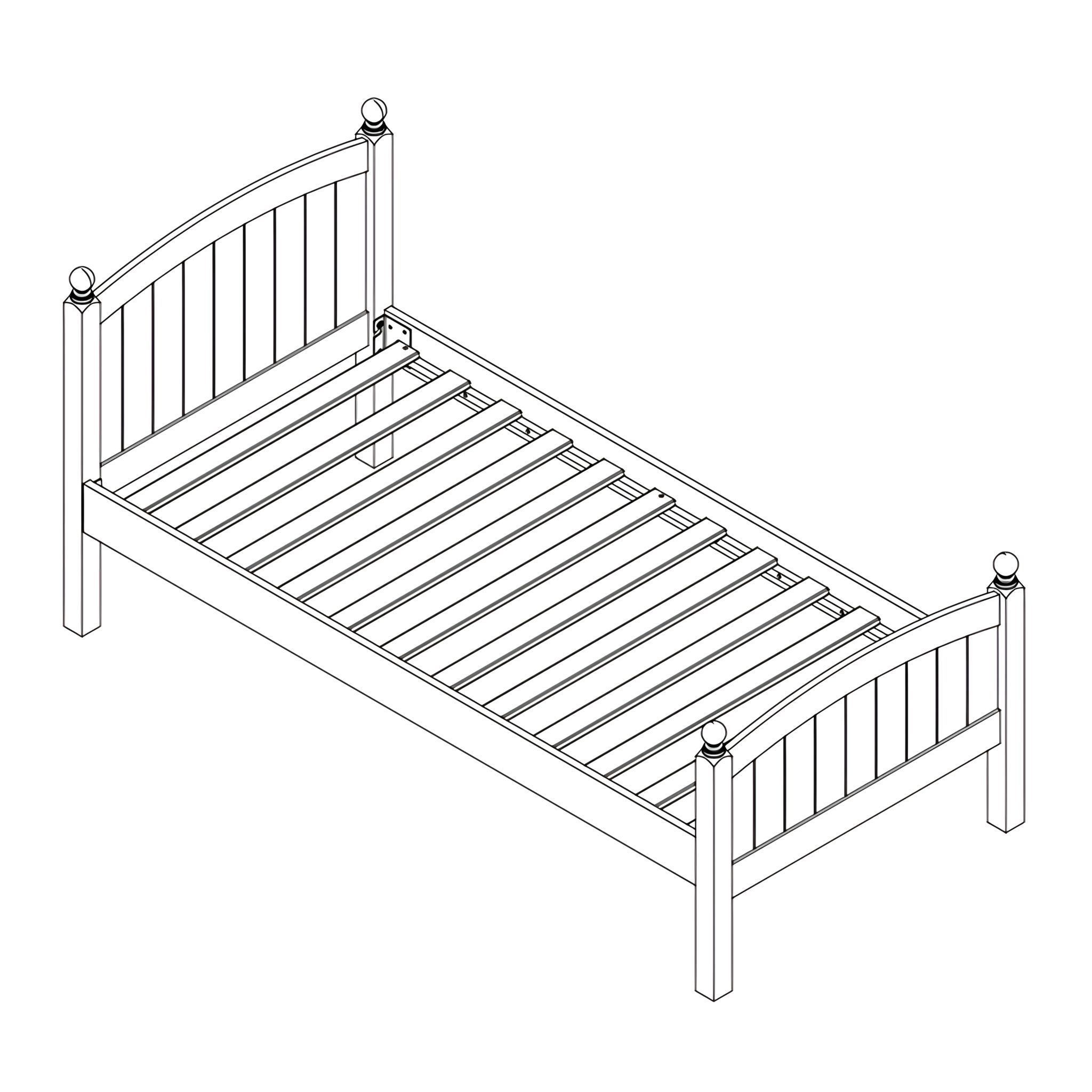

1. Lay out the Wooden Slats evenly across the bed frame, ensuring they align with the Side Rails.

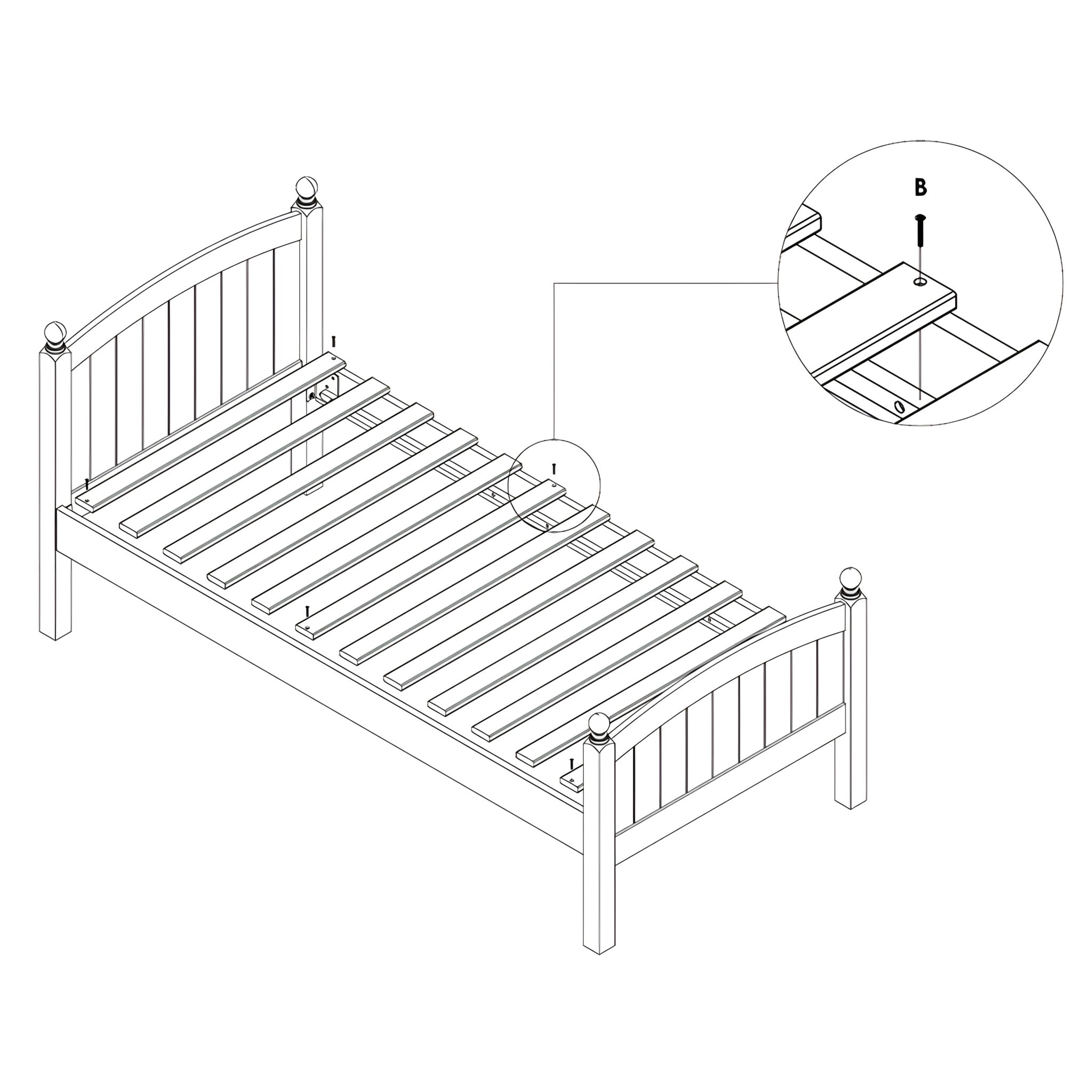

2. Using the CSK C/B Screws (B), fasten the six slats with pre-drilled holes to the side rails.
3. Use a Crosshead Screwdriver to tighten the screws, making sure the slats are firmly attached.

3. Assembling the Underbed Frame

1. Lay out side panels
2. Use the JCBC Bolts (M6 X 35MM) to connect the Front and Rear Panels to the Side Panels. Insert bolts into the pre-drilled holes.
3. Secure all bolts tightly with the Allen Key to ensure the frame is stable.

Check Stability: Give the frame a shake to ensure there's no wobble, adjusting if necessary.

4. Position and Secure Slats

1. Position the slats
2. Locate the two central wooden slats that will be secured first.
3. Using the JCBC W Screws (B), attach the center slats at their ends. Use the Allen Key (D) to drive the screws through the pre-drilled holes on the slats into the frame.

5. Attaching the Remaining Slats

1. Use the CSK C/B Screws (C) to attach the rest of the slats at both ends. Ensure each slat is aligned straight before securing.
2. Use the Crosshead Screw Driver to firmly tighten all screws, making sure each slat is securely fastened to withstand weight and use.

6. Final Check

1. Verify that all slats are securely fastened and evenly spaced.
2. Check for any loose connections and tighten the screws if necessary.
