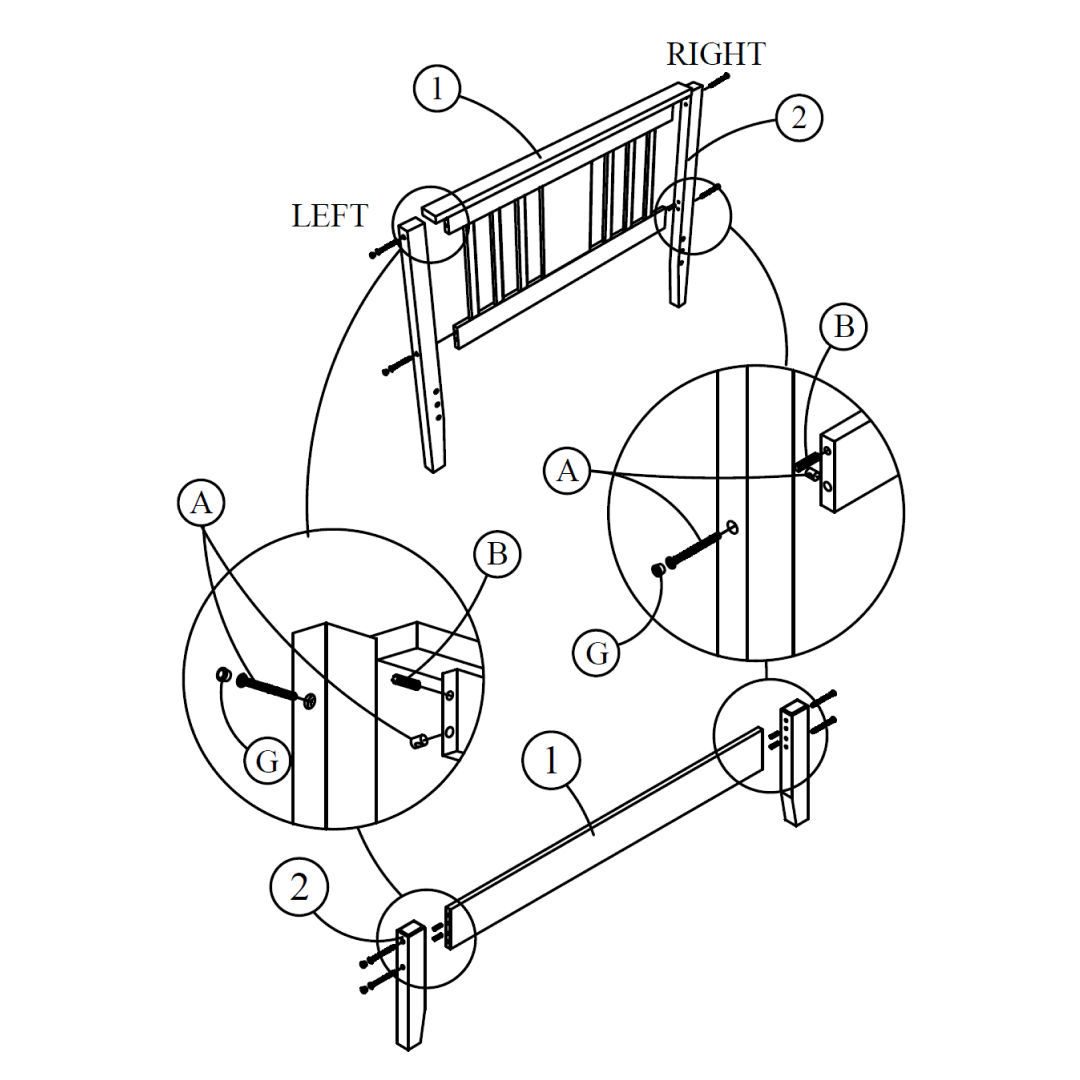

1. Attach Headboard and Footboard
Assemble the bed frame headboard and footboard component as shown and tighten all bolt.
Instructions by
time4sleep
Malmo Solo Wooden Bed Frame
Assembly instructions for Malmo Solo Wooden Bed Frame by Time4Sleep
Product Information
Malmo Solo Wooden Bed Frame
Perfect for both children and adults a like, the Malmo Oak bed is a versatile design that will work well in a range of different interiors. We believe that this bed is simply one of the best, value for money, bed frames on the market and we have added this new additional colour to the range.
The Malmo Oak bed is manufactured from rubber wood which has many of the properties of hardwood and is finished with an Oak stain.
View product (opens in new tab) - SKU
- malmooaksolo-1, malmowhitesolo-1
| Single | |
| Width | 101 cm |
| Length | 200 cm |
| Head End Height | 105 cm |
| Foot End Height | 37 cm |
Tools

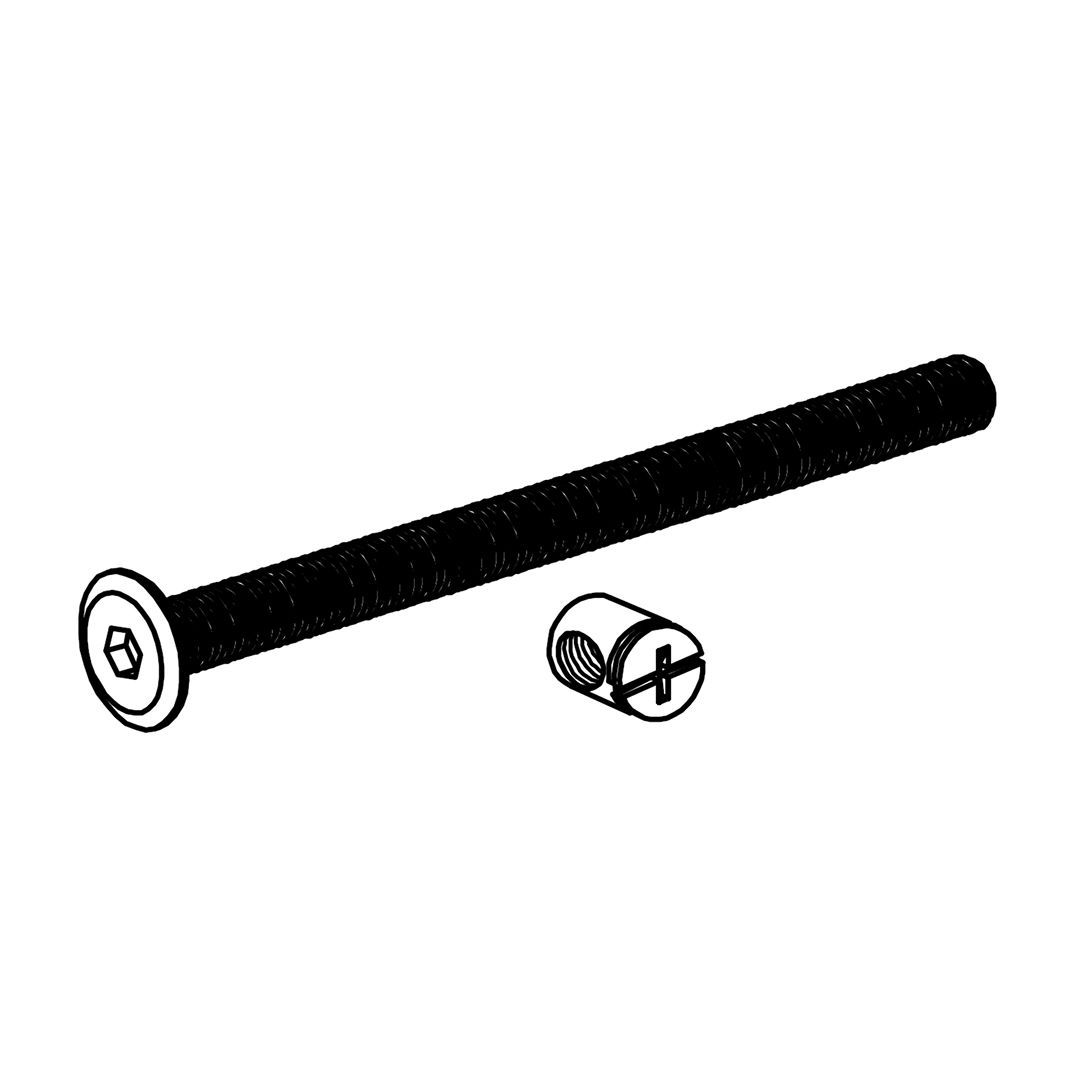

A - M6x90mm c/w Barrel Nut

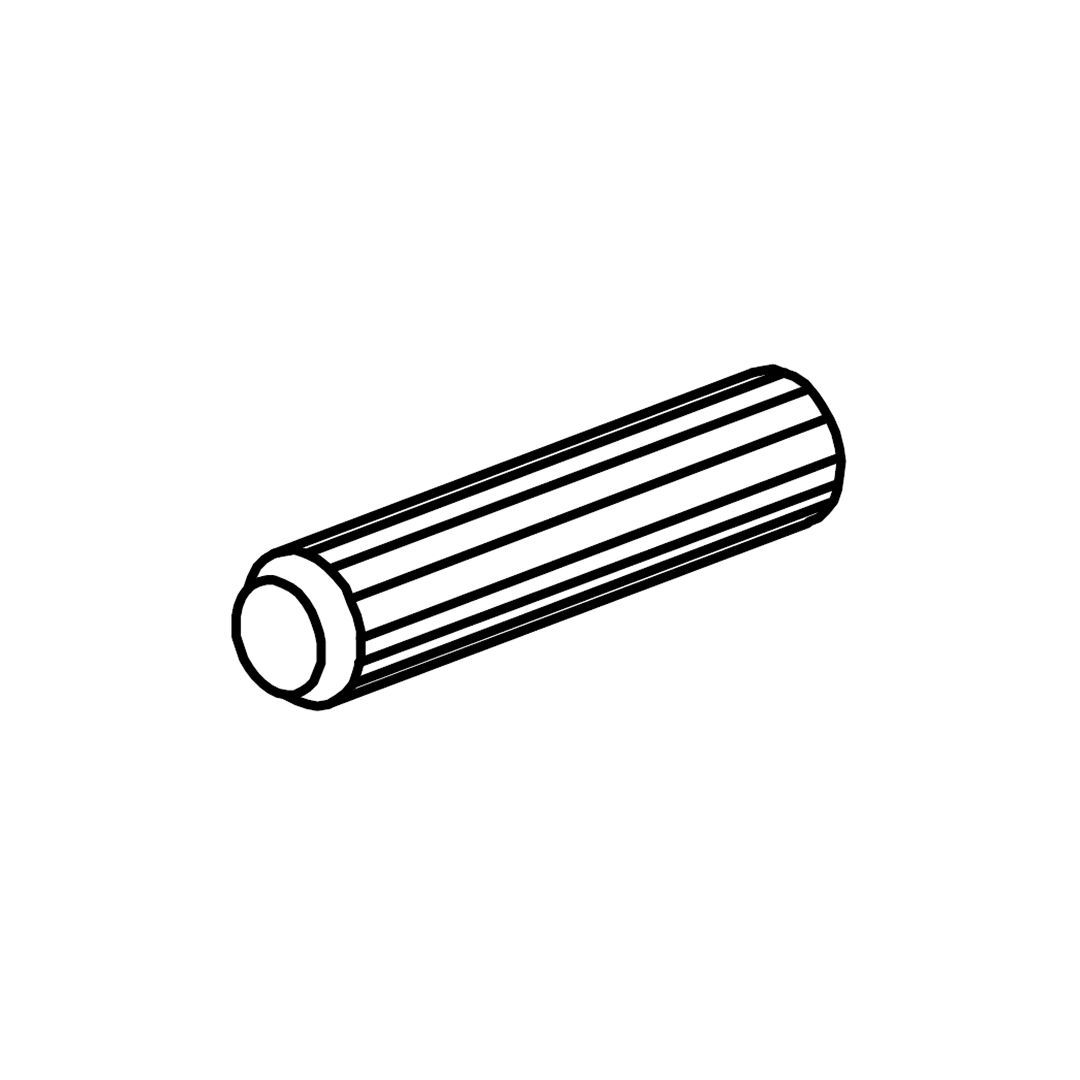

B - Wood Dowel

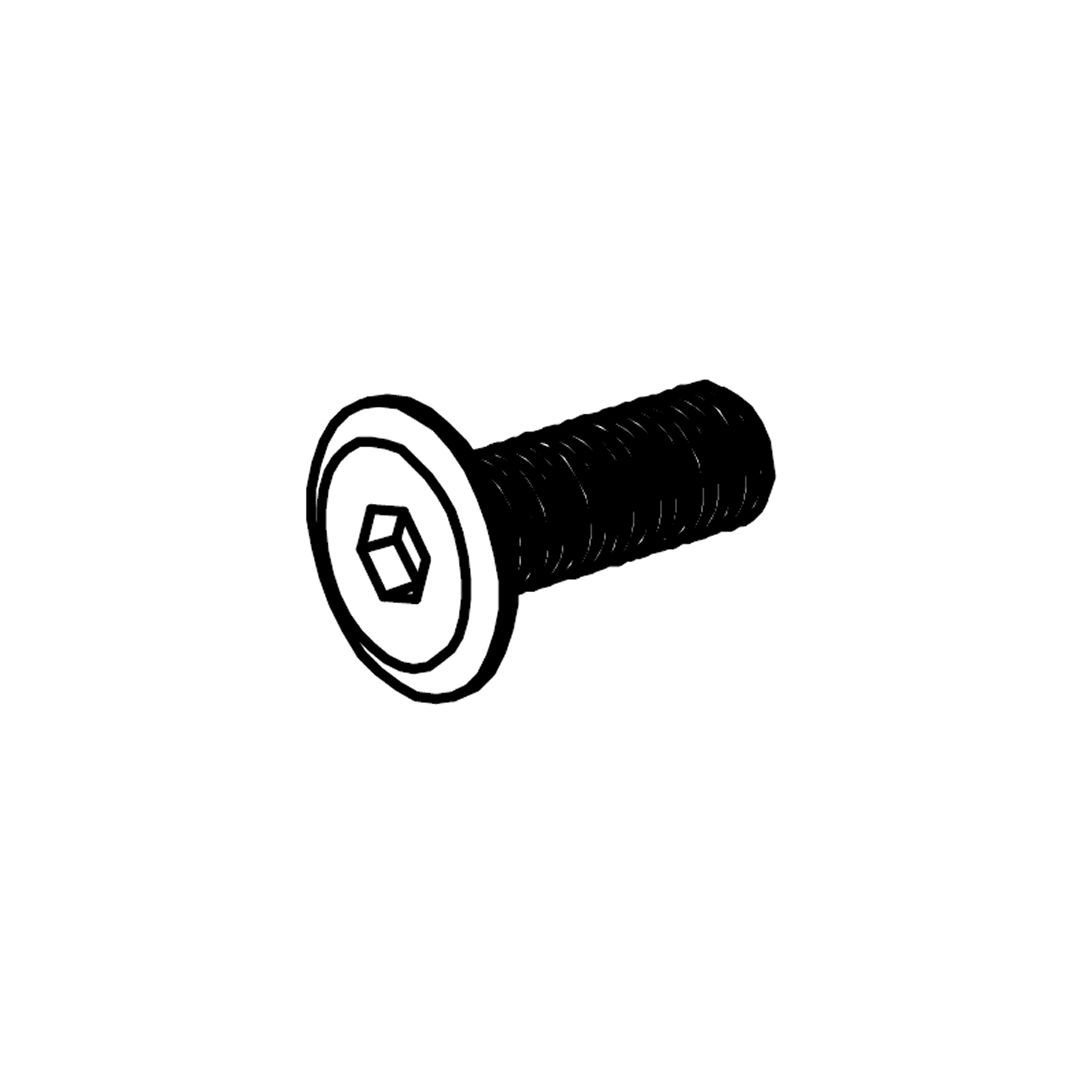

C - M8x25mm

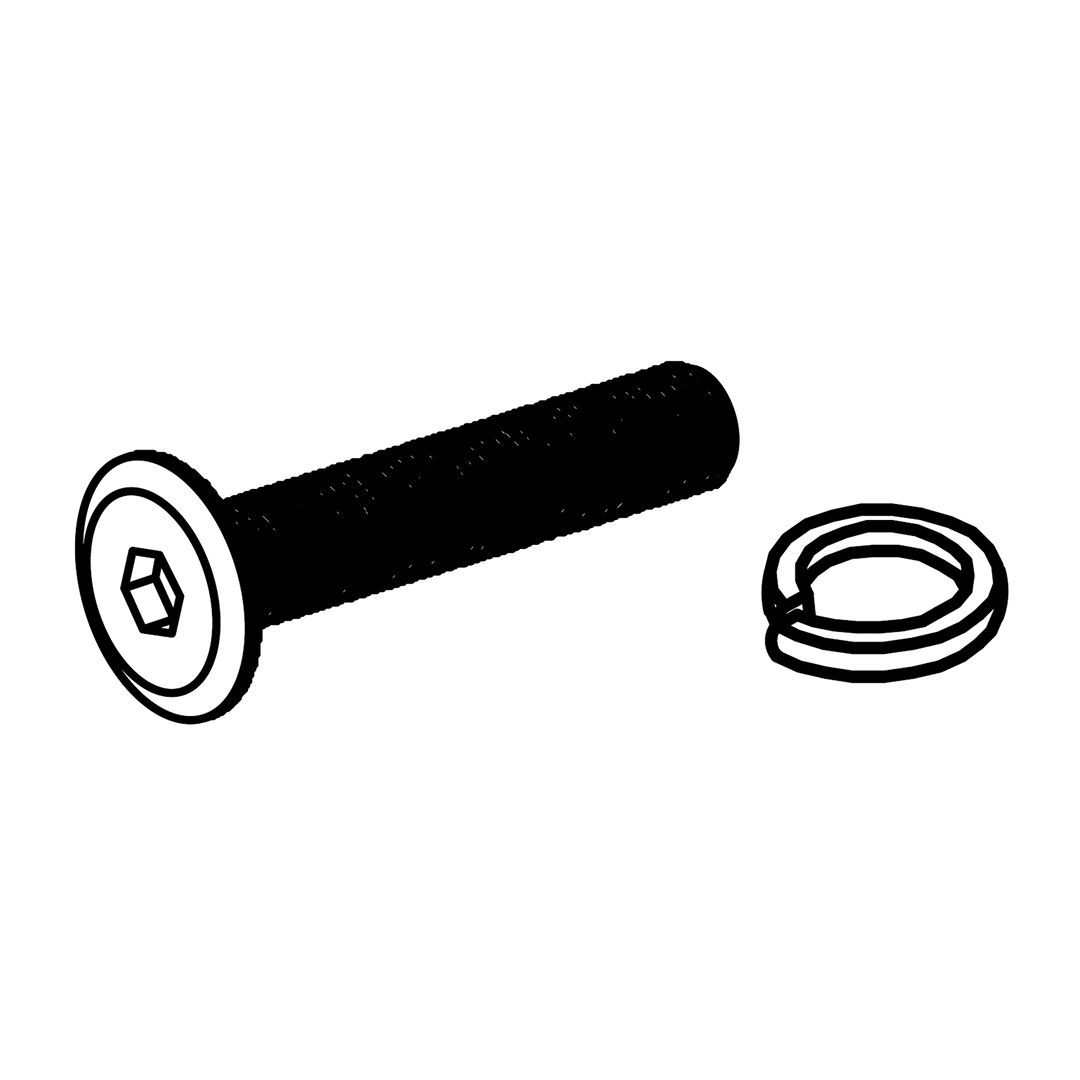

D - M6x30mm and Spring Washer

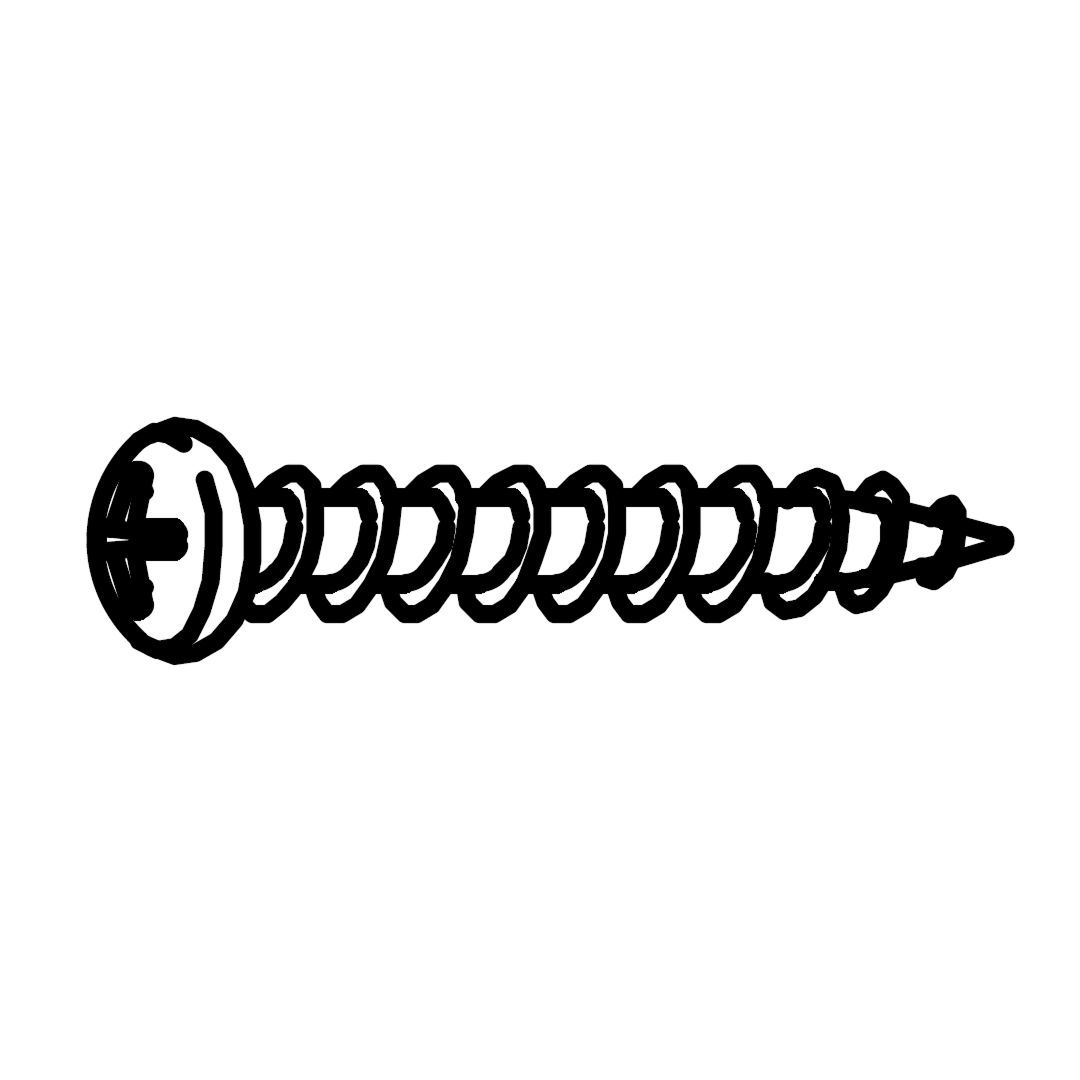

E - Pan Head Screw M4x32MM

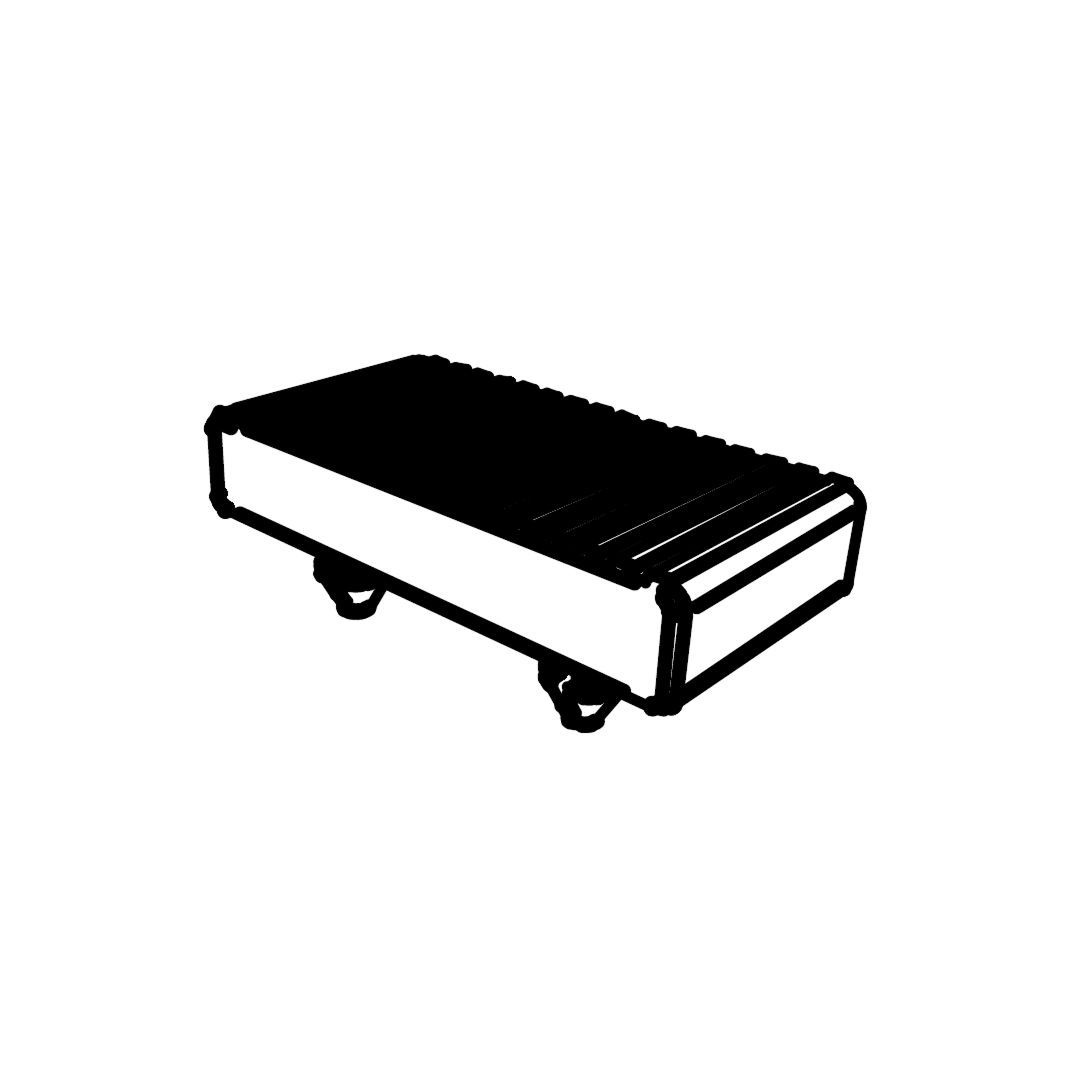

F - Single end plastic cap

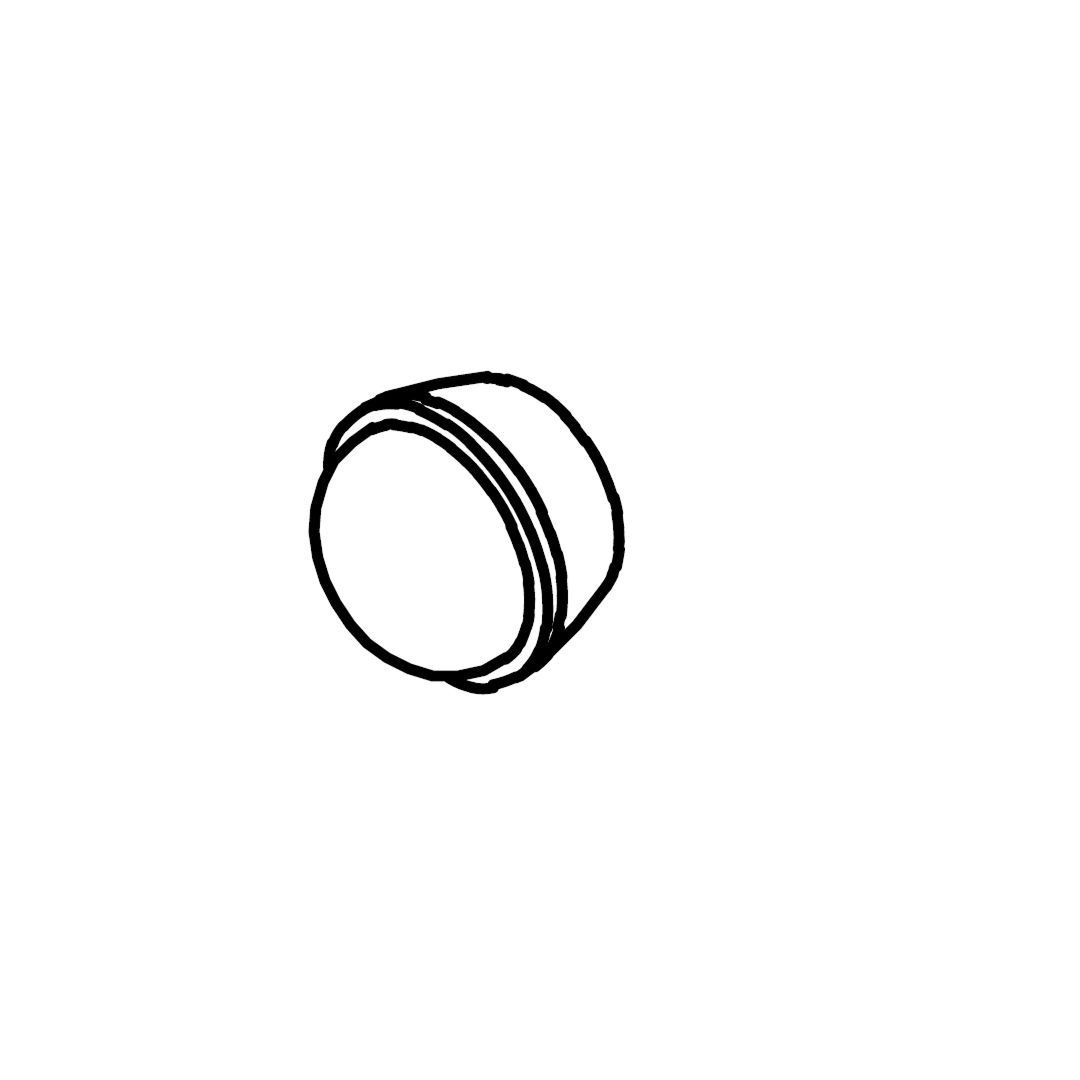

G - Wood Button

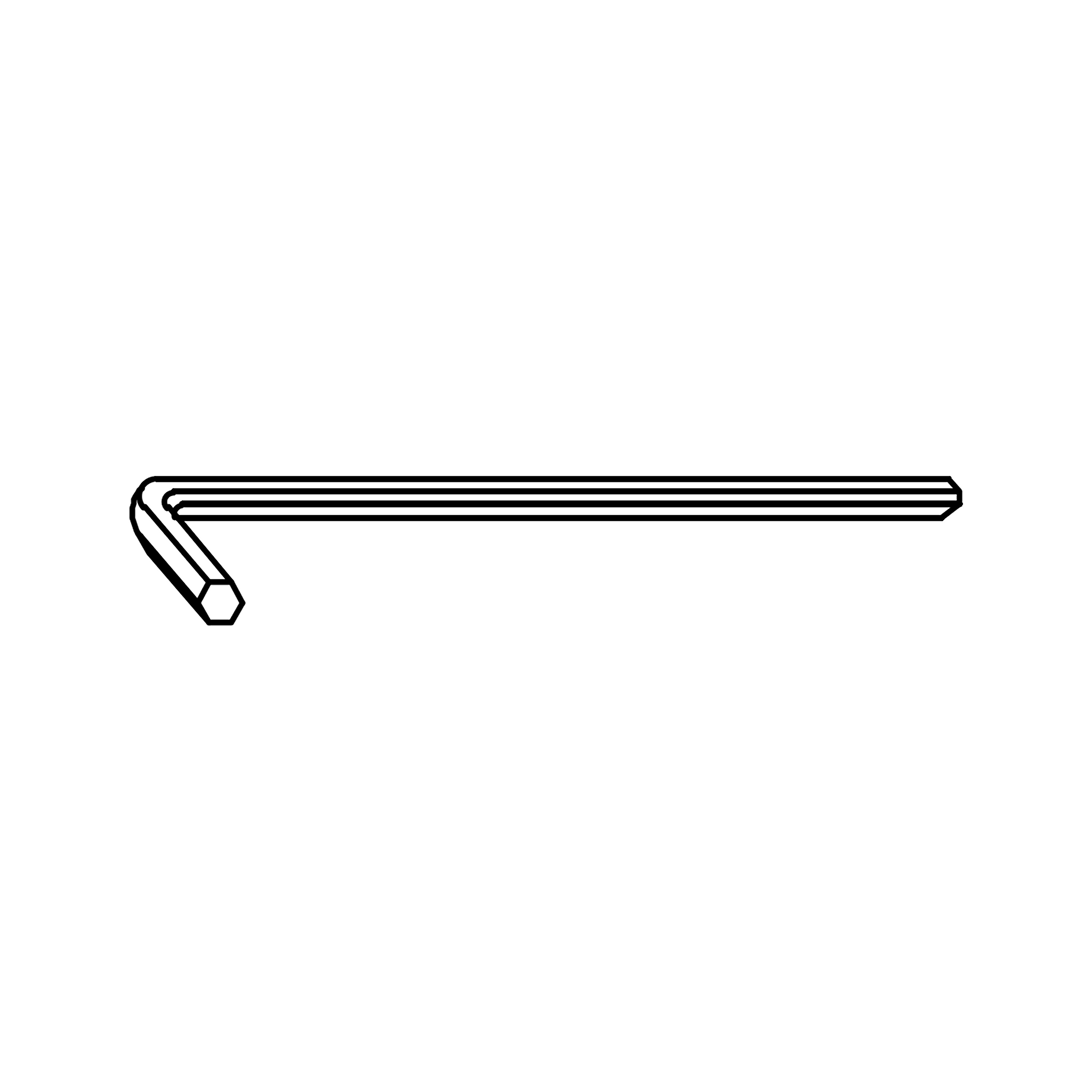

H - M4 Allen Key
I - M5 Allen Key
Parts

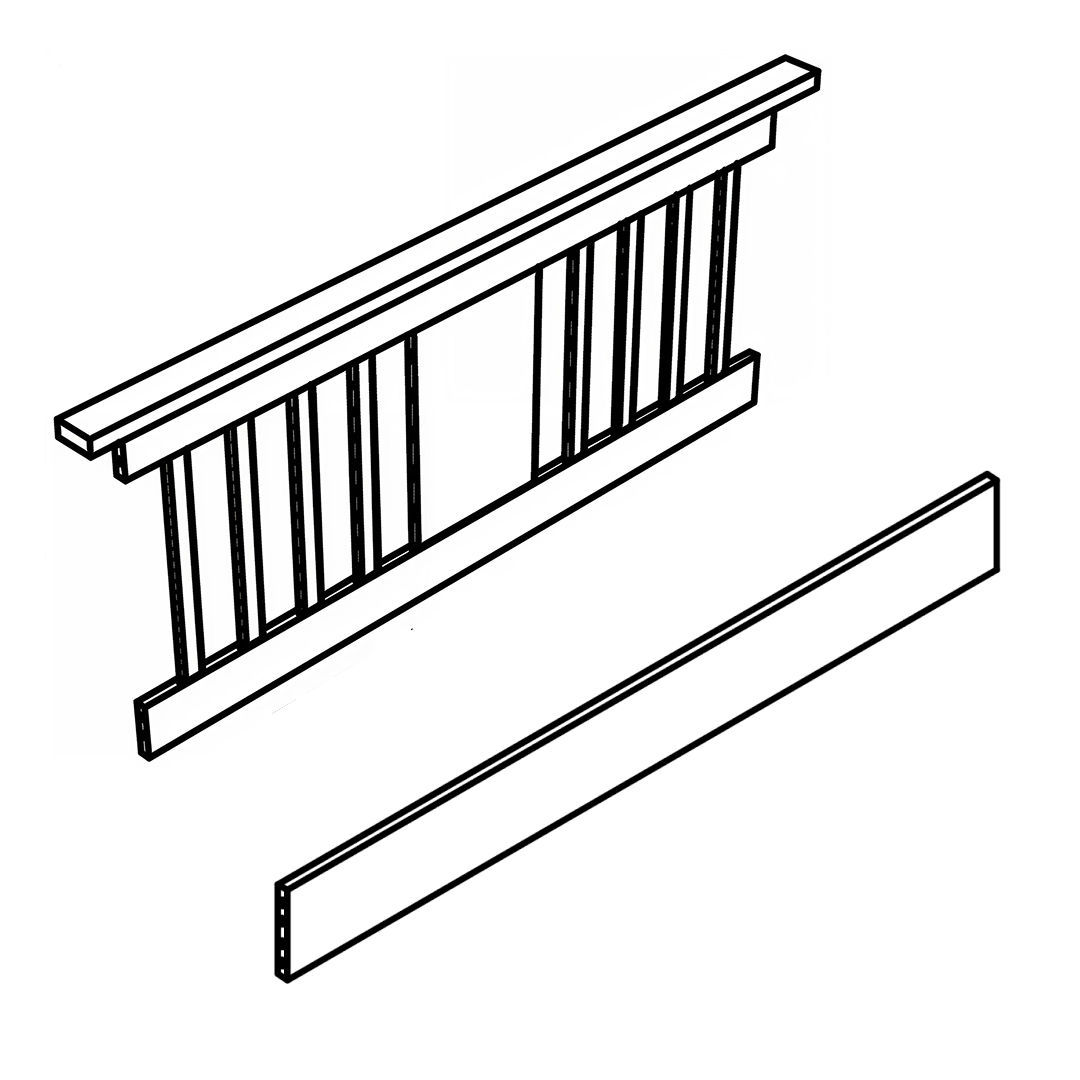

1 - Headframe and Footboard

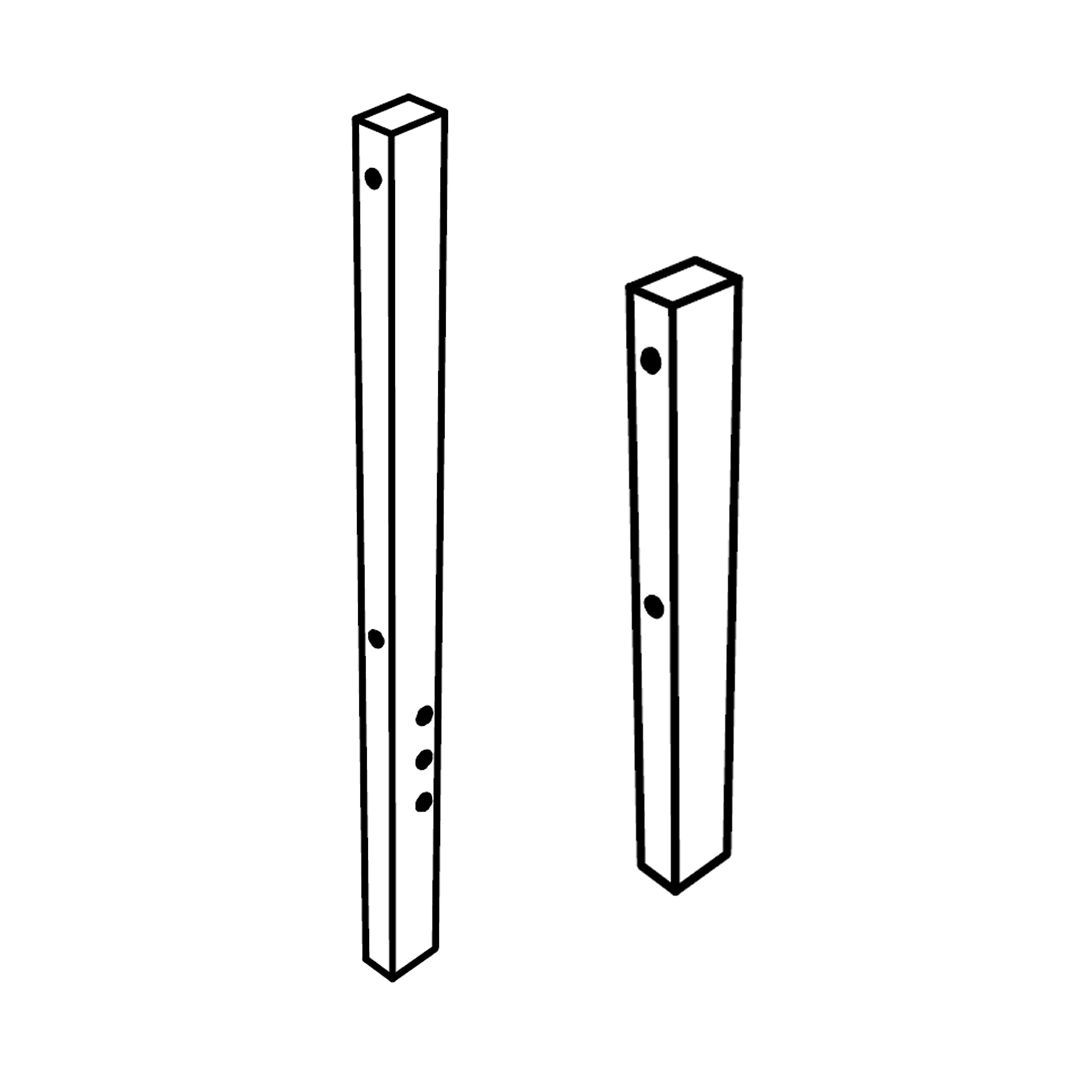

2 - Head Post and Foot Post (L/R)

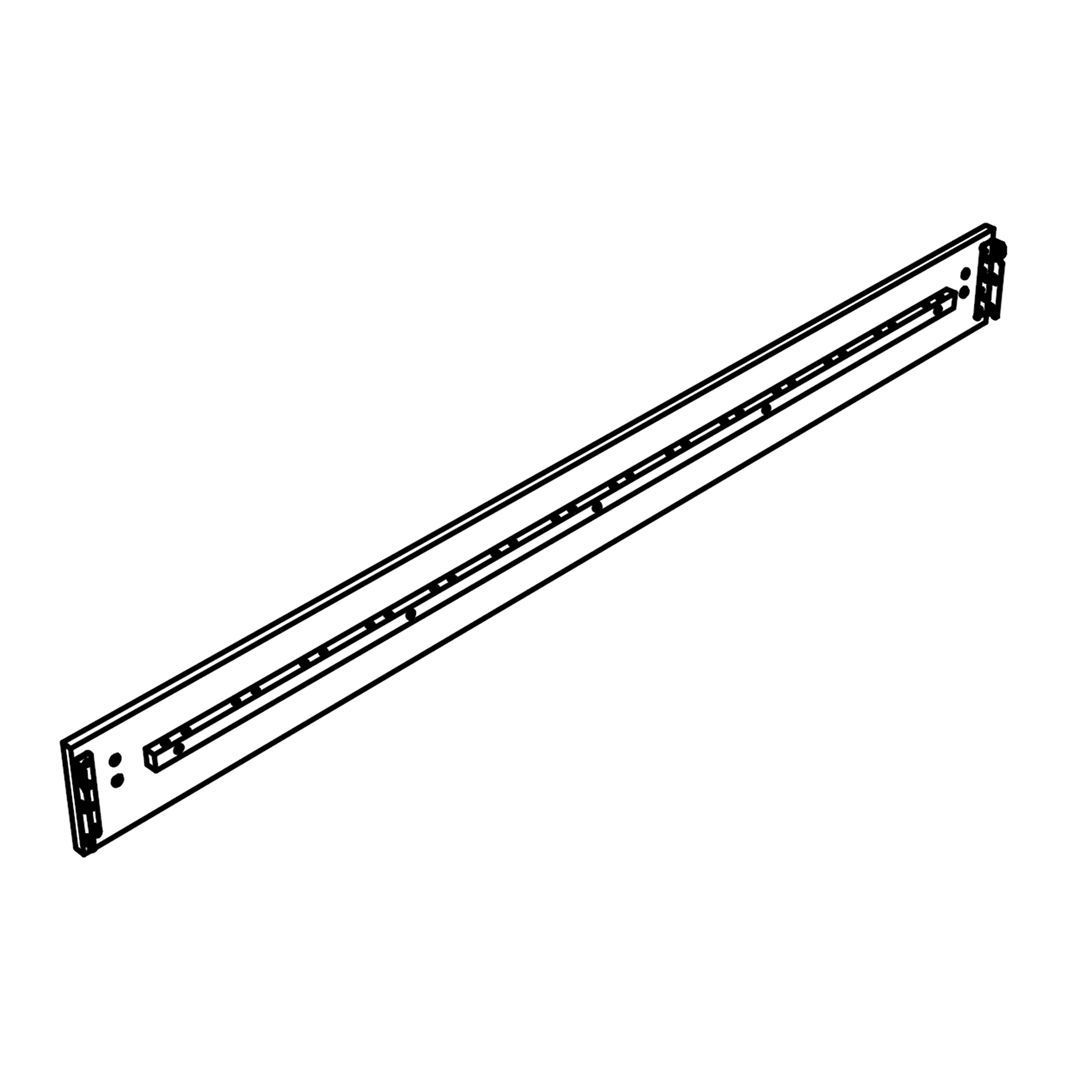

3 - Side Rail (L/R)

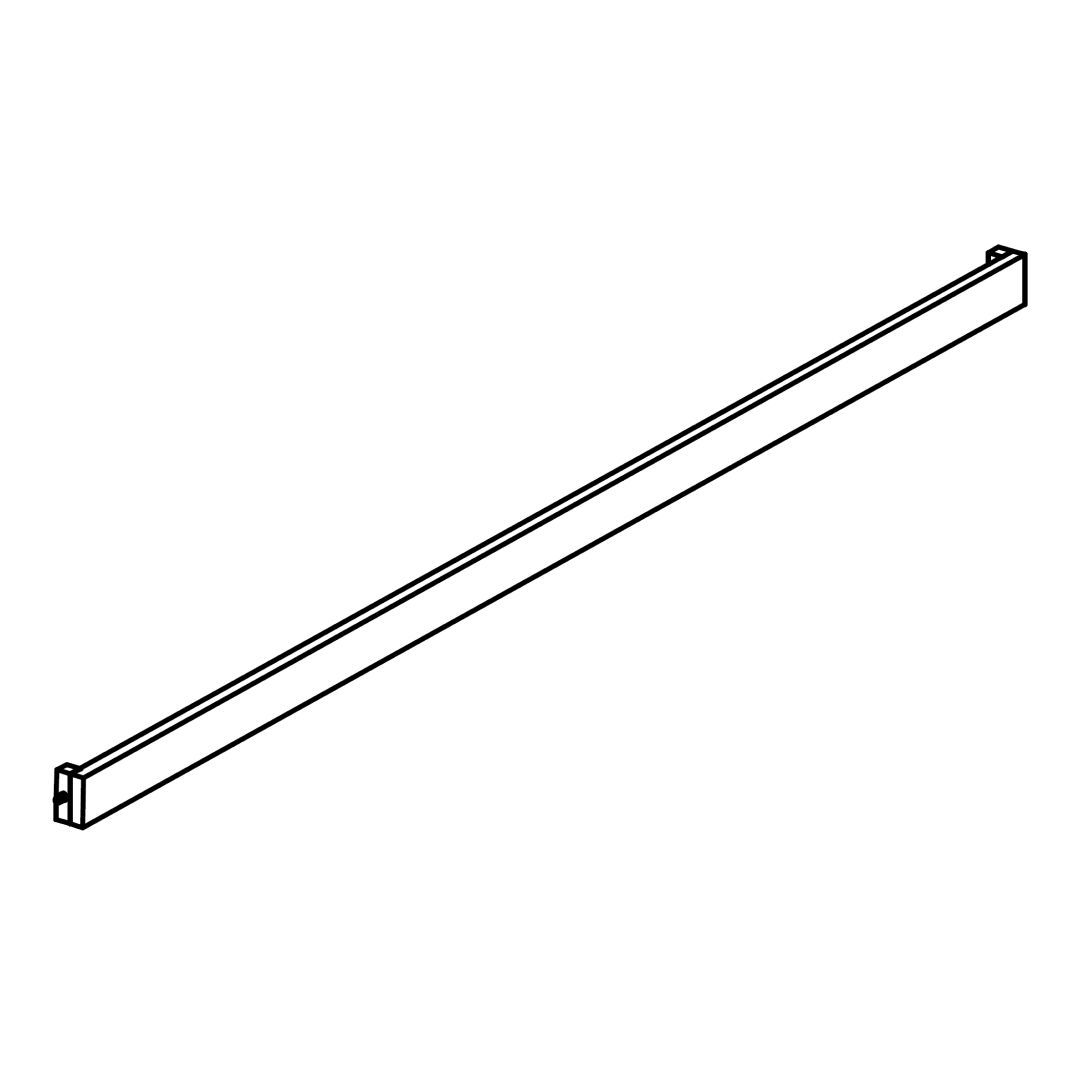

4 - Center Bar

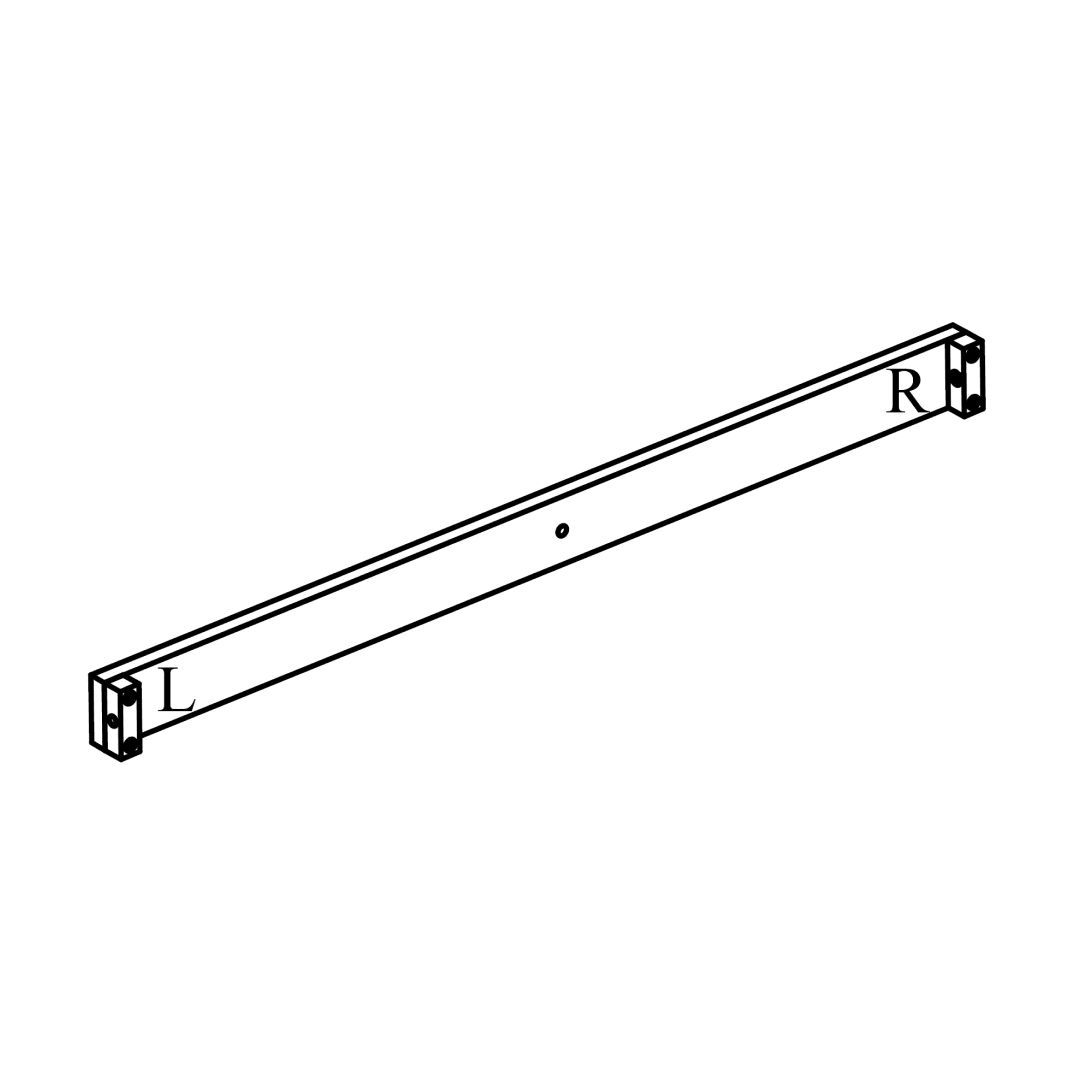

5 - Cross Bar

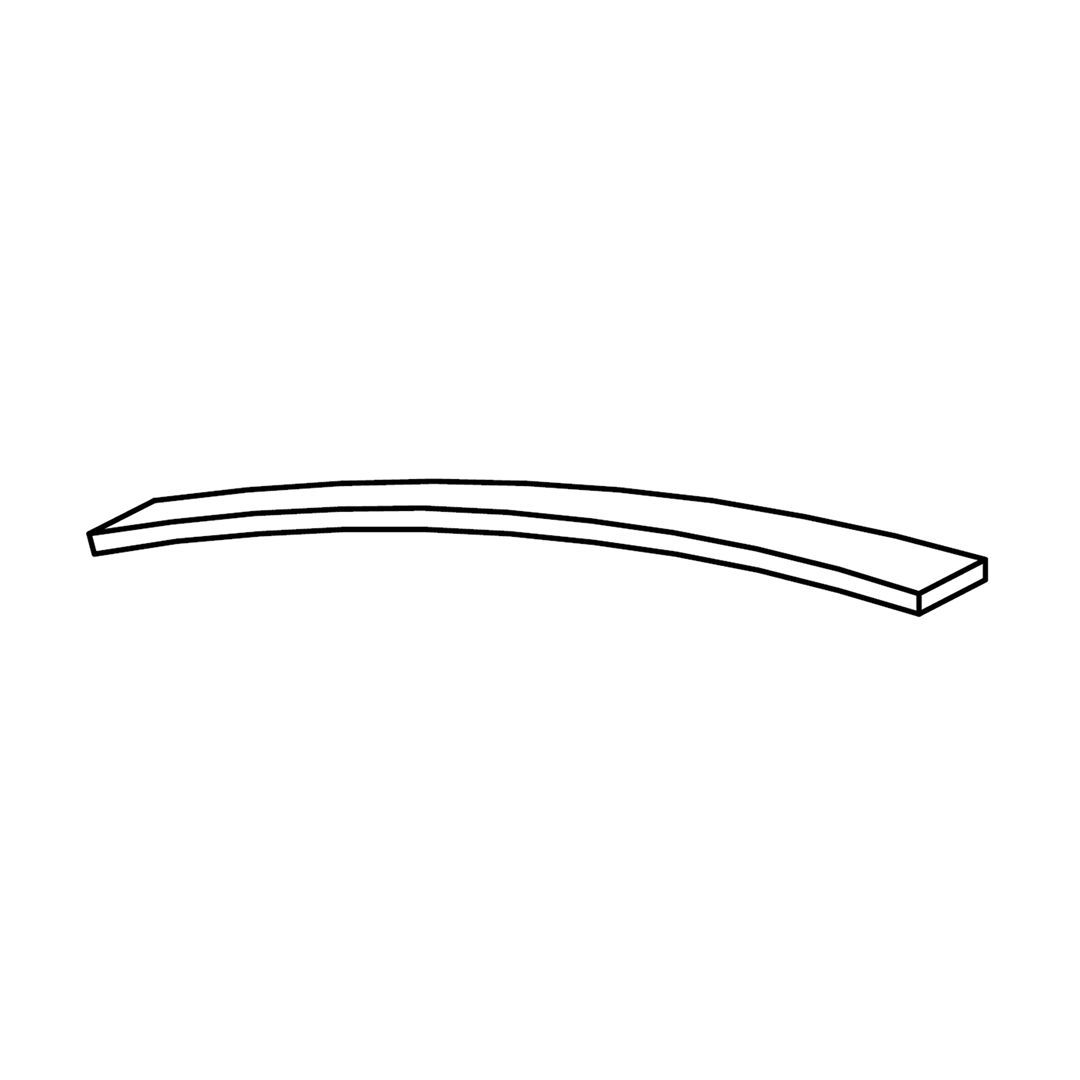

6 - Wood Slat

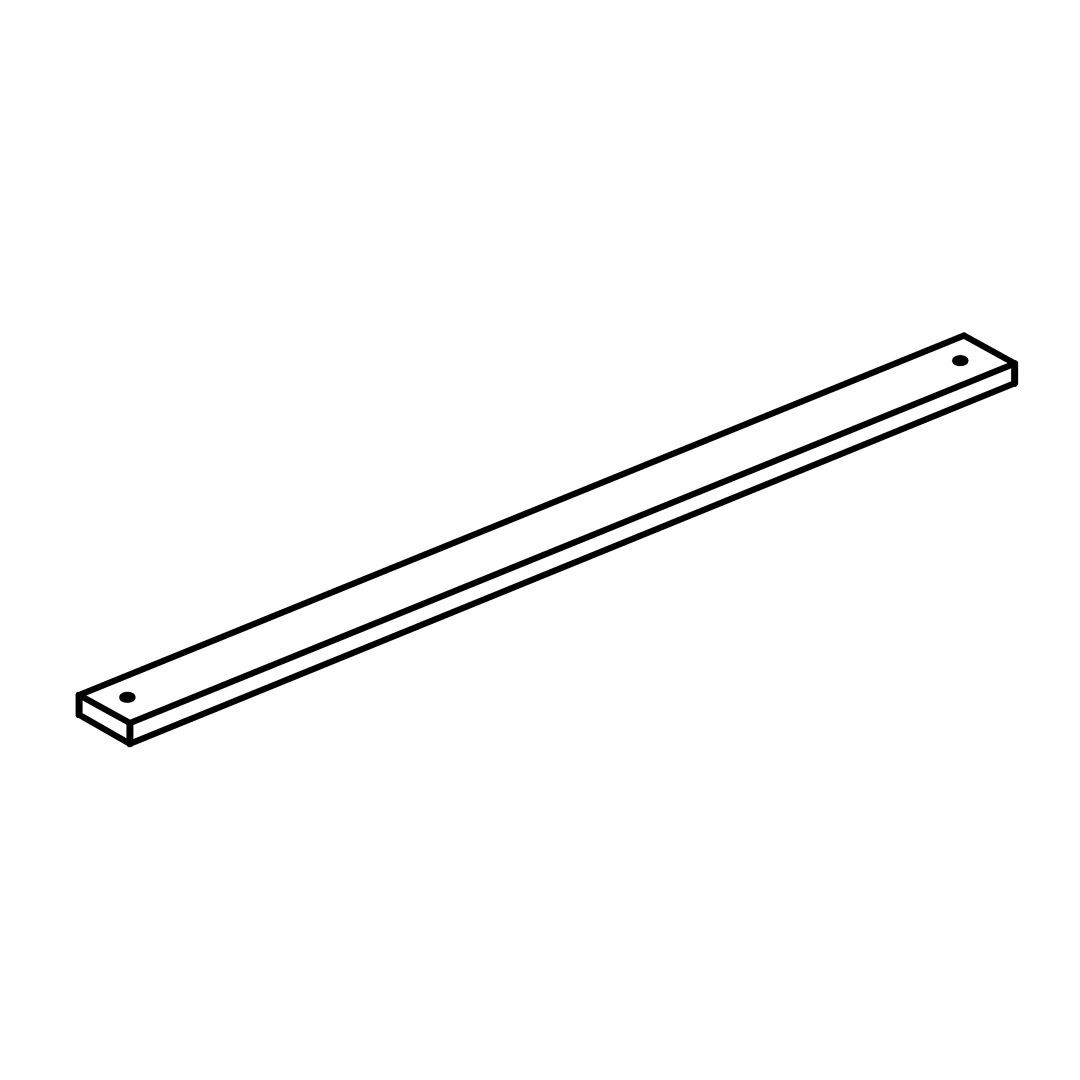

7 - Center Slat Support

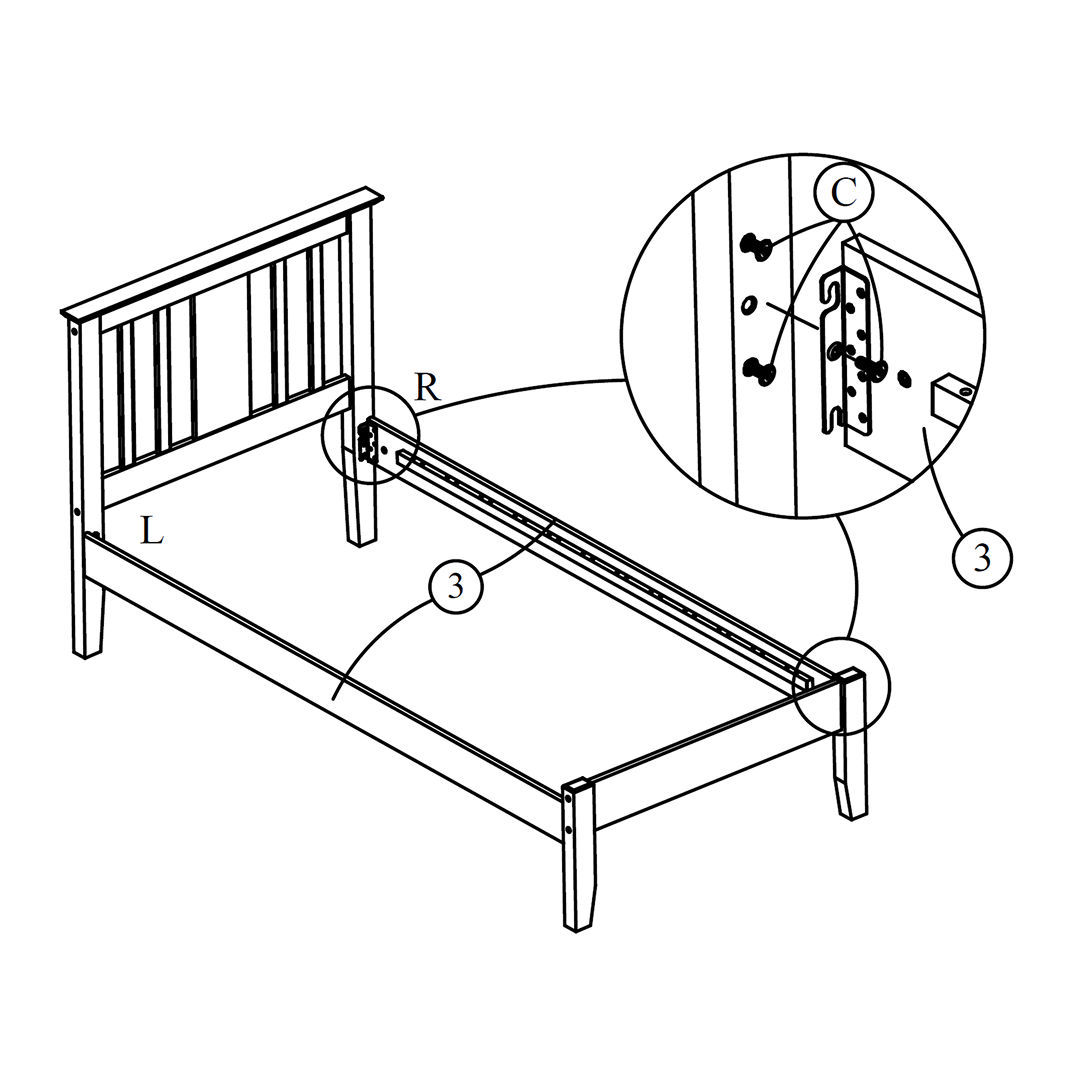

2. Attach Side Rails
Hook the side rail L & R to bolt as shown and don't tighten the bolt yet.

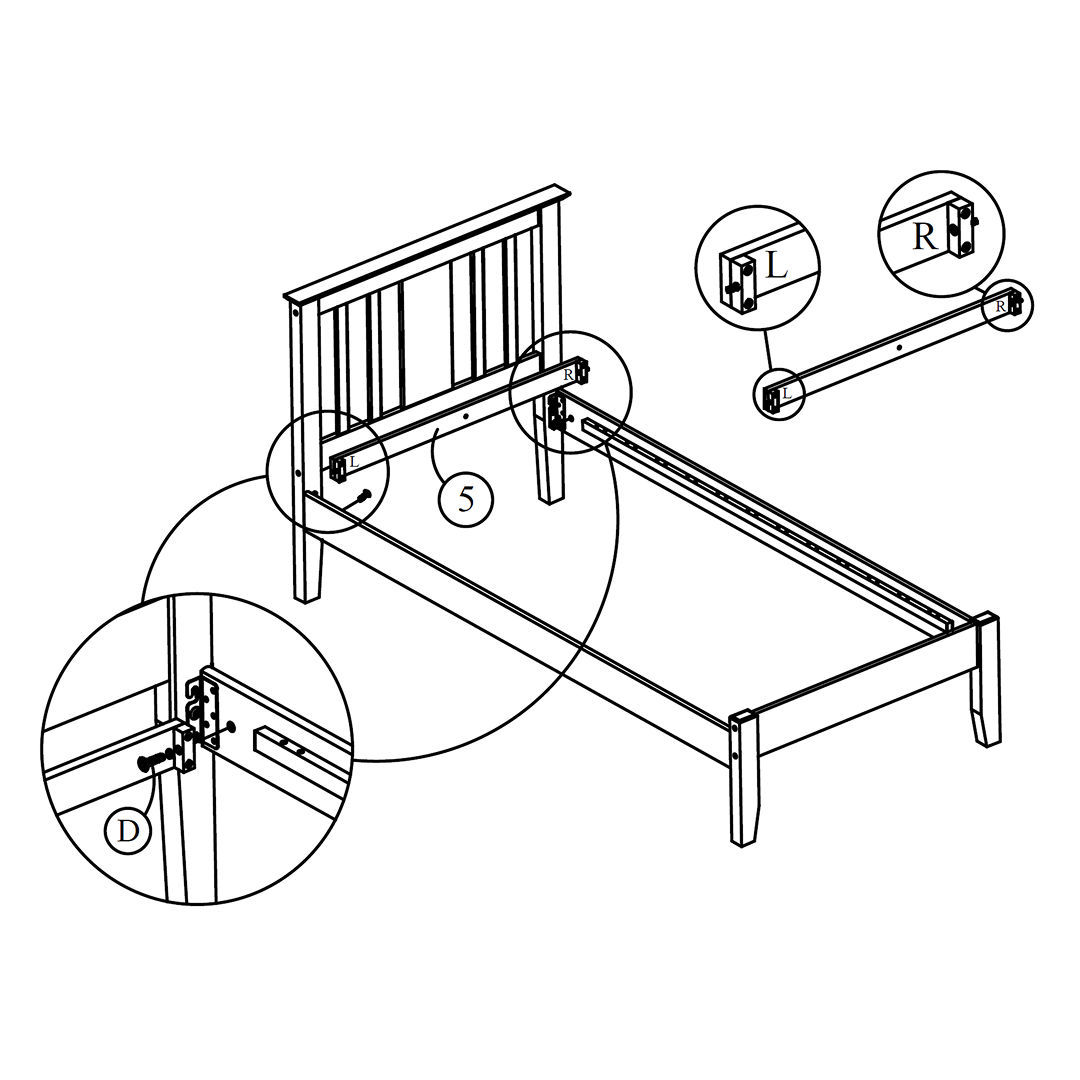

3. Install Cross Bar
Put in cross bars '5' and fix in bolt 'D' as shown in diagram and tighten all bolts.

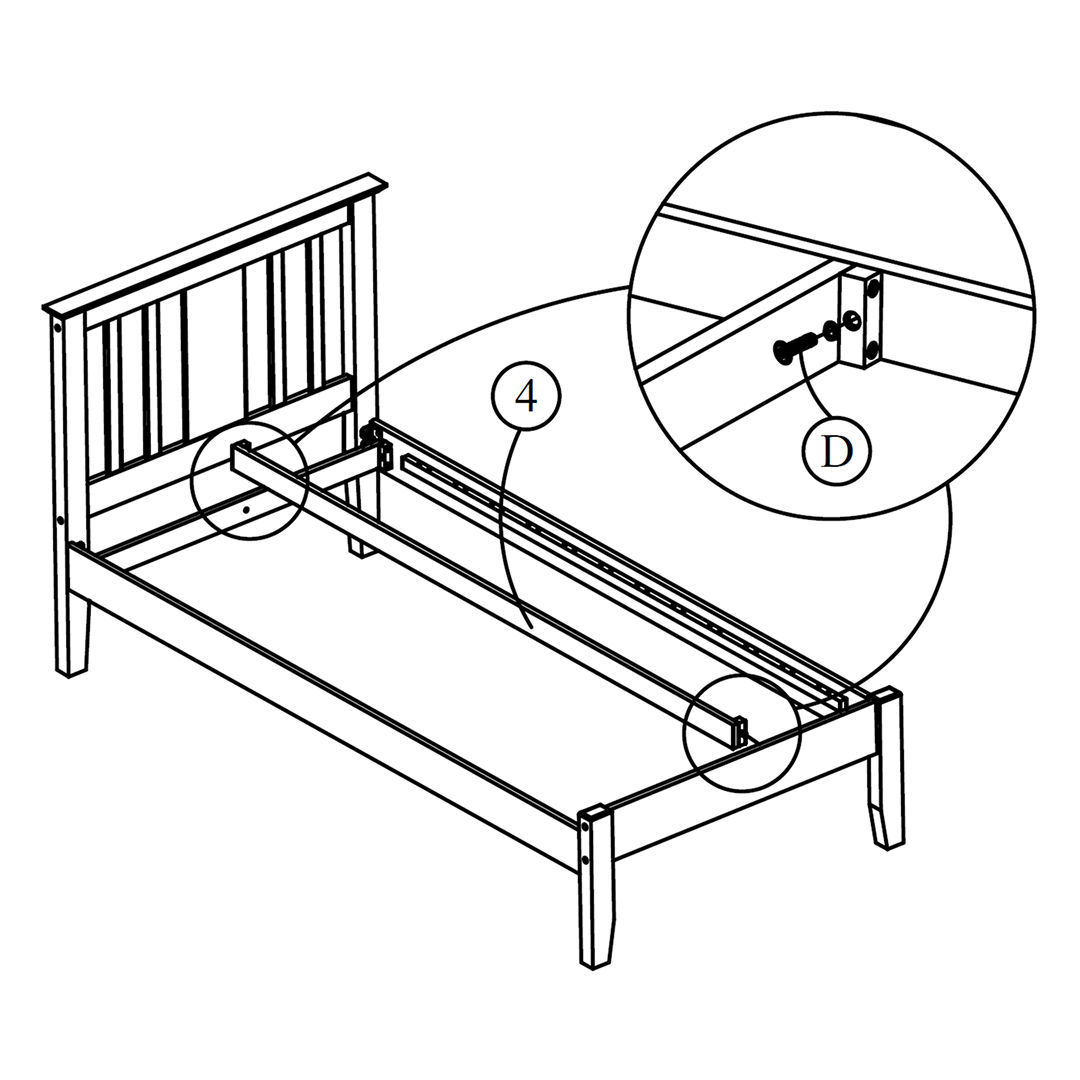

4. Attach Centre Bar
Fix center bar '4' to cross bar '5' by follow like diagram as shown.

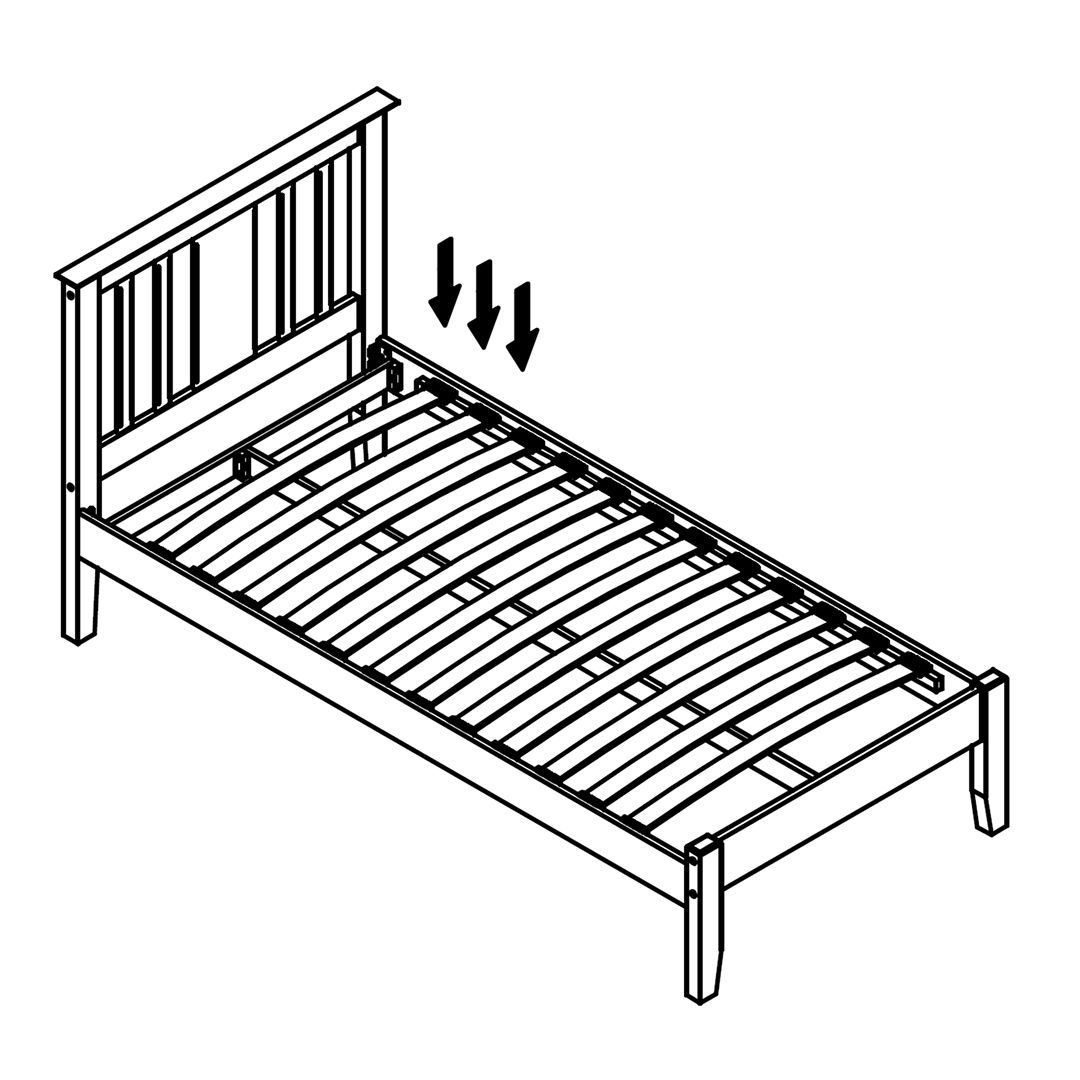

5. Install the Slats

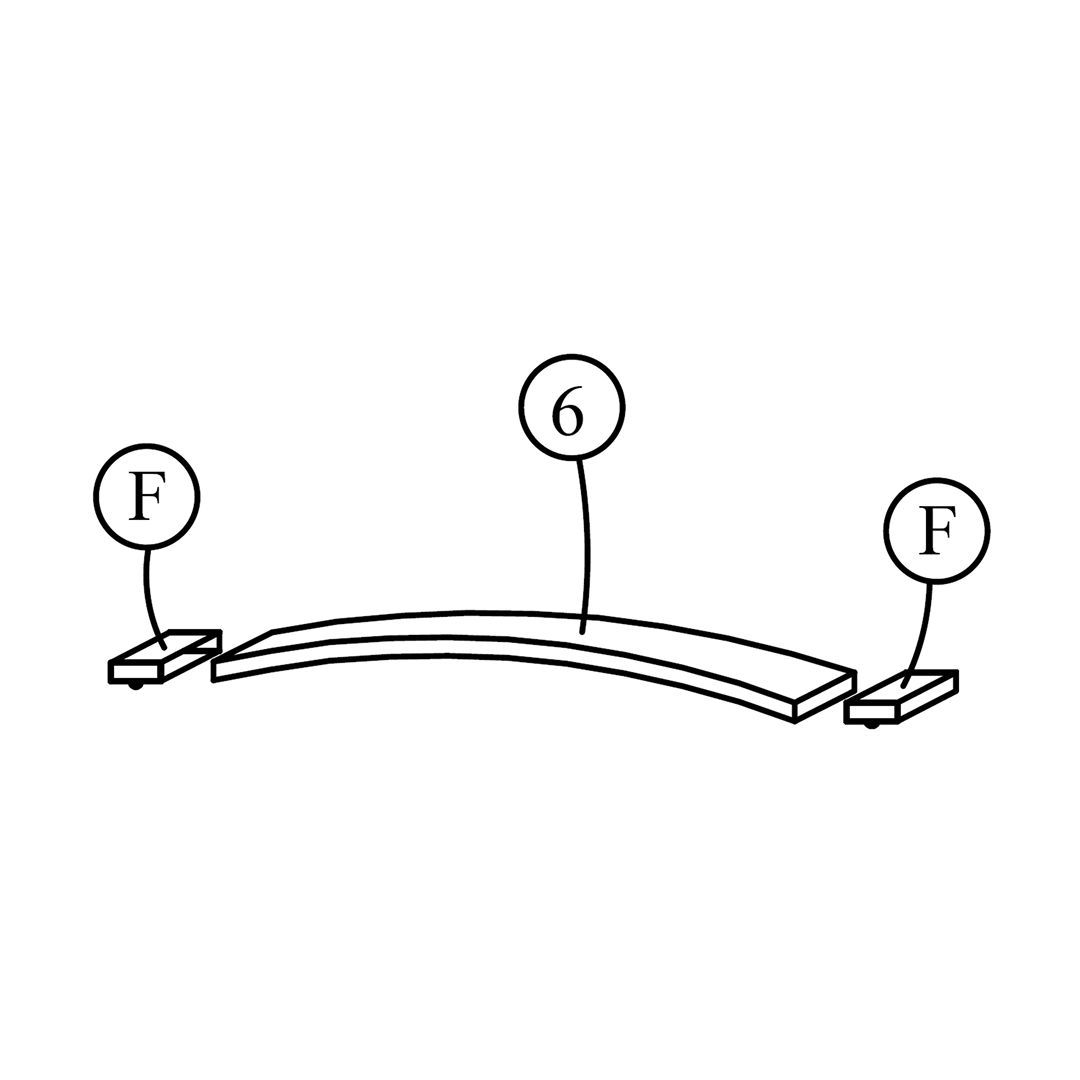

Each wood slat must be inserted with a single end plastic cap and a double end plastic cap as shown on the picture.

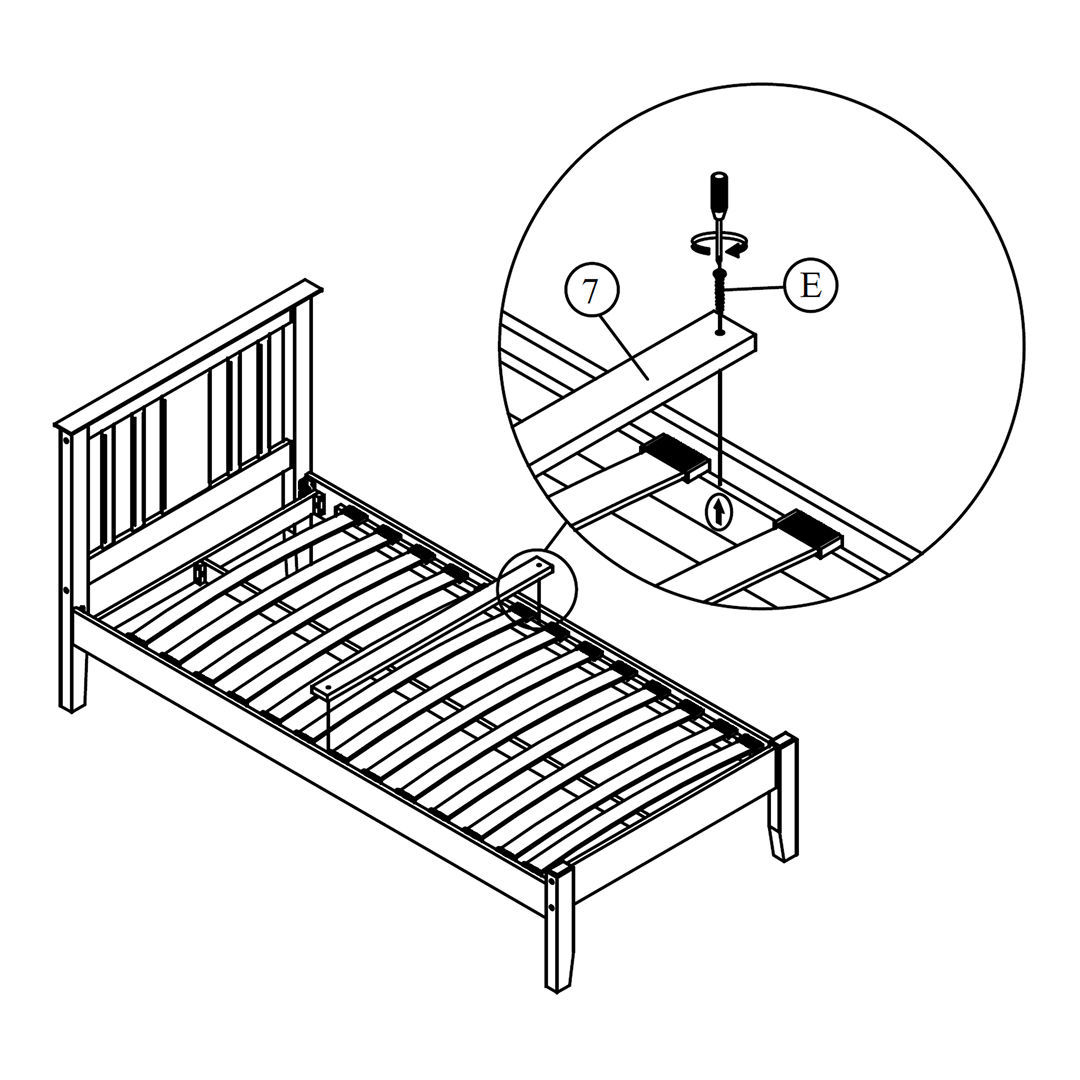

6. Attach Center Support
Fix in Center Slat Support '7' at the top of the support bar followed by the arrow sticker with bolt 'E' as shown.
