Malmo Wooden Bed Frame

Assembly instructions for Malmo Wooden Bed Frame by Time4Sleep

Product Information

Malmo Wooden Bed Frame

The Malmo Oak is a new addition to our range and is a timeless design that will work well in a number of design schemes. The bed frame comes complete with a sprung slatted base, metal centre support rail and metal support feet. The Malmo has been manufactured from rubber wood which has a dense close knit grain and the properties of hardwood, with a lacquered oak finish. If your looking for a well constructed bed frame at a reassuringly low price, this is the perfect model and we are sure that you will be delighted with your purchase. Please note that co-ordinating underbed drawers for this model are available and can be purchased separately by clicking on the related furniture tab.

View product

SKU: malmooak-1, malmooak-2, malmo-2, malmo-1

	Double
Width	146 cm
Length	200 cm
Head End Height	105 cm
Foot End Height	37 cm

Tools

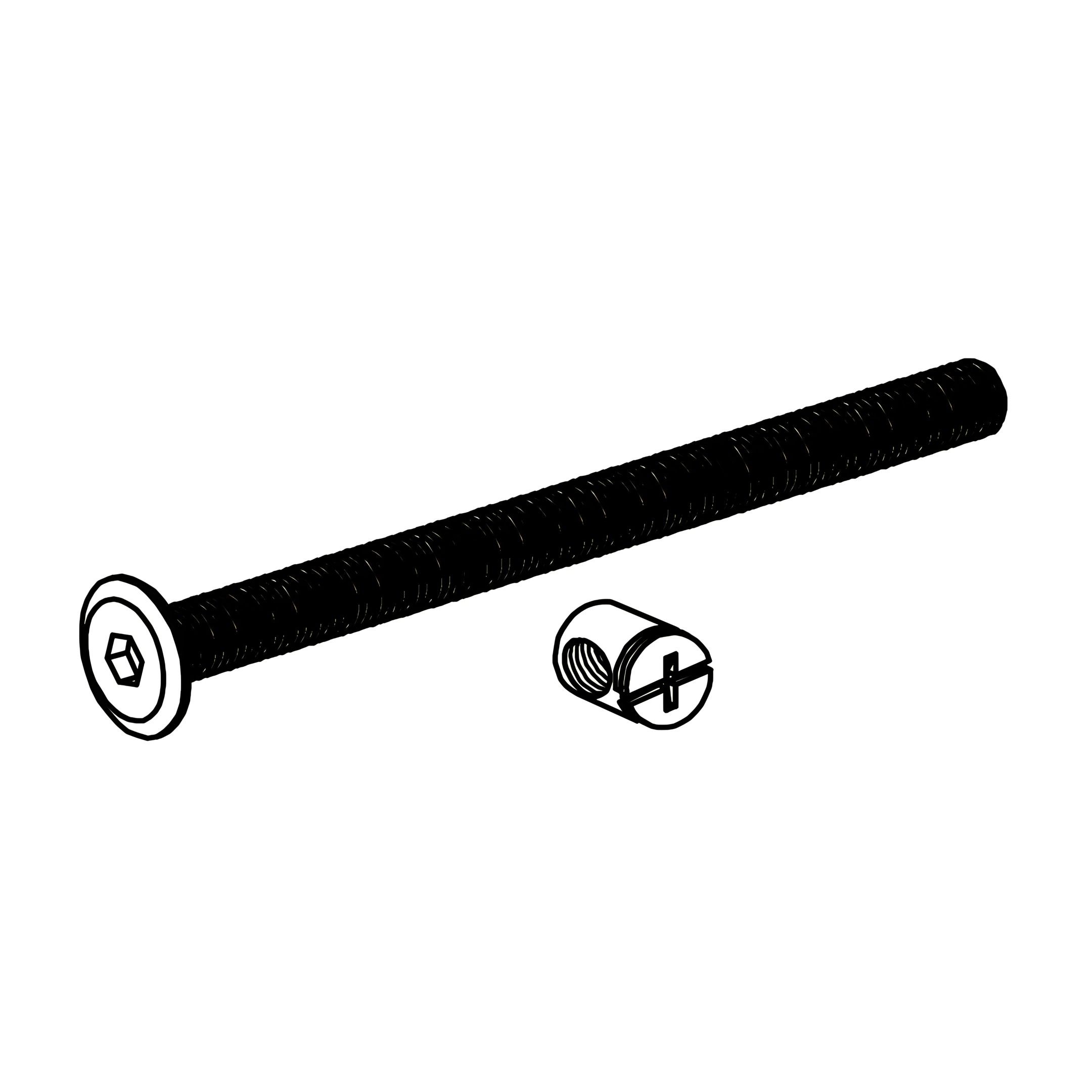

A - M6x90mm c/w Barrel Nut

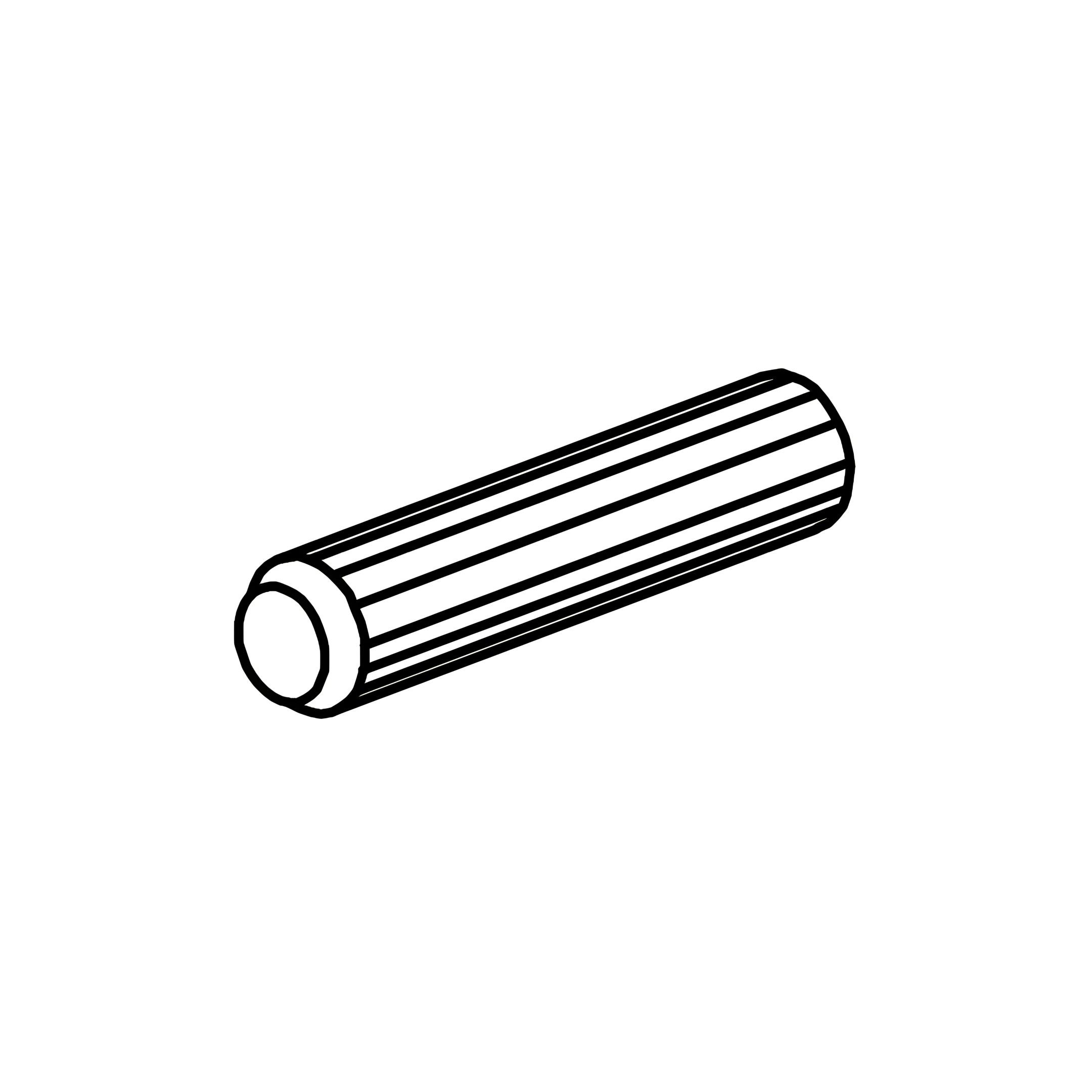

B - Wood Dowel

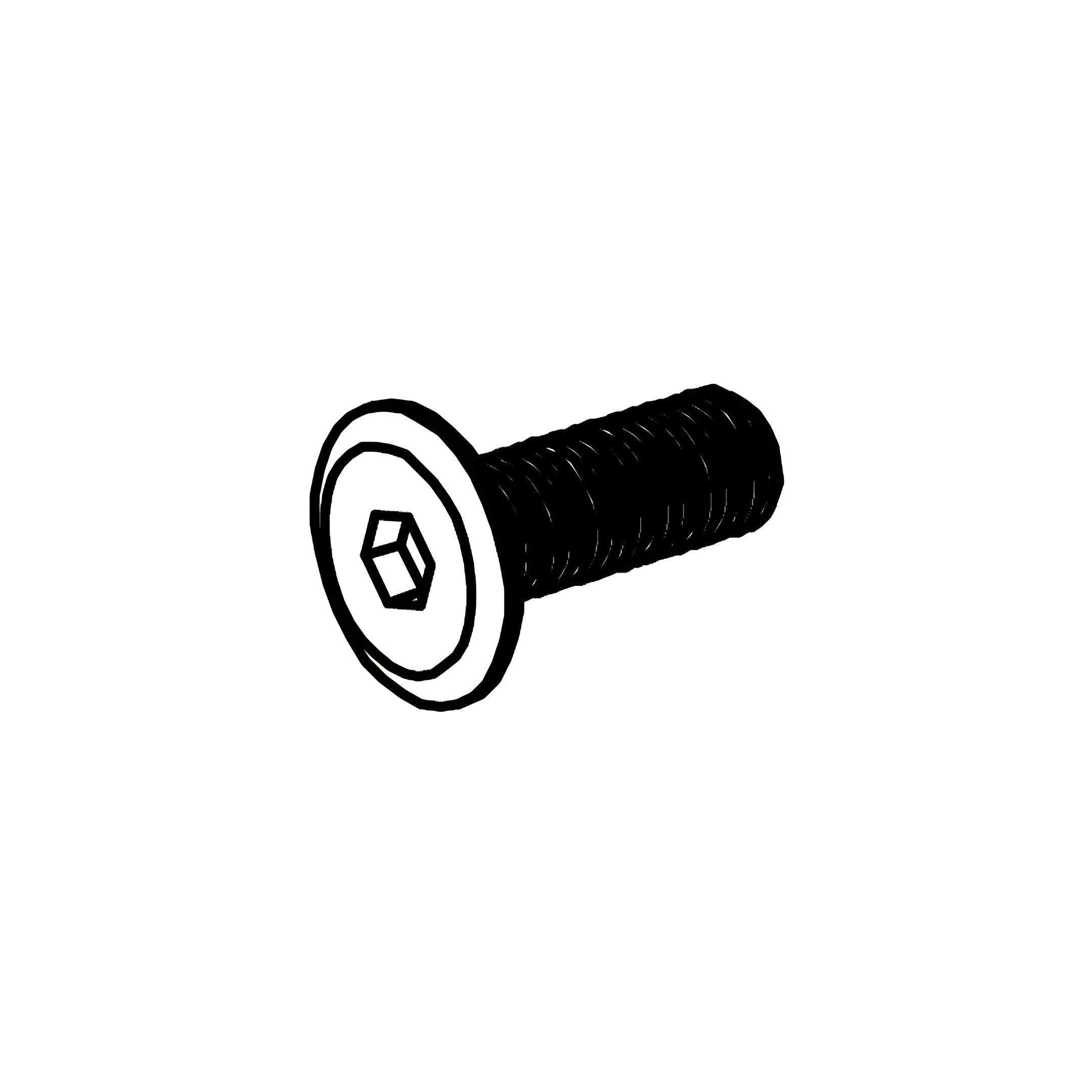

C - M8x25 mm

D - M6x15mm

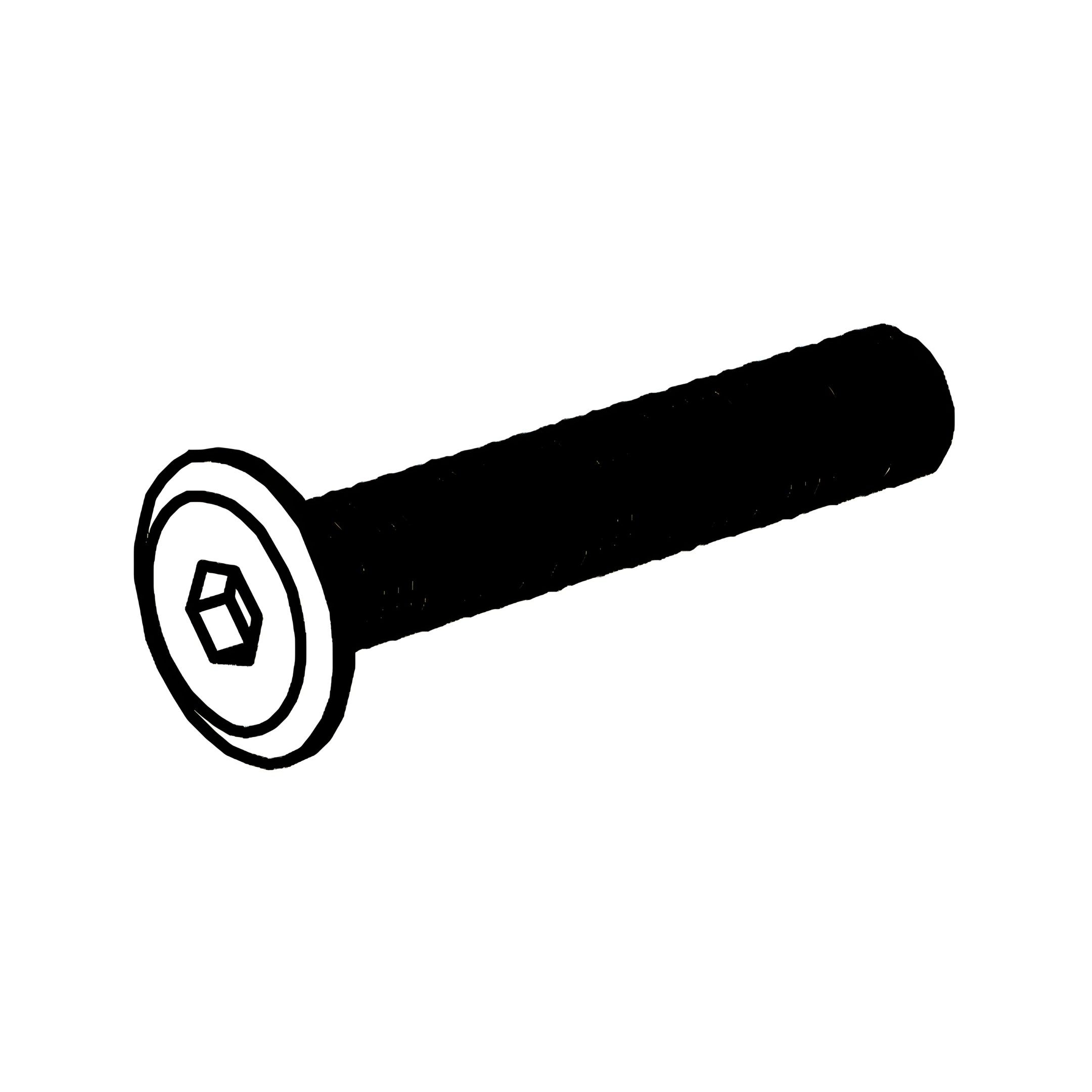

E - M6x30mm

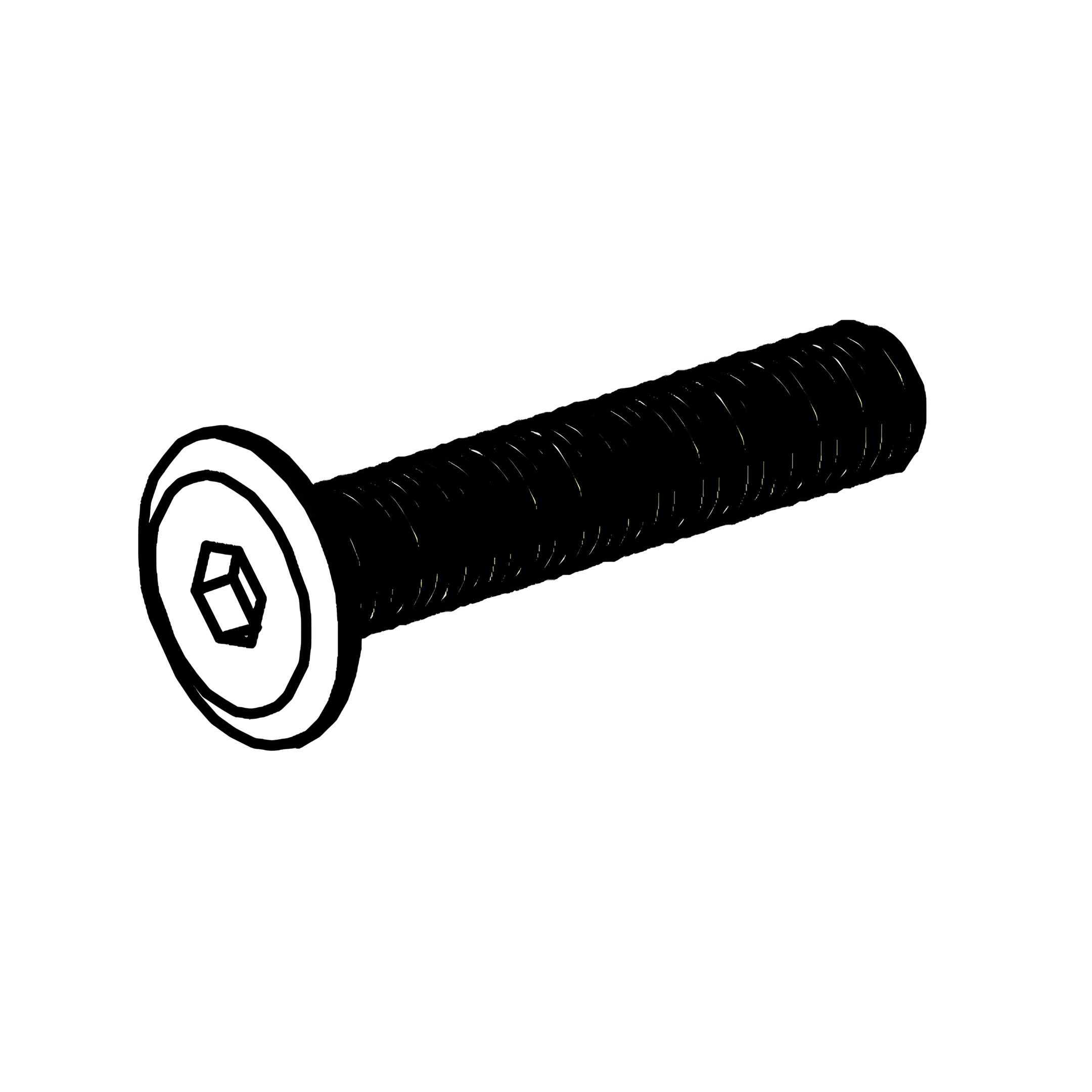

F - M8x40mm (assembled)

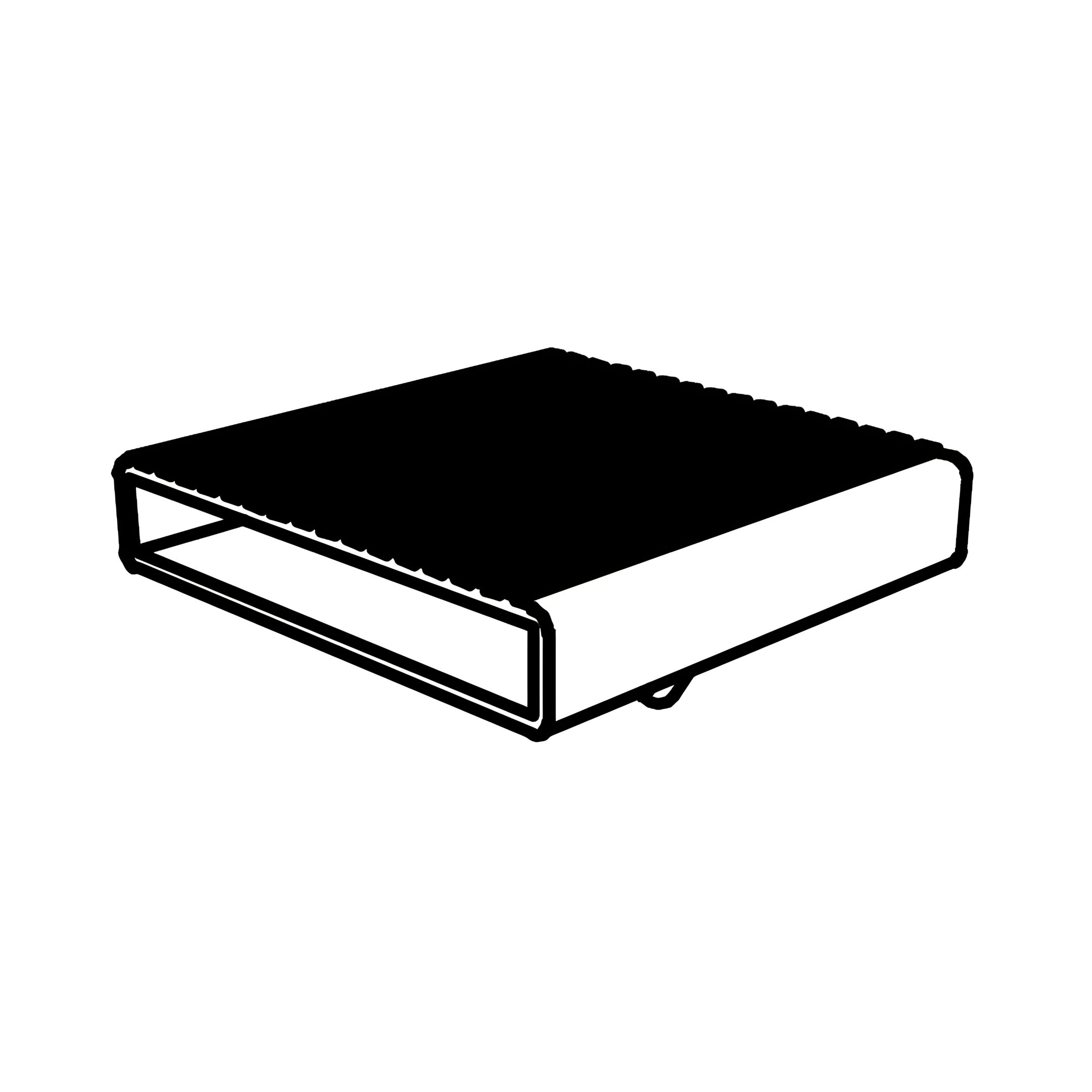

G - Double End Plastic Cap

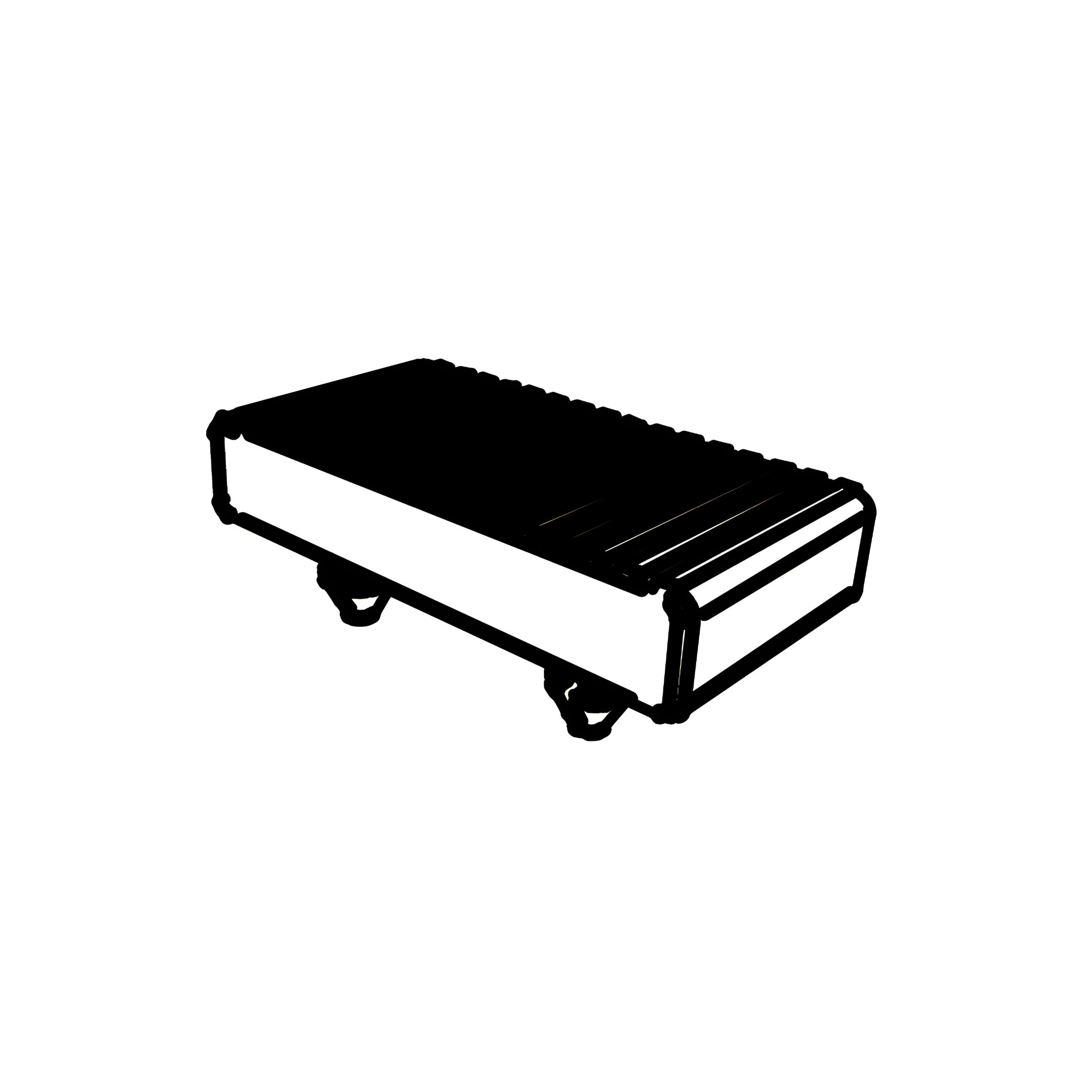

H - Single End Plastic Cap

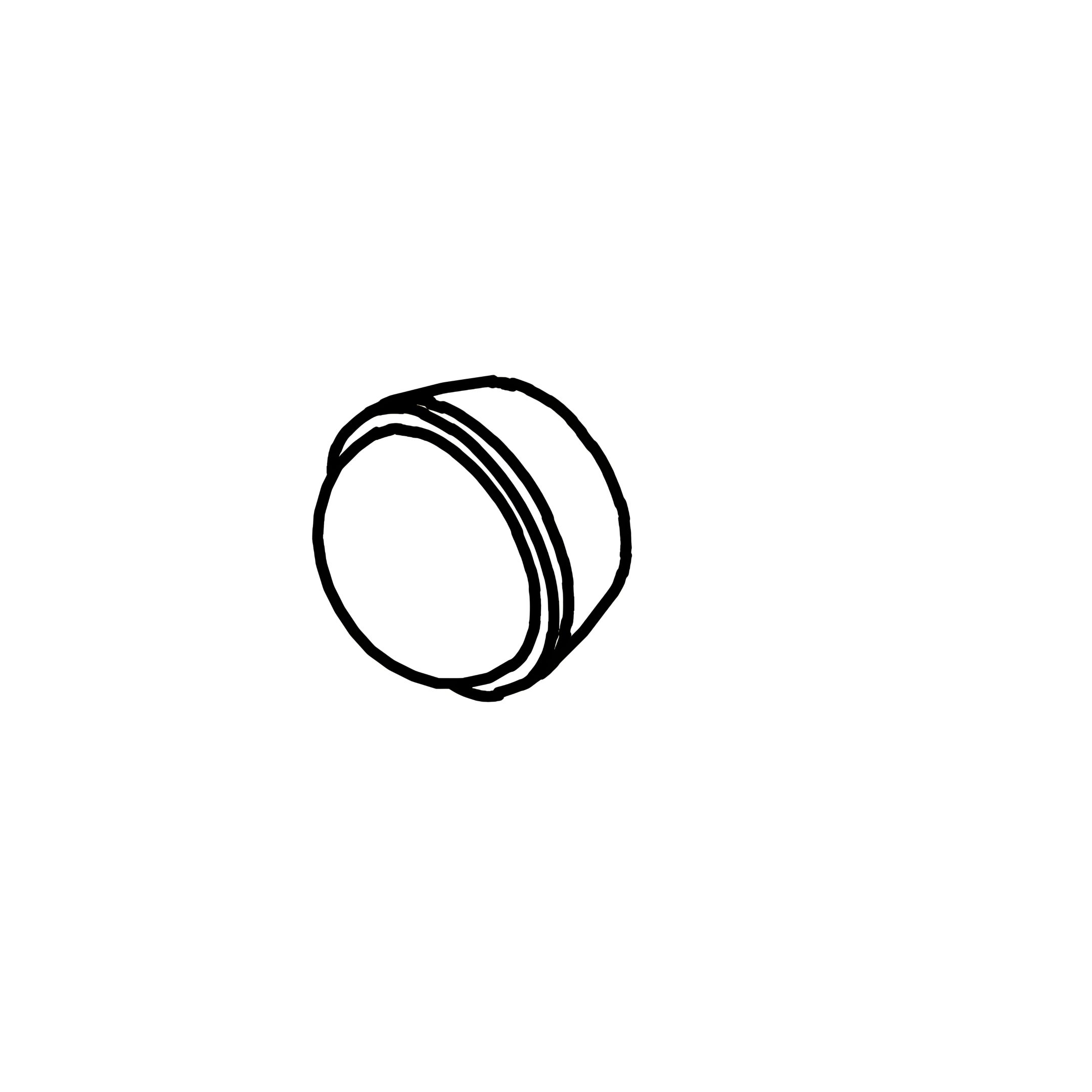

I - Wood Button

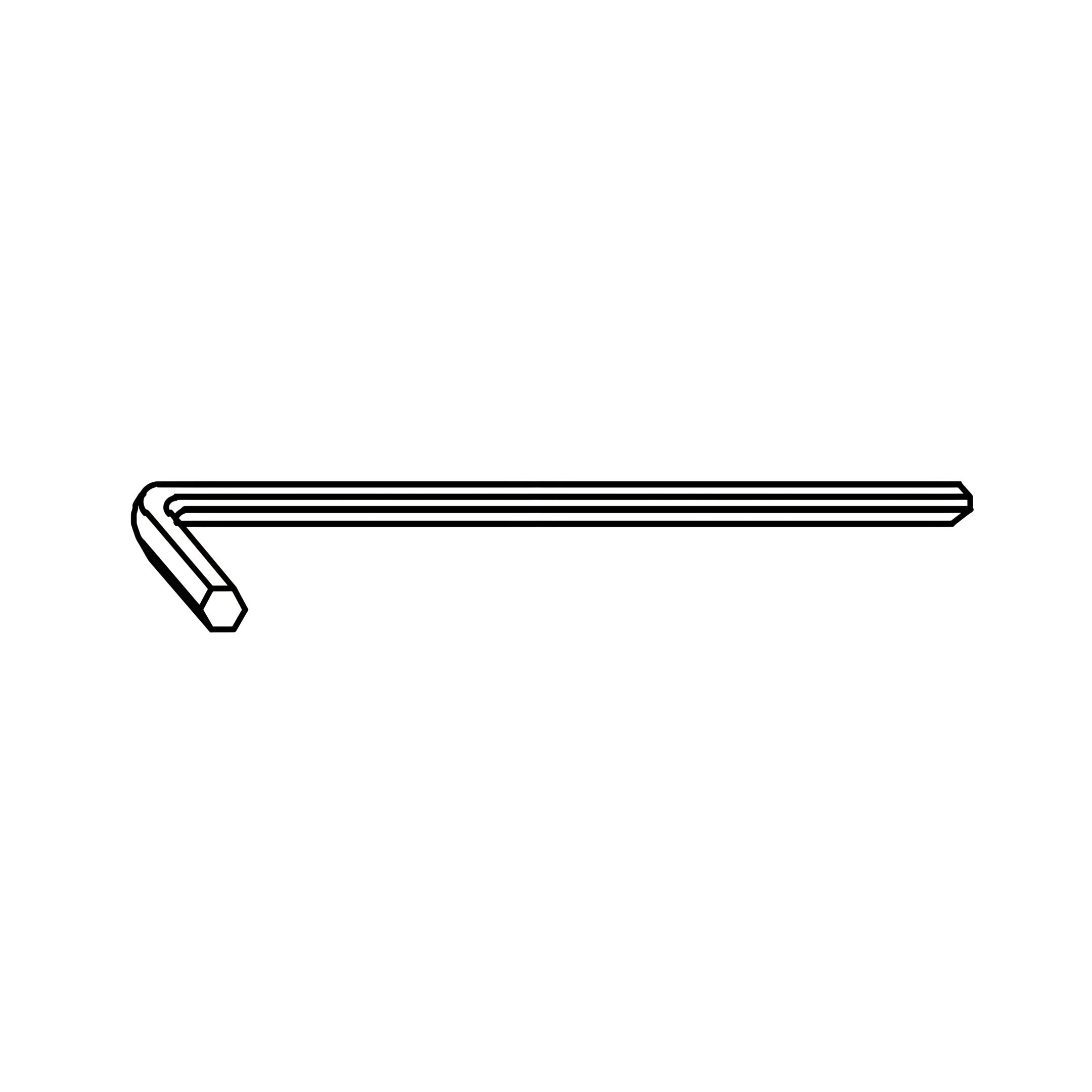

J - M4 Allen key

K - M5 Allen key

Mallet

Parts

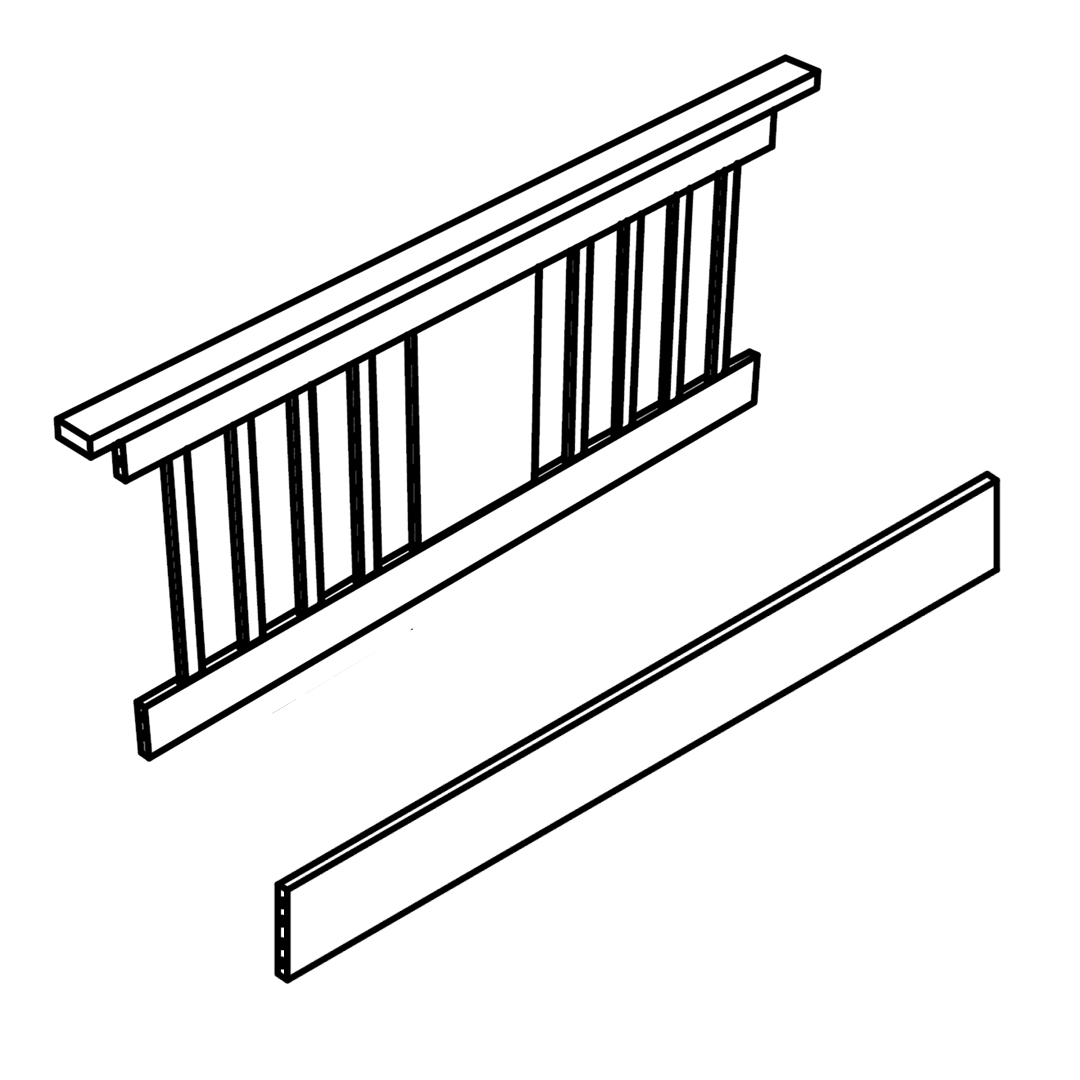

1 - Headframe and Footboard

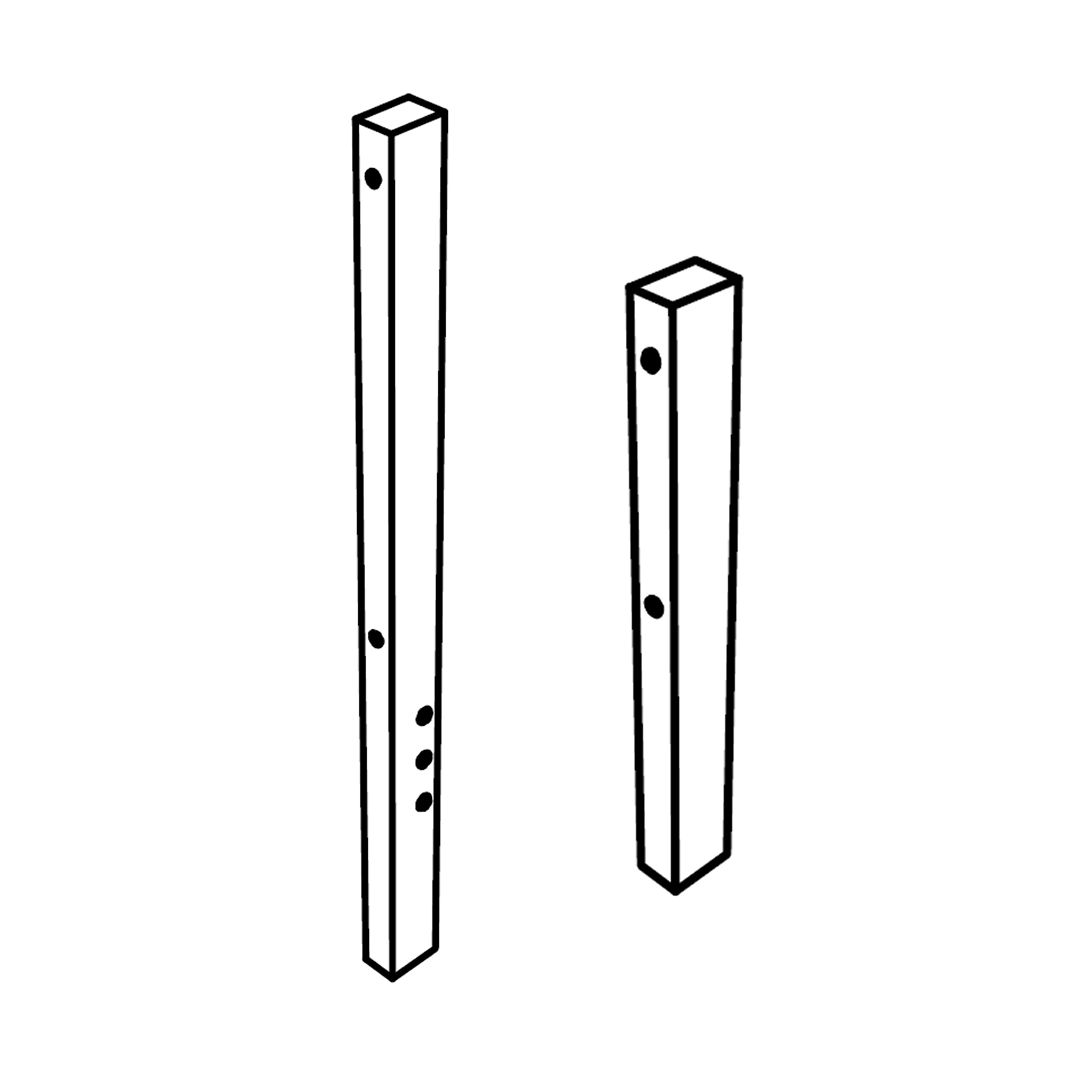

2 - Head Posts and Foot Posts (L/R)

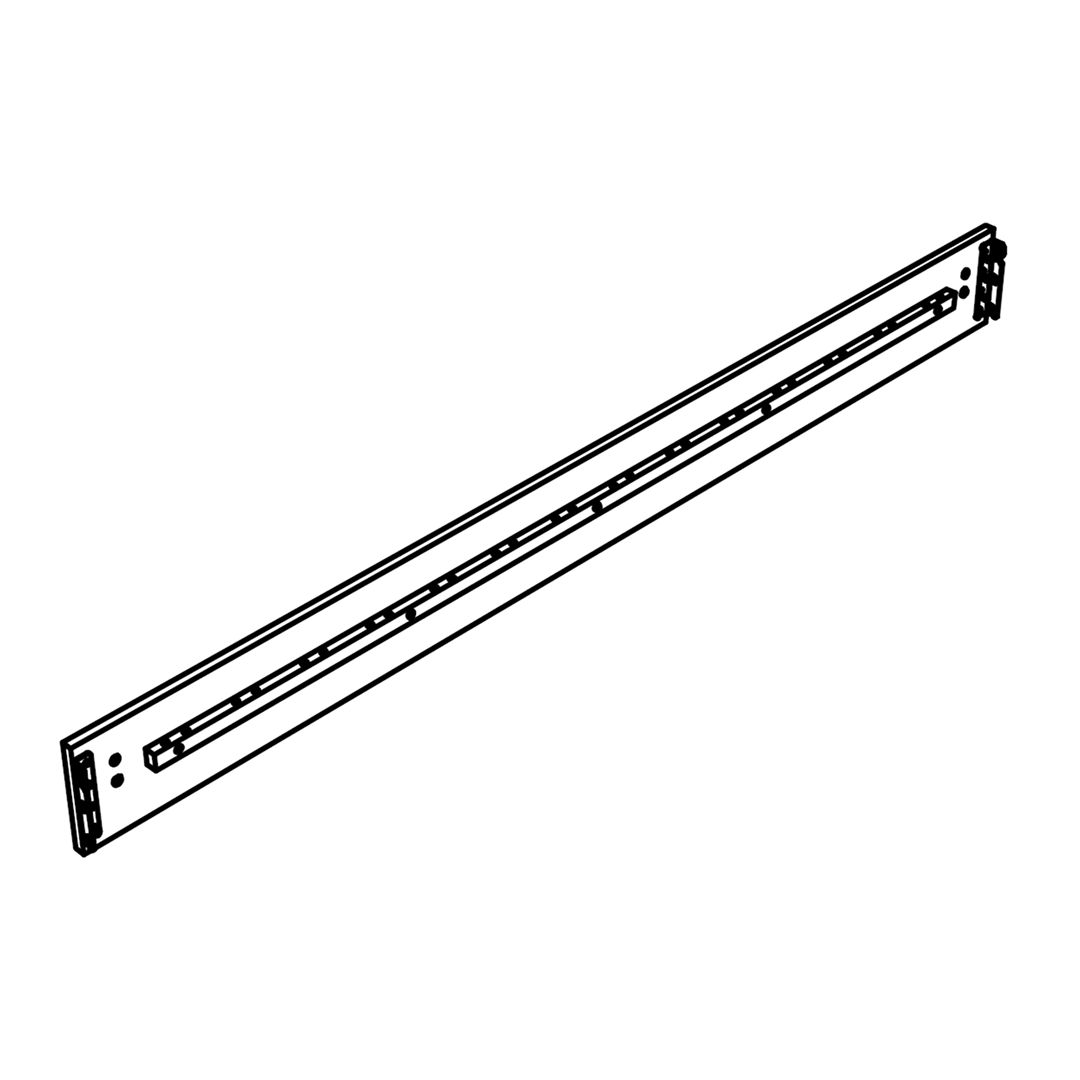

3 - Side Rail

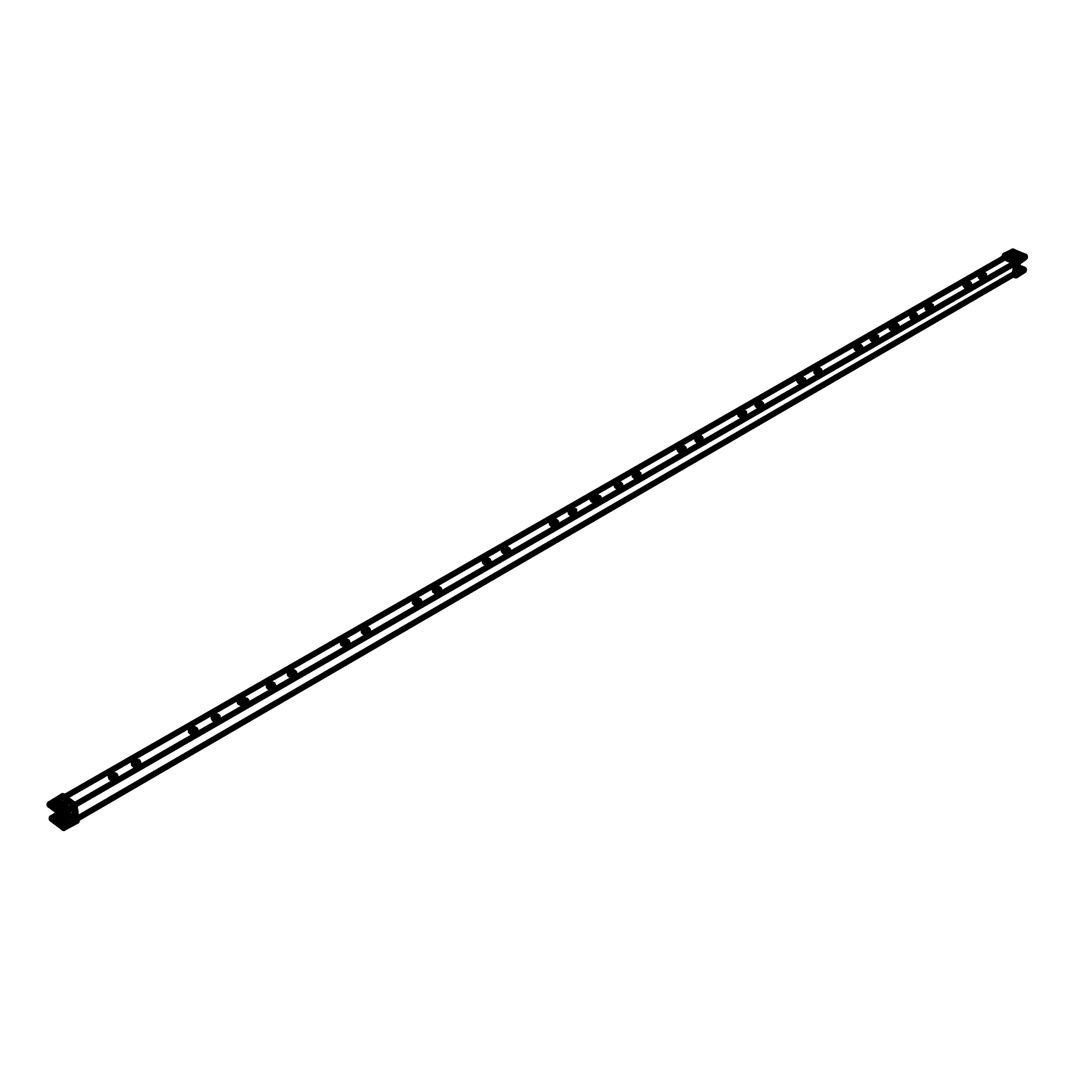

4 - Centre Bar

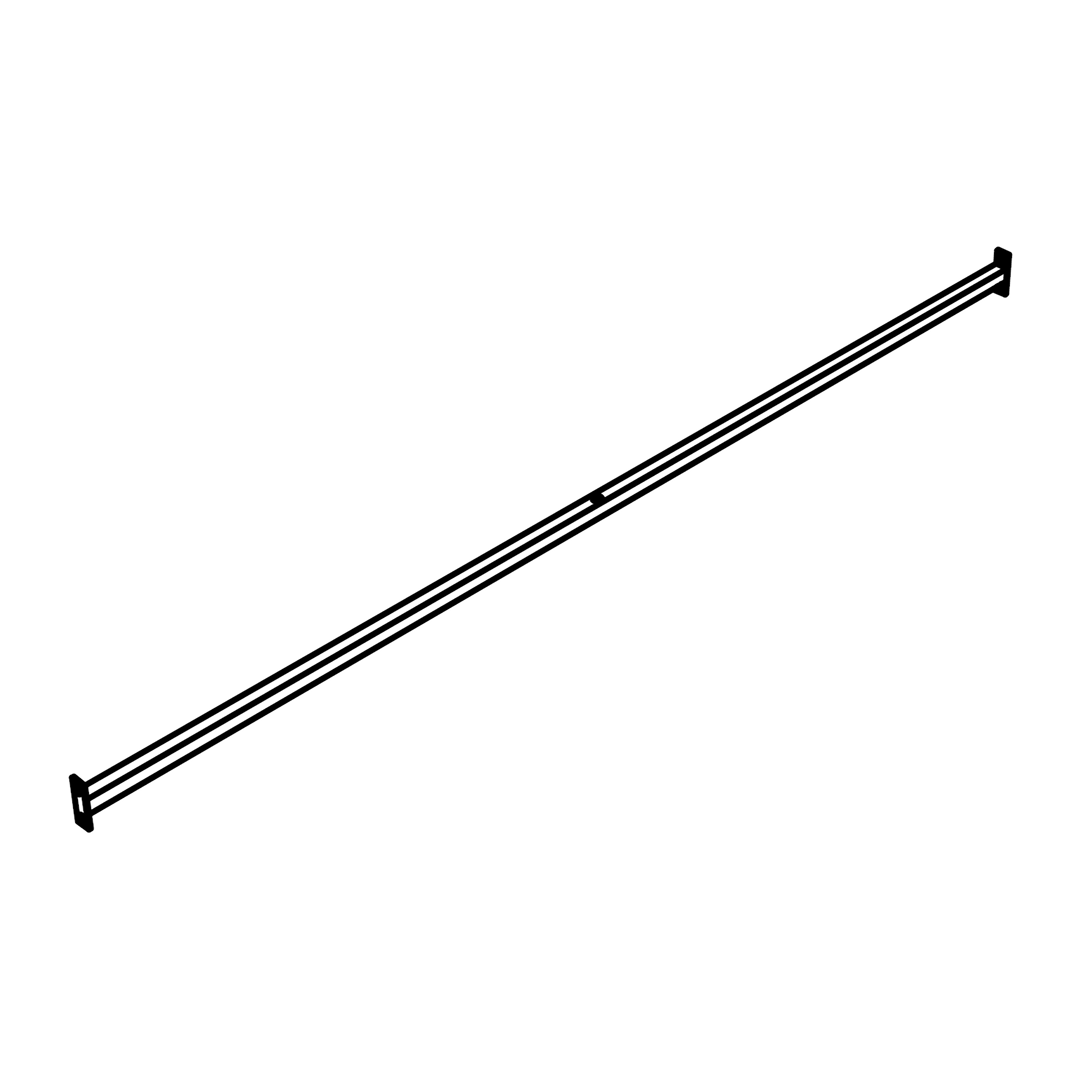

5 - Cross Bar

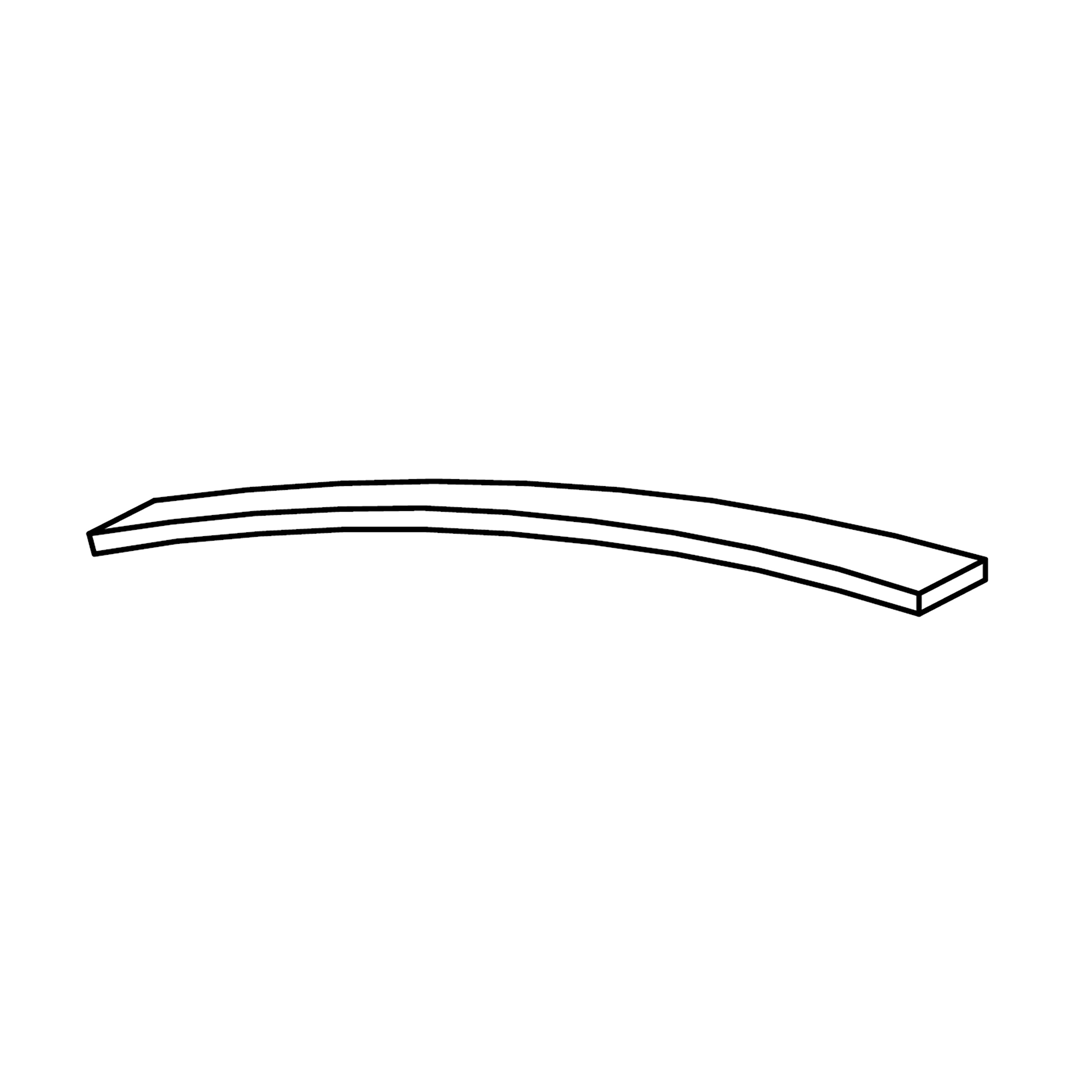

6 - Wood Slat

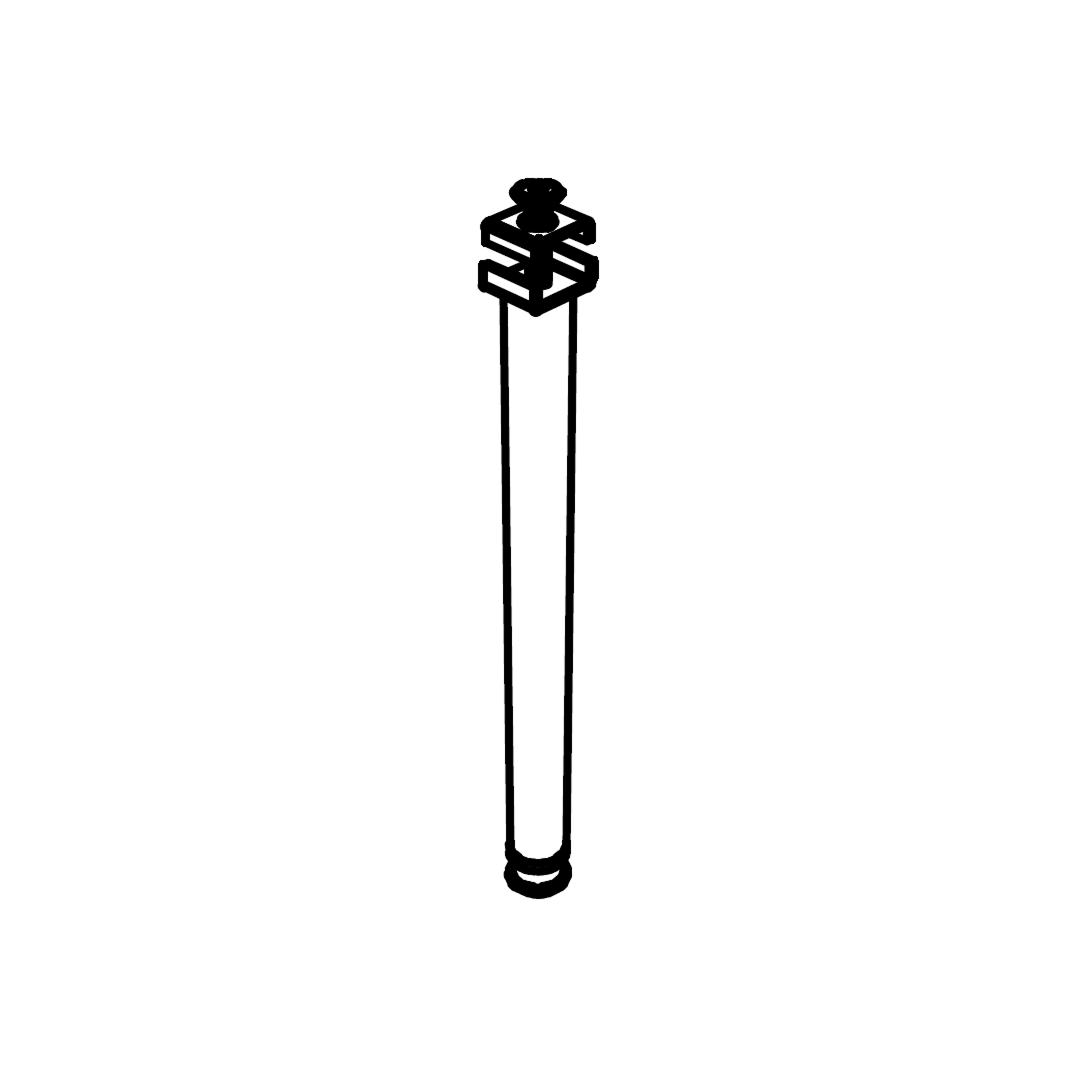

7 - Support Leg

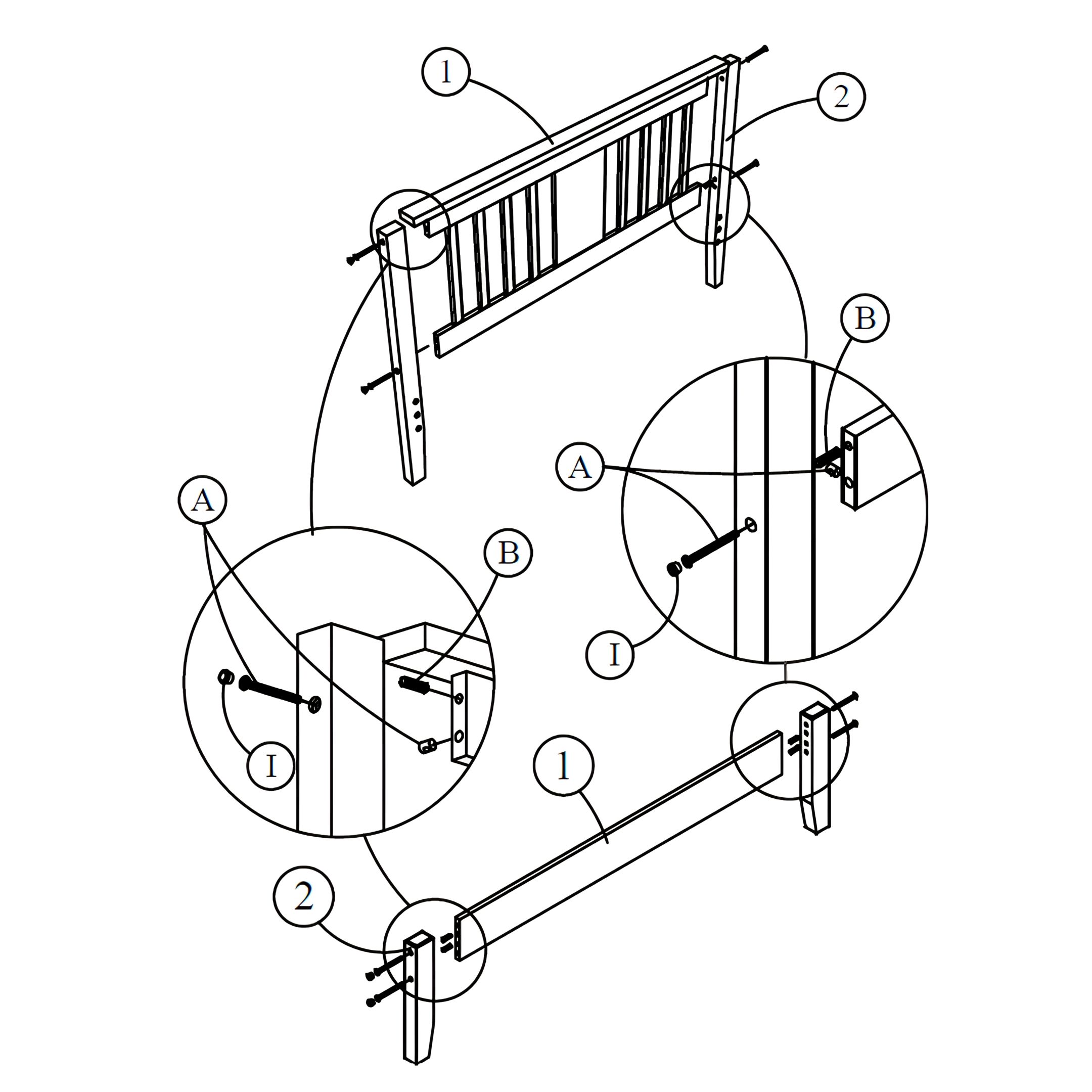

1. Attach Headboard and Footboard

Assemble the bed frame headboard and footboard component as shown and tighten all bolt.

2. Attach Side Rail

Hook the side rail to bolt as shown and don't tighten the bolt yet.

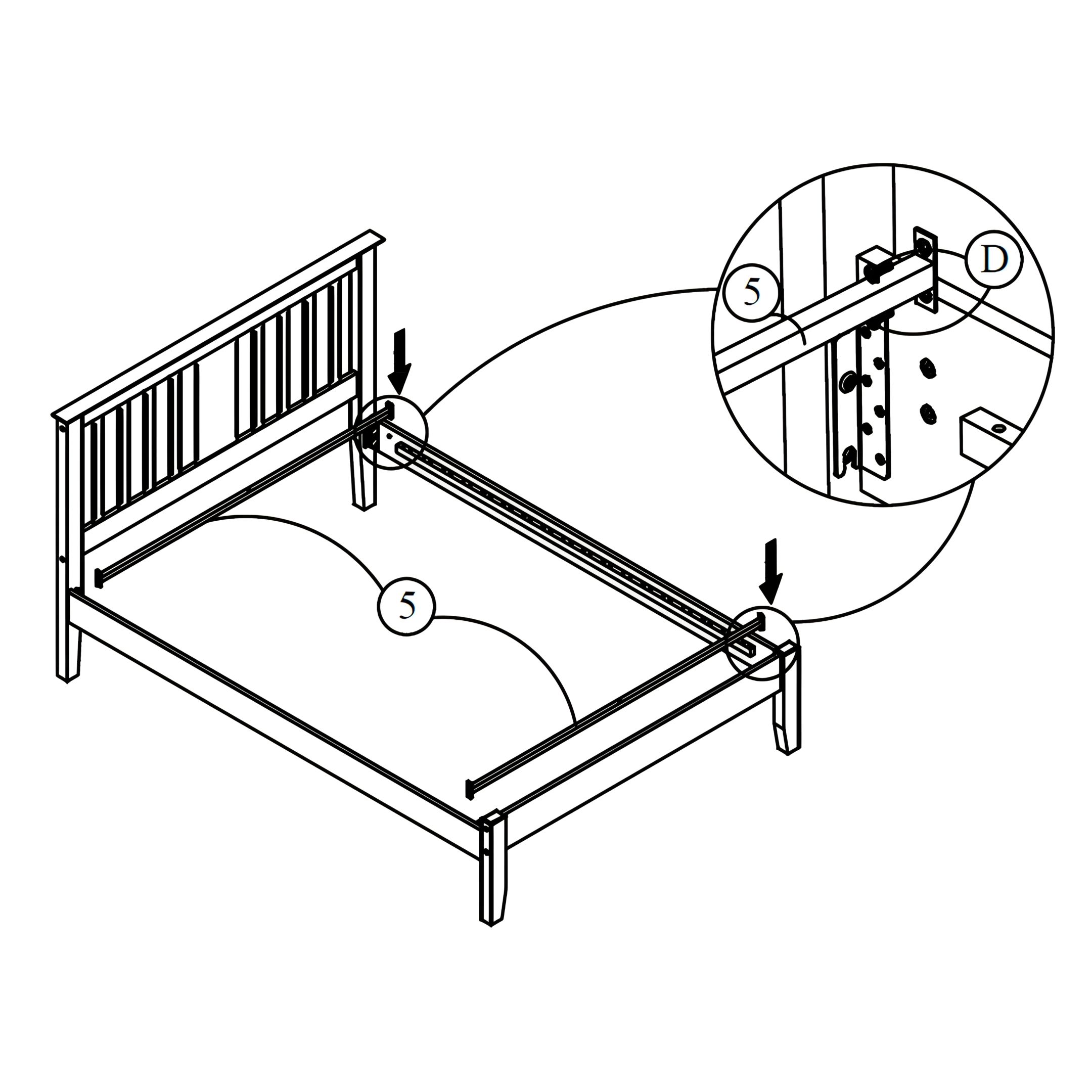

3. Install Cross Bars

Put in cross bars and fix in bolt 'D' as shown in diagram and tighten all bolts.

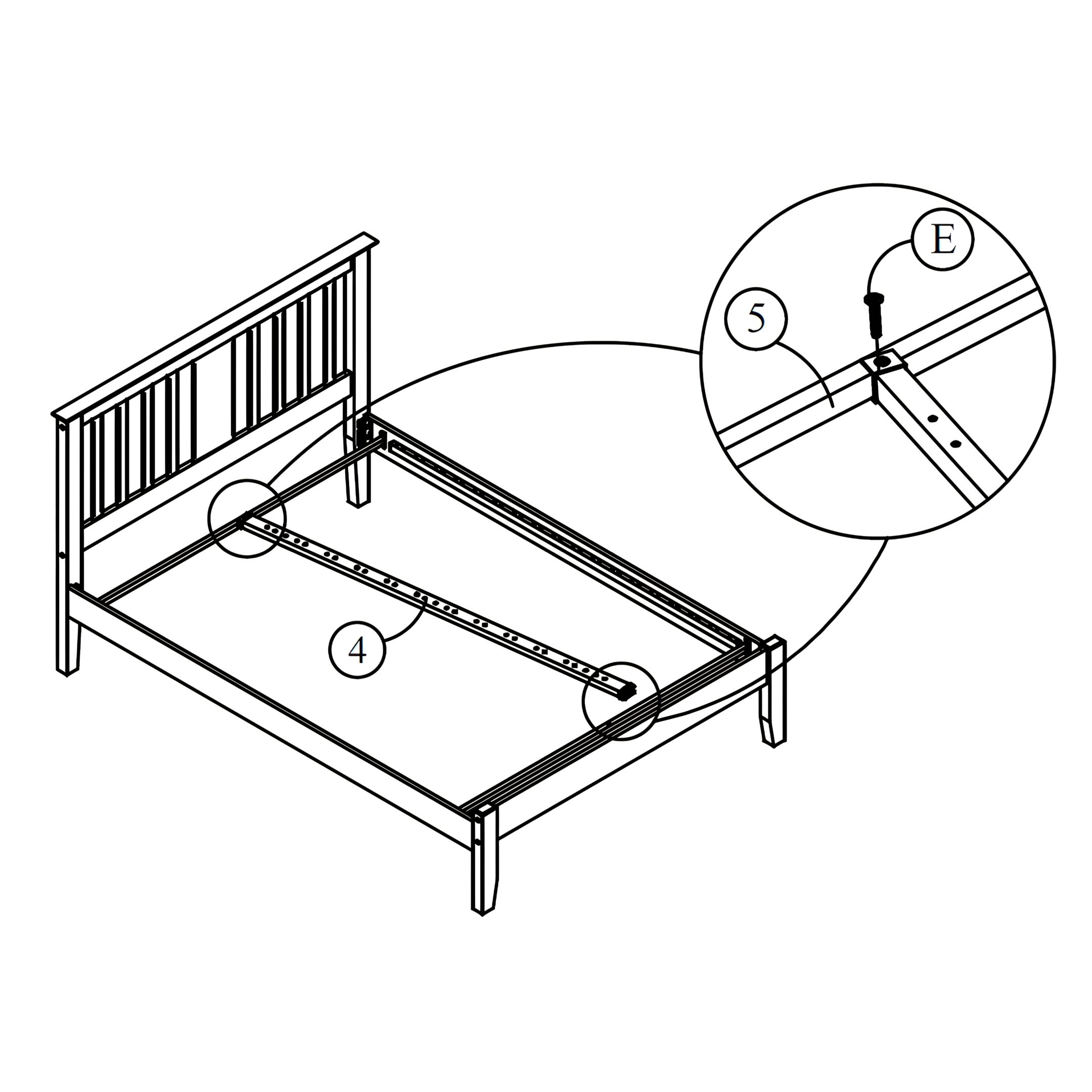

4. Attach Centre Bar

Fix center bar '4' to cross bar '5' by follow like diagram as shown.

5. Fix Support Legs

Fix in support leg with bolt '7' as shown.

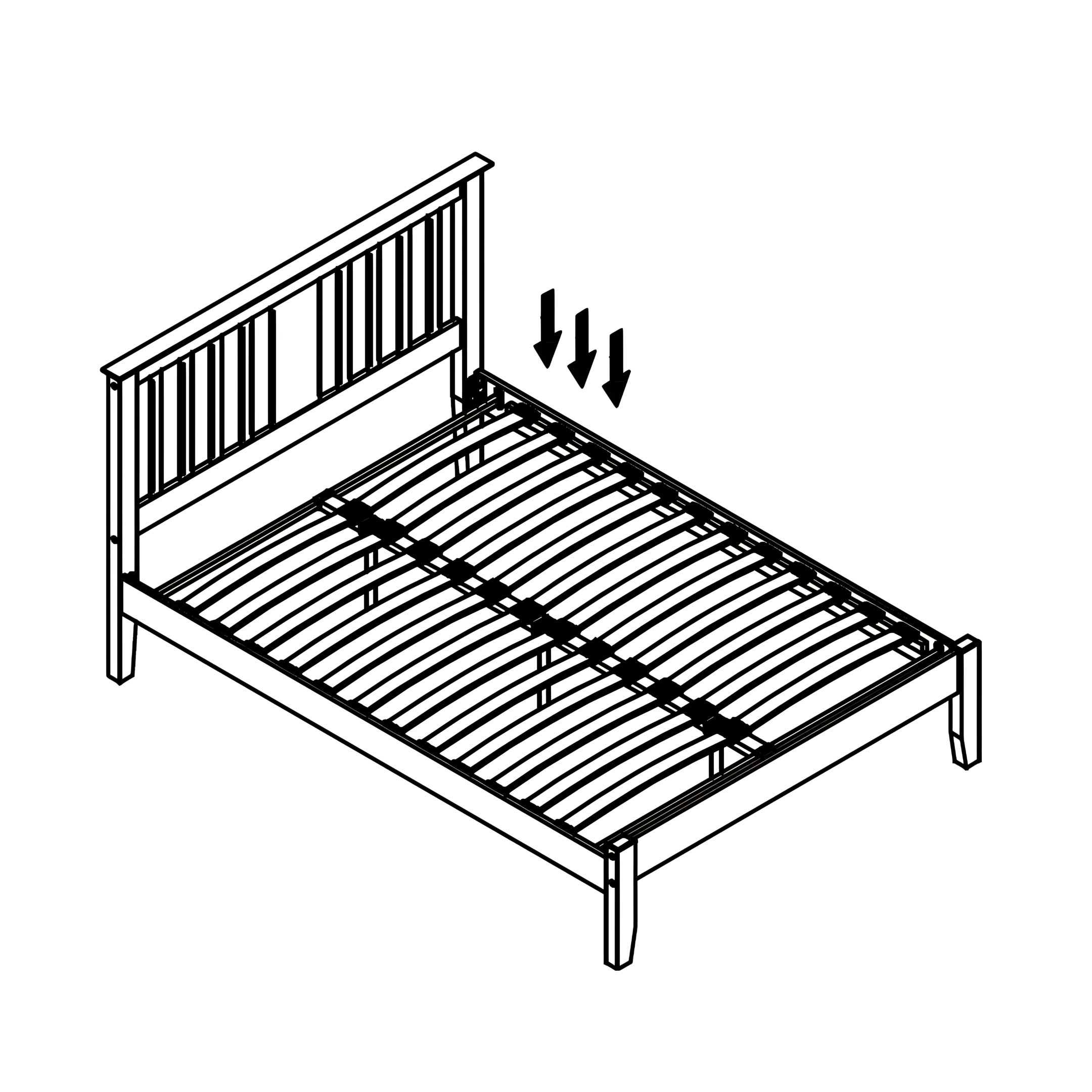

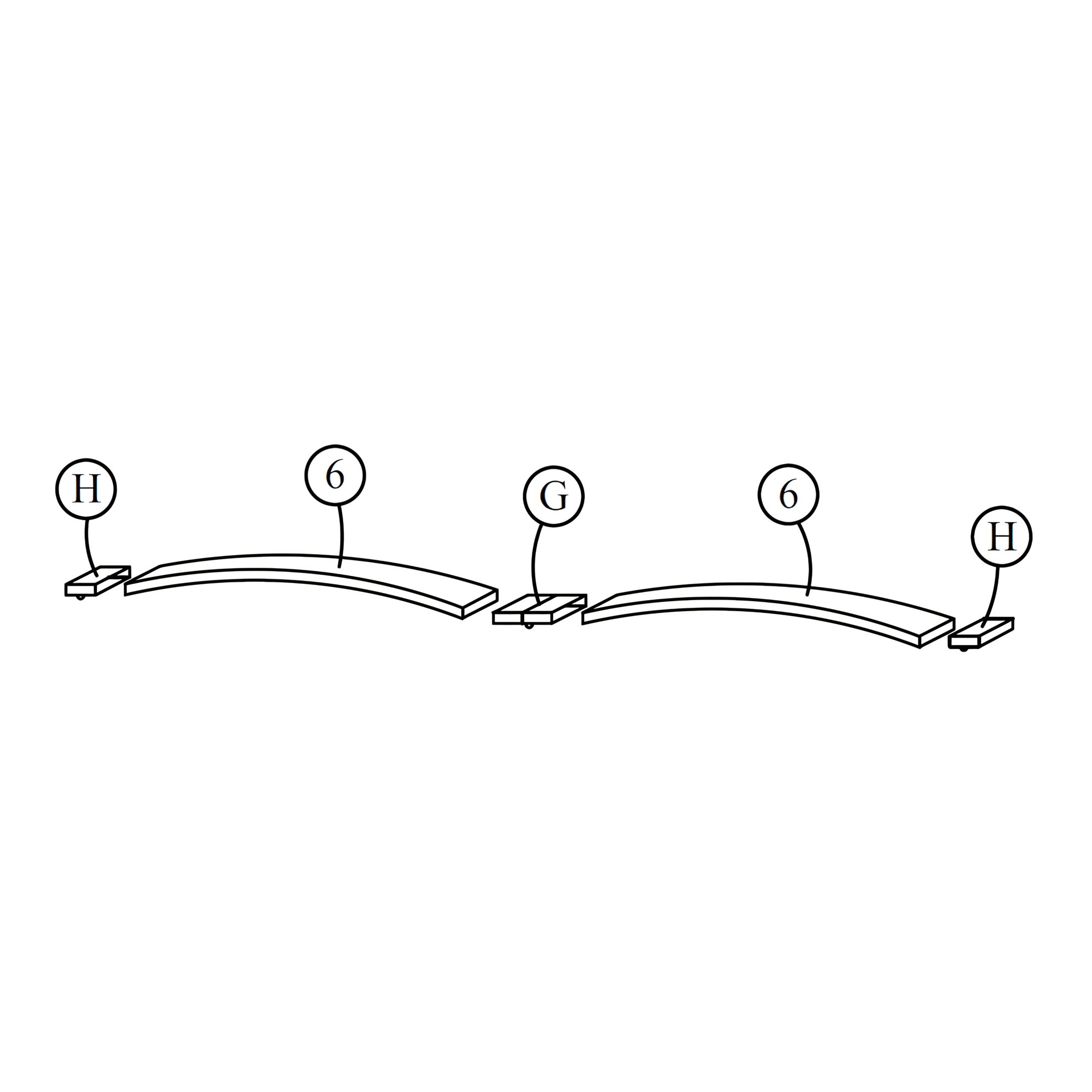

6. Install the Slats

Each wood slat must be inserted with a single end plastic cap and a double end plastic cap as shown on the picture.

Once both wood slats have been inserted with the plastic caps, fix it on the wood side rails and center bar by pressing it accordingly to the default holes. Ensure the plastic cap's pin is aimed to the hole.

At last make sure all screws and bolts are tighten.
