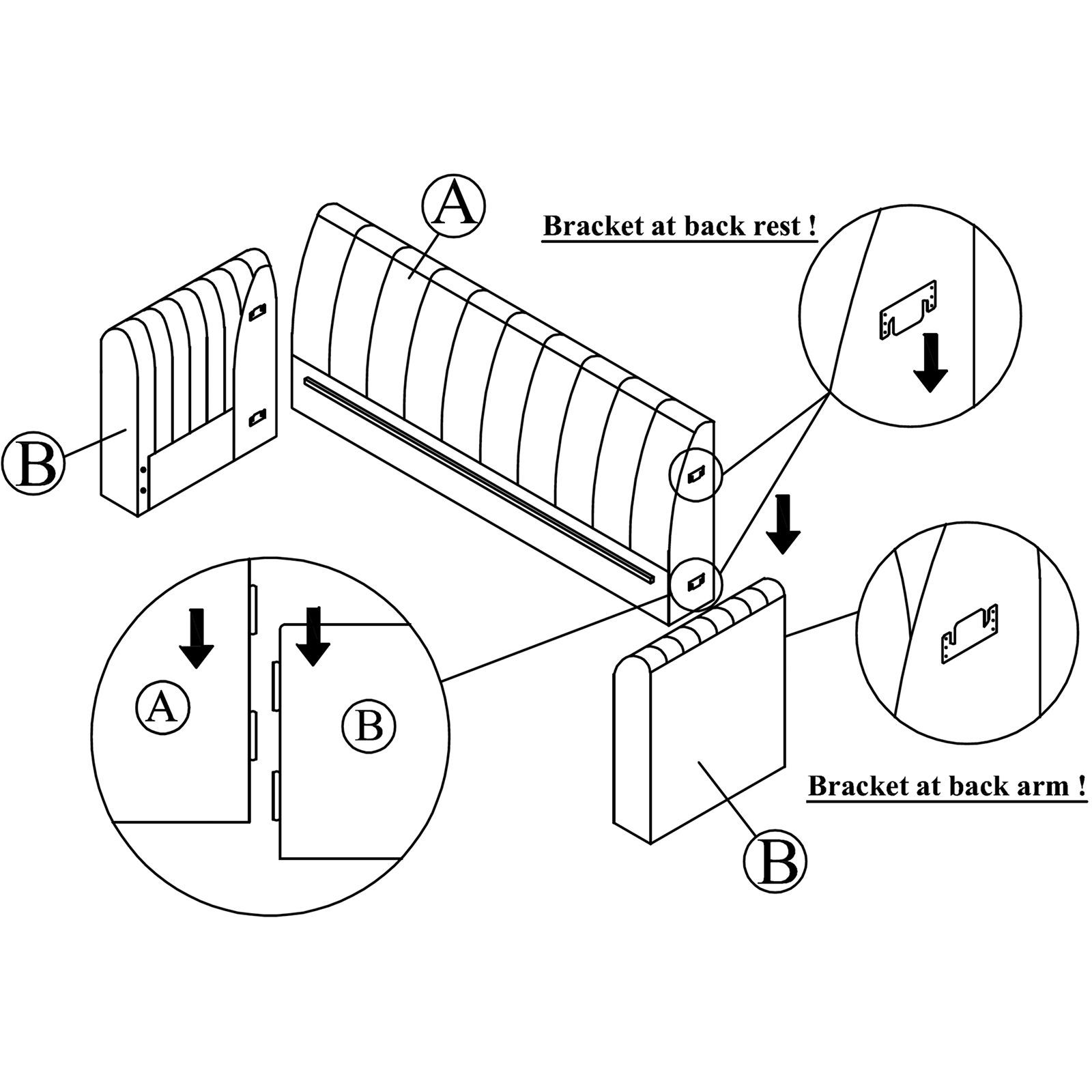

1. Attach Arm to Backrest
Attach the arm (B) to the back rest (A) by pushing the bracket down to fit it.
Instructions by
time4sleep
Milano Sofa
Assembly instructions for Milano Sofa by Time4Sleep.
Product Information
Milano Sofa
Introducing the Milano Grey Sofa—a sleek and contemporary addition to your living space. This modern sofa is accentuated by distinctive line details along the back and arms, providing a touch of sophistication to its design. The versatile grey color effortlessly complements various decor styles, creating a chic and timeless centerpiece in your home. Featuring comfortably padded seats and stylish metal feet, the Milano Grey Sofa offers a perfect fusion of modern style and plush comfort
View product (opens in new tab) - SKU
- MilanoNavyVel2SeaterSofa,MilanoGreyVel3SeaterSofa

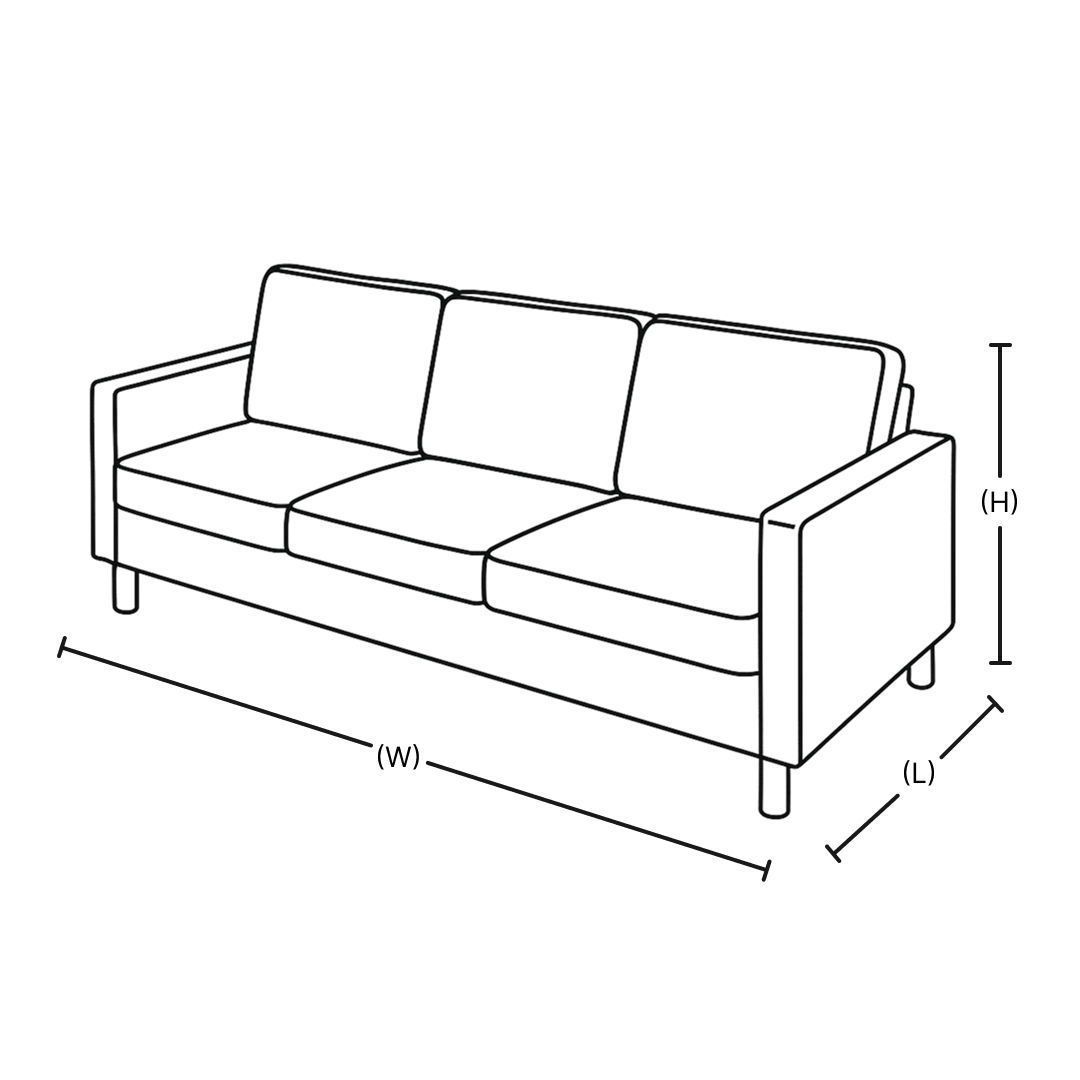

| Dimensions | |
| Width | 194 cm |
| Length | 79 cm |
| Height | 68 cm |
Parts

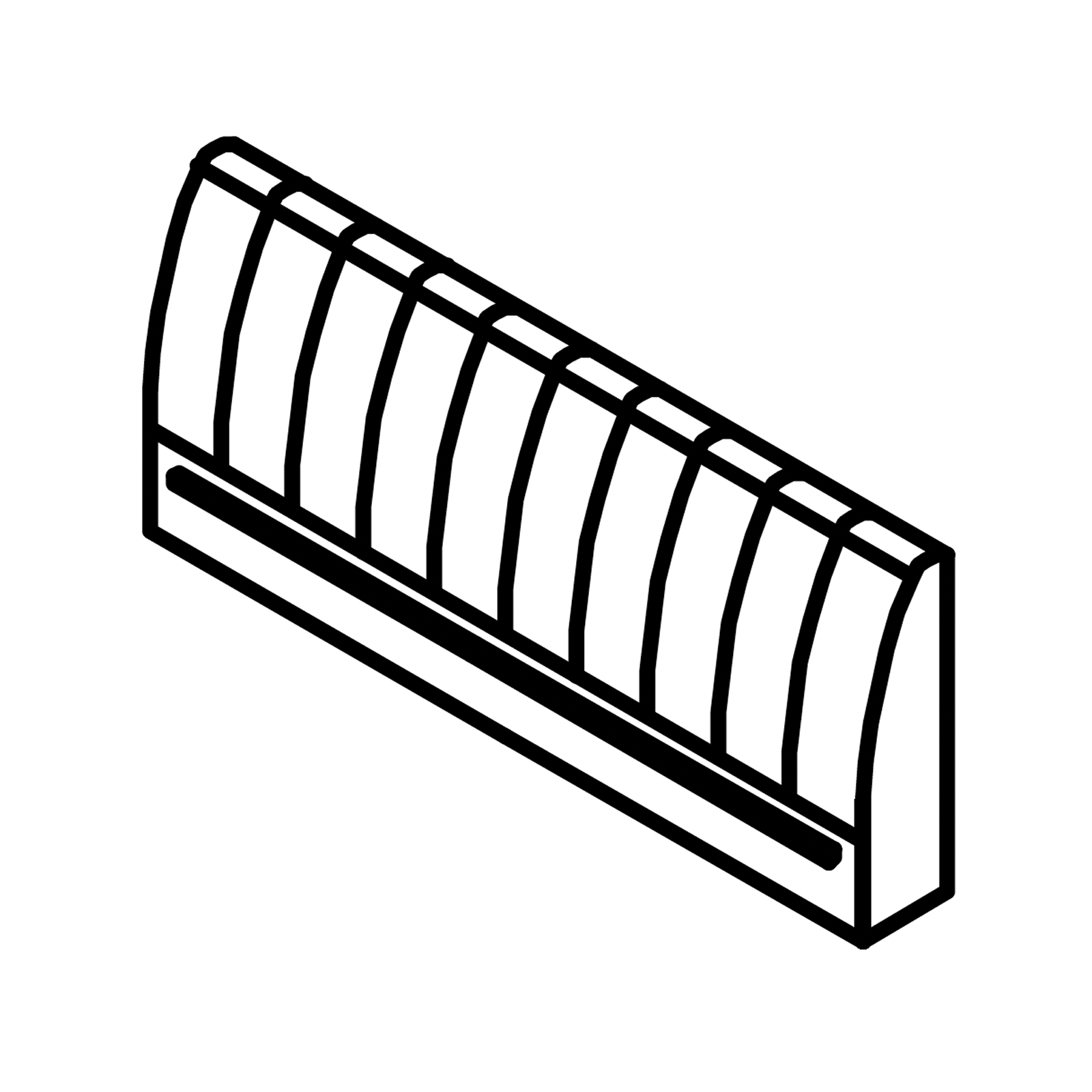

A - Back Rest

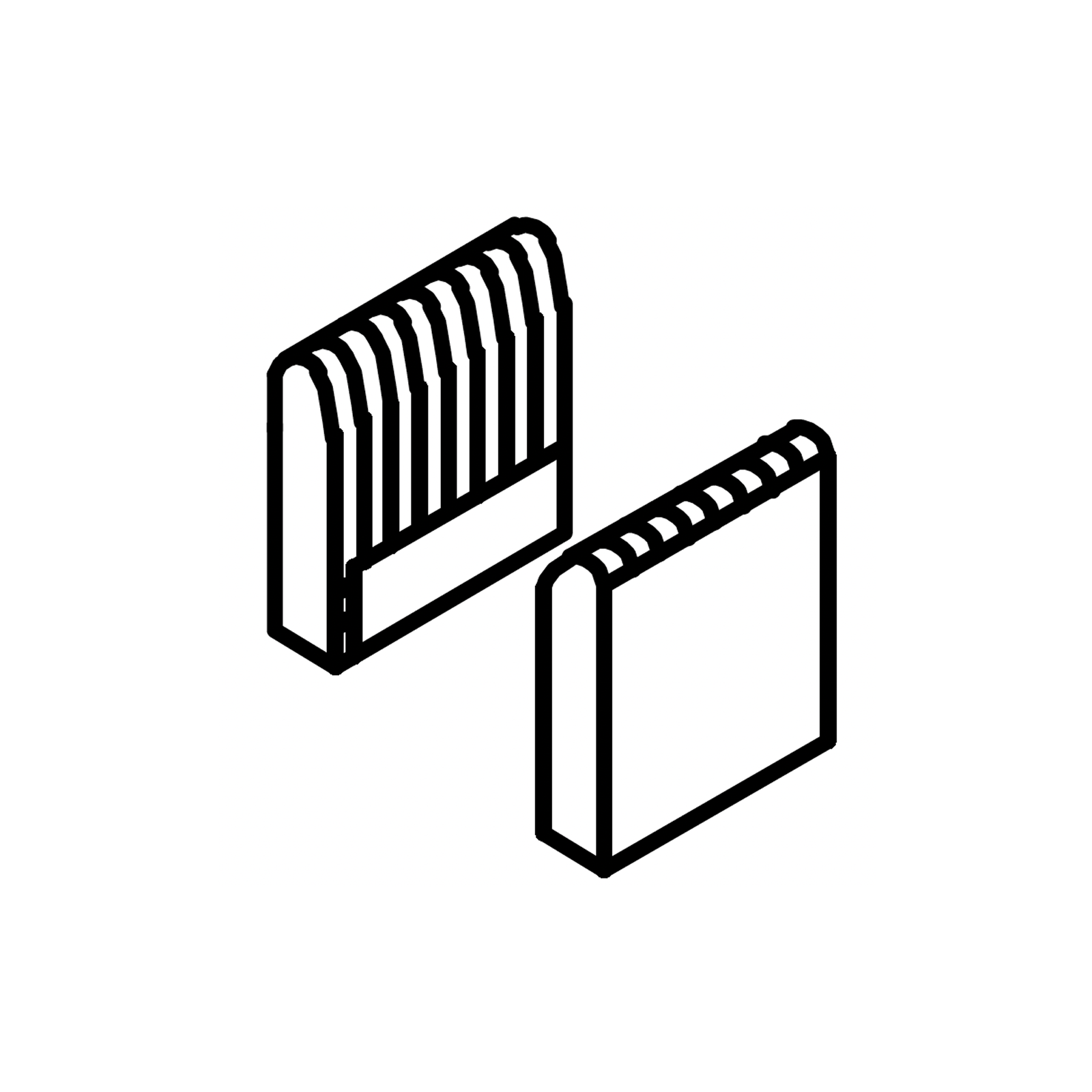

B - Arm

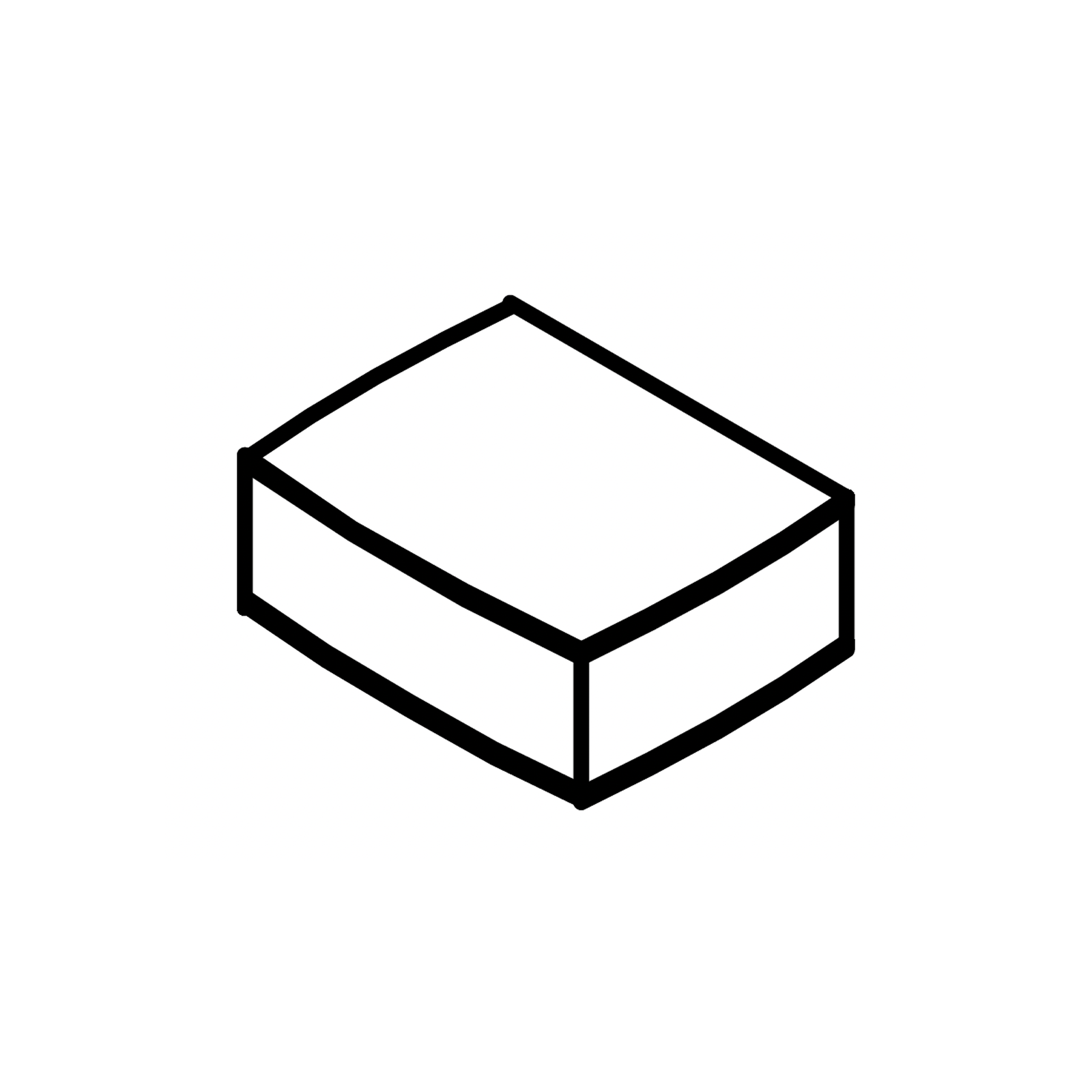

C - Sitter

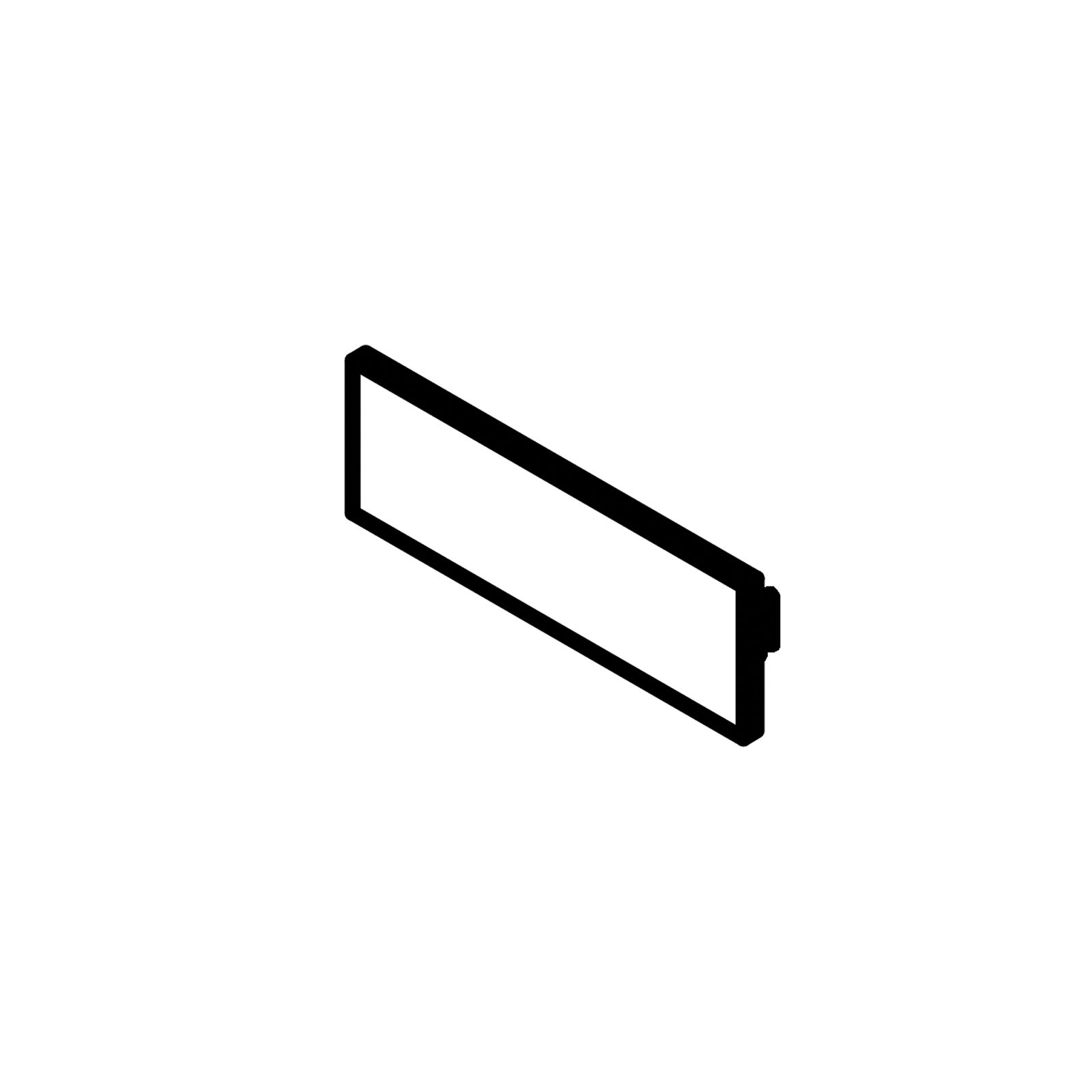

D - Side Rail

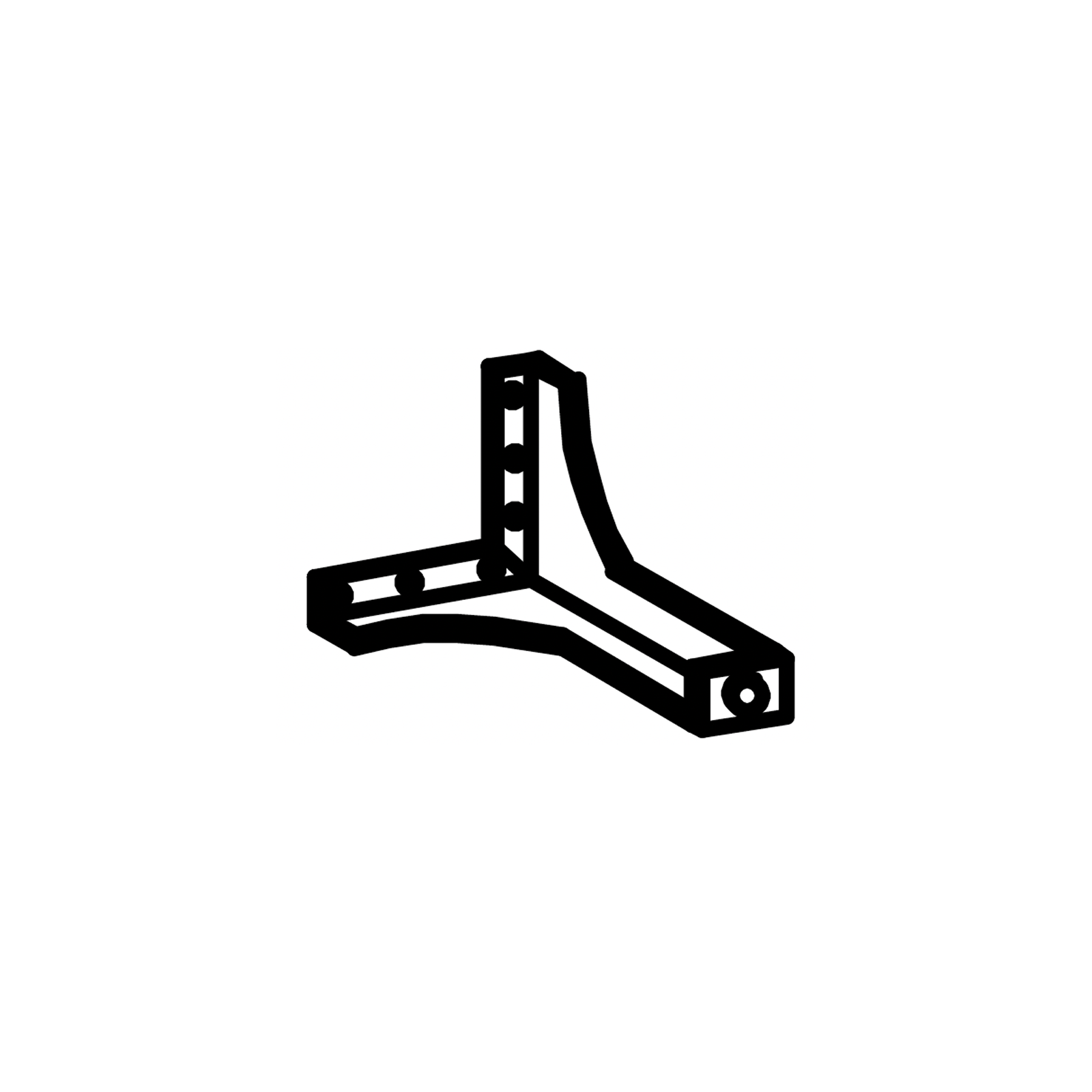

E - Legs

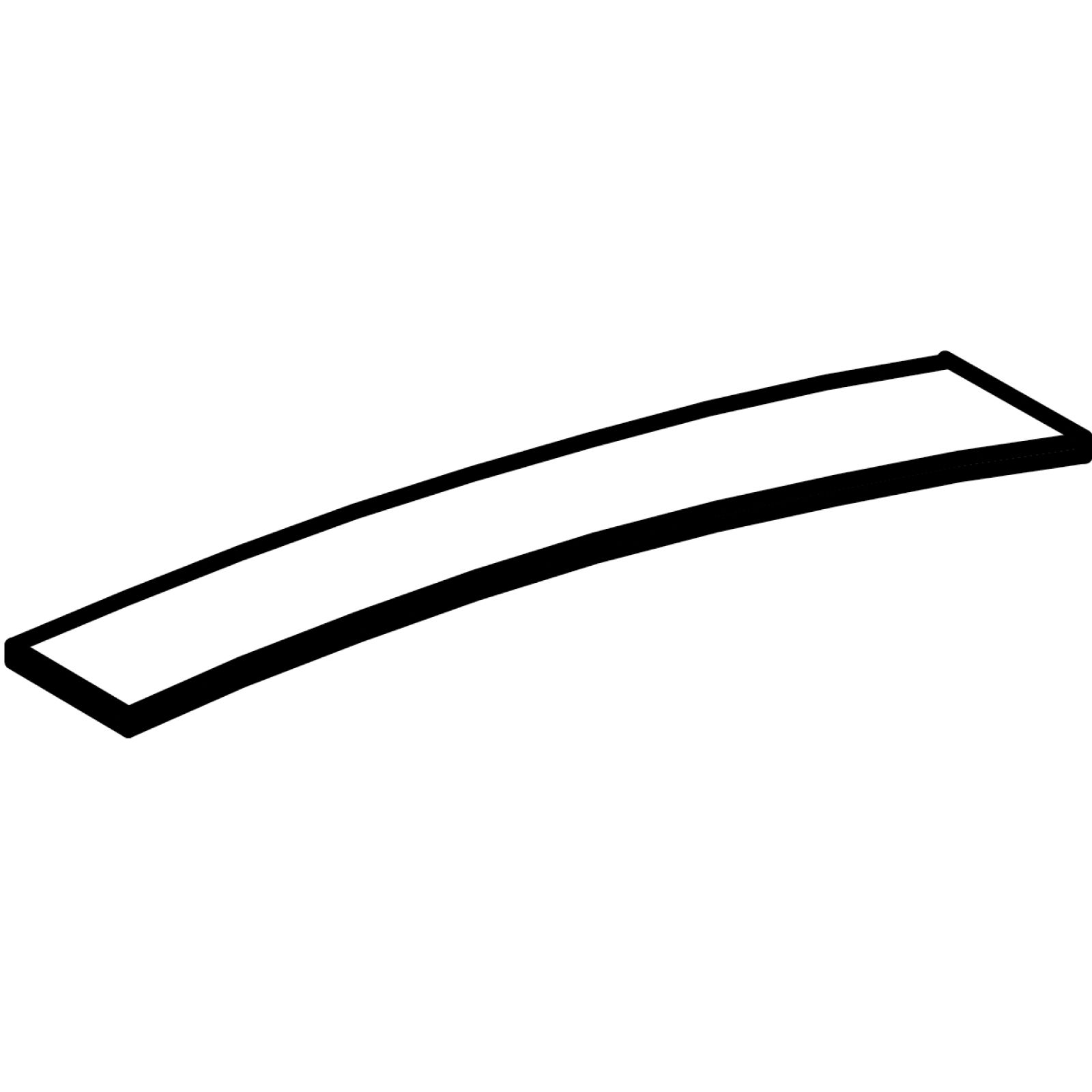

F - Slats

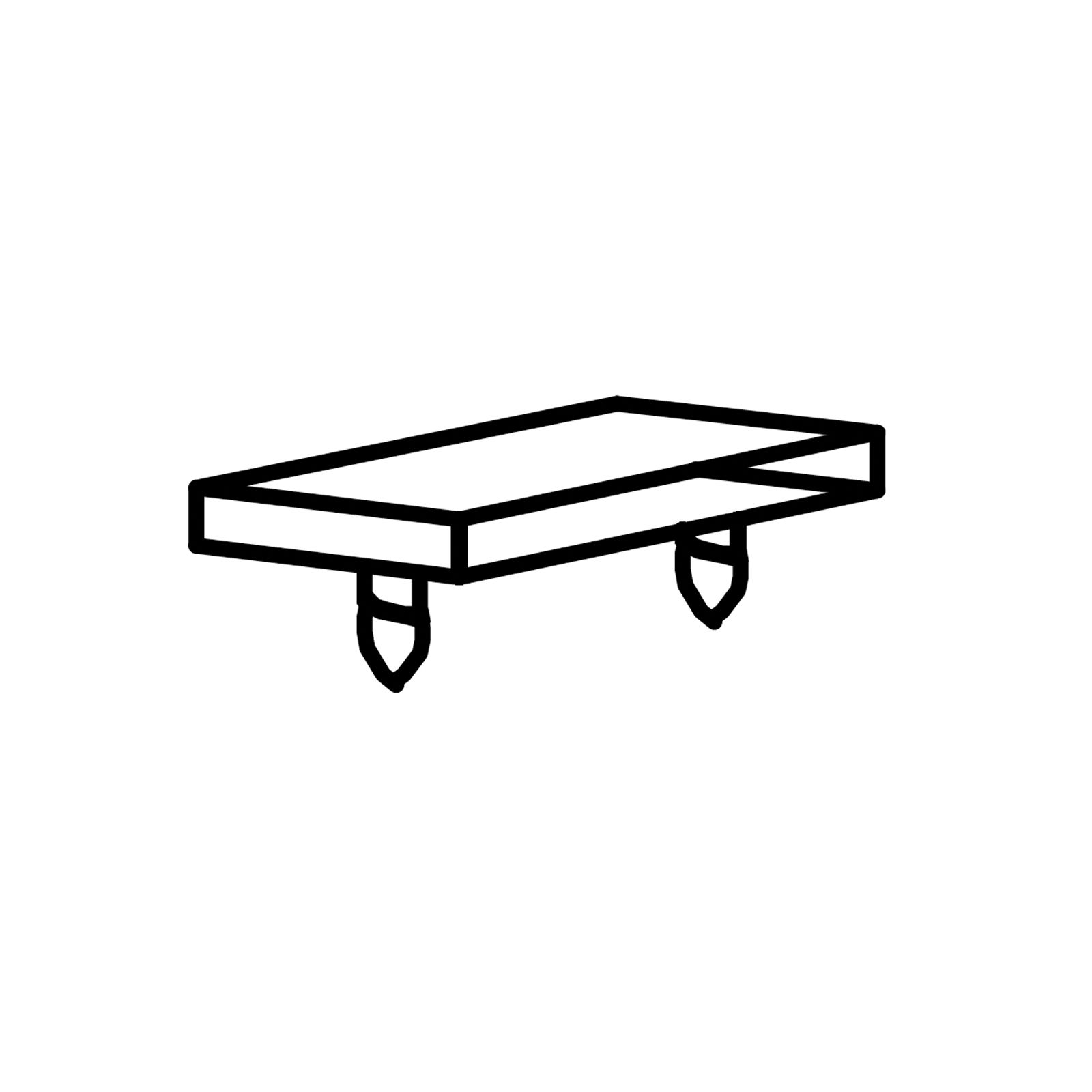

G - End Holder

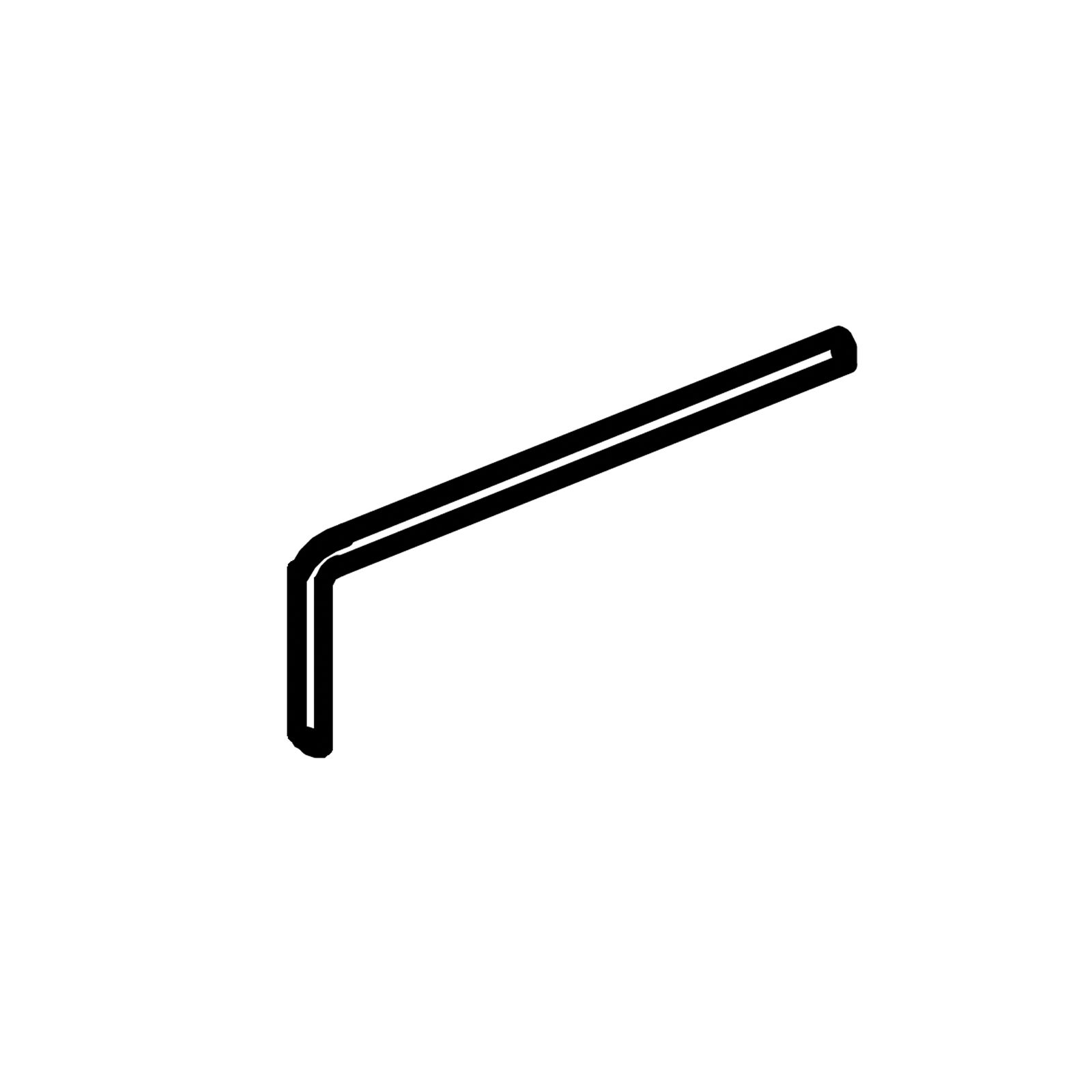

H - Allen Key (M5 x 70mm)
I - Allen Key (M4 x 65mm)
J - JCBC (M6 x 30mm)

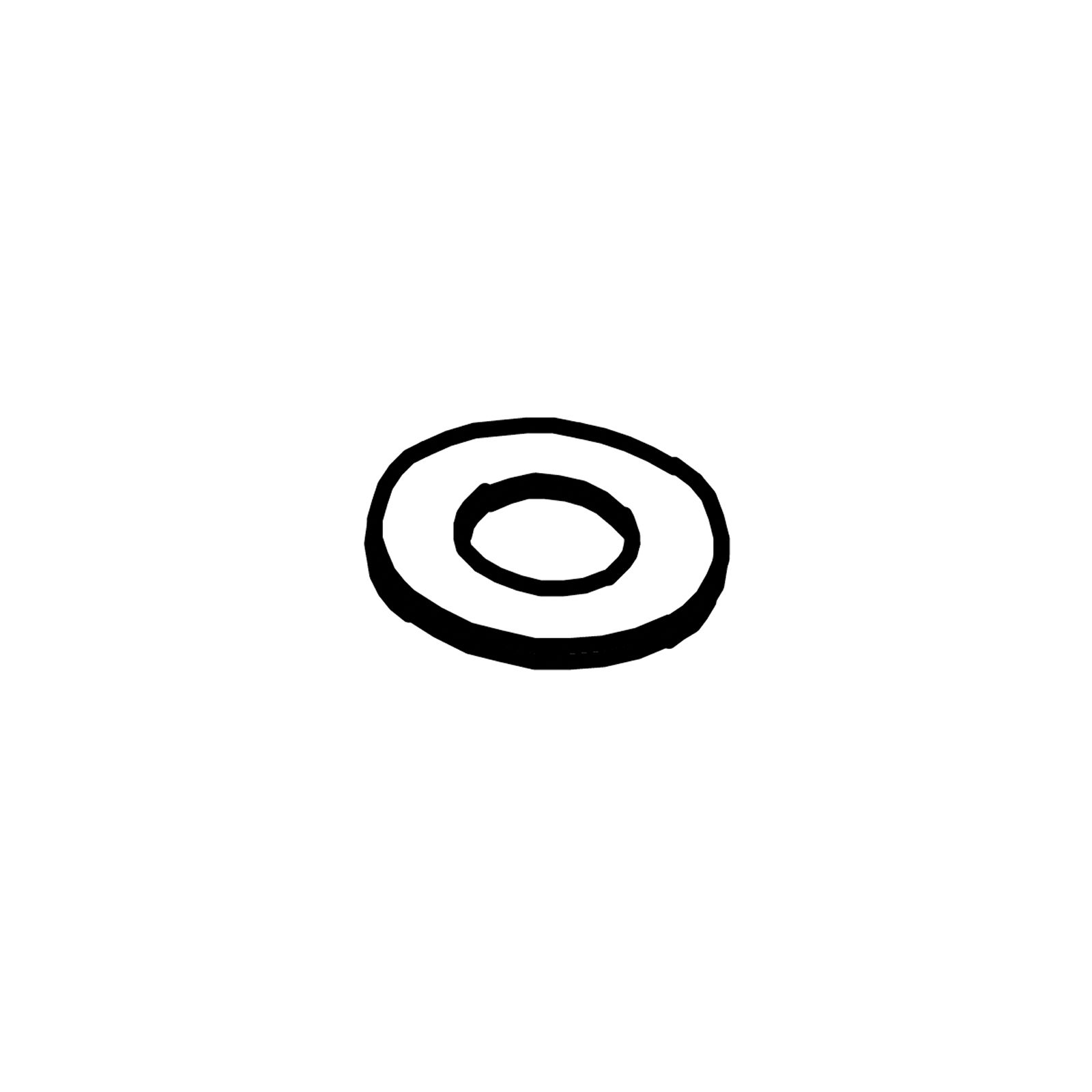

K - Flat Washers

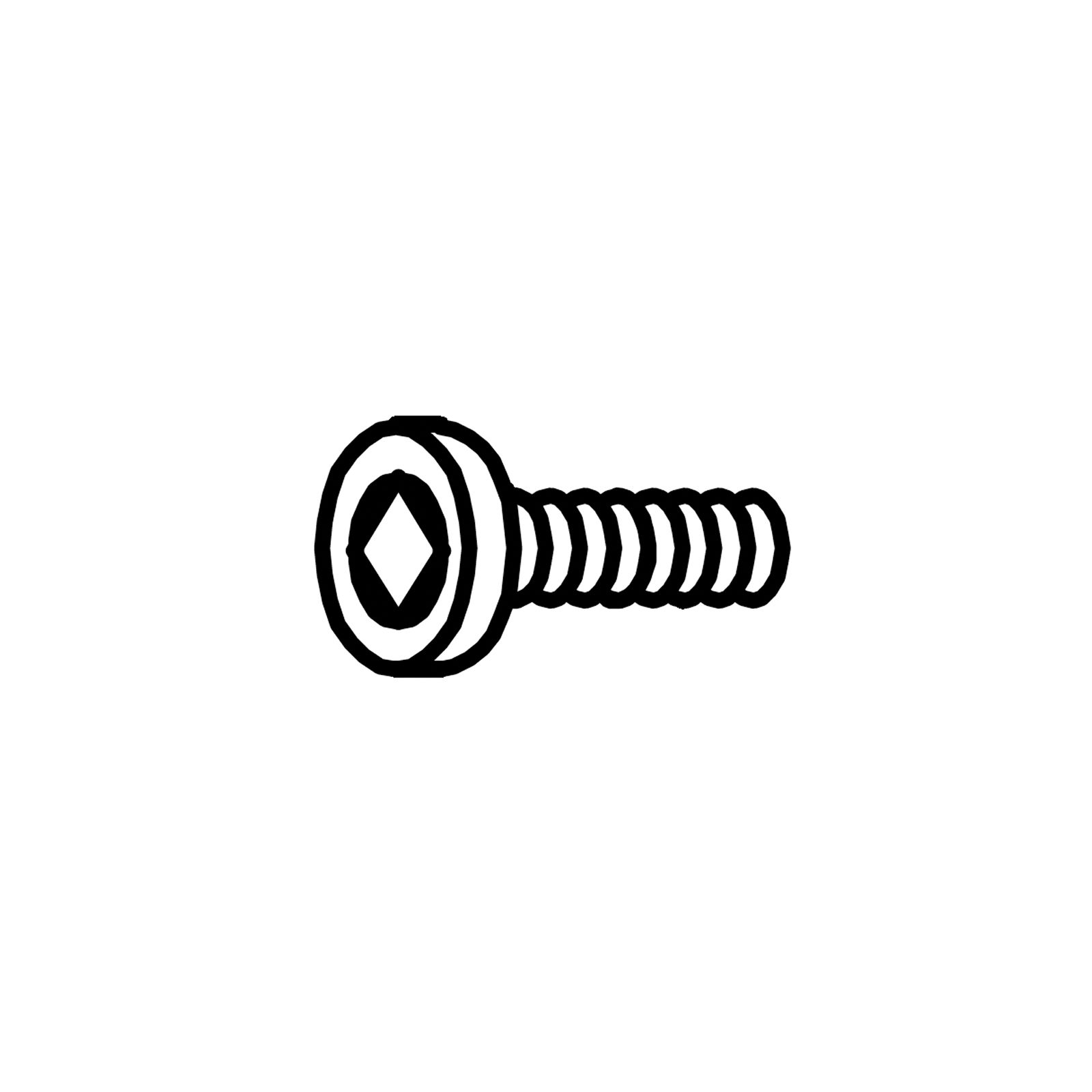

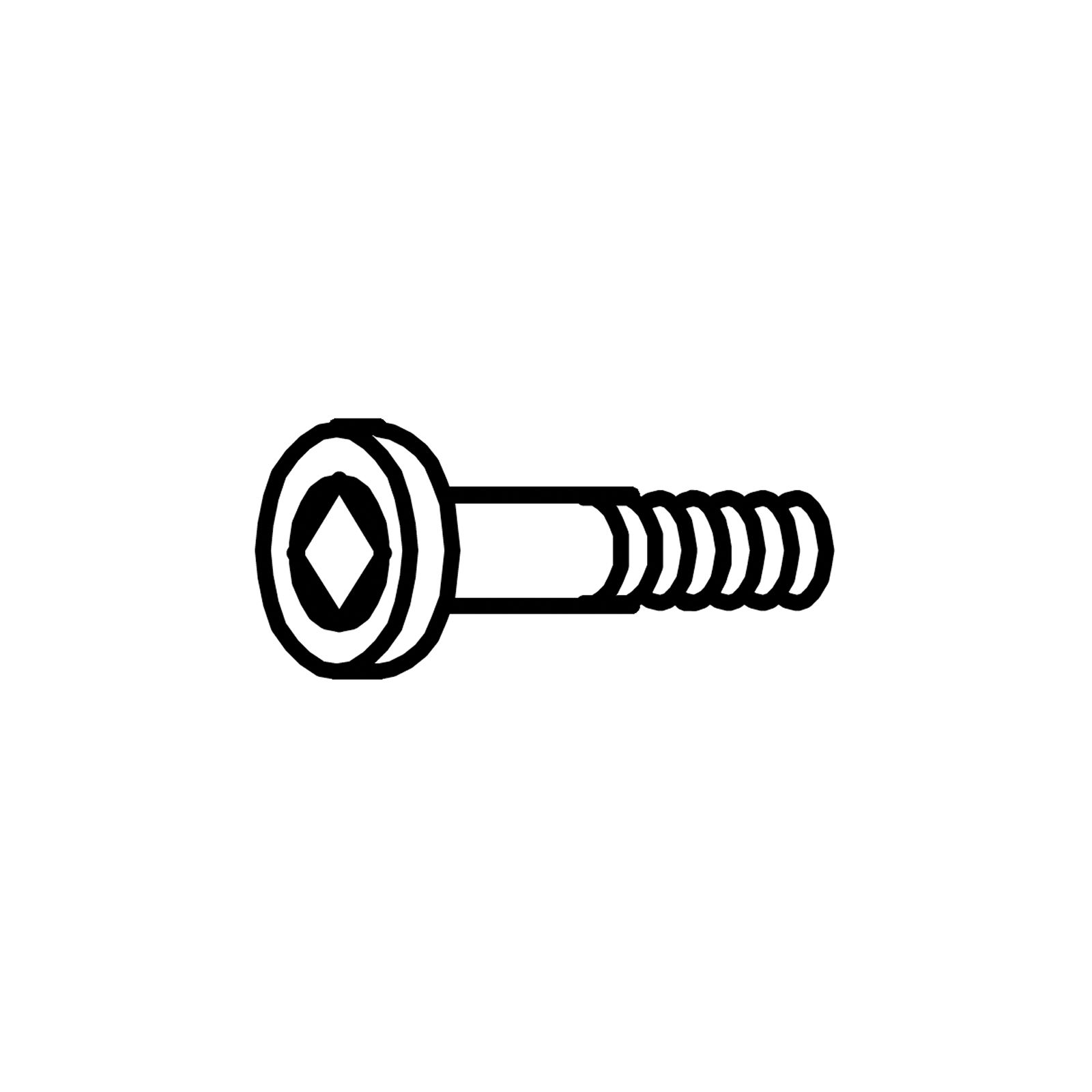

L - JCBB (M8 x 20mm)

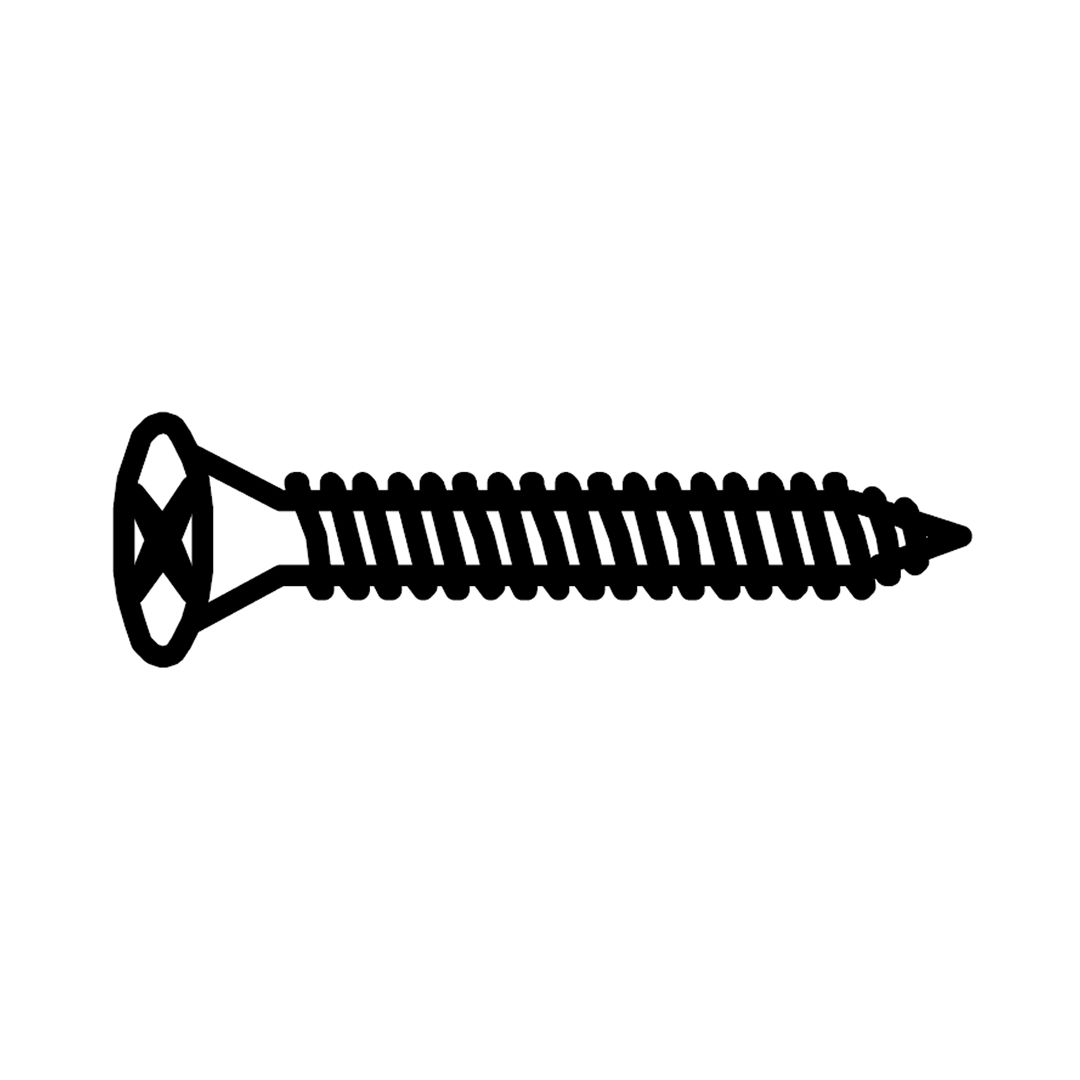

M - CSK Screw (32 mm)

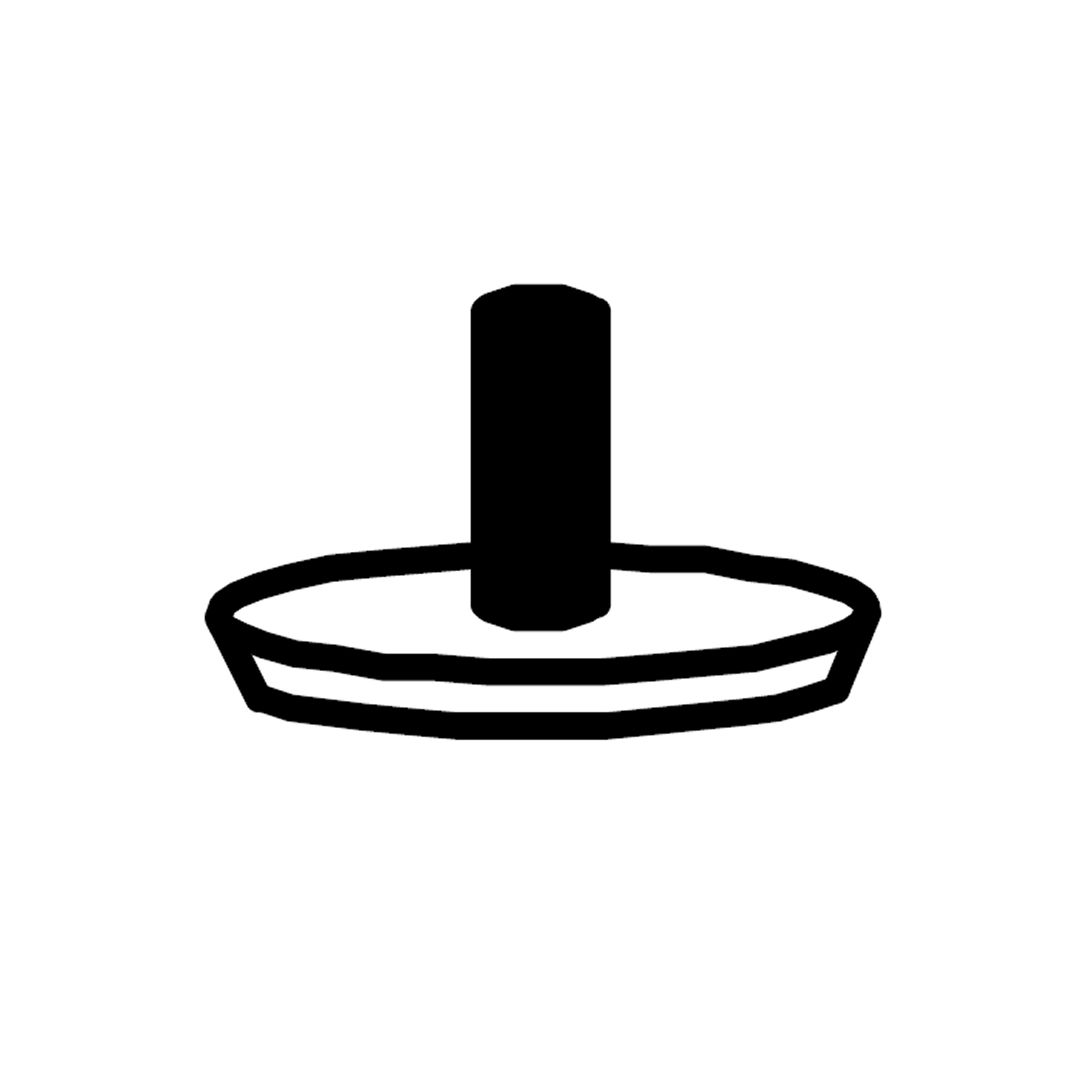

N - Small Adjuster

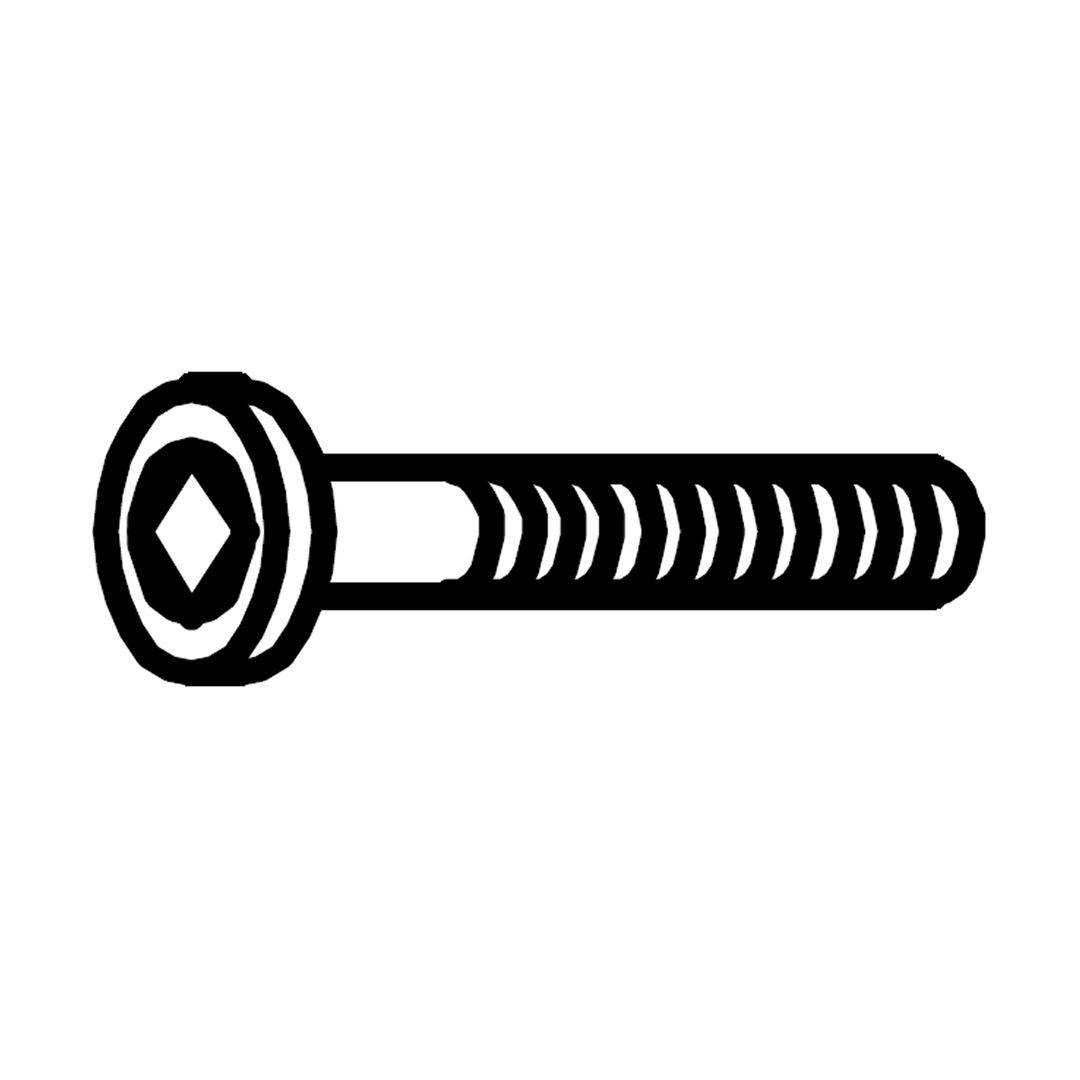

O - JCBC (M6 x 40mm)

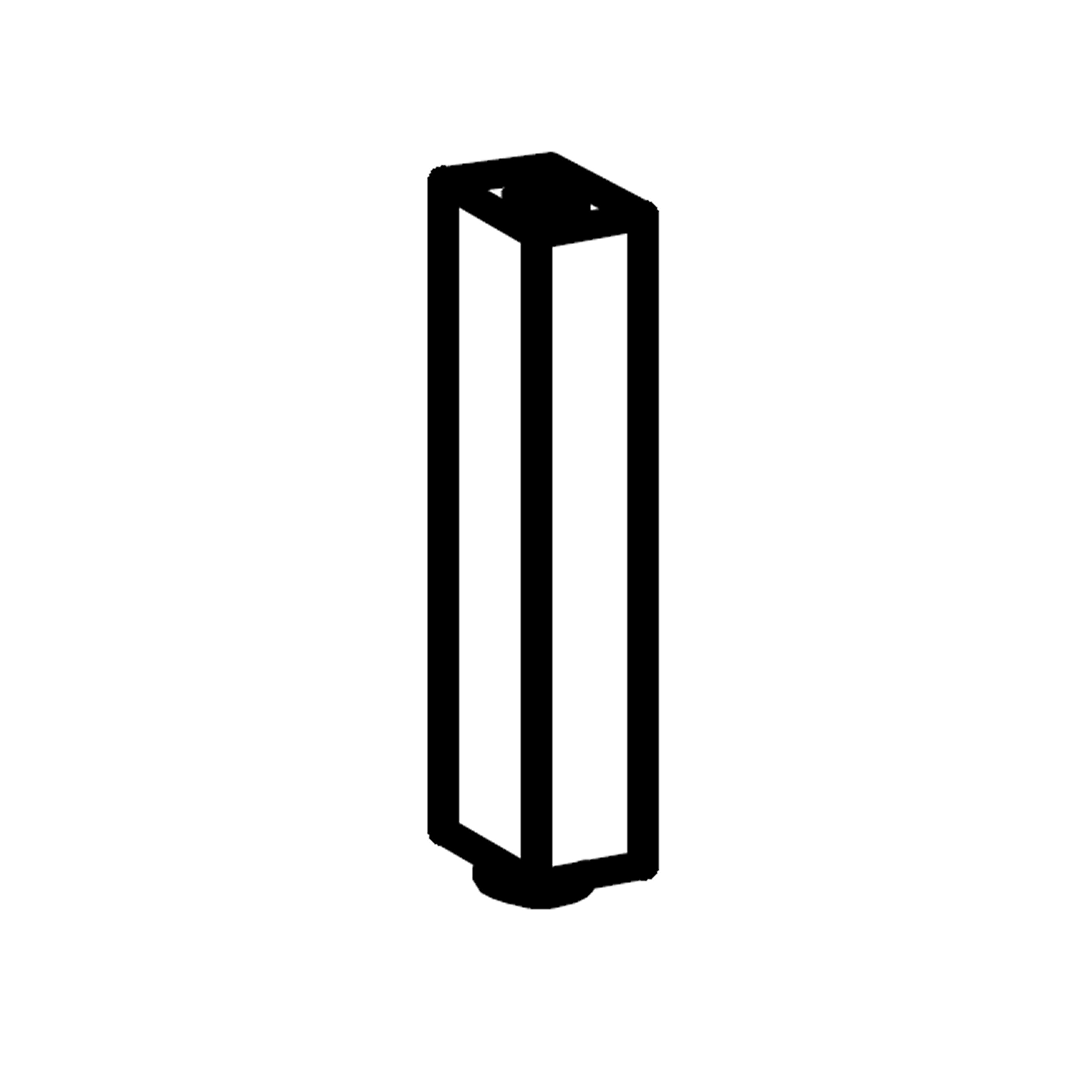

P - Support Legs (240 mm)

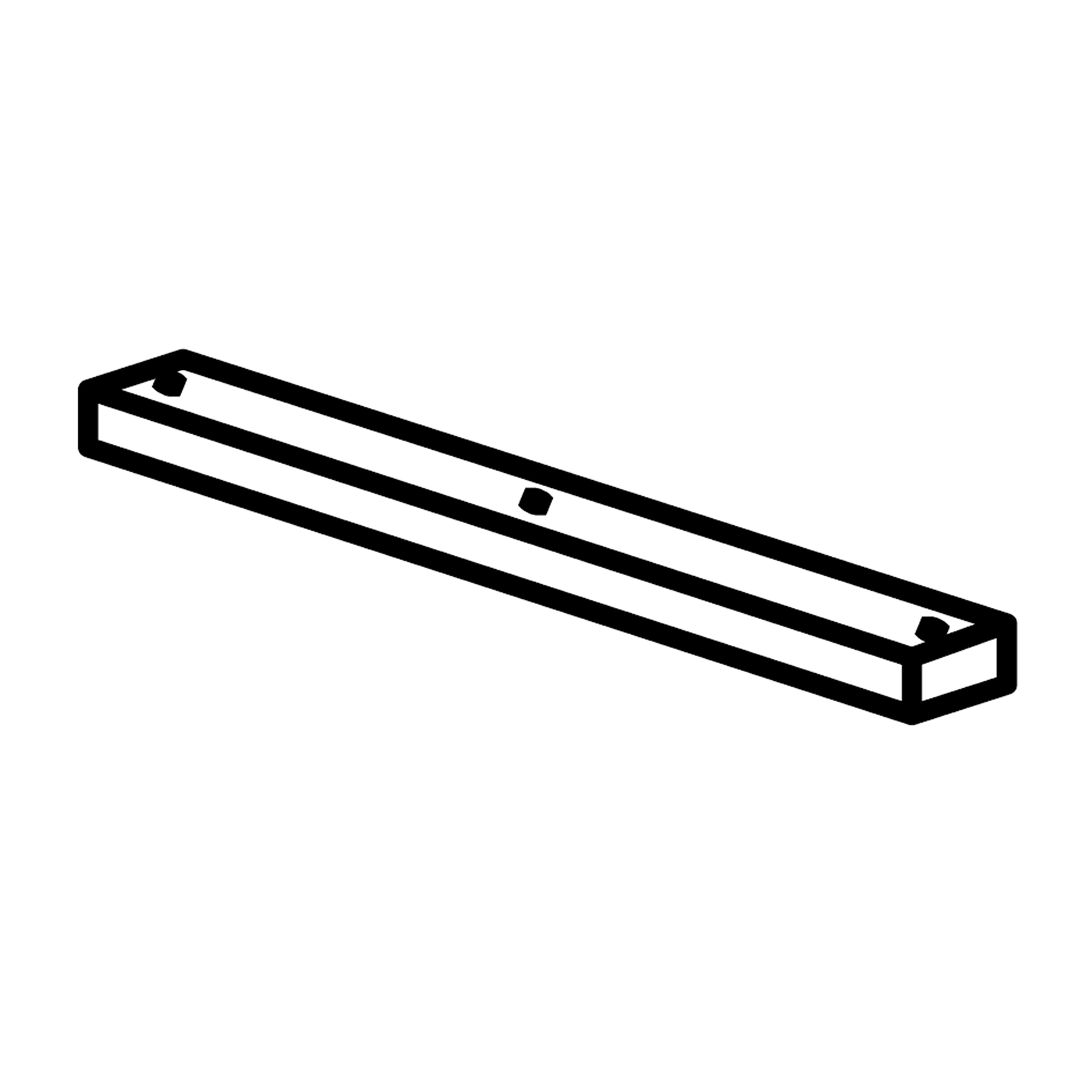

Q - Slat (498 mm)

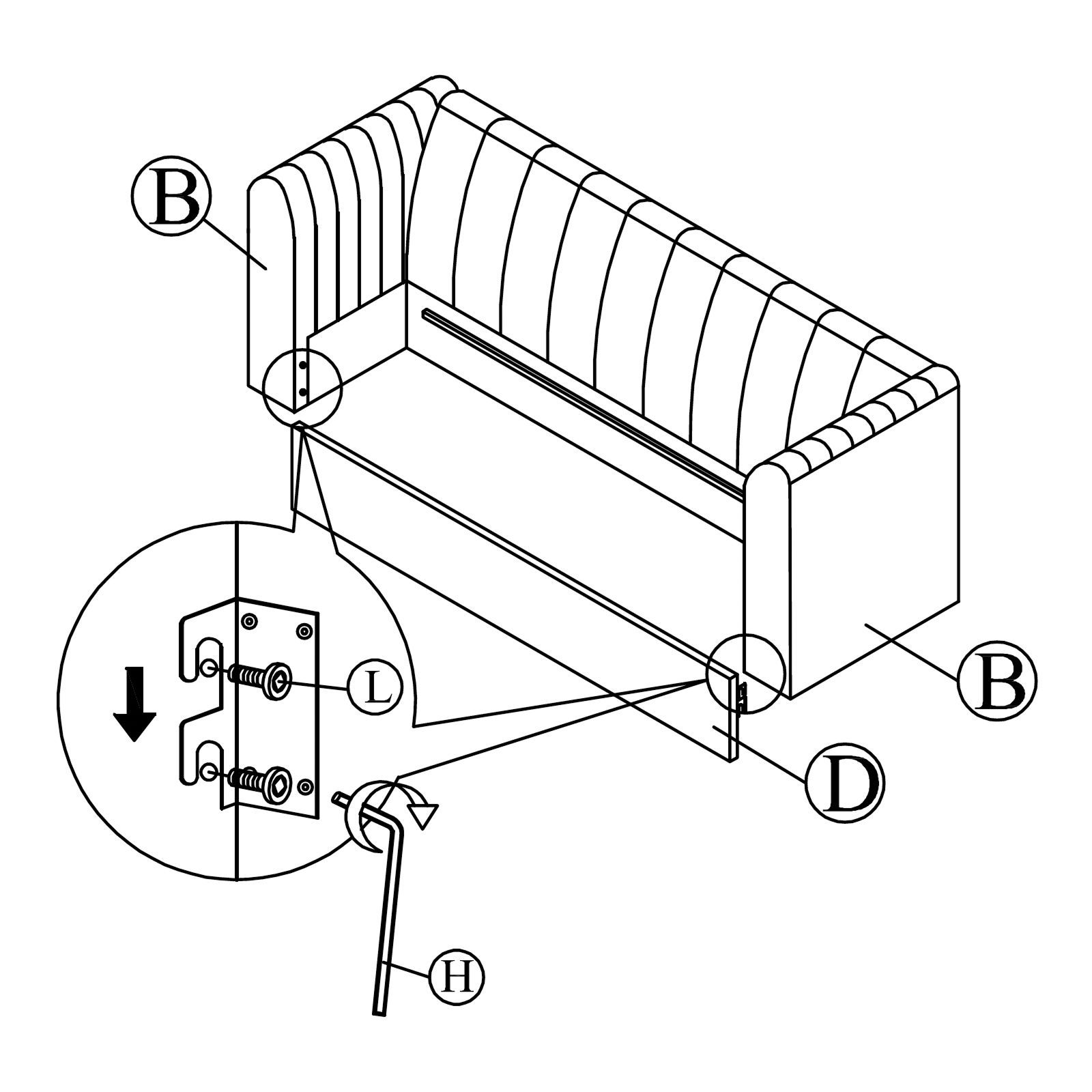

2. Connect Side Rail
Attach the side rail (D) to the arm (B).

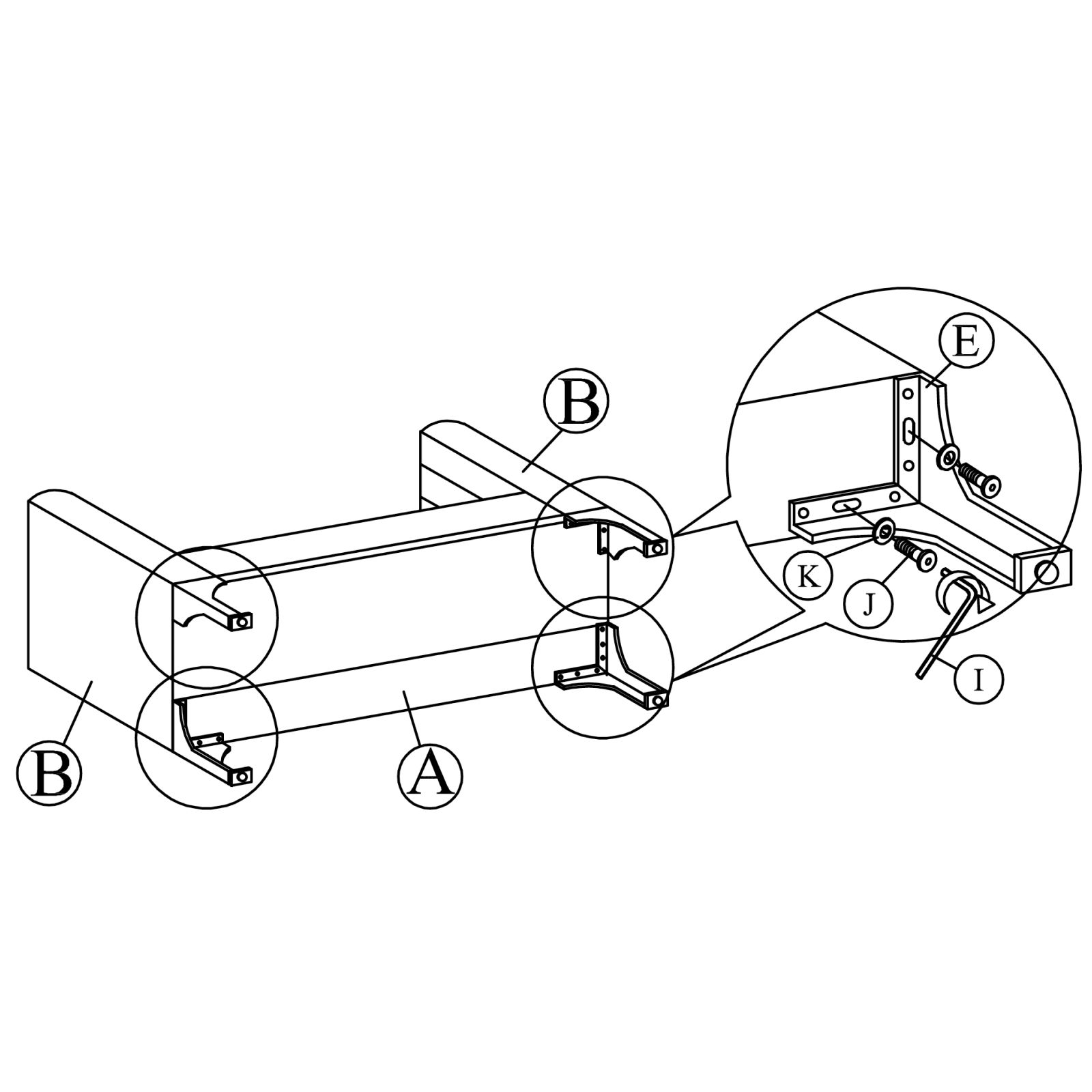

3. Attach Legs
Install the legs (E) to back rest (A) and arm (B).

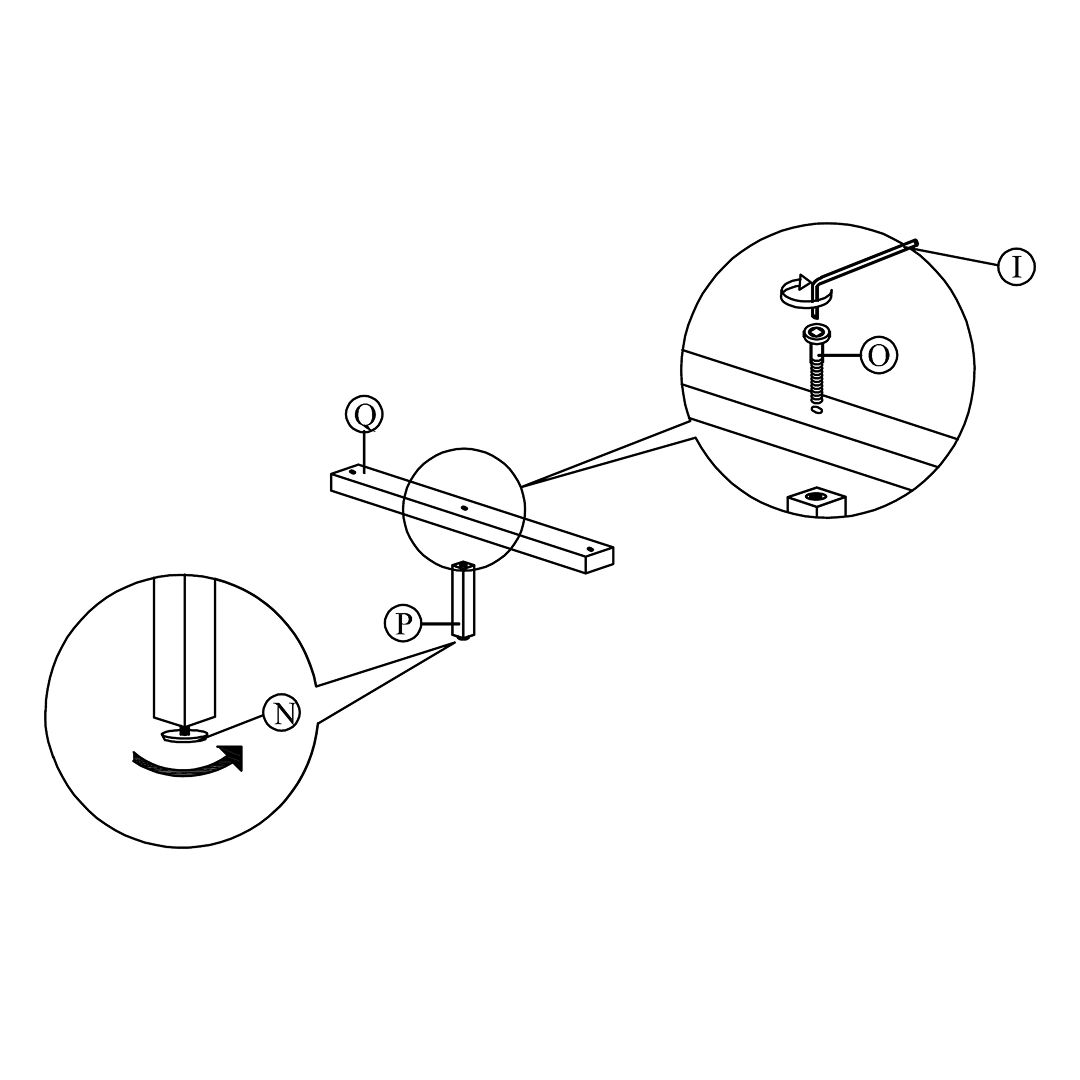

4. Install Legs and Adjust Height
Attach the support legs (P) to the slat (Q) of the sofa as shown.

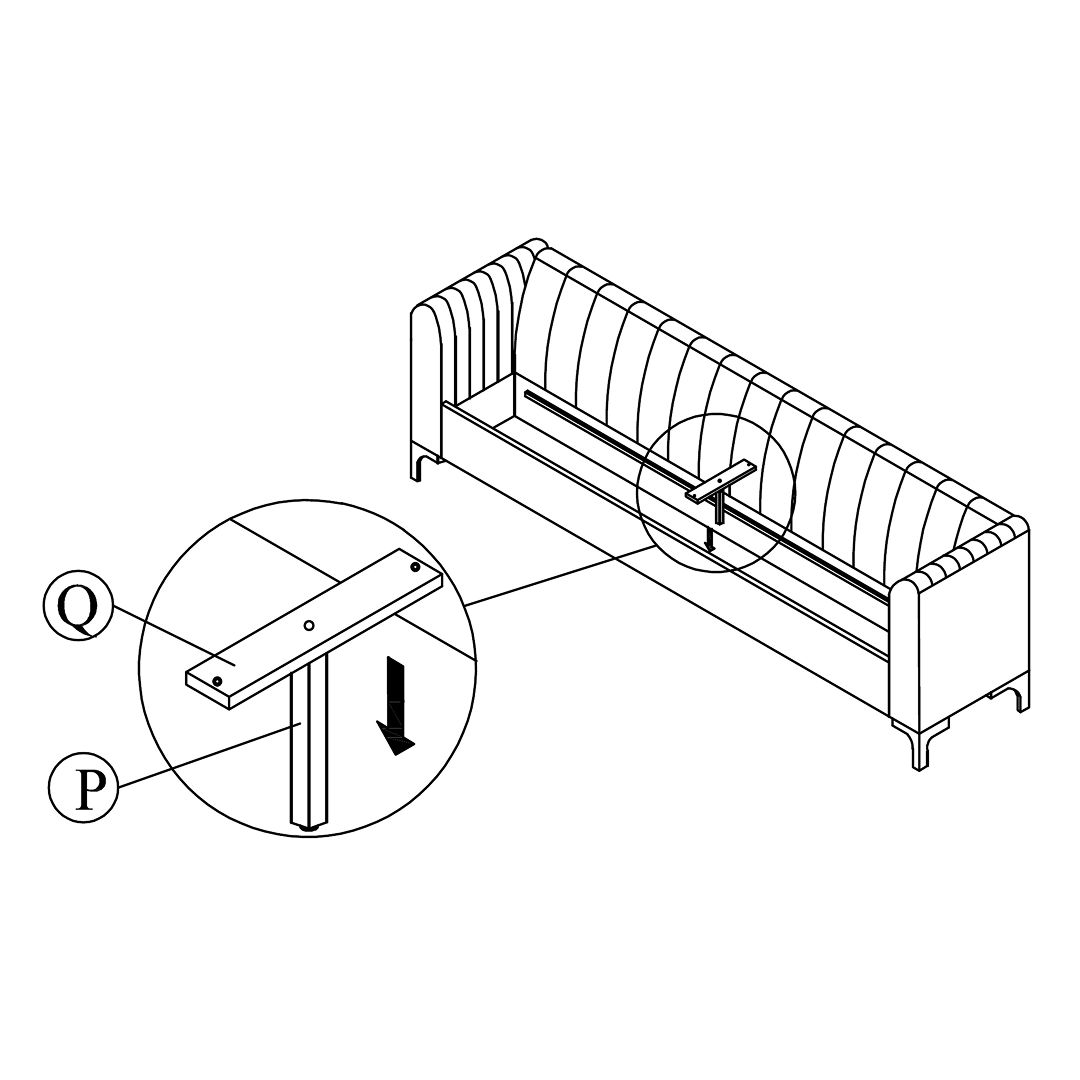

5. Install Central Slat and Legs
Attach the slat (Q) and support legs (P) to the center of back rest (A) and side rail (D).

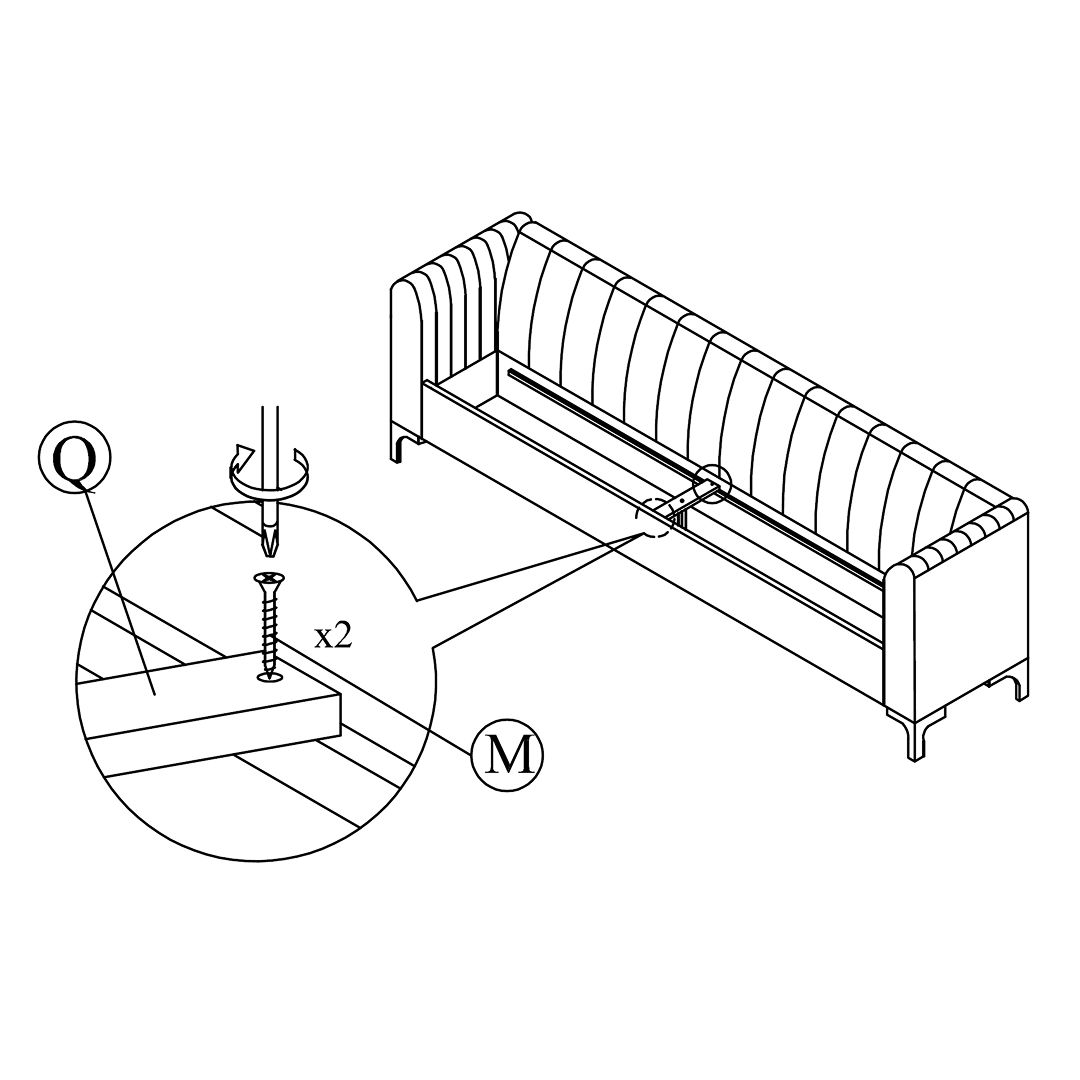

6. Install Slat Between Backrest and Side Rail
Attach the slat (Q) to the back rest (A) and side rail (D).

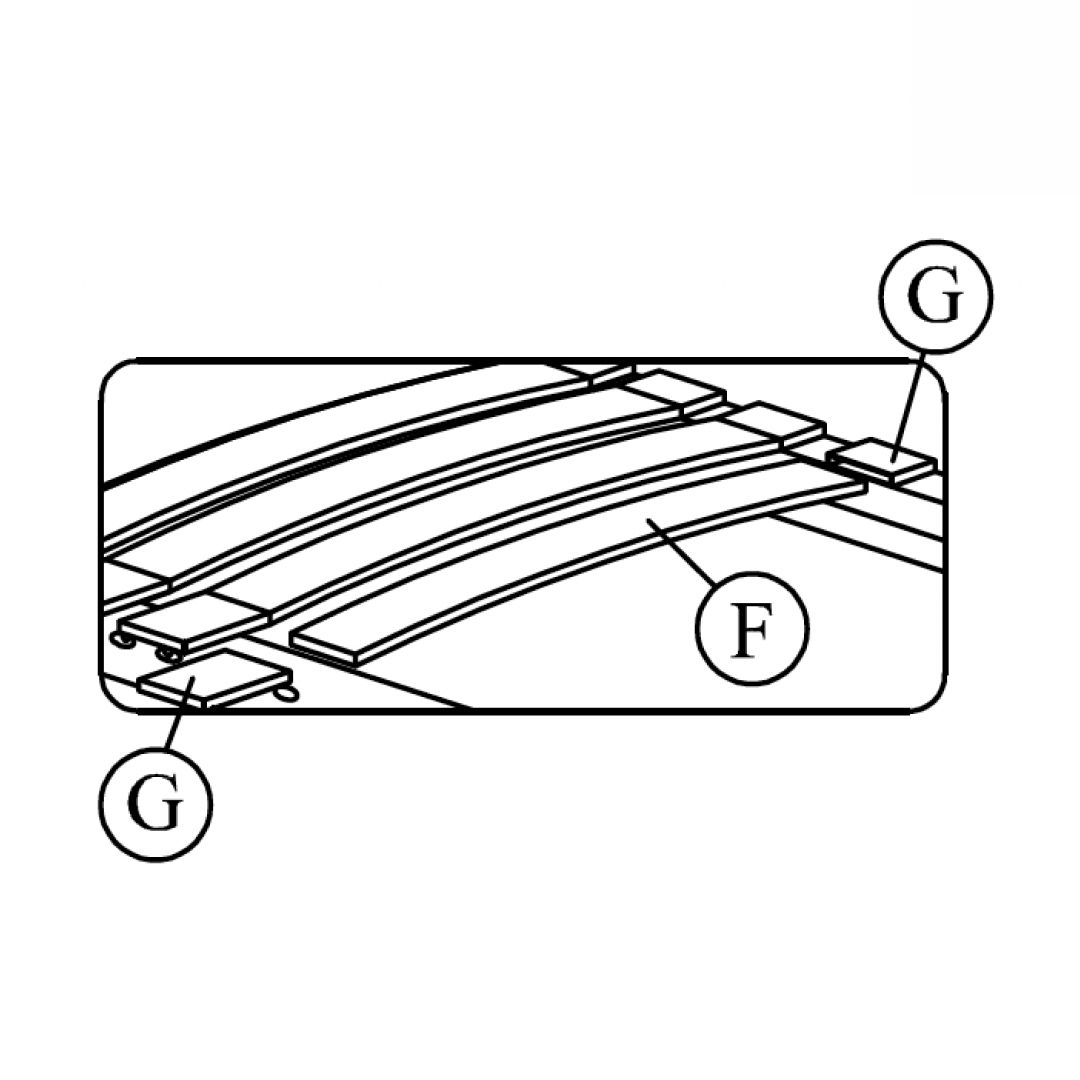

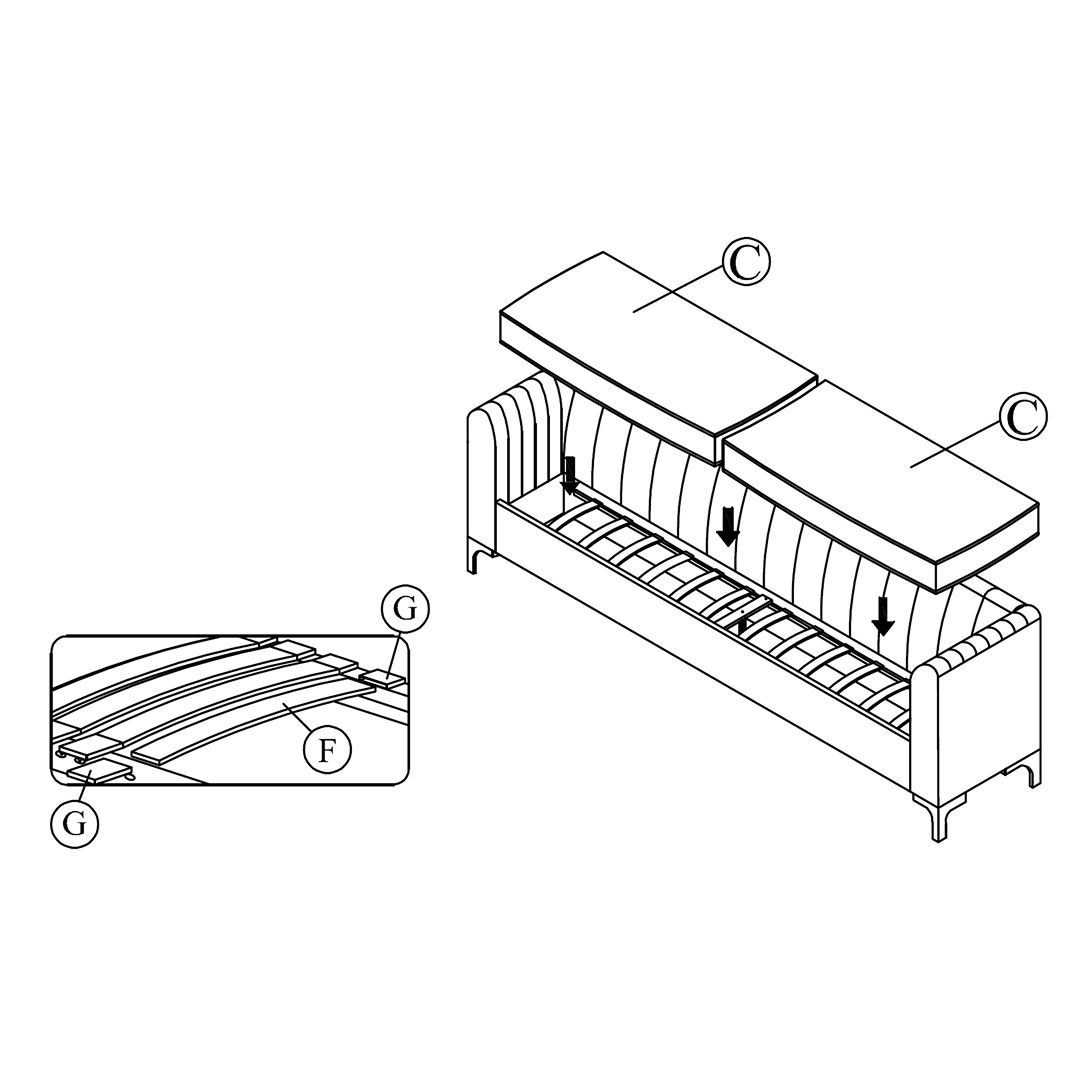

7. Install Slats and Sitter
Assembly of the slat holders with LVL slats as shown. Attach the sitter (C) to the arm (B), side rail (D) and back rest (A).
