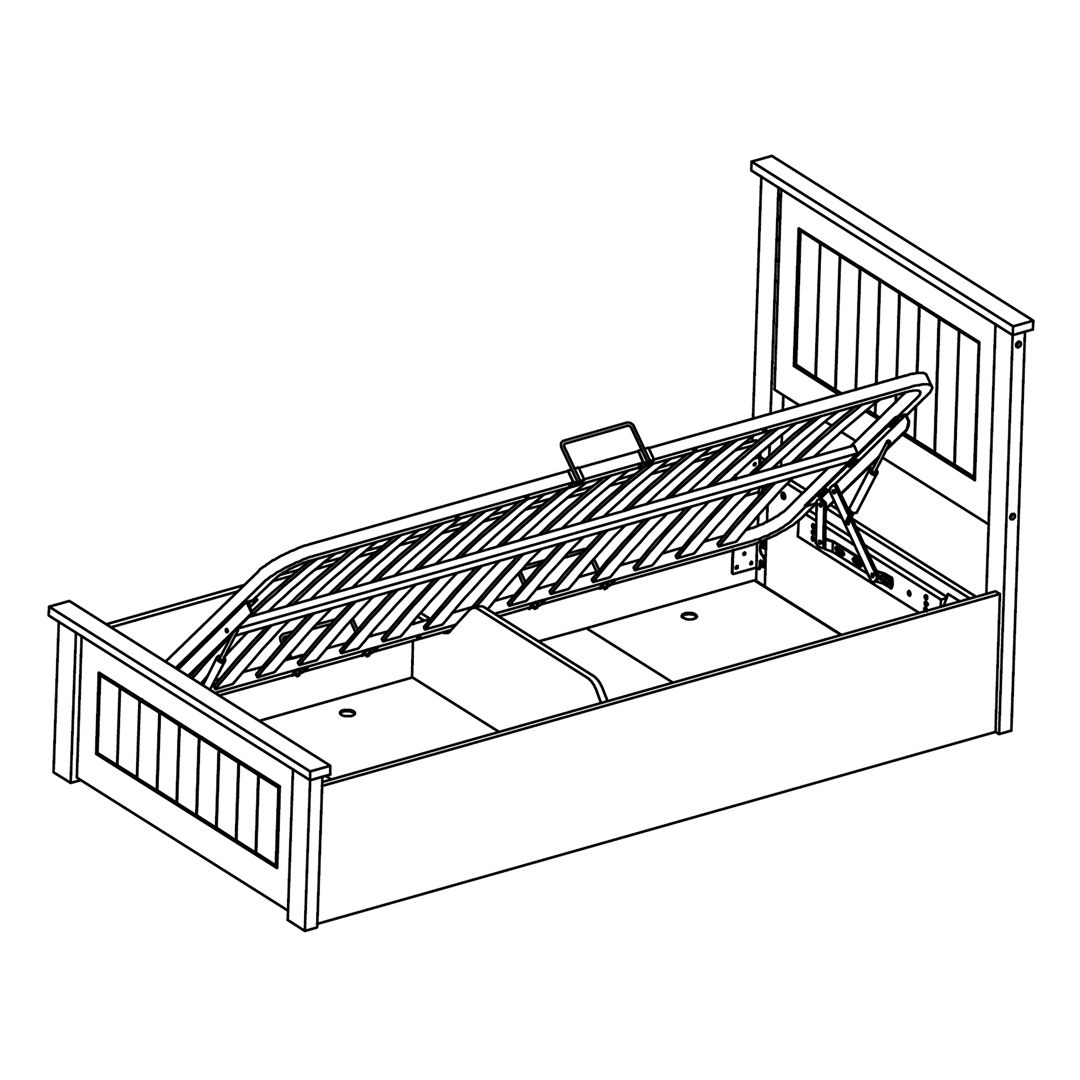

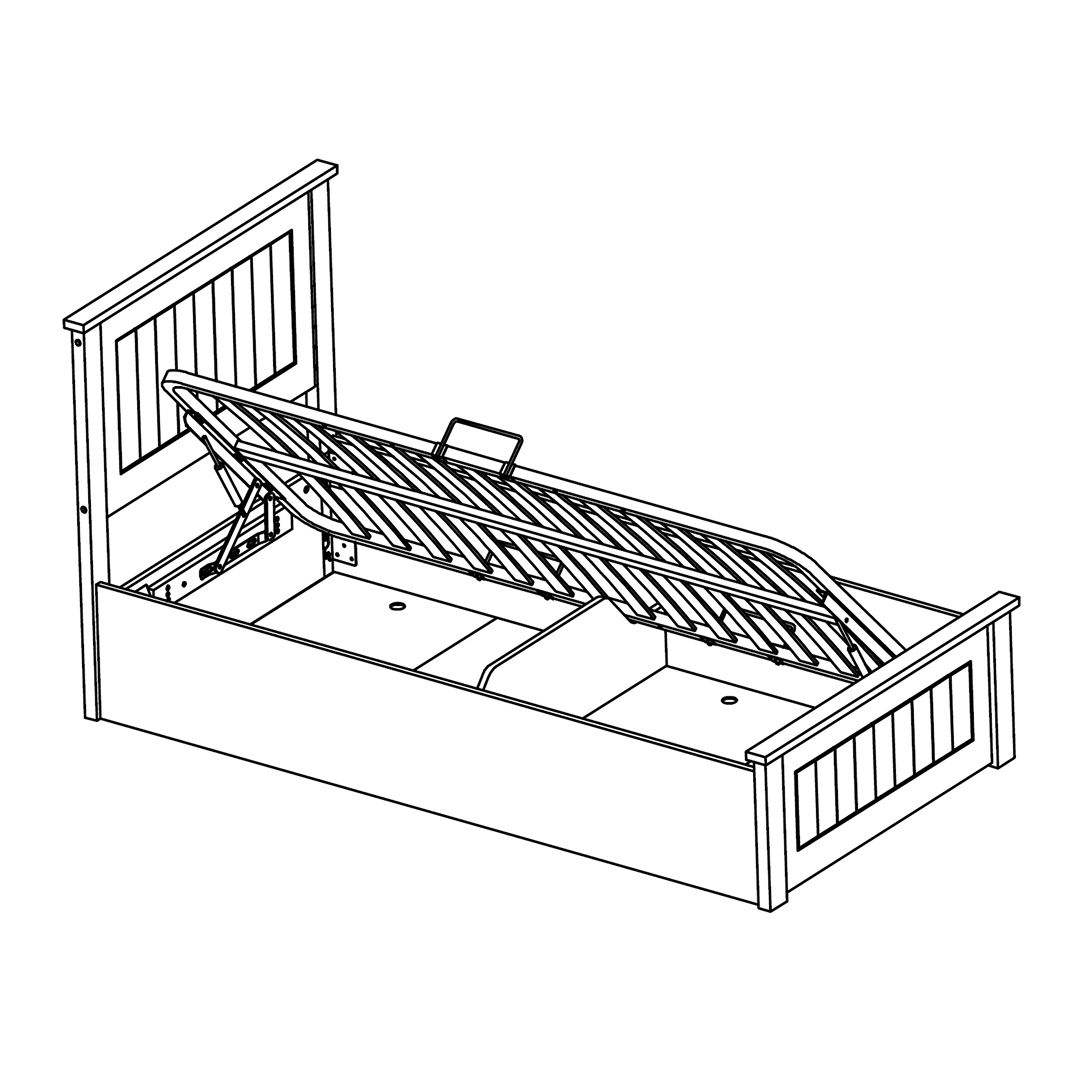

New England Solo Wooden Ottoman Storage Bed

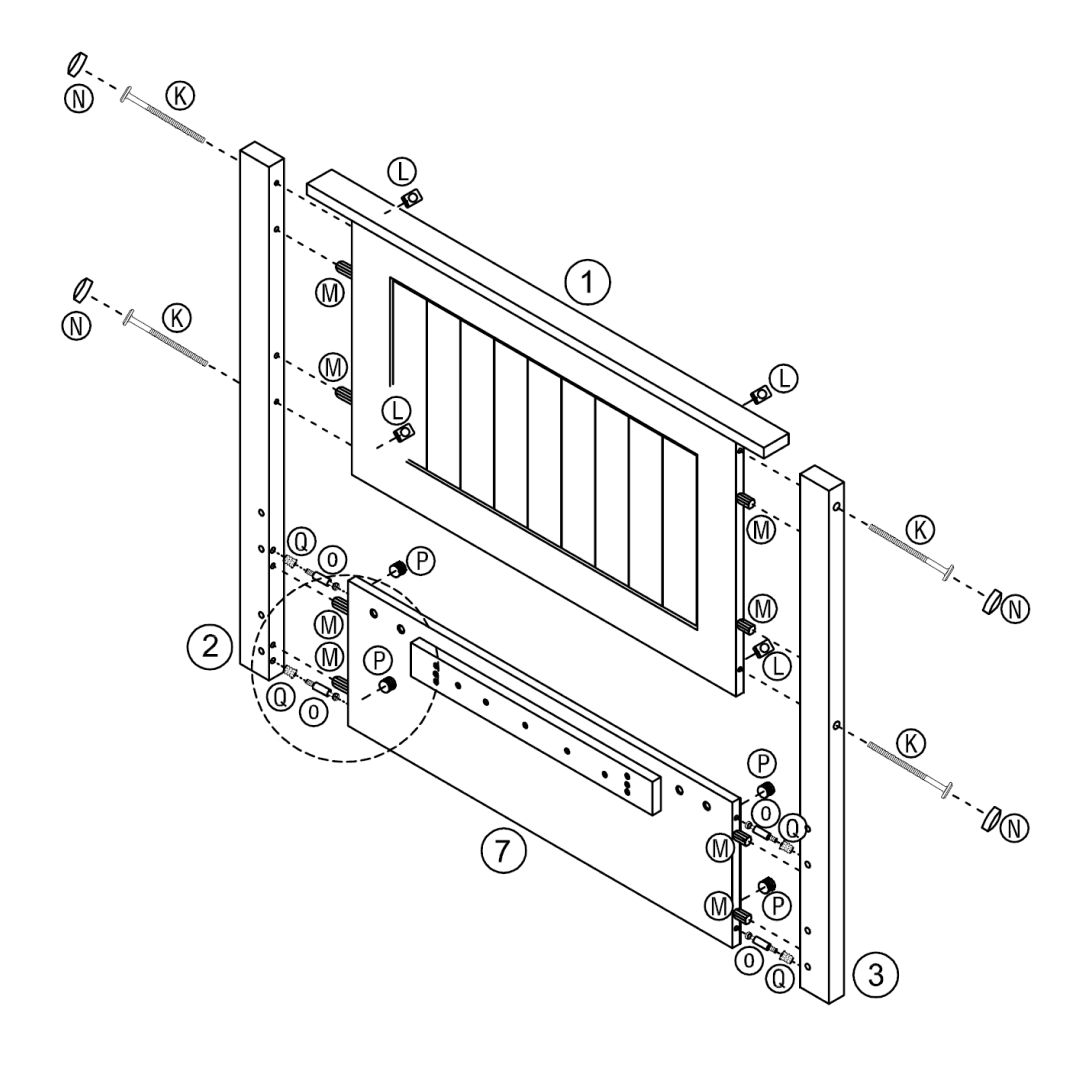

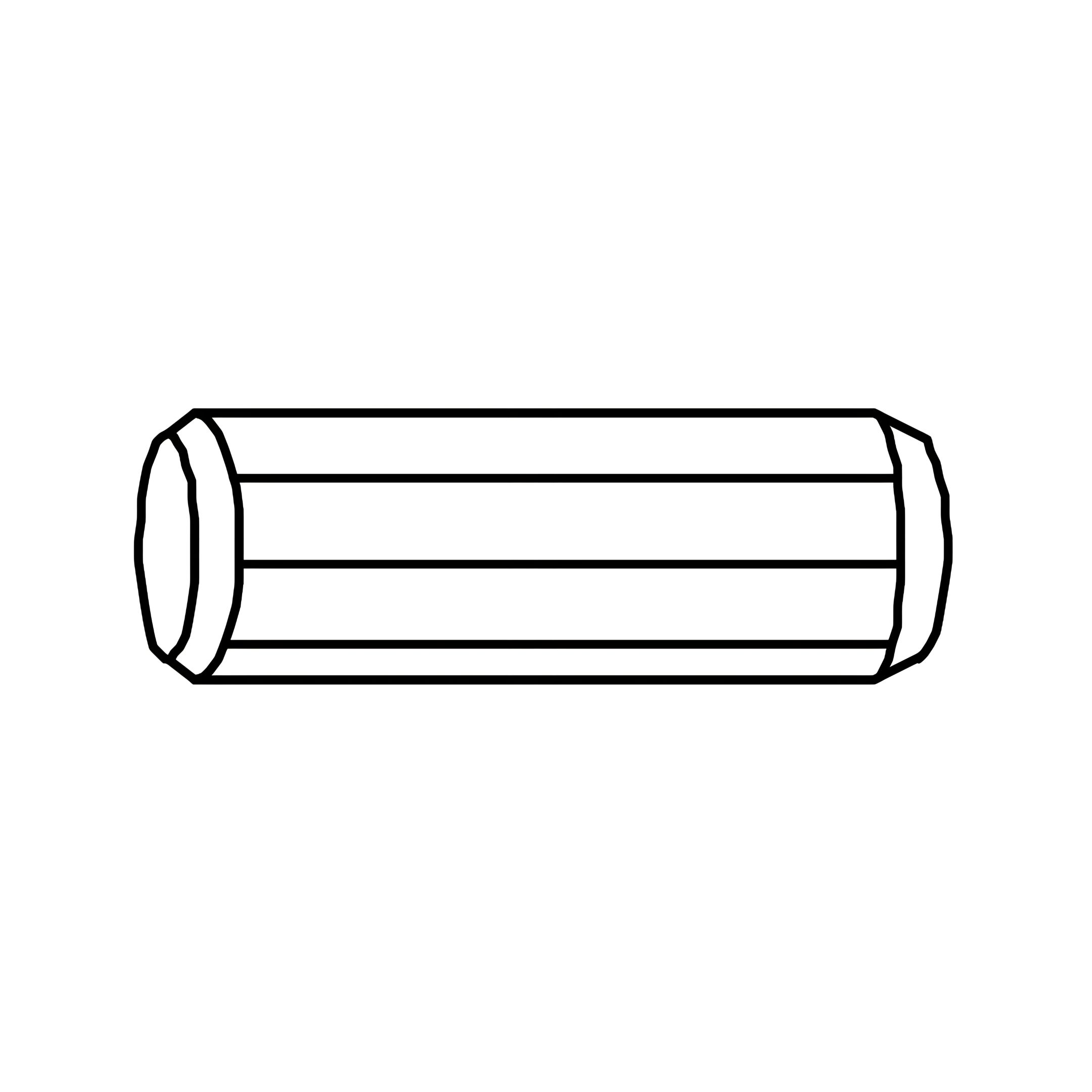

1. Insert Wood Dowels (M) into the pre-drilled holes on both HB. Posts (Left & Right) (2, 3).

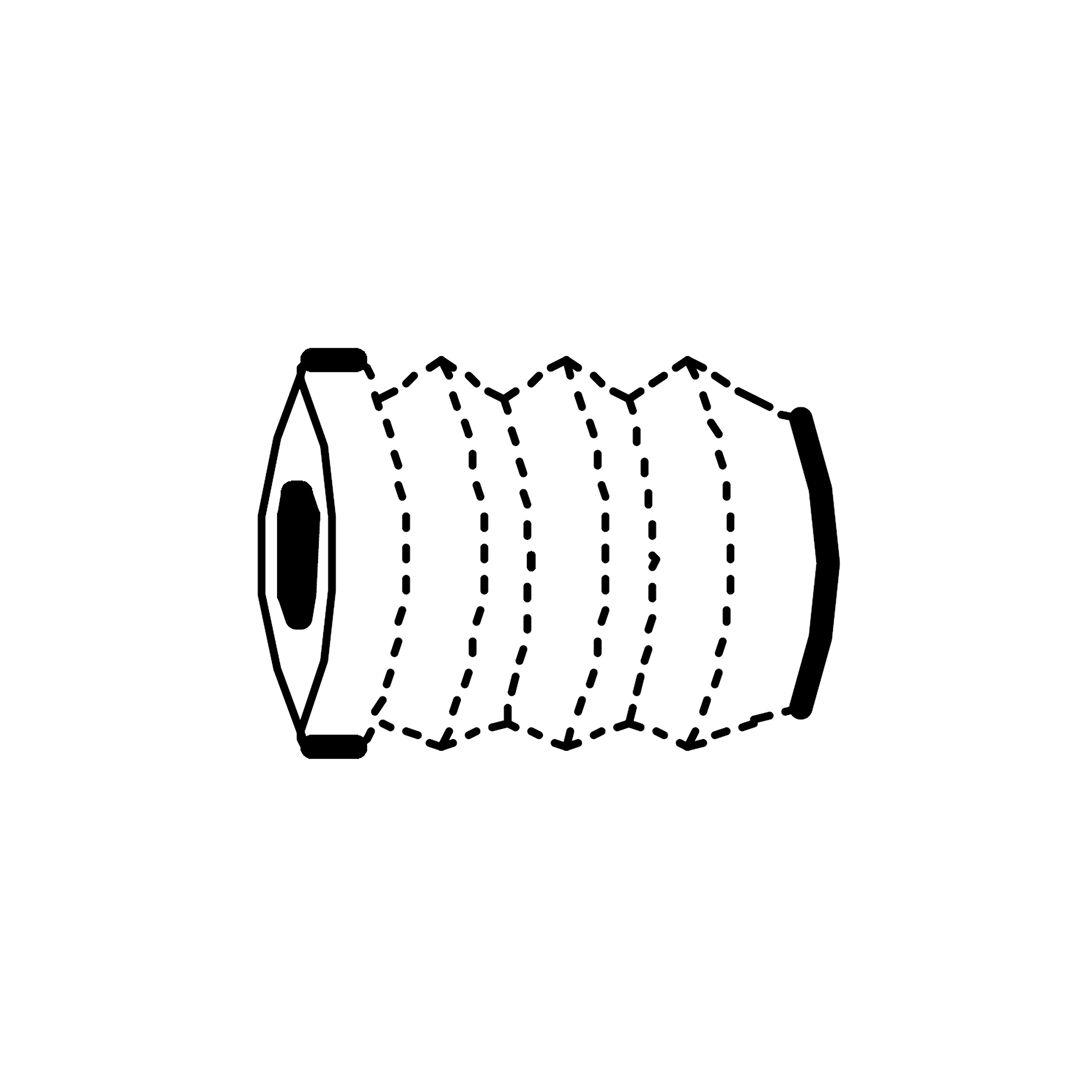

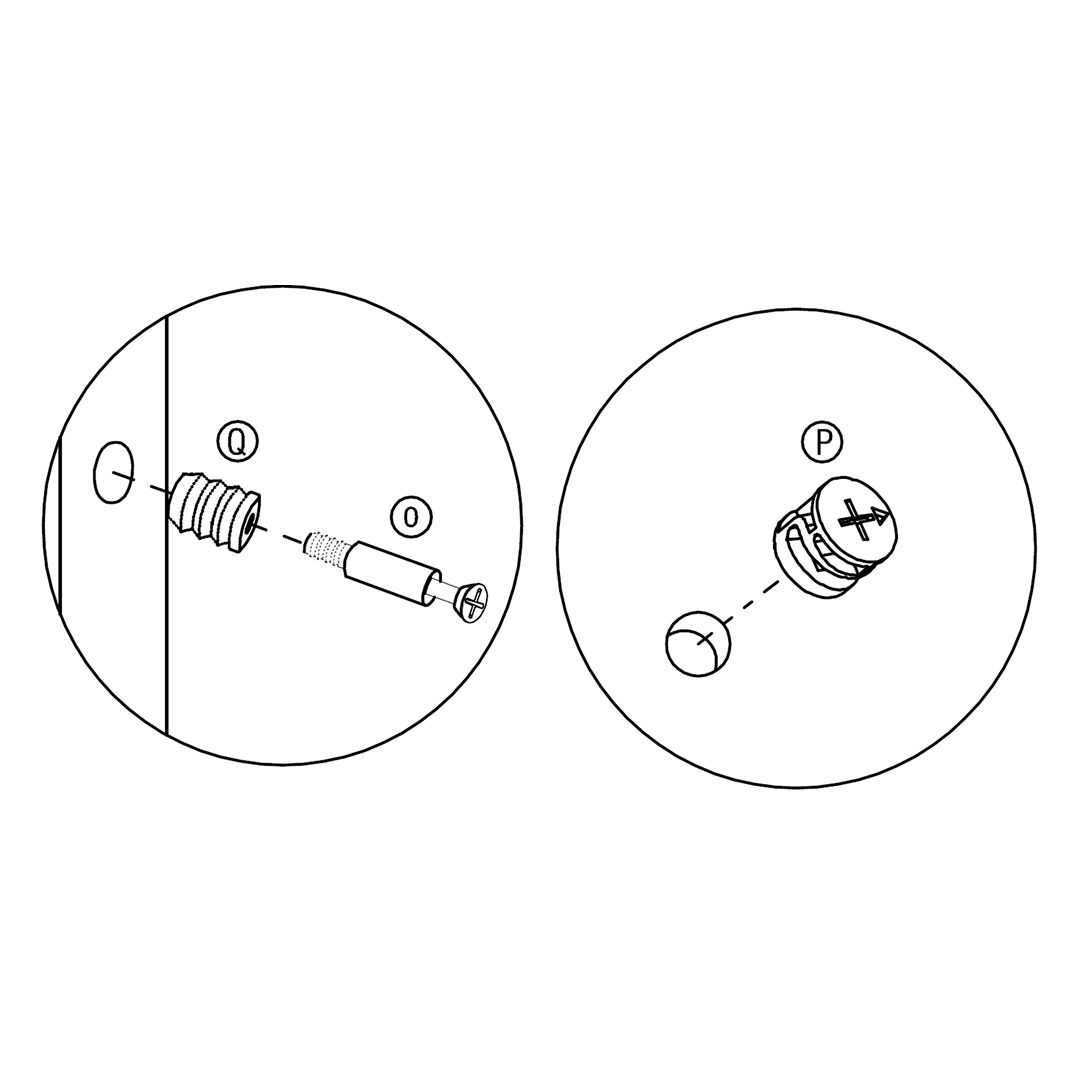

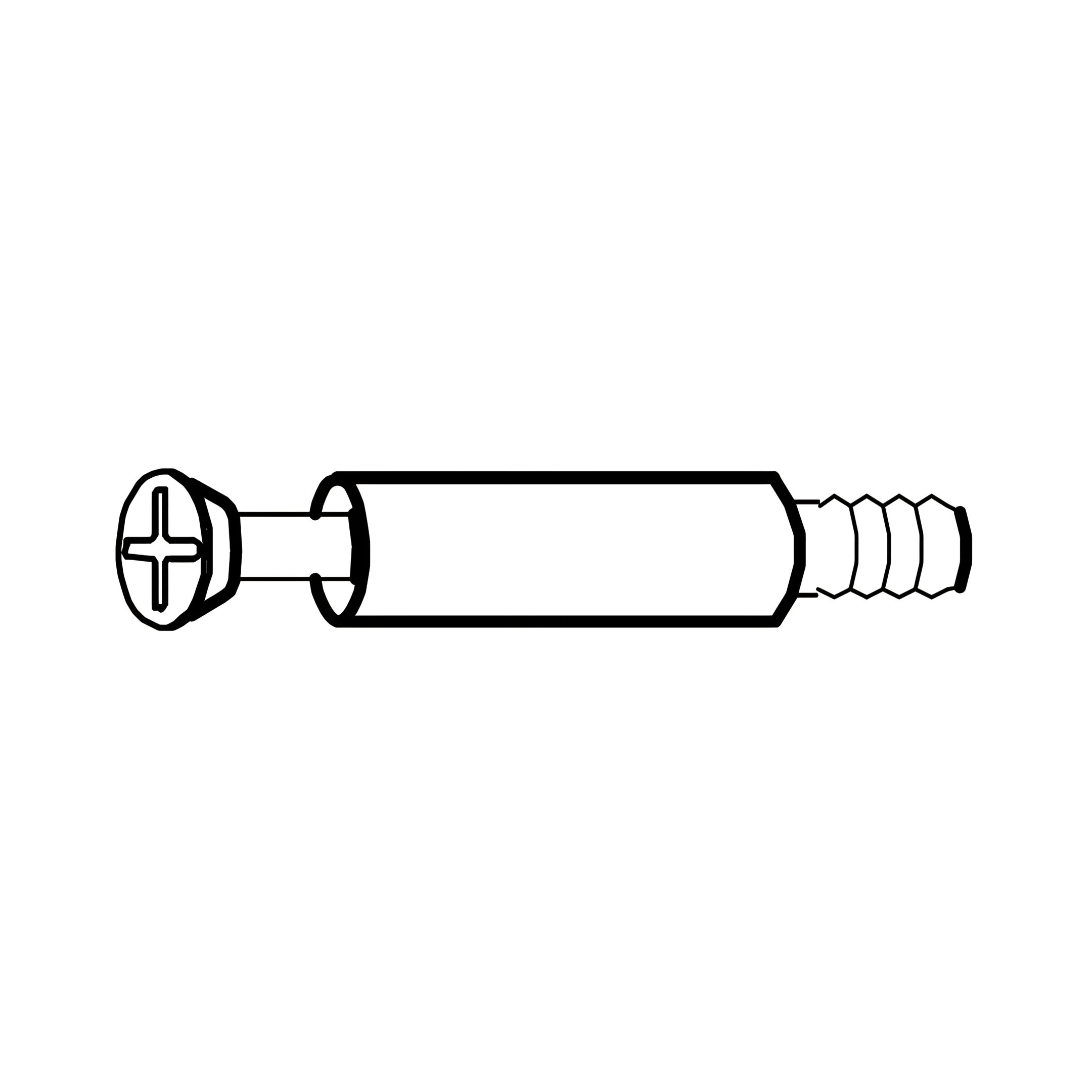

2. Insert Connecting Bolts (O) and the Nylon Socket (Q) through the pre-drilled holes on HB. Bottom Panel (7).
3. Align the HB. Panel (1) and the HB. Bottom Panel (7) between the HB. Posts (2, 3).

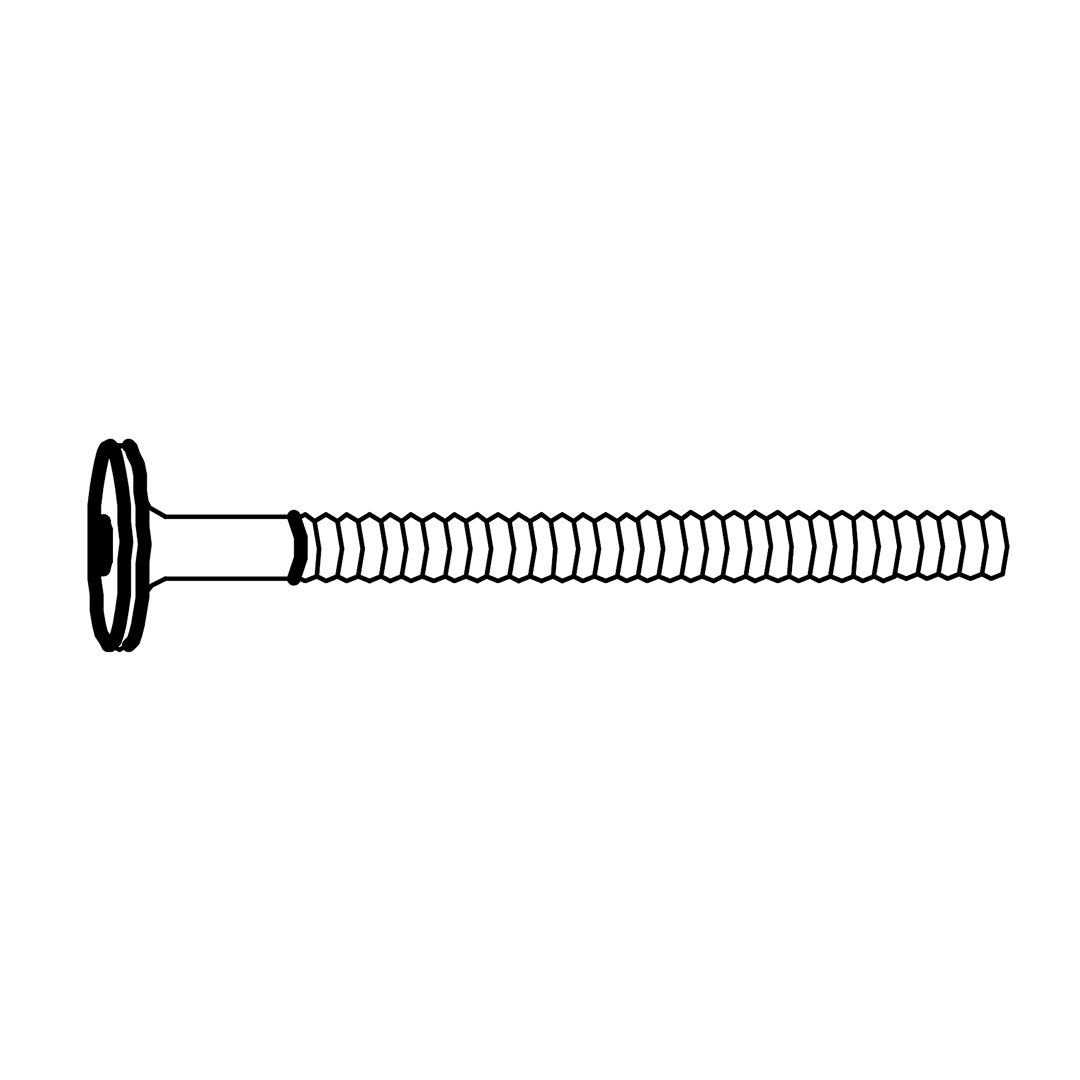

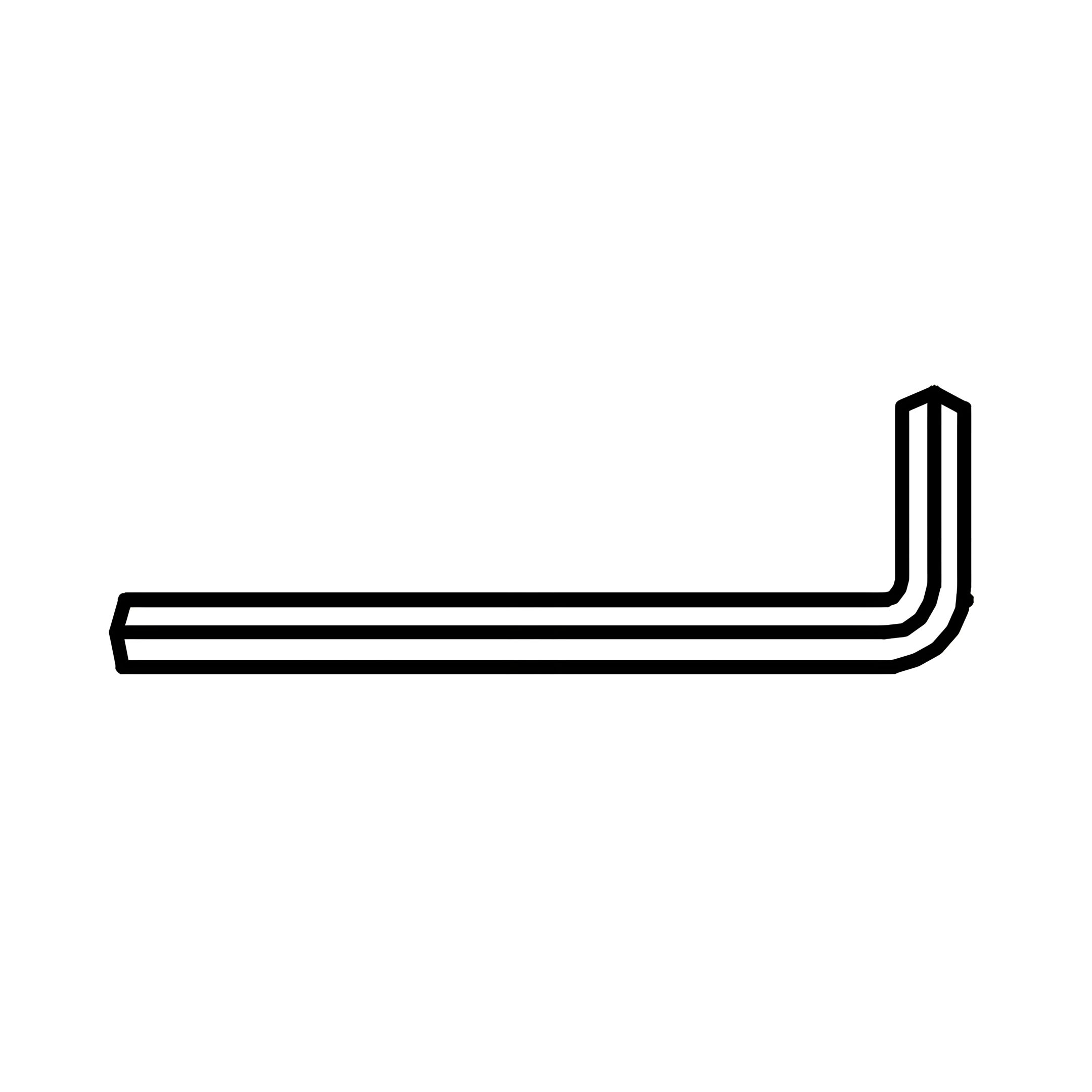

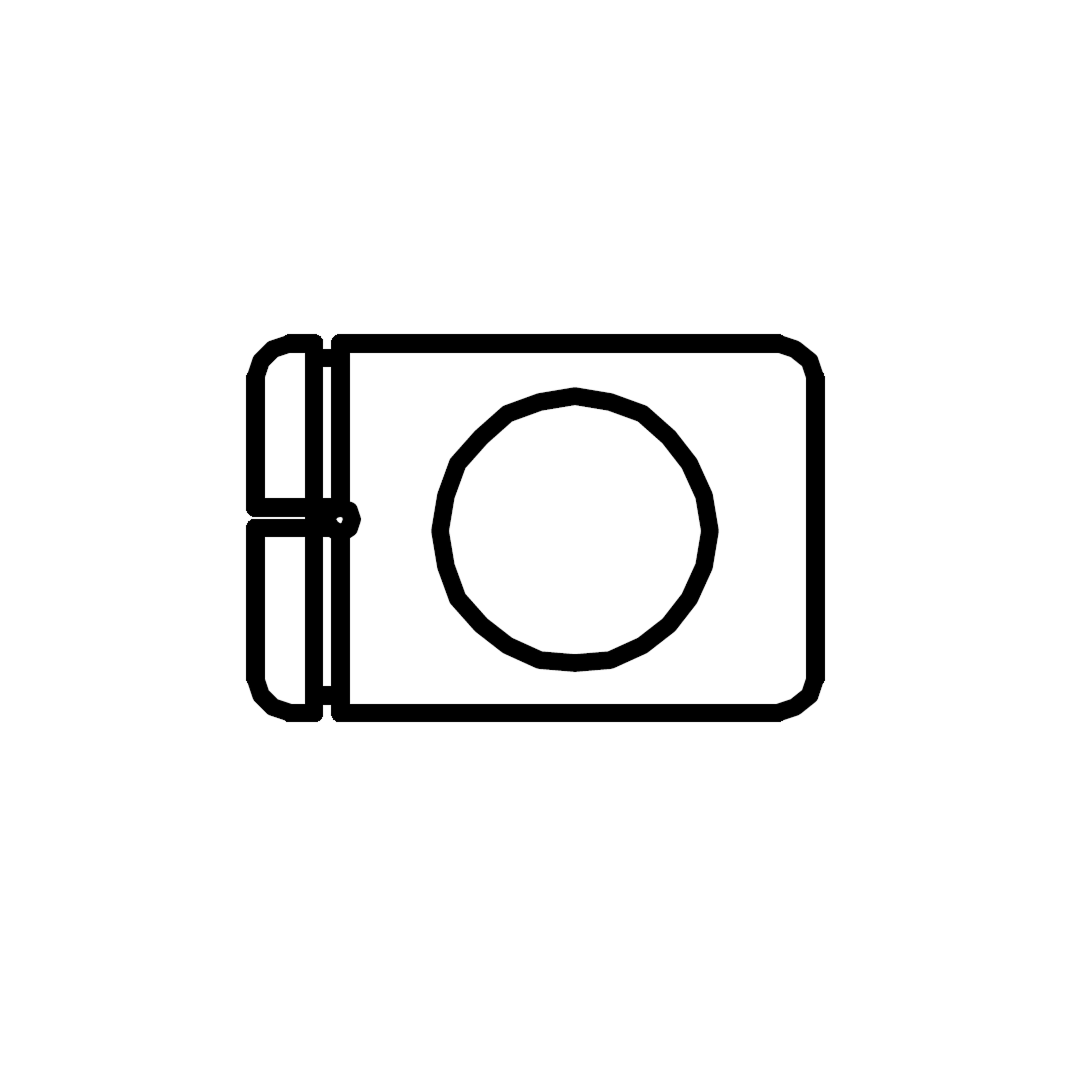

4. Secure HB. Panel (1) to HB. Posts (2, 3) using JCBC M6 × 90mm Bolts (K) and Barrel Nuts (L), tightening them with the Allen key.

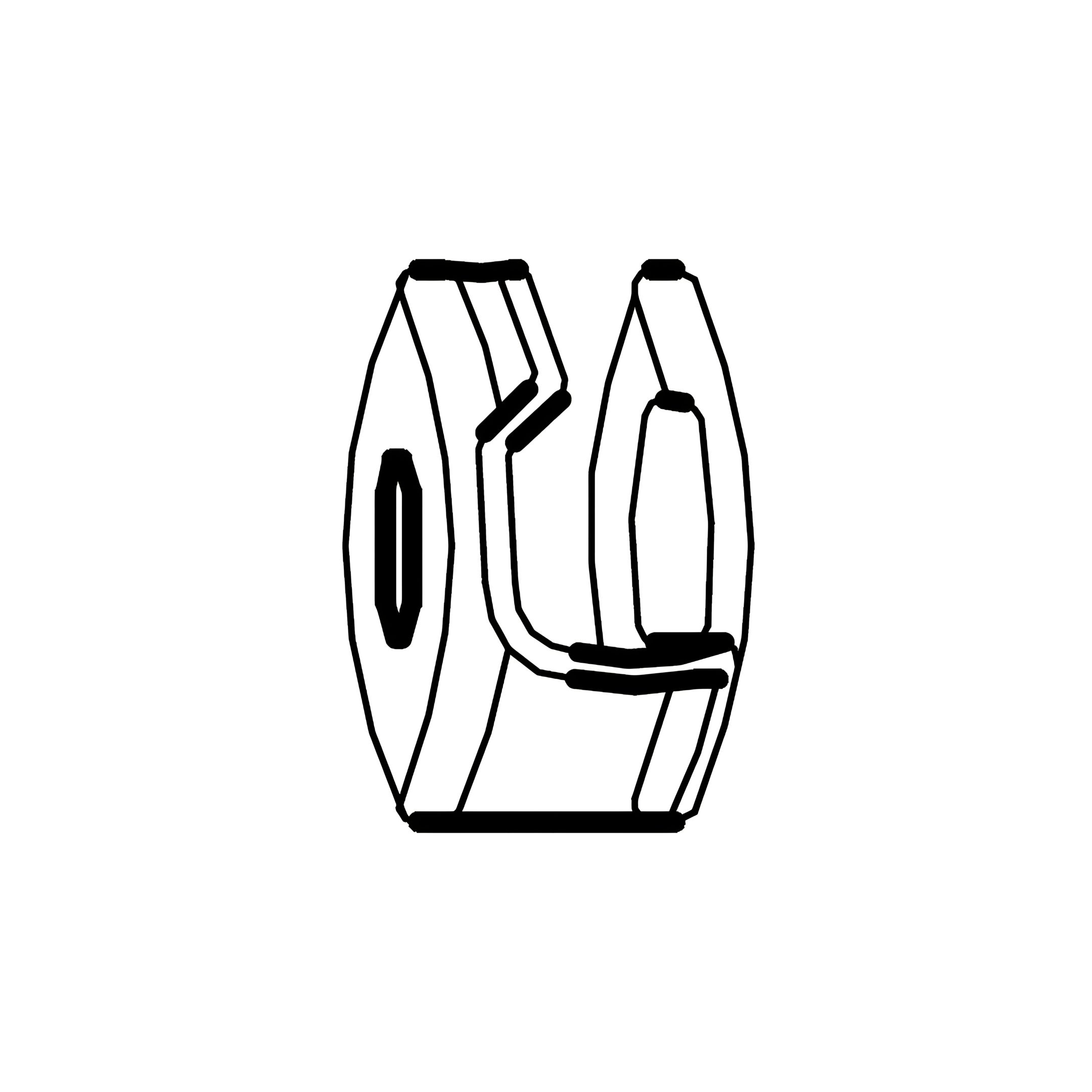

5. Insert Minifix Housings (P) into the designated slots on the HB. Bottom Panel (7) and rotate them to lock the Connecting Bolts (O) in place.

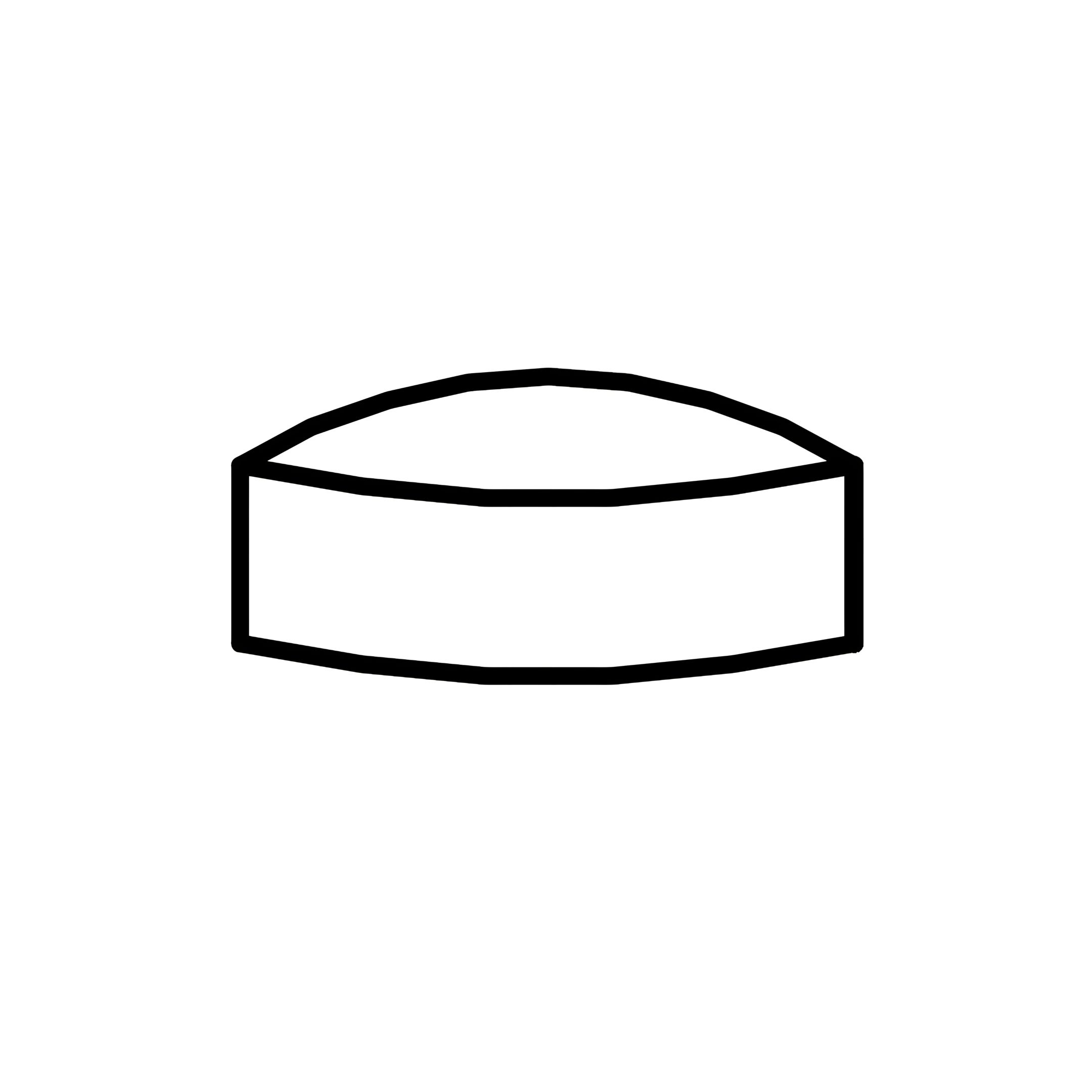

6. Cover the bolt holes with Wood Buttons (N) for a clean finish.

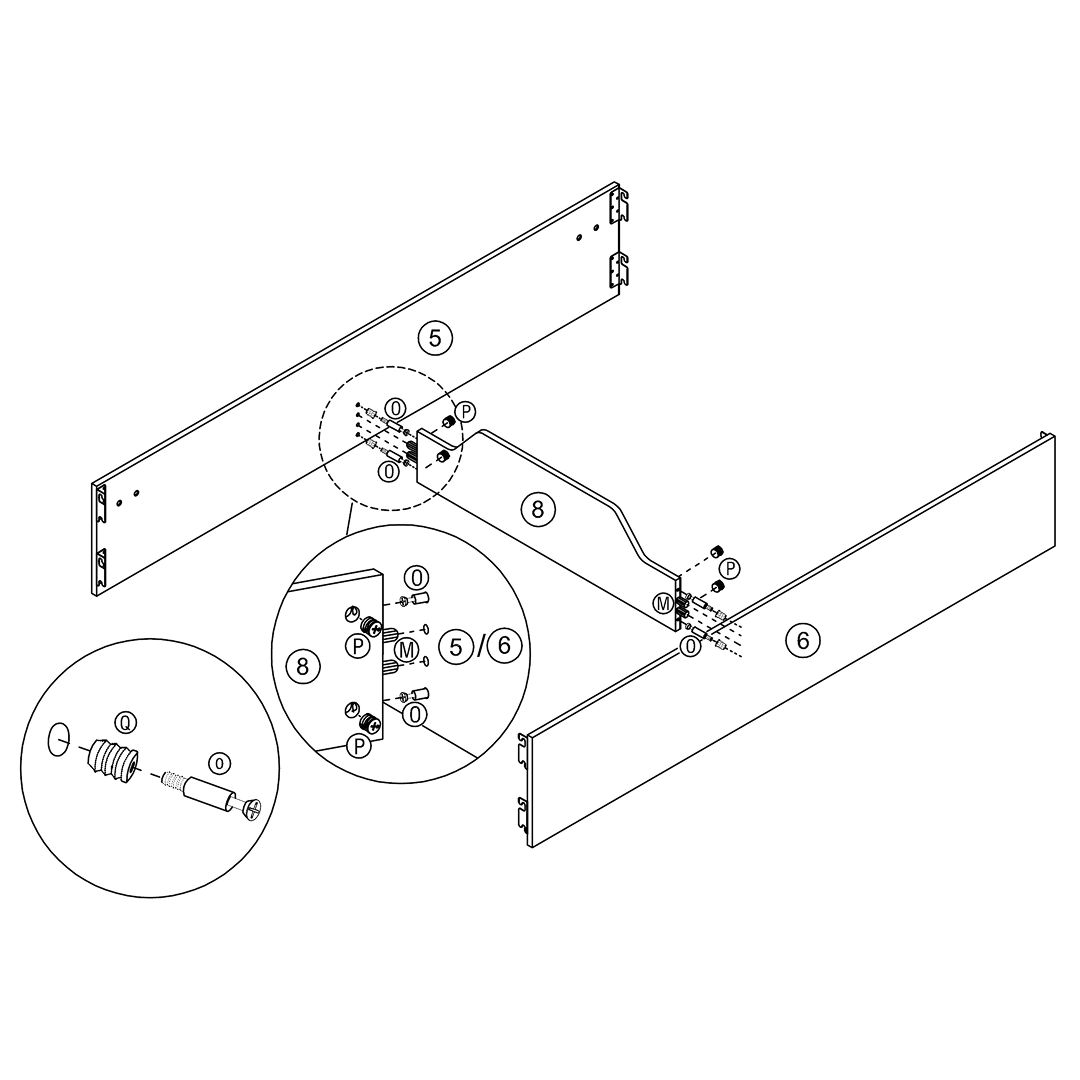

1. Insert Wood Dowels (J) into the pre-drilled holes on both ends of the Center Panel (8).
2. Insert Nylon Sockets (Q) and Connecting Bolts (O) through the designated holes on the Side Rails (5, 6).
3. Align the Center Panel (8) with the Side Rails (5, 6).
4. Insert Minifix Housings (P) into the designated slots on the Center Panel (8) and rotate them to lock the Connecting Bolts (M) in place.
5. Ensure all connections are tight and the Center Panel (8) is securely attached to both Side Rails (5, 6).

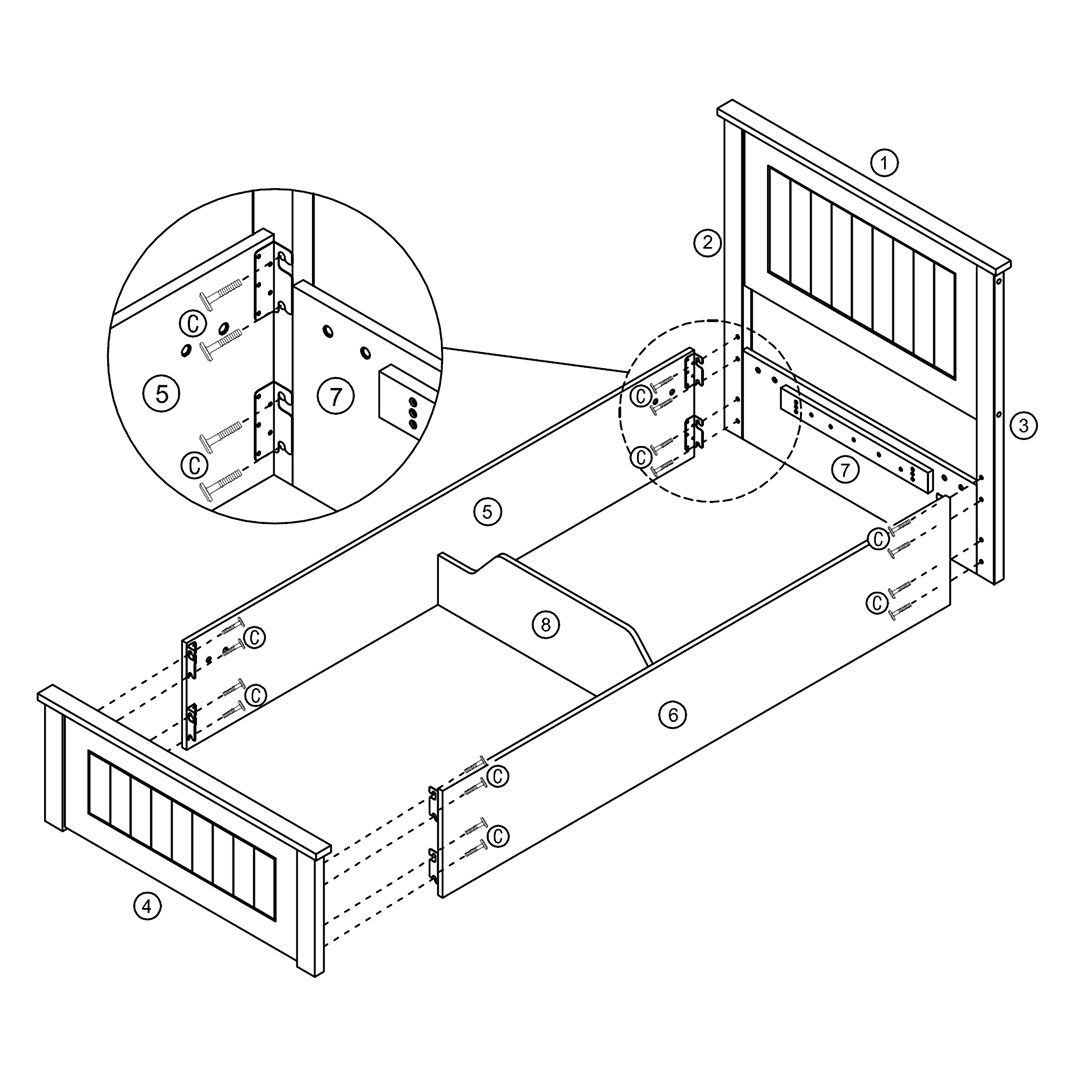

1. Align the Side Rails (5, 6) with the Headboard and Footboard.
2. Secure the Side Rails (5, 6) to the Headboard and Footboard using JCBB M8 × 25mm Bolts (C).
3. Ensure the brackets on the Side Rails (5, 6) fit properly into the designated slots.
4. Tighten all bolts to ensure the frame is stable.

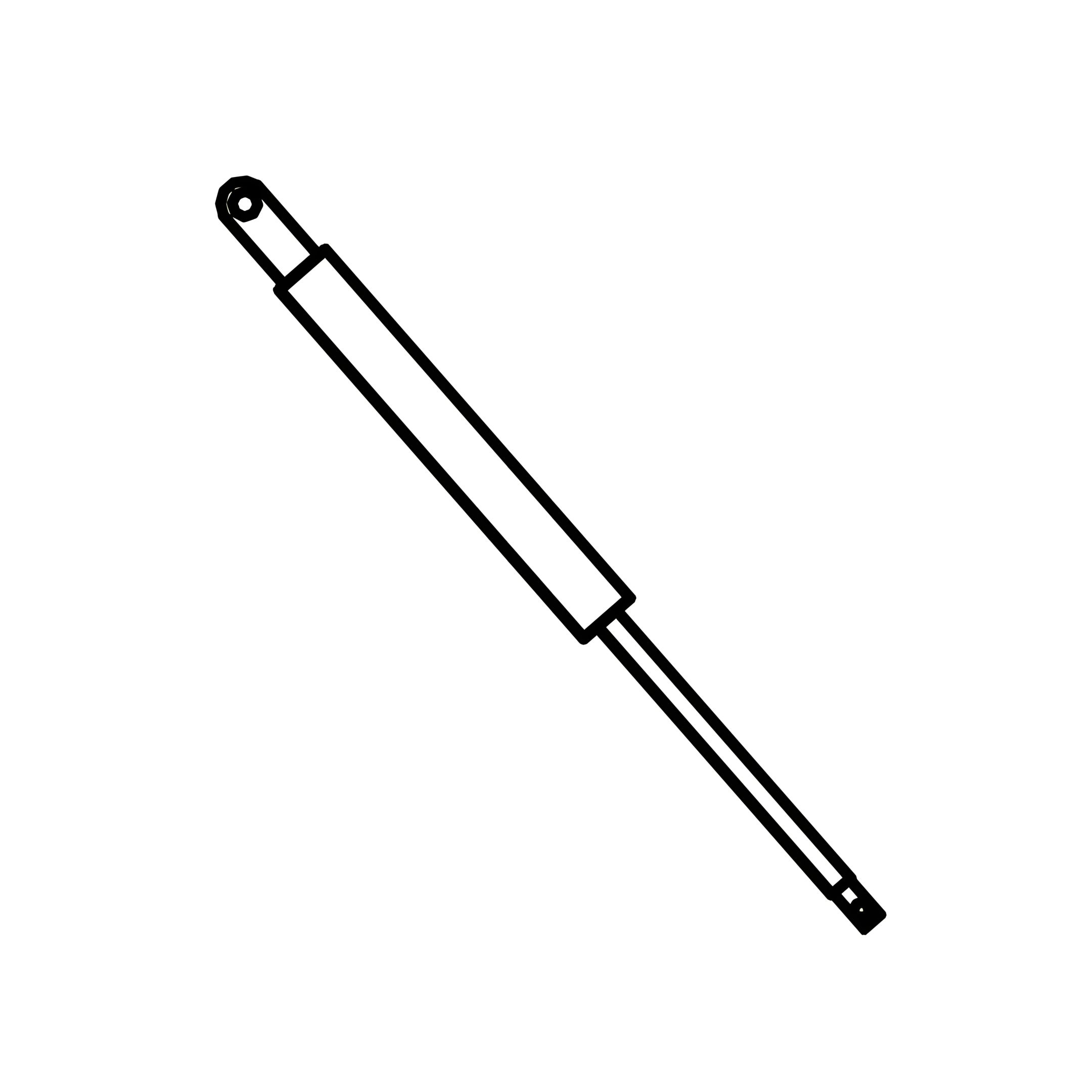

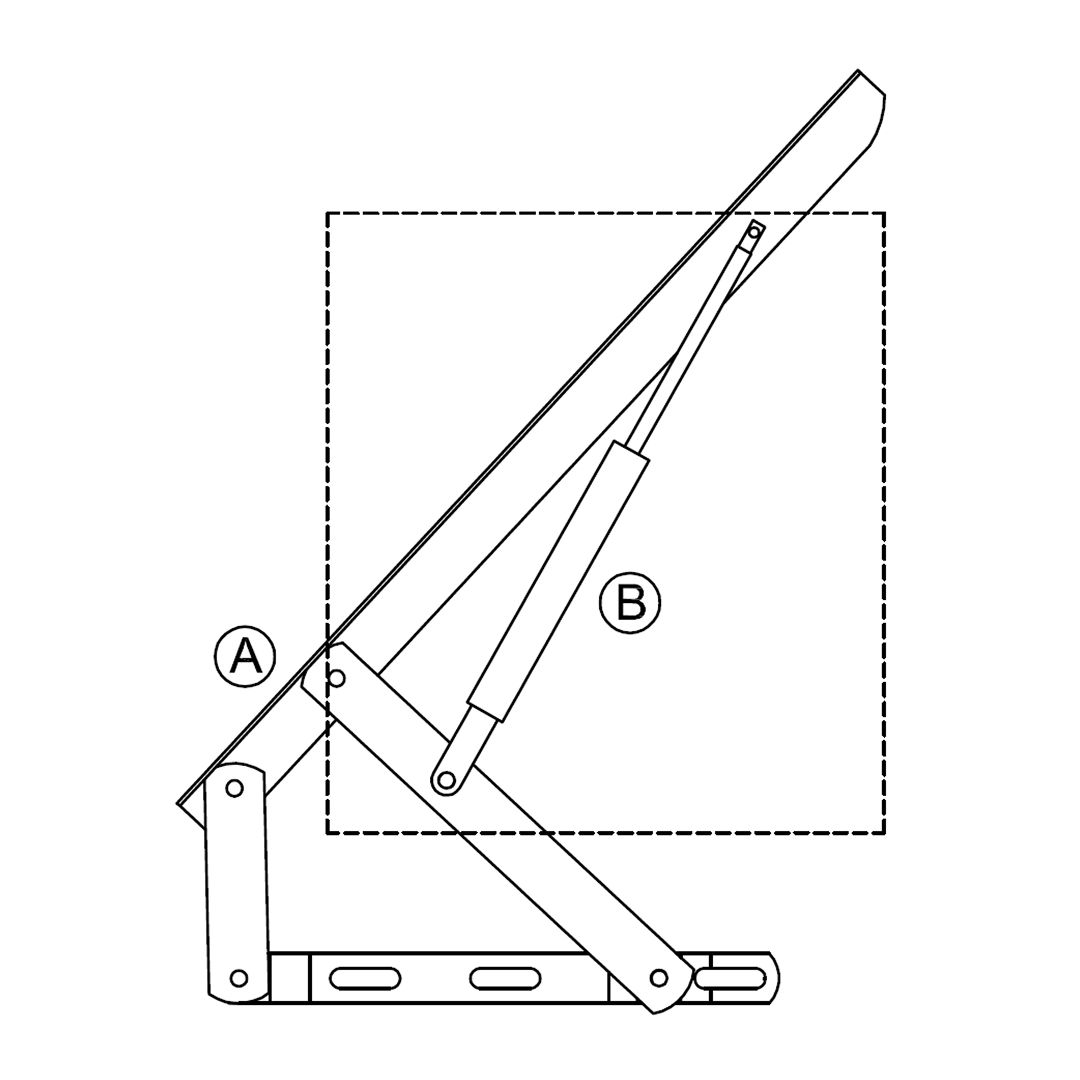

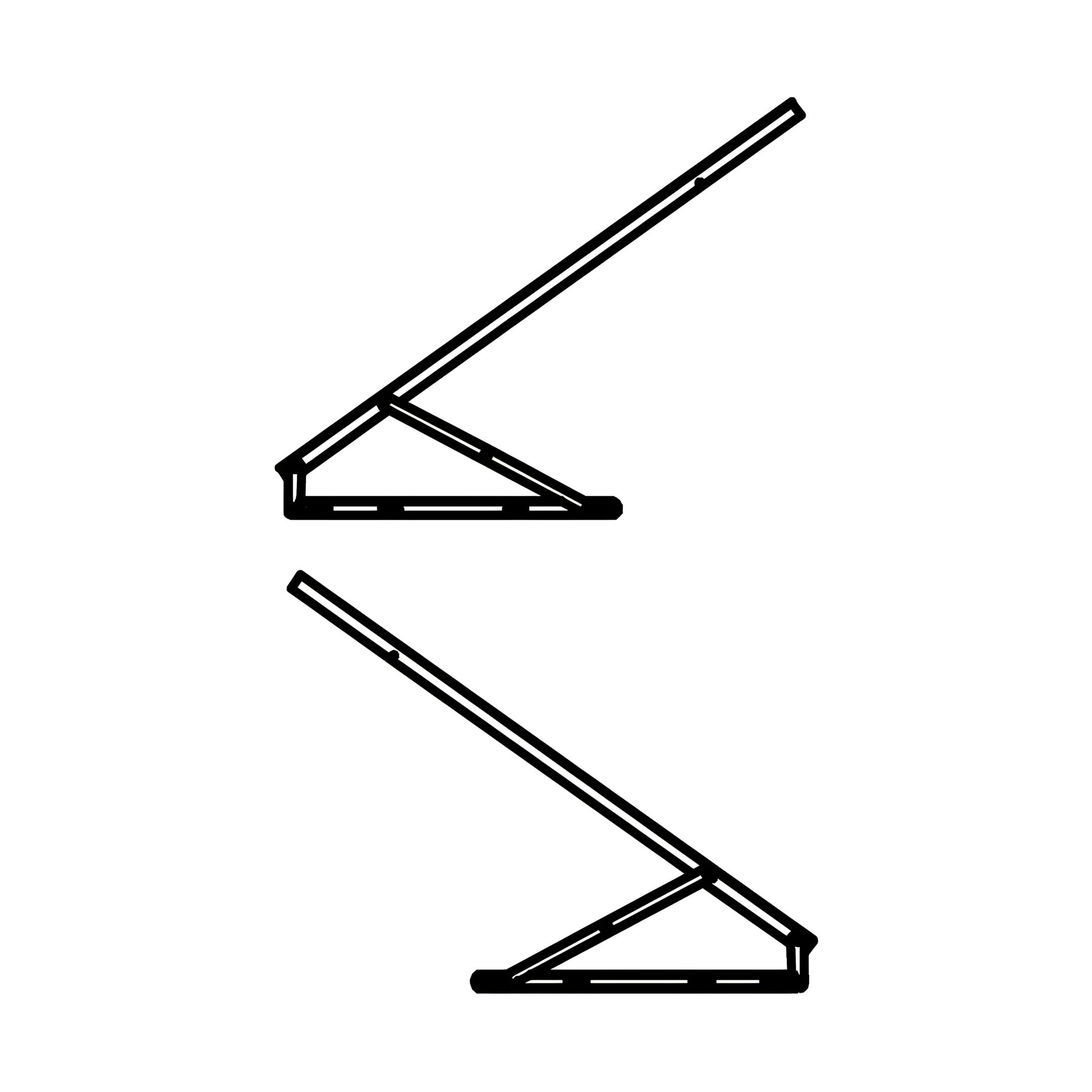

1. Secure the Hydraulic Pump (B) to the Hydraulic Base Support (A) by aligning it properly.

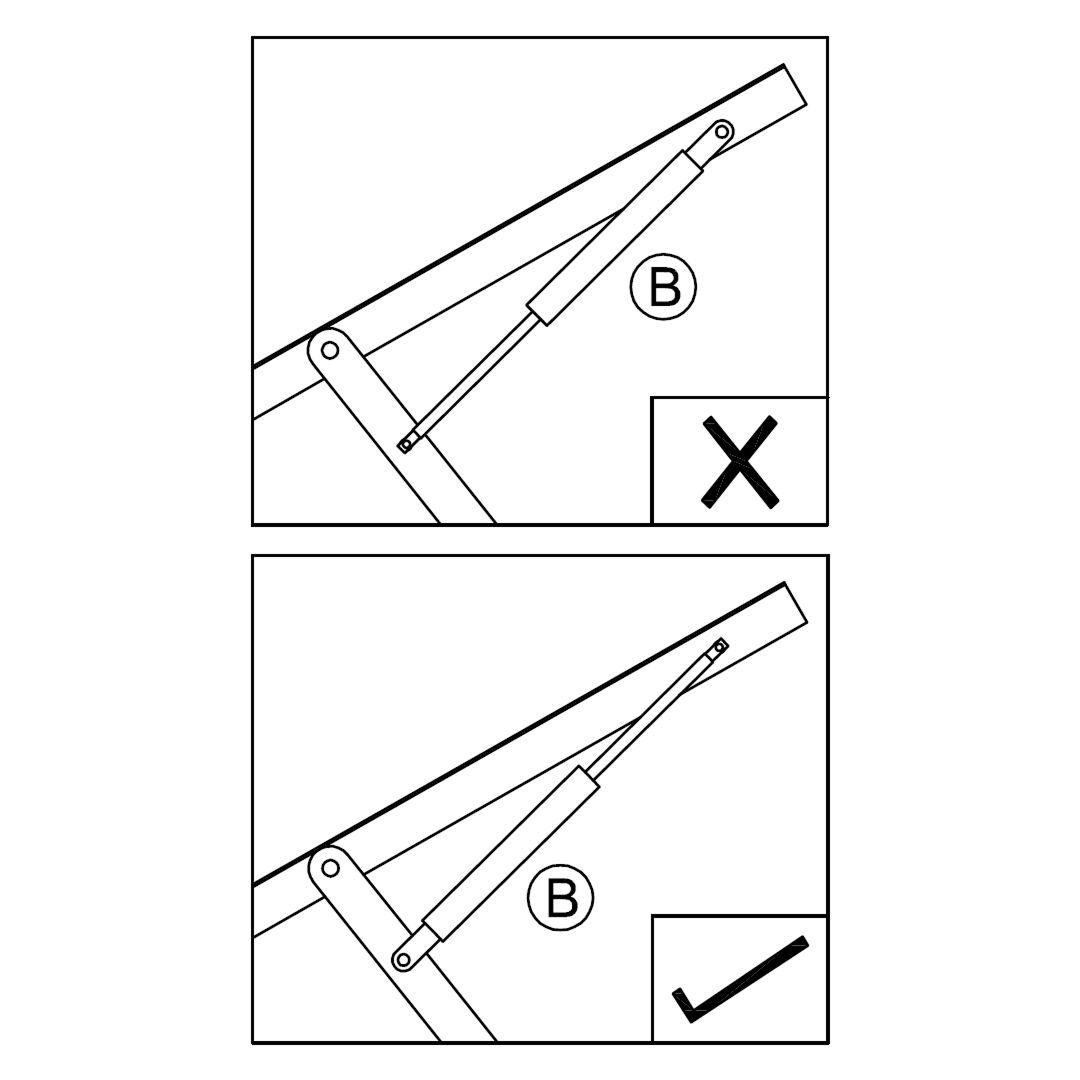

2. Ensure the Hydraulic Pump (B) is installed in the correct orientation, as shown in the diagram.

Left Opening - Green Sticker

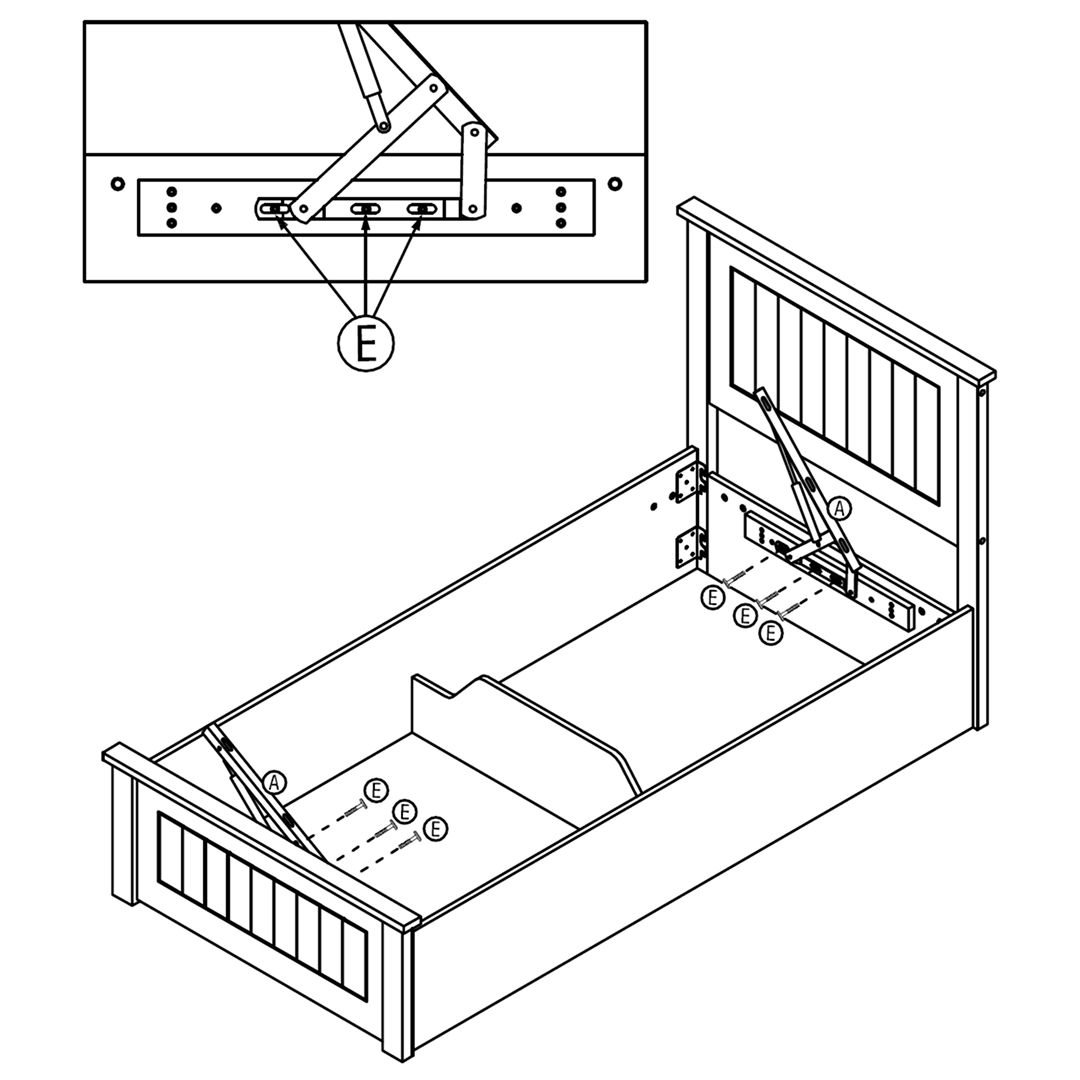

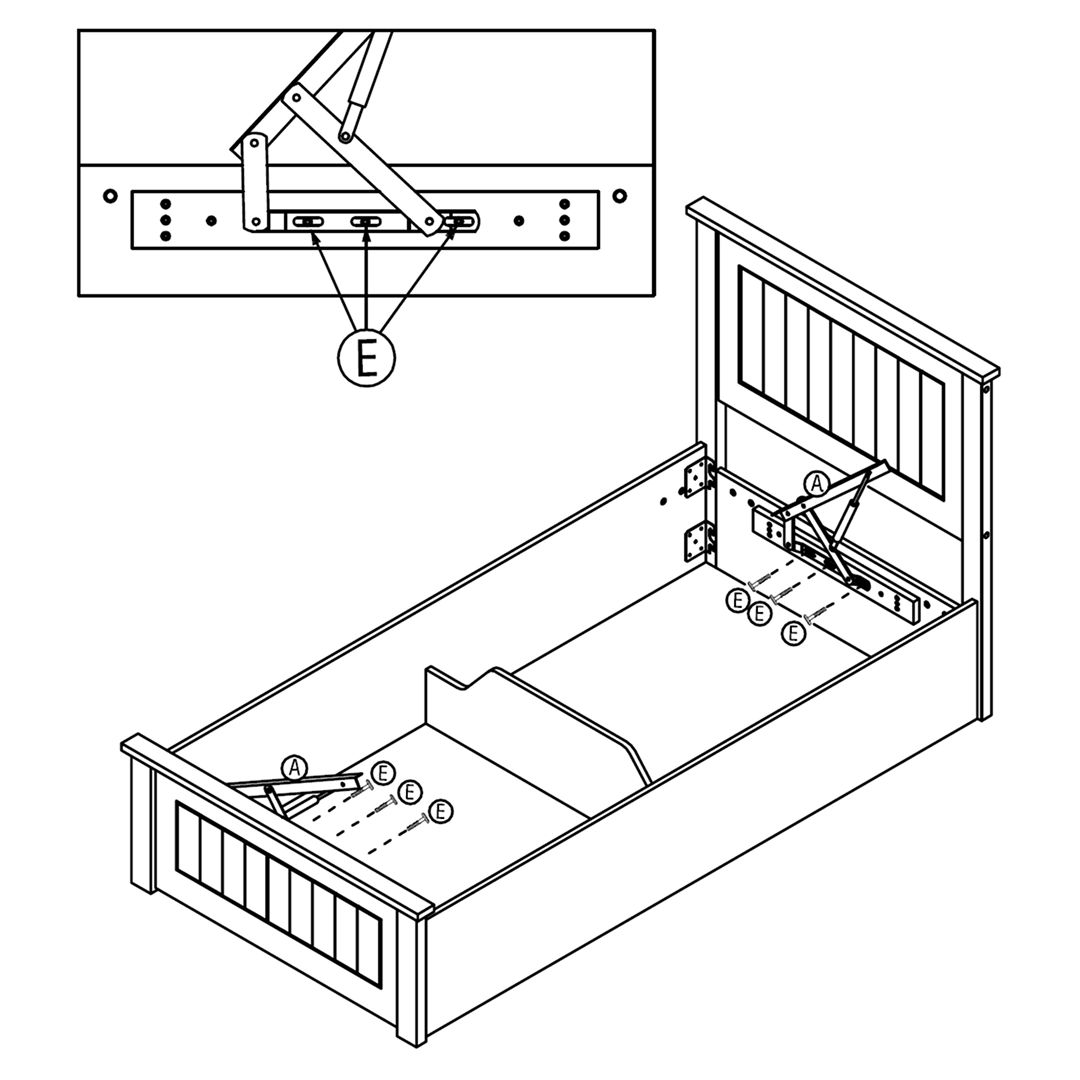

1. Align the Hydraulic Base Supports (A) with the pre-drilled holes on the Headboard and Footboard.

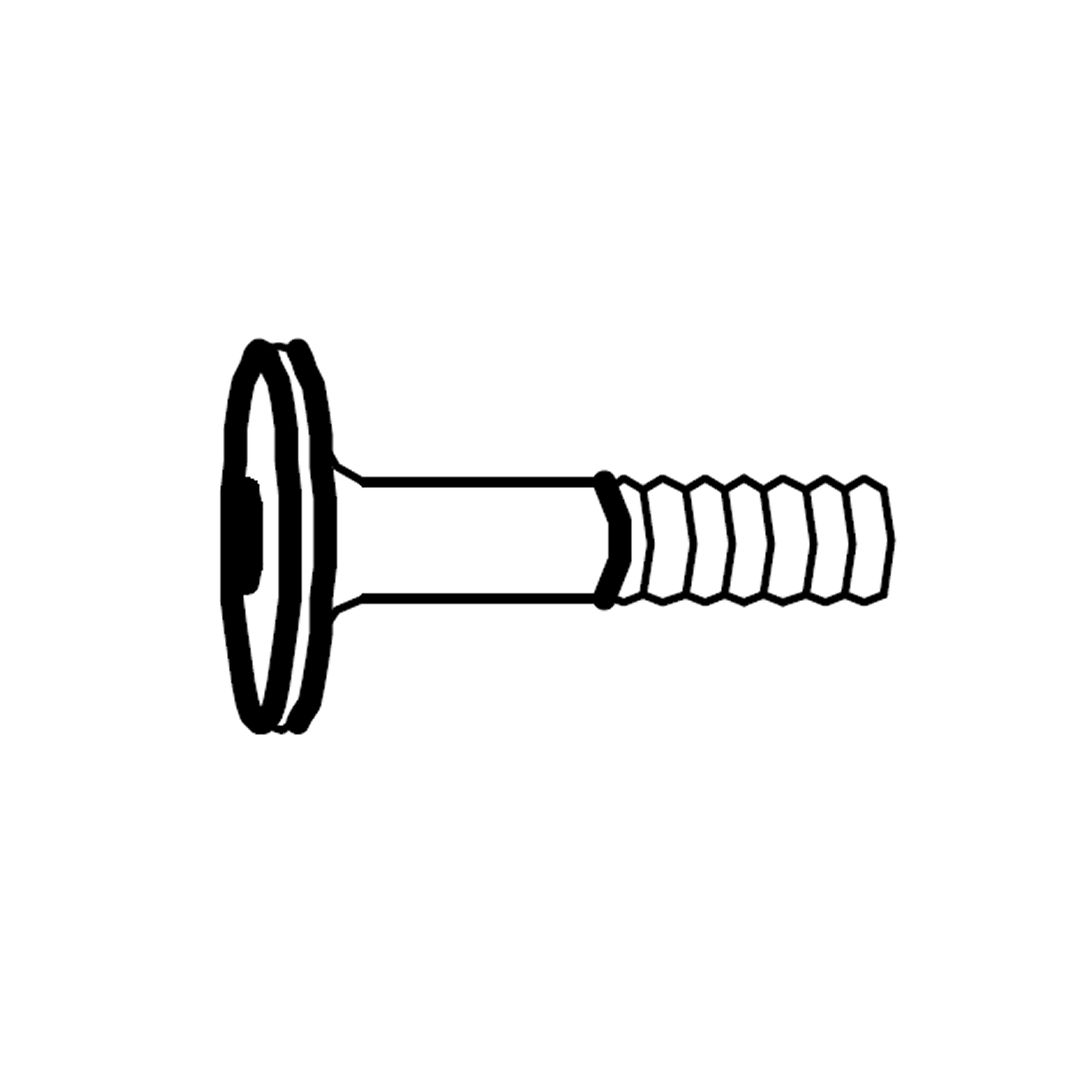

2. Secure the Hydraulic Base Supports (A) using JCBB M8 × 20mm Bolts (E).
3. Ensure the Hydraulic Mechanism is correctly positioned and securely fastened to the side rails.
4. Double-check that all bolts are tightened properly before proceeding.

Right Opening - Red Sticker

1. Align the Hydraulic Base Supports (A) with the pre-drilled holes on the Headboard and Footboard.
2. Secure the Hydraulic Base Supports (A) using JCBB M8 × 20mm Bolts (E).
3. Ensure the Hydraulic Mechanism is correctly positioned and securely fastened to the side rails.
4. Double-check that all bolts are tightened properly before proceeding.

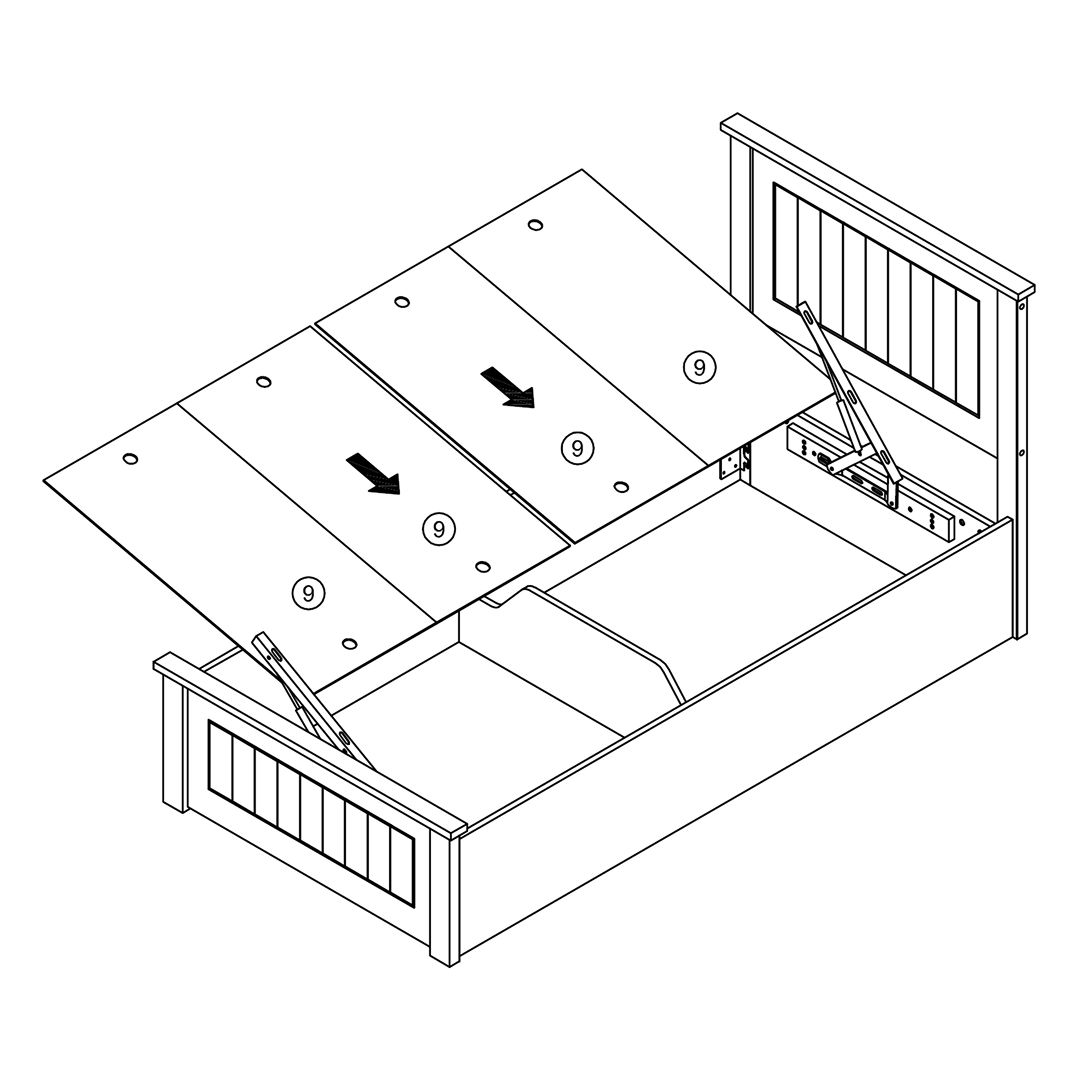

1. Position the Bottom Panels (9) over the storage area, ensuring they align with the frame.
2. Slide the panels inward following the direction of the arrows until they fit securely.
3. Ensure the panels are evenly placed and flush with the surrounding frame.

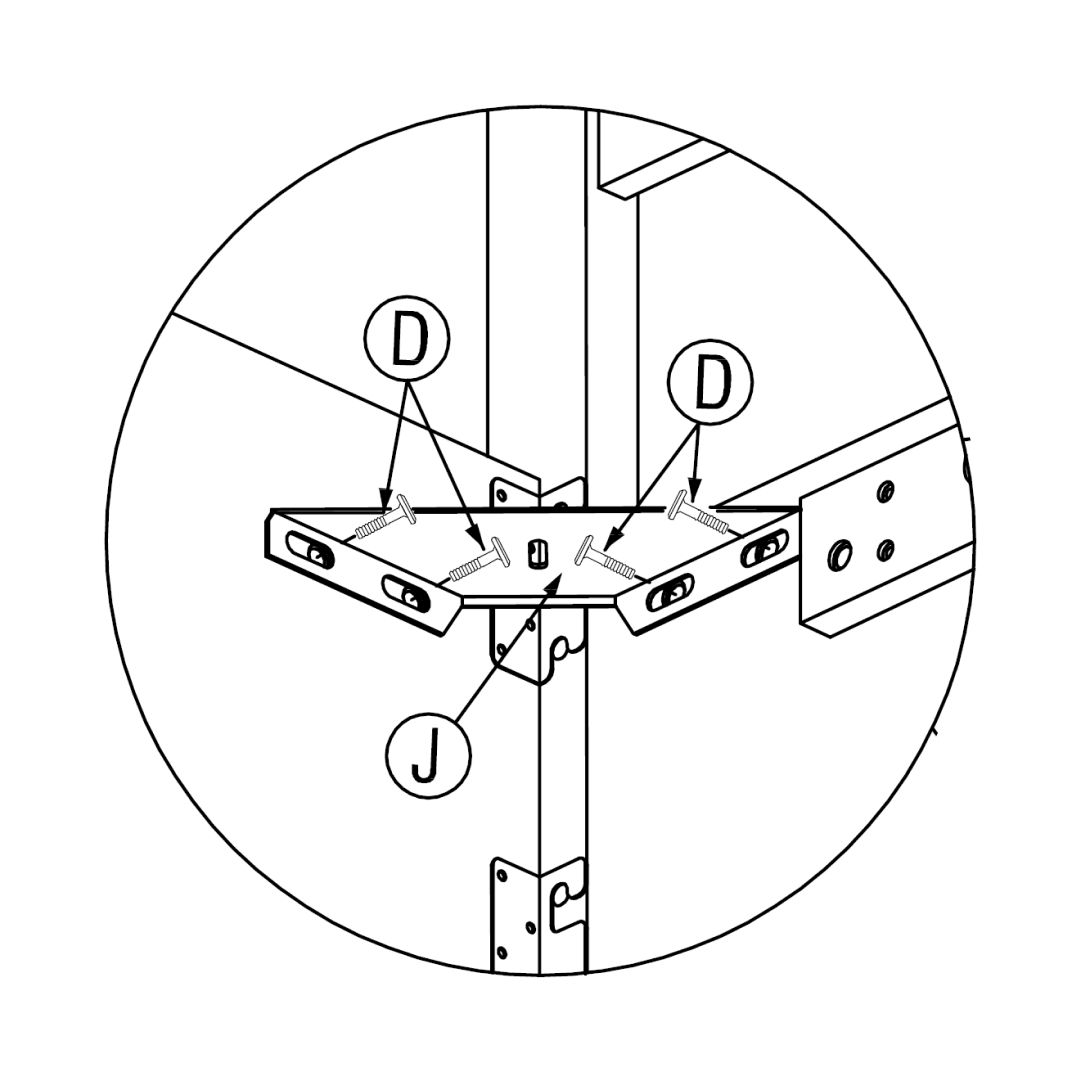

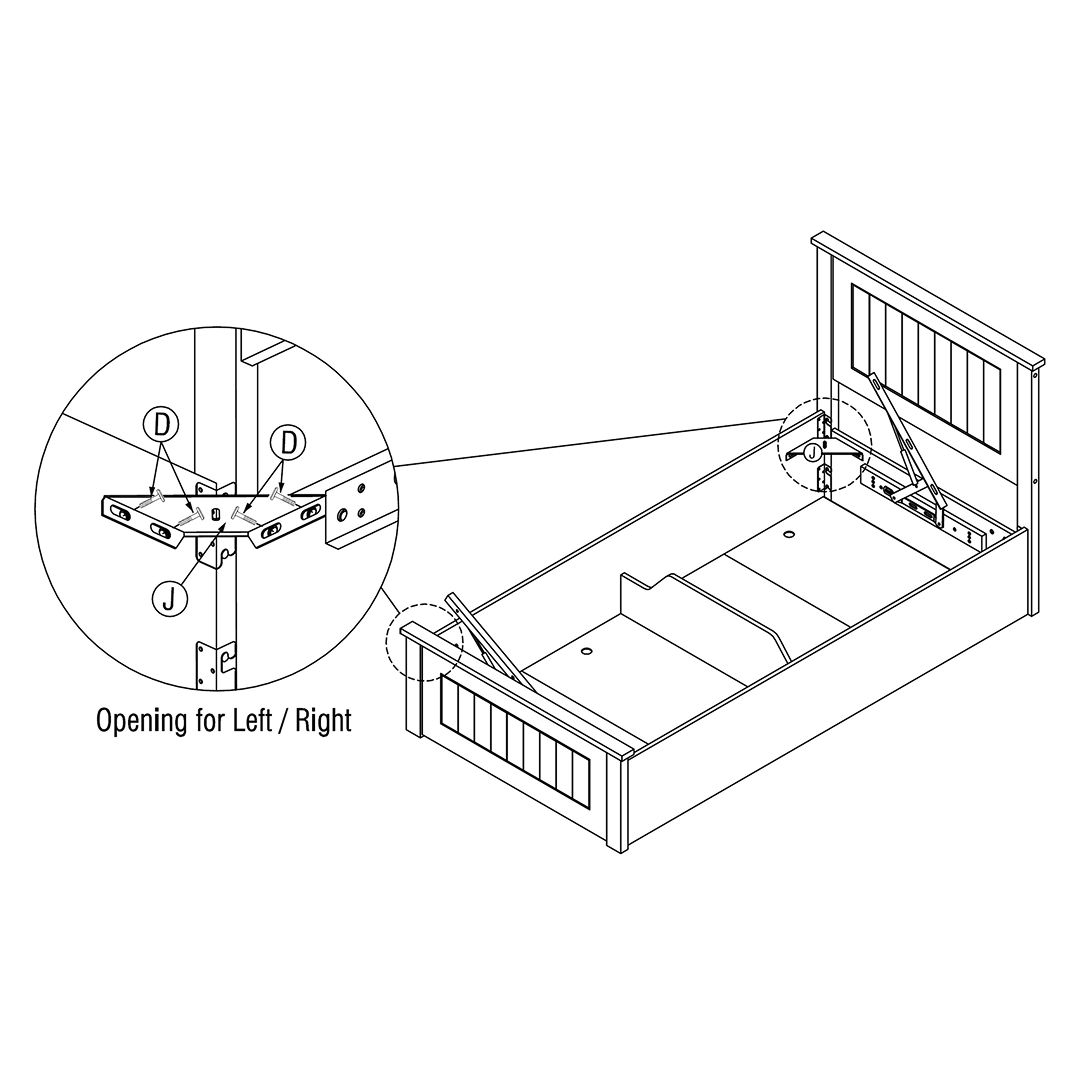

1. Align the Metal Corner Support (J) at the junction of the side rail and either the headboard or footboard, based on your chosen opening side.

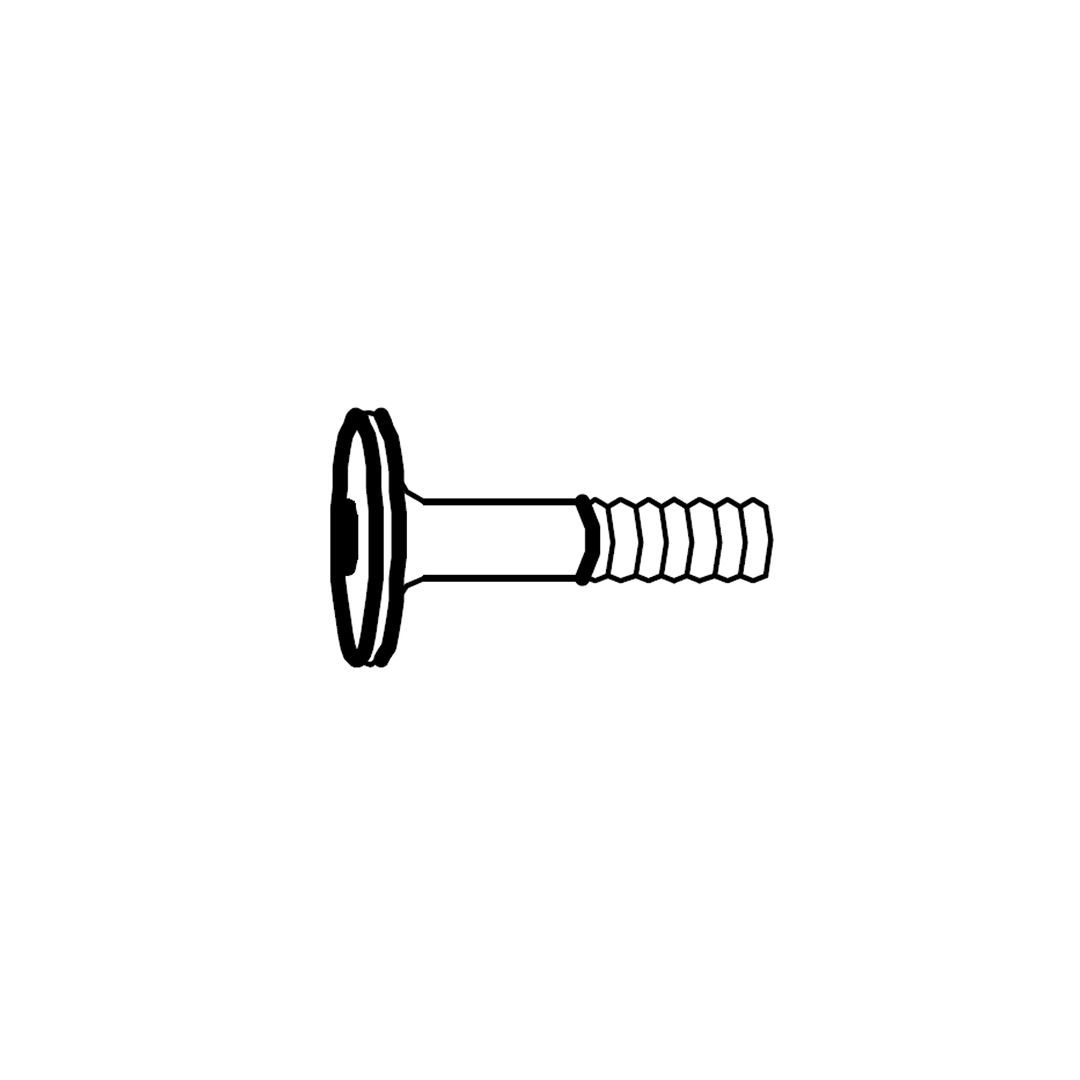

2. Fasten the JCBC M8x15mm screws (D) using an Allen Key, ensuring they are tight.
3. Repeat the process on the opposite corner, ensuring the correct orientation for the storage opening.

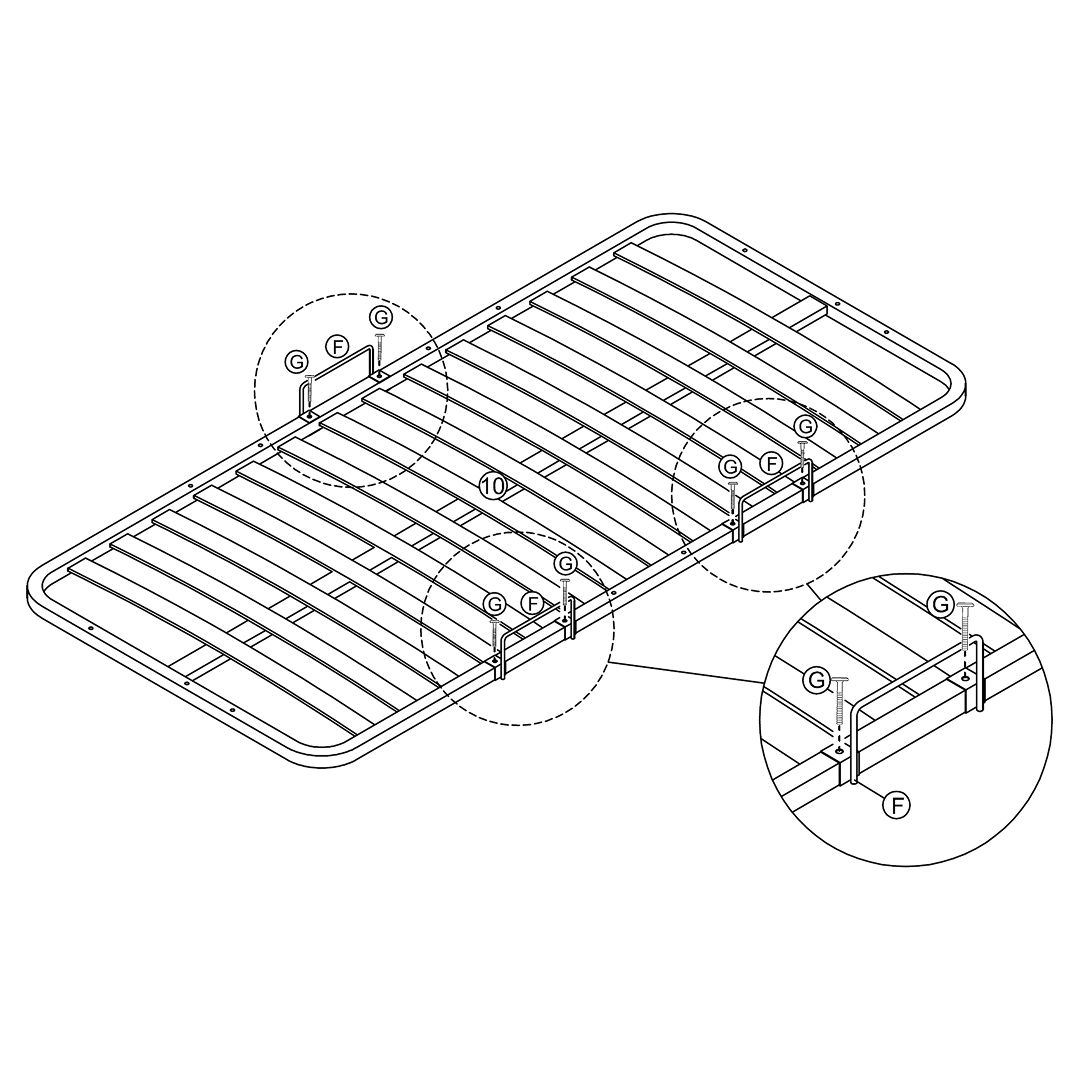

1. Locate the pre-drilled holes on the slat frame for the base handle.

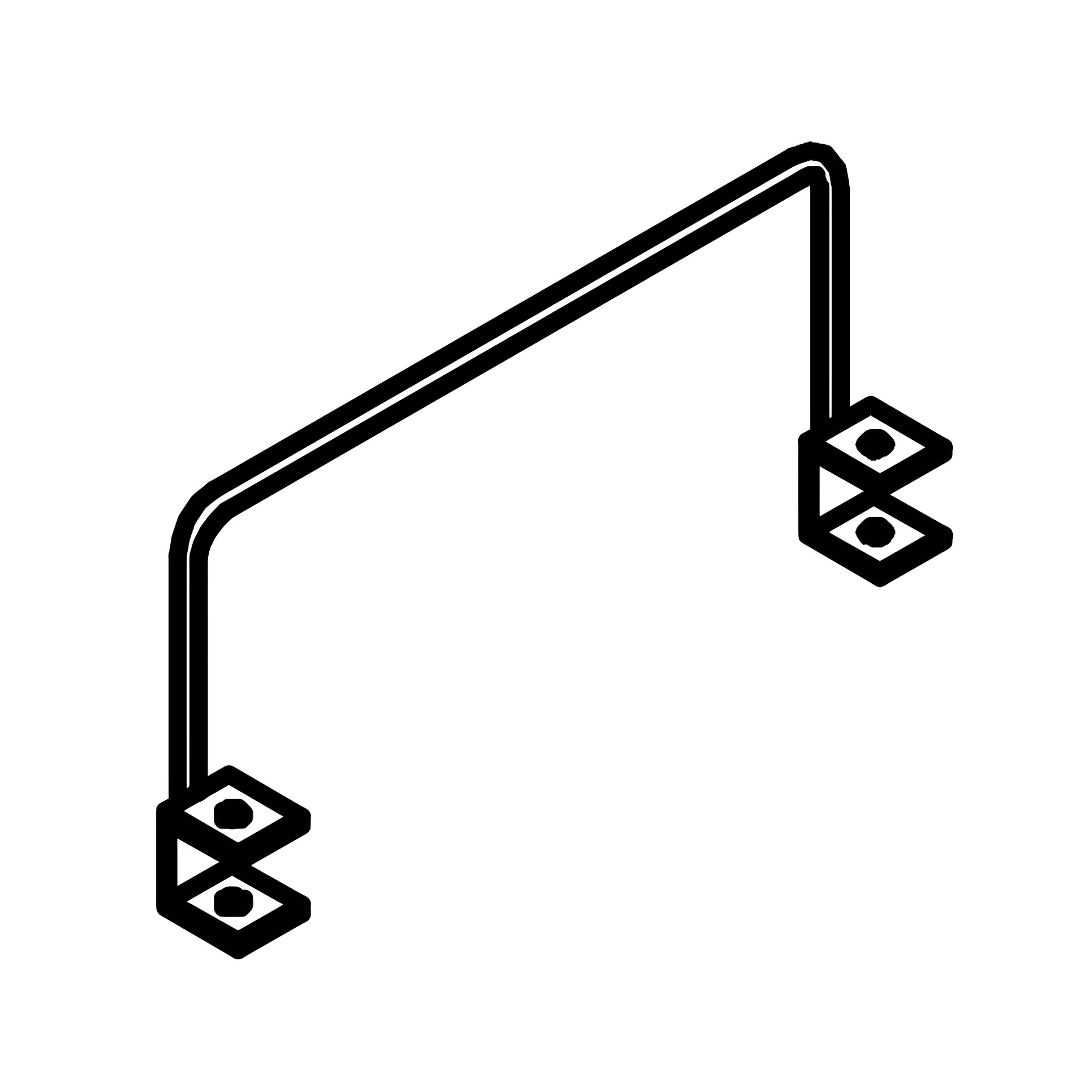

2. Position the base handle (F) over these holes.

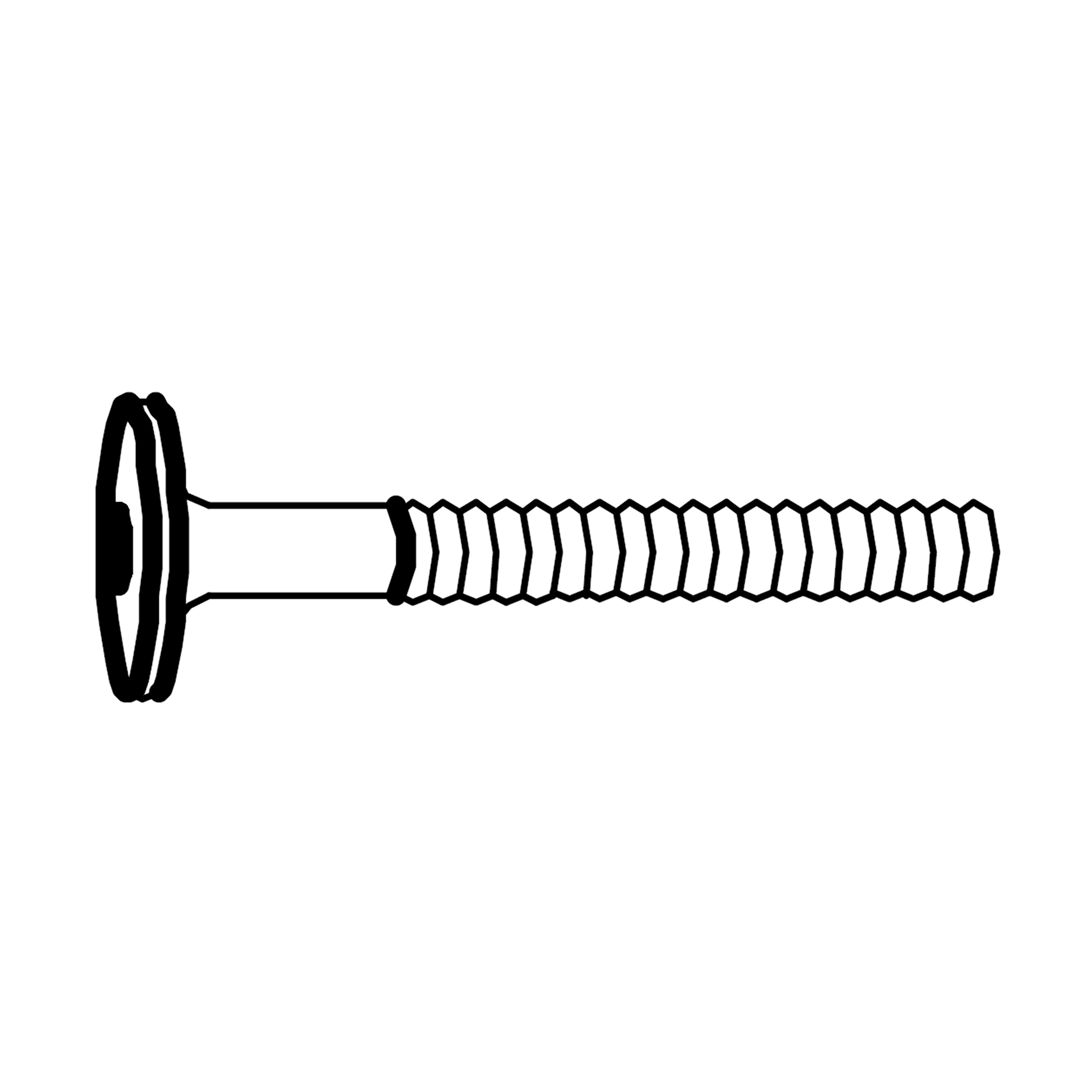

3. Insert the JCBC M6x40mm bolts (G) through the handle into the holes and tighten them securely.
4. Ensure the handle is firmly attached and check for any movement.

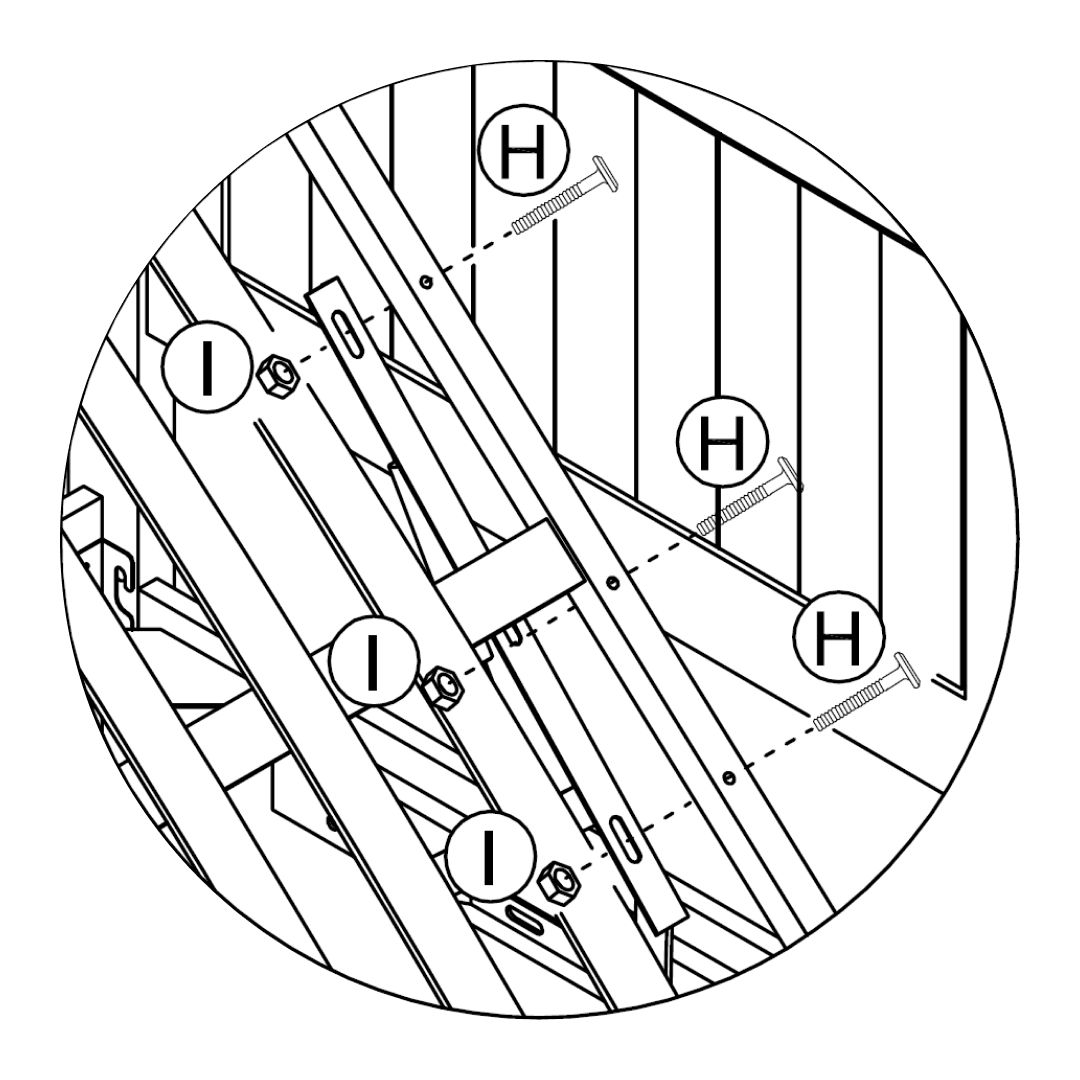

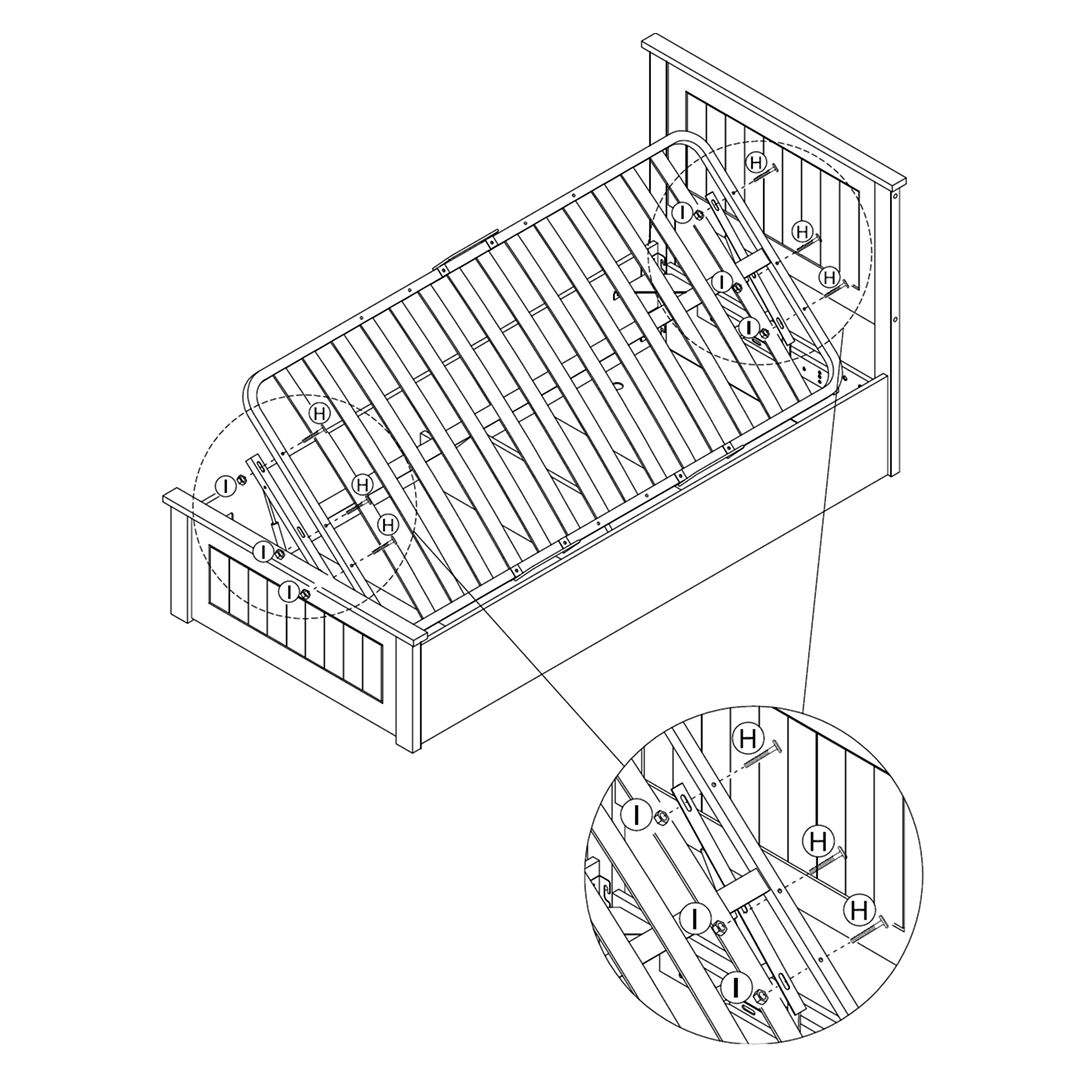

1. Position the slat frame on the hydraulic base support.
2. Line up the pre-drilled holes in the frame with the mounting points on the hydraulic base.
3. Insert the JCBB M8x45mm screws (H) through the aligned holes.

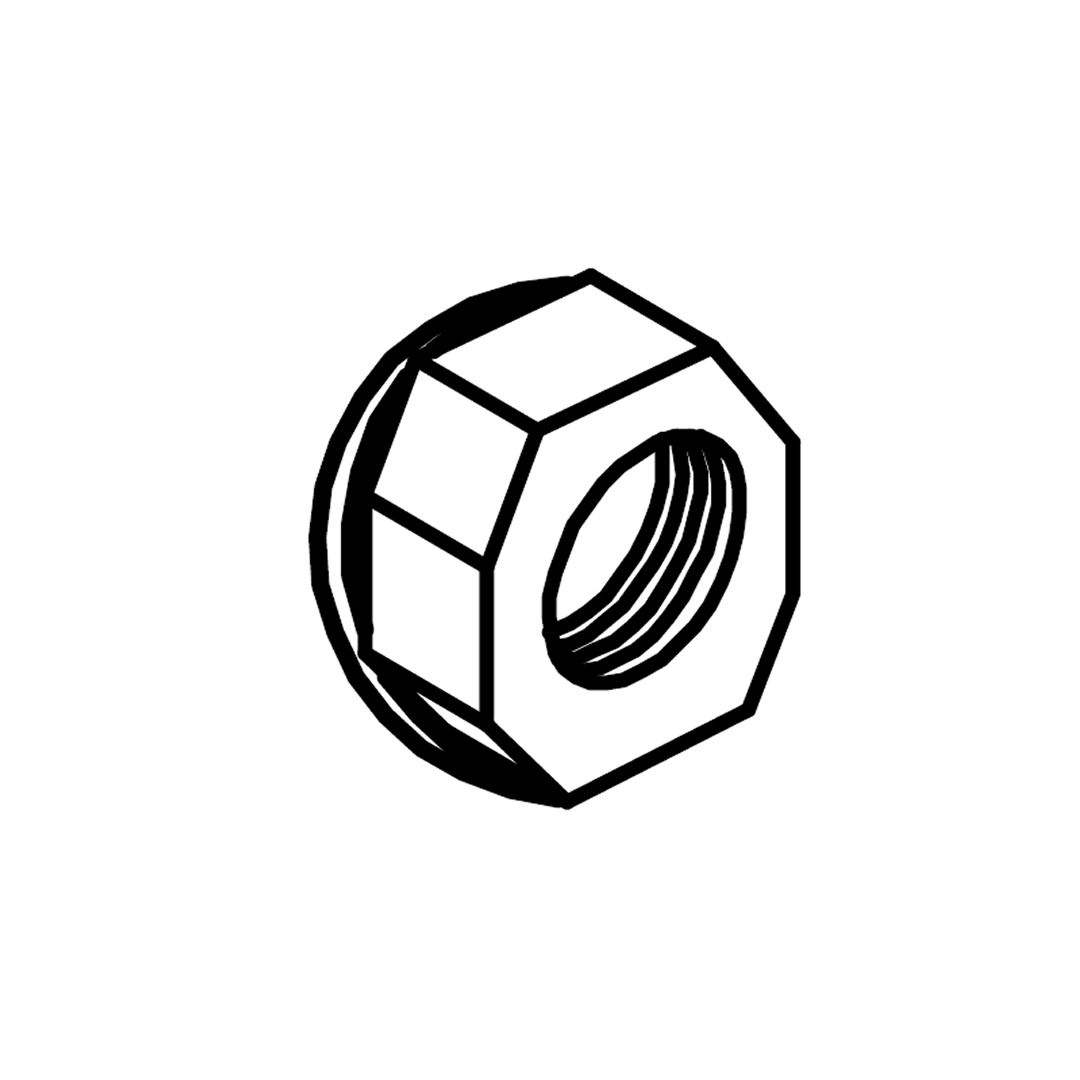

4. Fasten each screw by threading the M8 Hex Nuts (I) onto the screws from the underside of the base.

• Verify that all slats are securely fastened and evenly spaced.
• Check for any loose connections and tighten the screws if necessary.
