Portland Solo Bed Frame

Assembly instructions for Portland Solo Bed Frame by Time4Sleep

Product Information

Portland Solo Bed Frame

Taking it's inspiration from classical New England styling the Portland will work effortlessly in a number of design schemes. Manufactured from solid rubber wood, which is valued for its dense grain and durability, the Portland is perfect for childrens's bedrooms. Although the rubber tree is primarily grown to source rubber, the left over wood is praised as an "environmentally friendly" product, as it makes use of trees that have been cut down at the end of their latex-producing cycle. The frame is finished in a contemporary white painted finish and comes complete with solid wooden slats for added durability.

View product

SKU: portlandwhitesolo1, PorAnthGreySolo1, PorOakSolo1

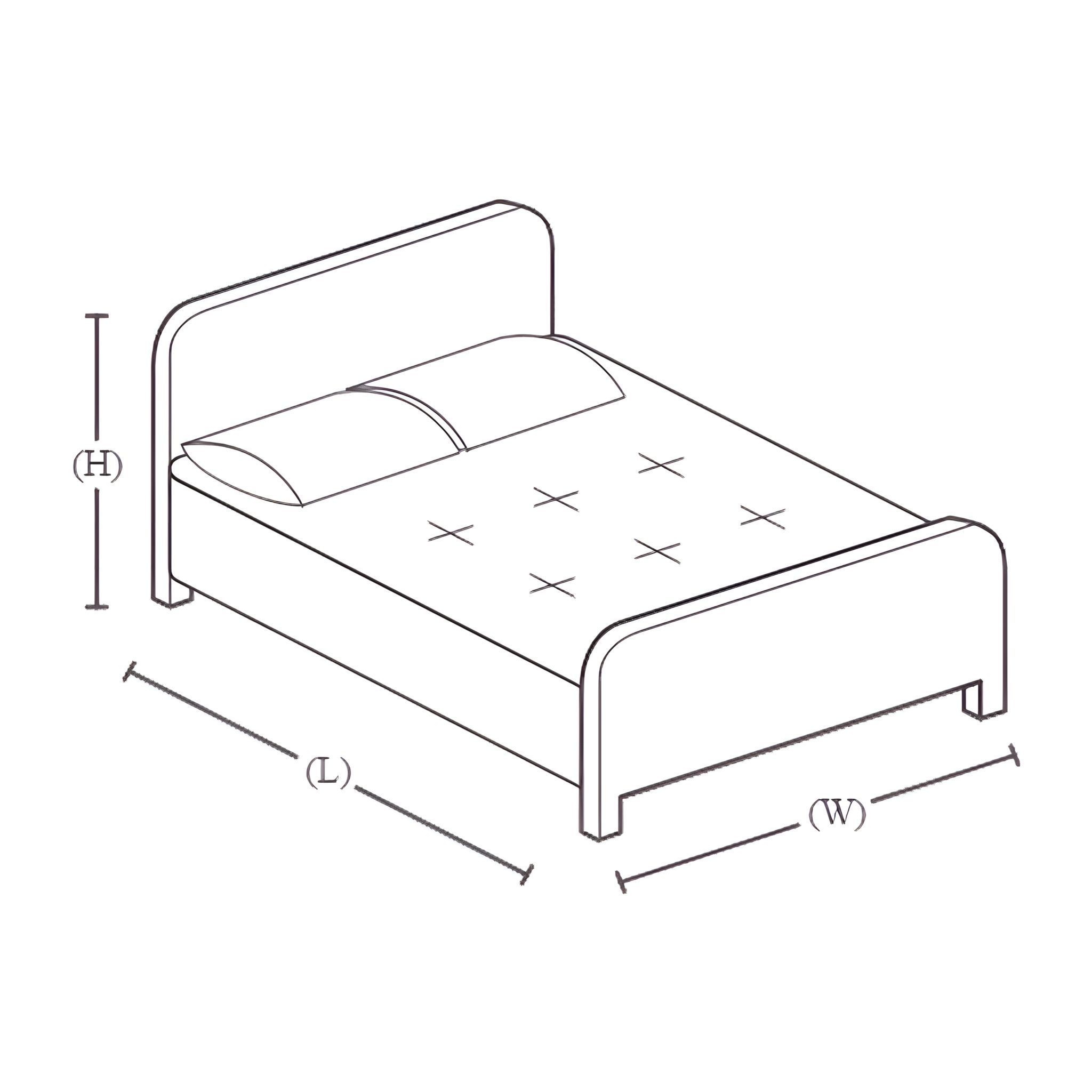

	Single
Width	98 cm
Length	195 cm
Head End Height	82 cm
Foot End Height	55 cm

Important - Please read these instructions fully before starting assembly

Check you have all the components and tools listed.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to lay out the parts before starting.
Do not stand or put weight on the product, this could cause damage.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Parts of the assembly will be easier with 2 people.
We do not recommend the use of power drills/drivers for inserting screws as this could damage the unit. Only use hand screwdrivers.
Dispose all packaging carefully and responsibly.

Tools

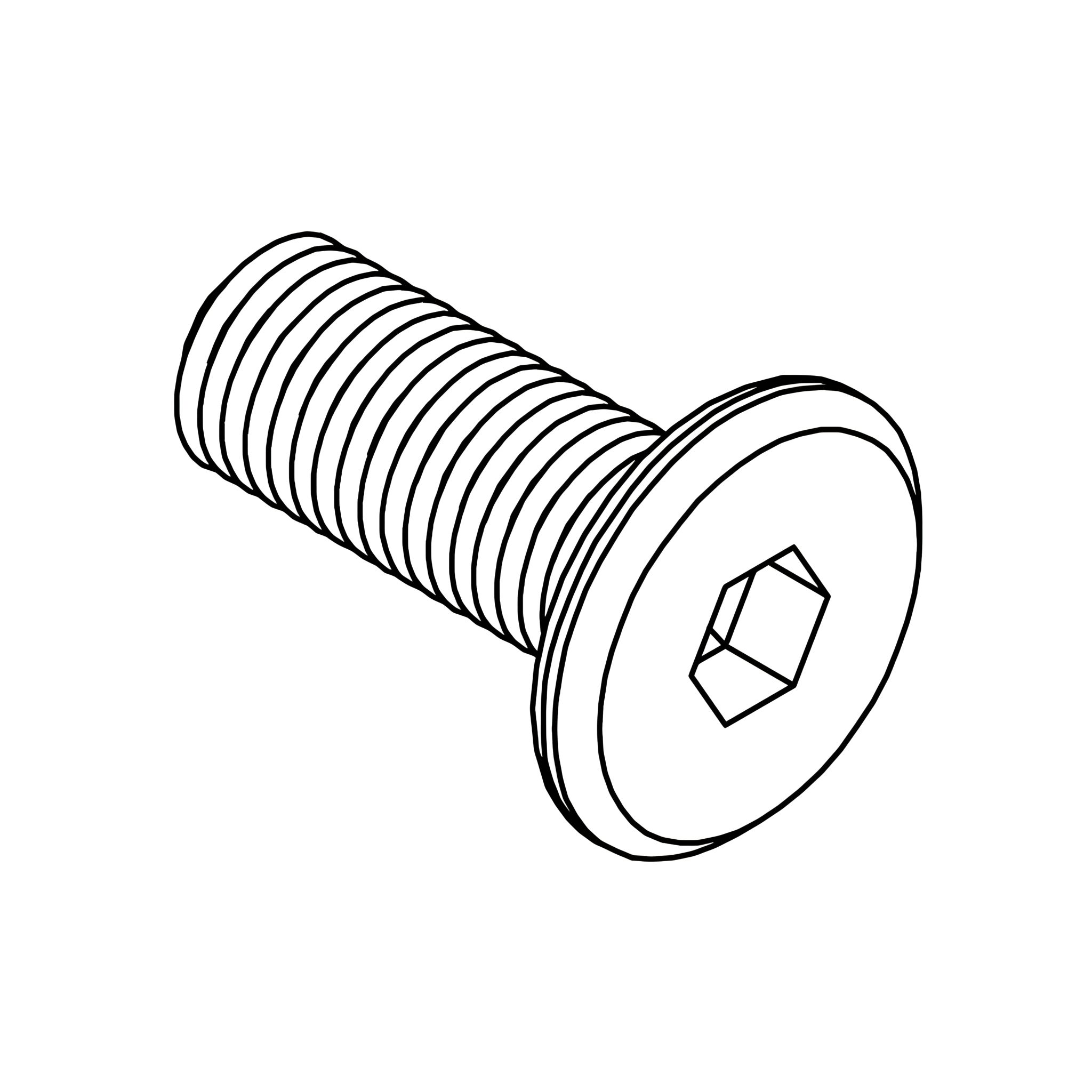

A - JCBB BOLT (M8 x 20MM)

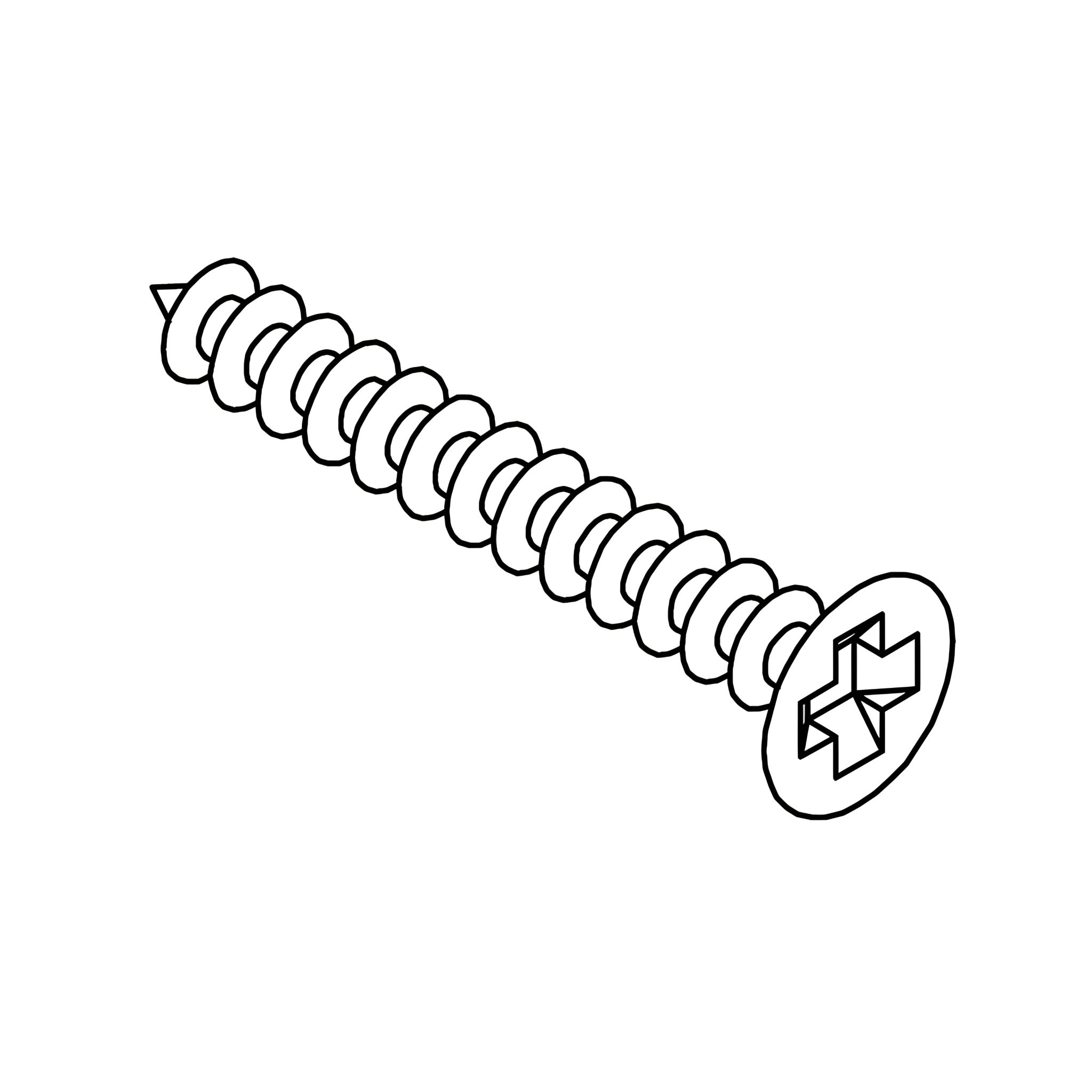

B - CSK C/B SCREW (M4X32MM)

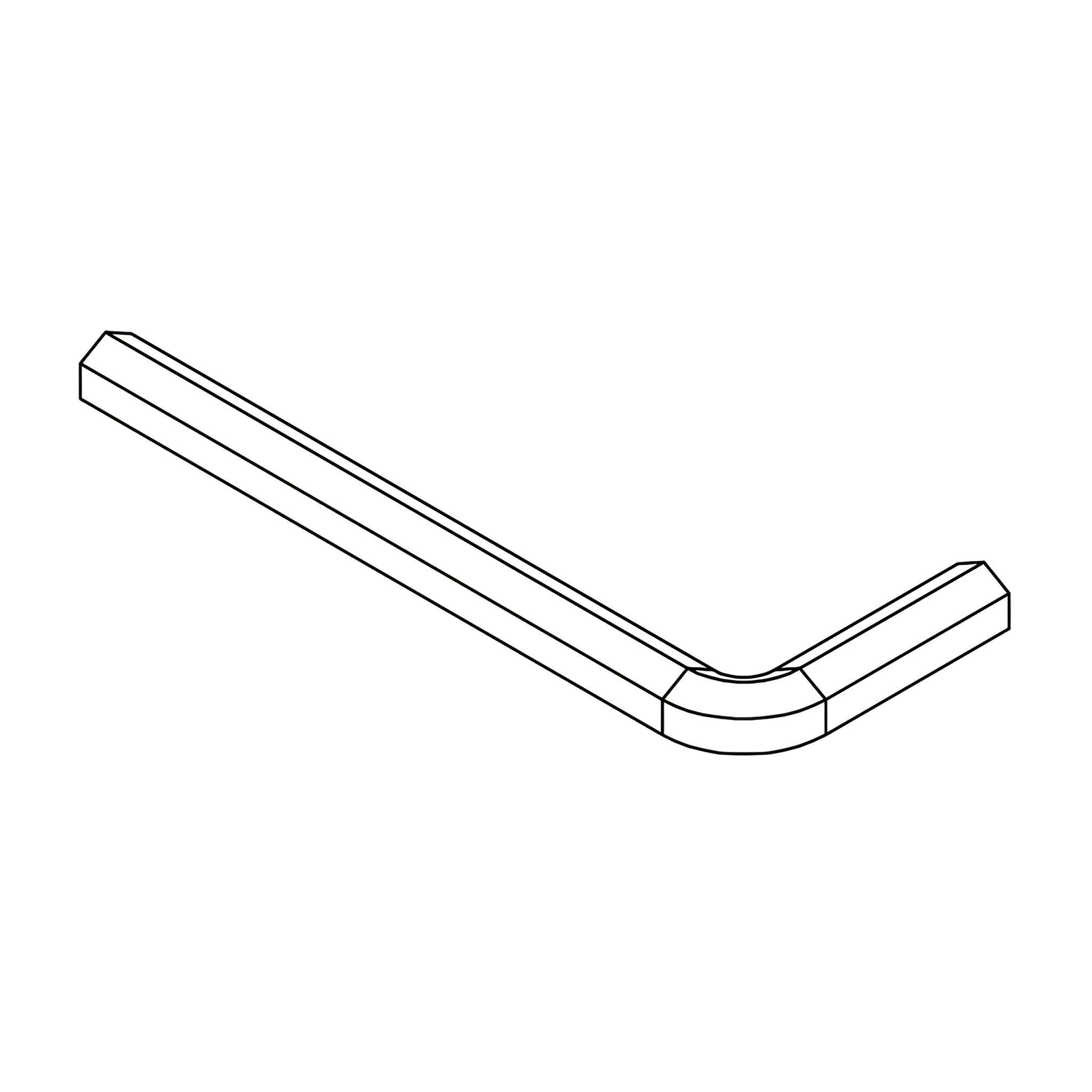

C - ALLEN KEY (M5X60MM)

Crosshead Screw Driver

Parts

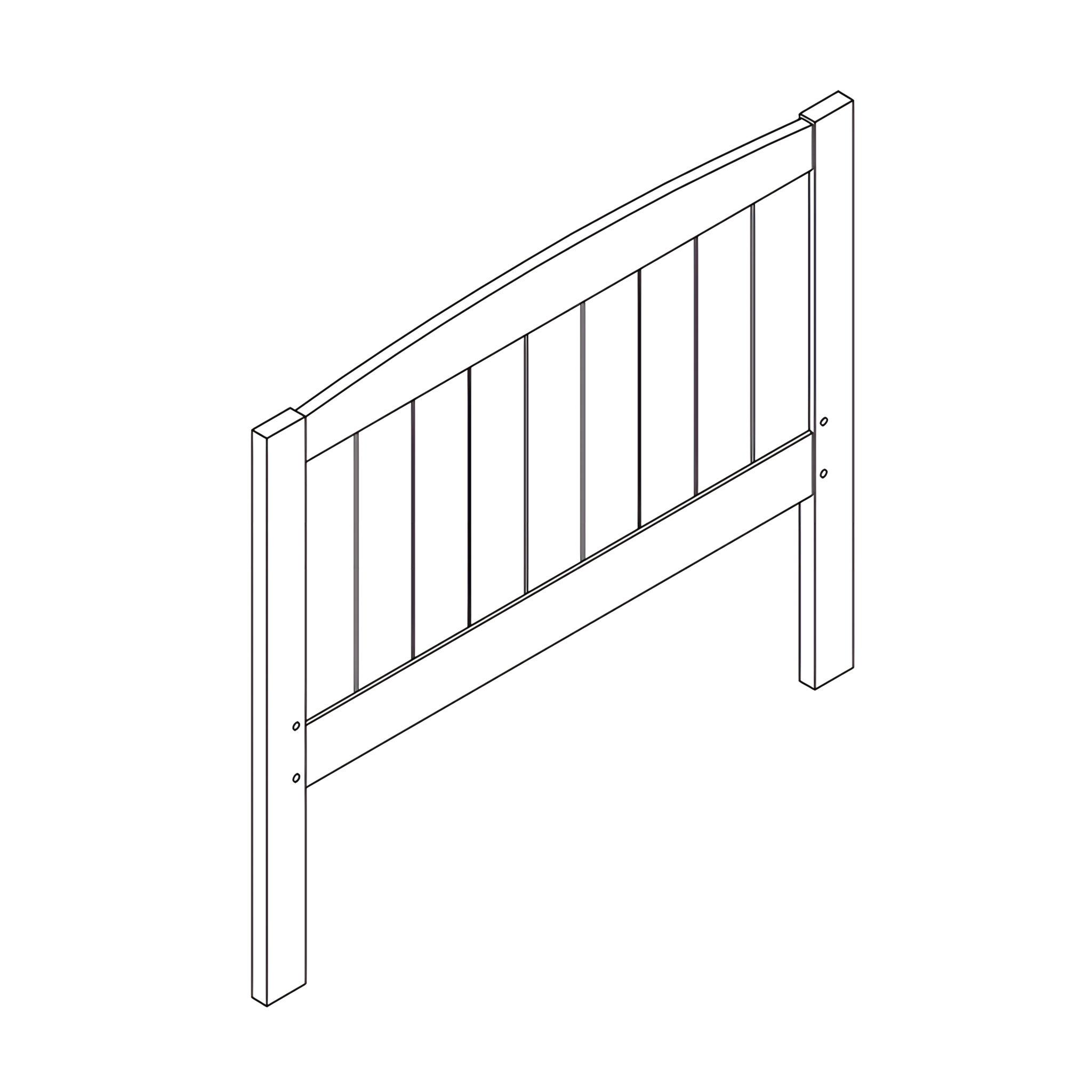

Headboard

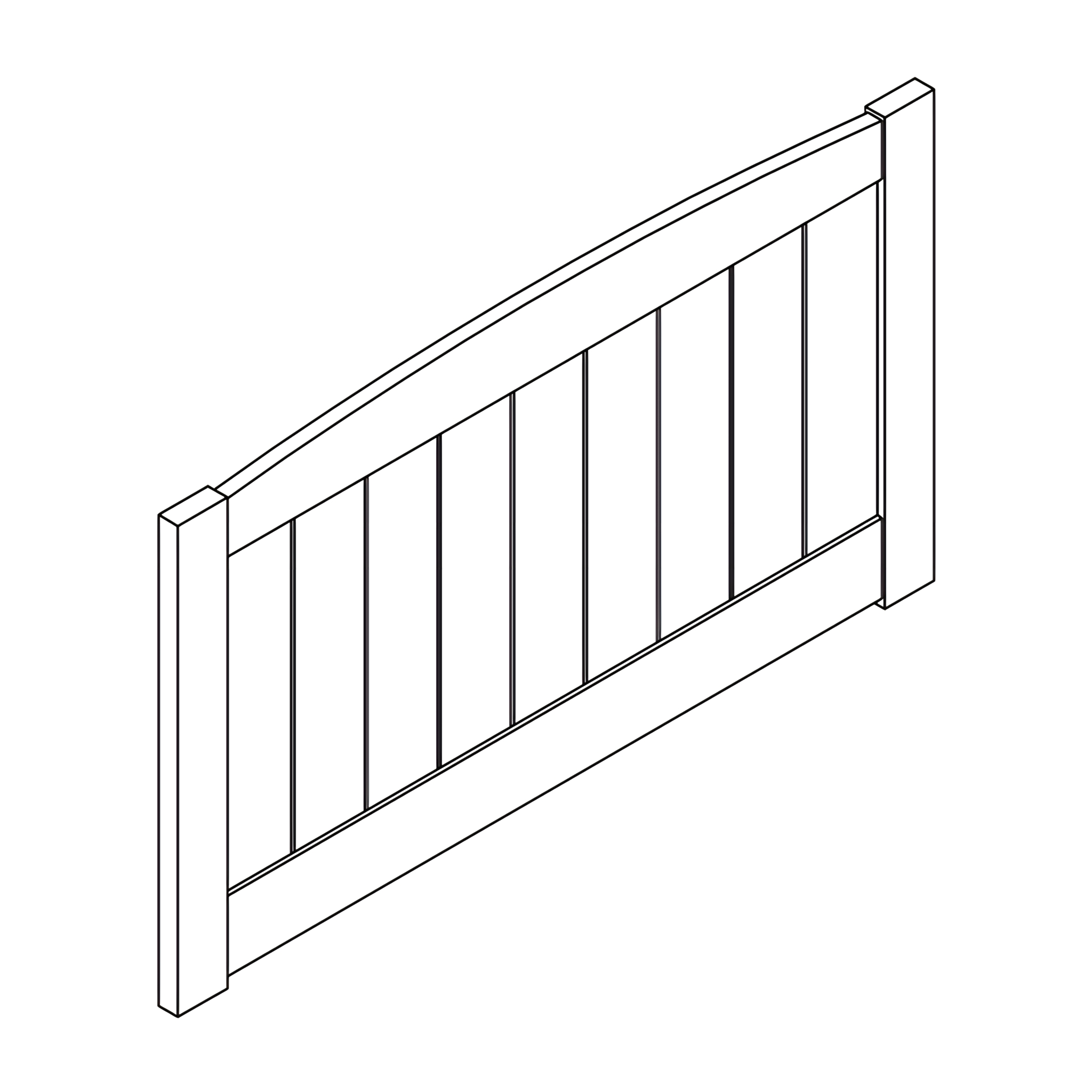

Footboard

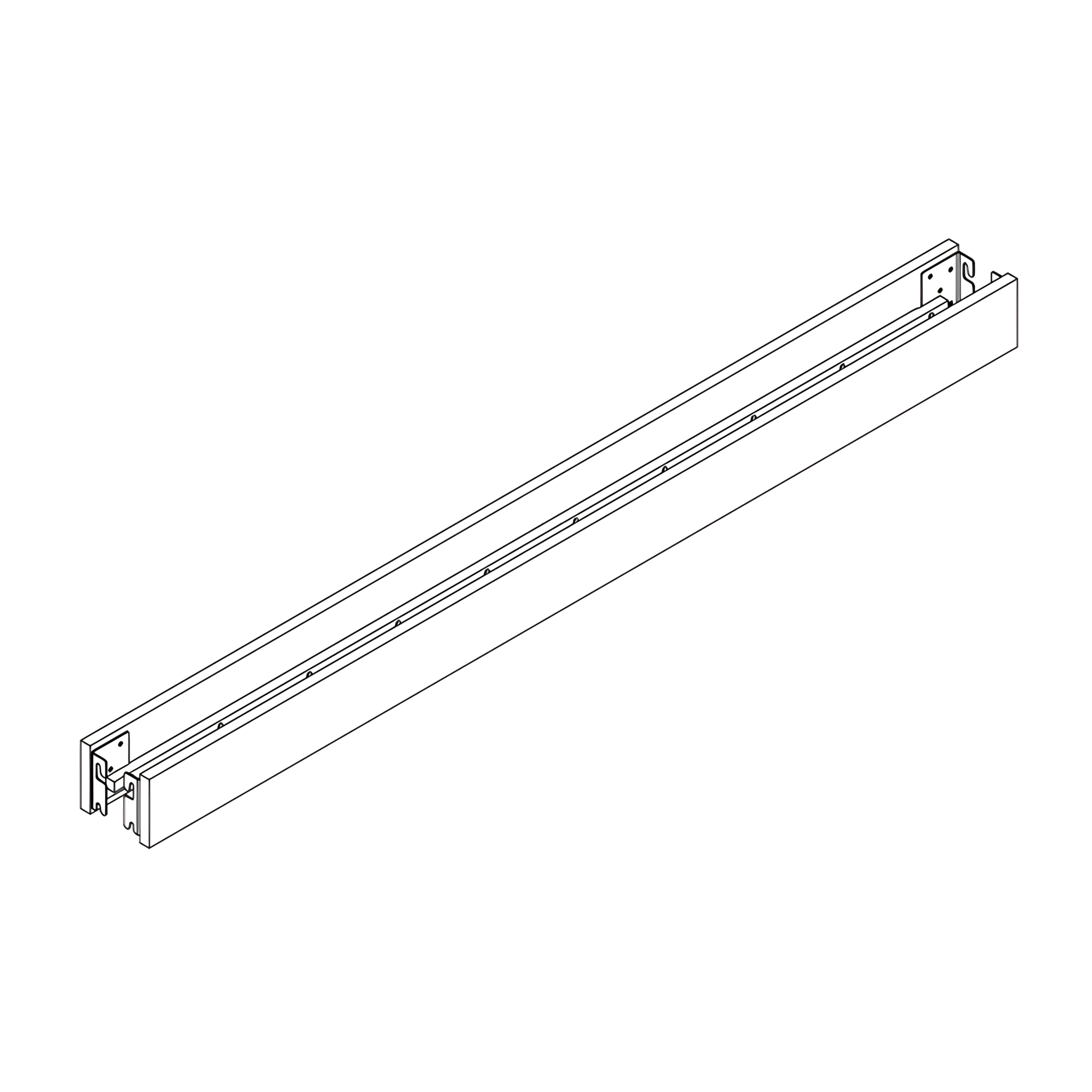

Side Rails

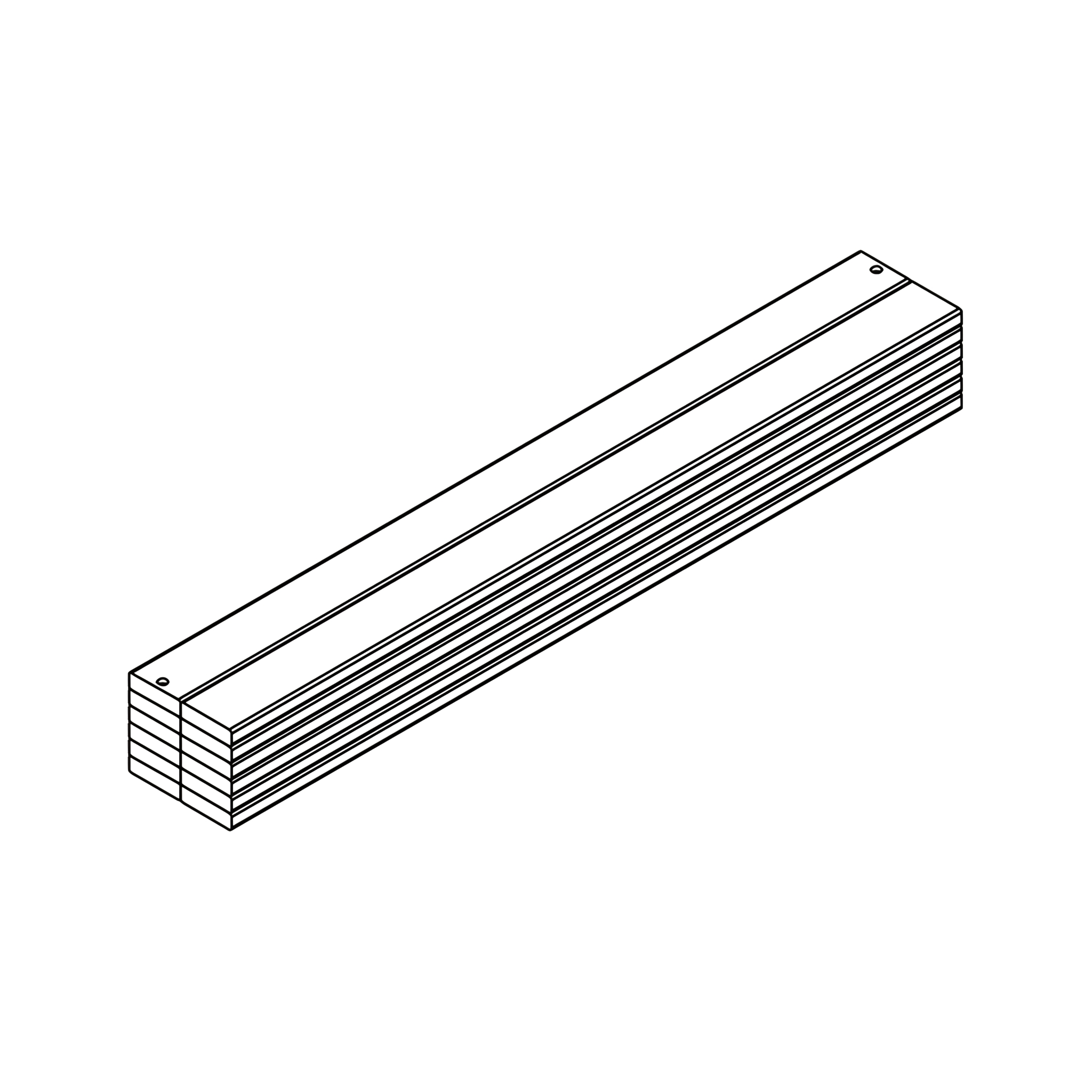

Wooden Slats

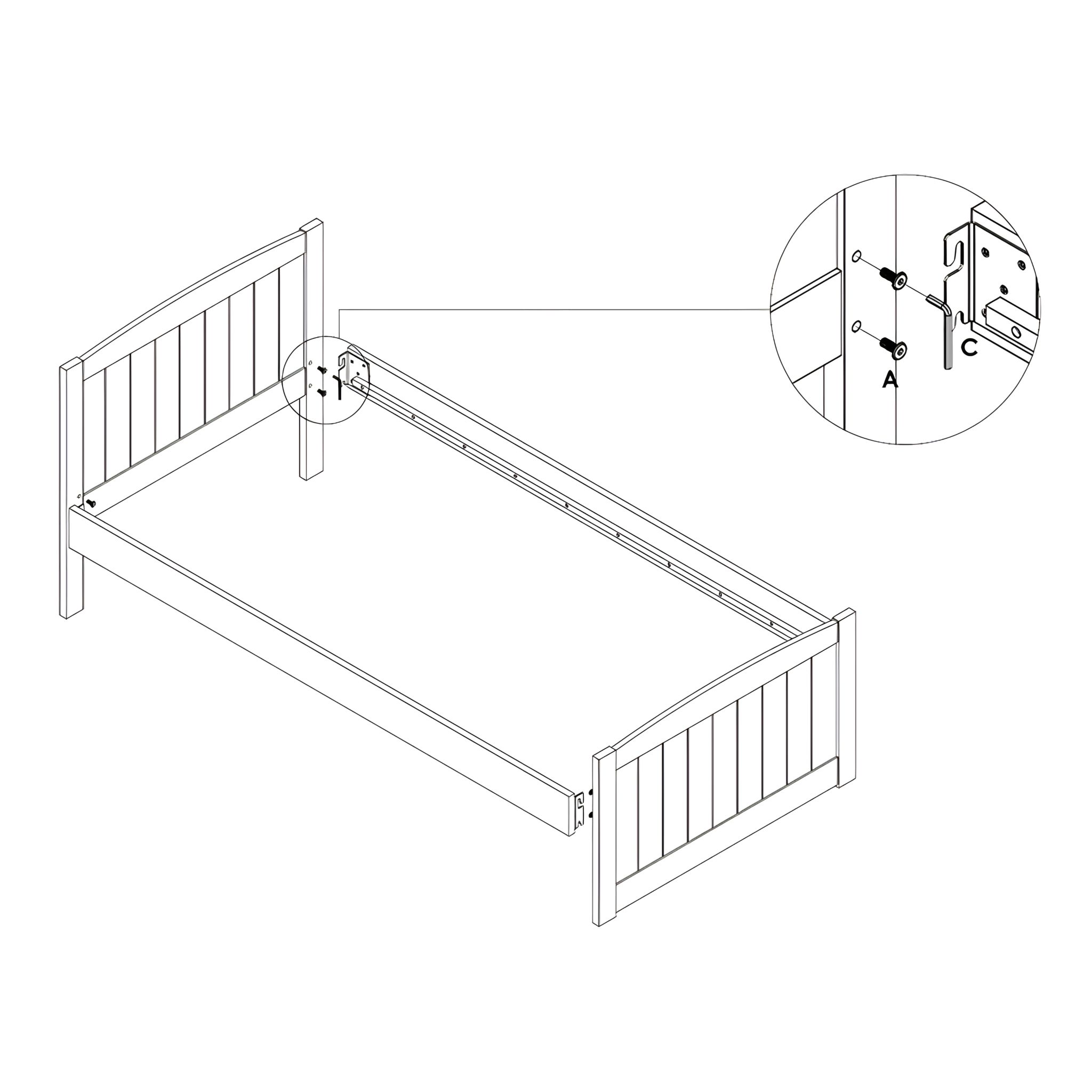

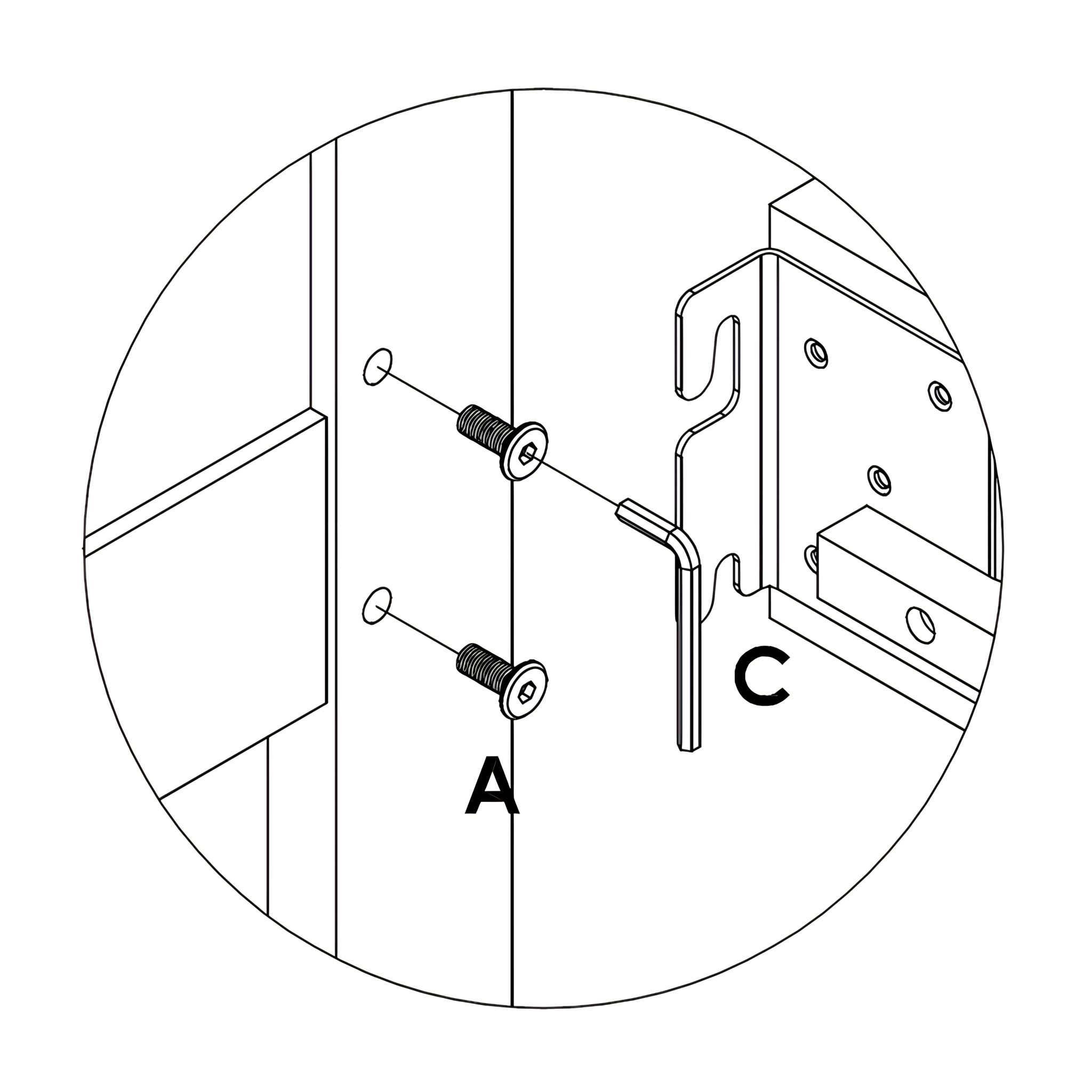

1. Attach Side Rails to Headboard & Footboard

1. Insert JCBB Bolts (A) into the designated holes on the Headboard and Footboard, but DO NOT fully tighten them yet.
2. Align the Side Rails with the bolts and slot them into place.
3. Once the rails are properly positioned, use the Allen Key (C) to fully tighten the bolts.

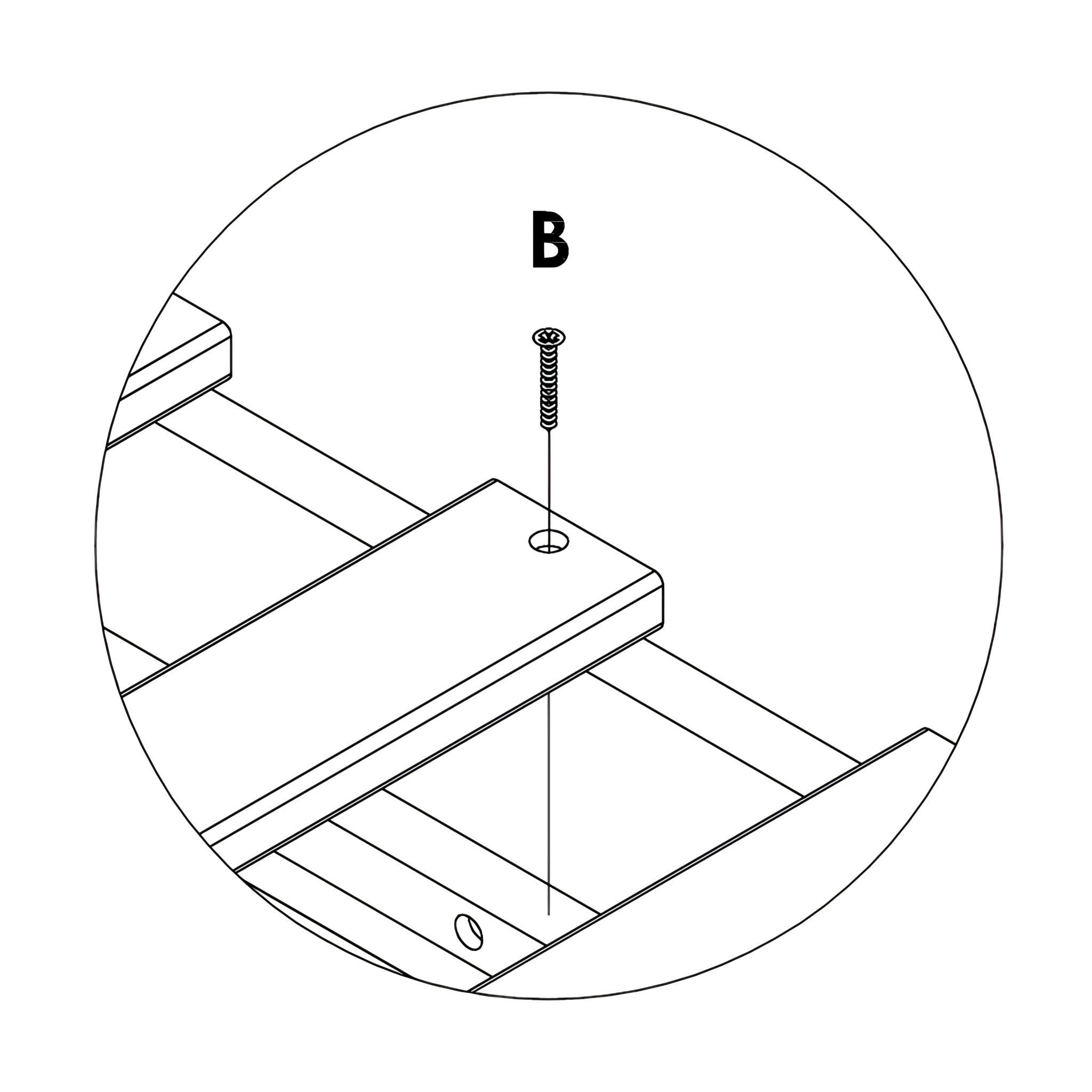

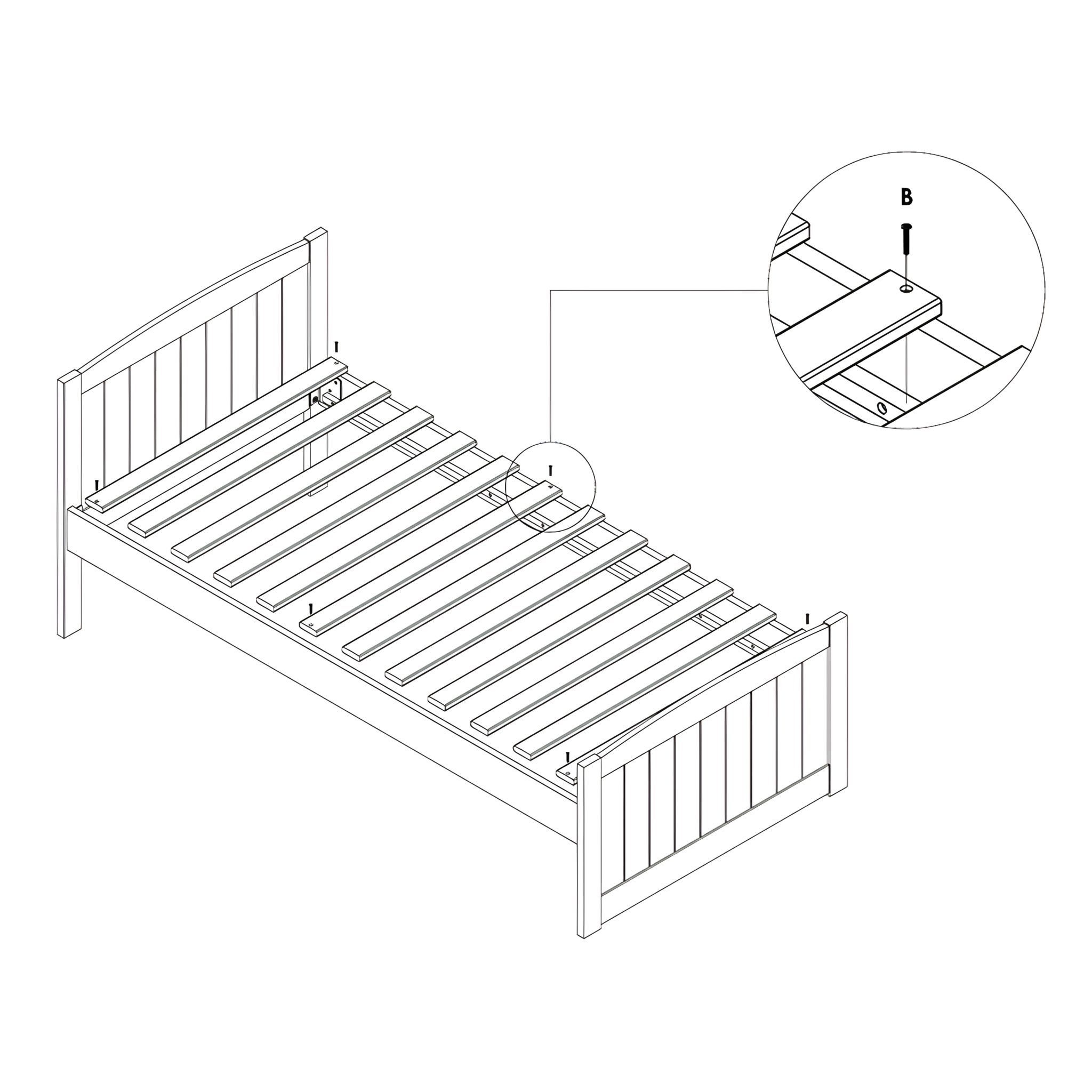

2. Attach Wooden Slats

1. Lay out the Wooden Slats evenly across the bed frame, ensuring they align with the Side Rails.
2. Using the CSK C/B Screws (B), fasten the six slats with pre-drilled holes to the side rails.
3. Use a Crosshead Screwdriver to tighten the screws, making sure the slats are firmly attached.

3. Final Check

Verify that all slats are securely fastened and evenly spaced.
Check for any loose connections and tighten the screws if necessary.
