Versailles Winged Upholstered Bed Frame

Assembly instructions for Versailles Winged Upholstered Bed Frame by Time4Sleep

Product Information

Versailles Winged Upholstered Bed Frame

The Versailles Standard Bed features a classic, elegant headboard and sturdy footboard design, supported by durable side rails and a central support system for enhanced stability. It includes strong wooden slats with secure plastic caps to ensure long-lasting comfort and support. Available in Double, King, and Super King sizes, it offers timeless style and solid construction for a restful night's sleep.

View product

SKU: Ver46WingCrm,Ver50WingCrm,Ver60WingCrm

	Double

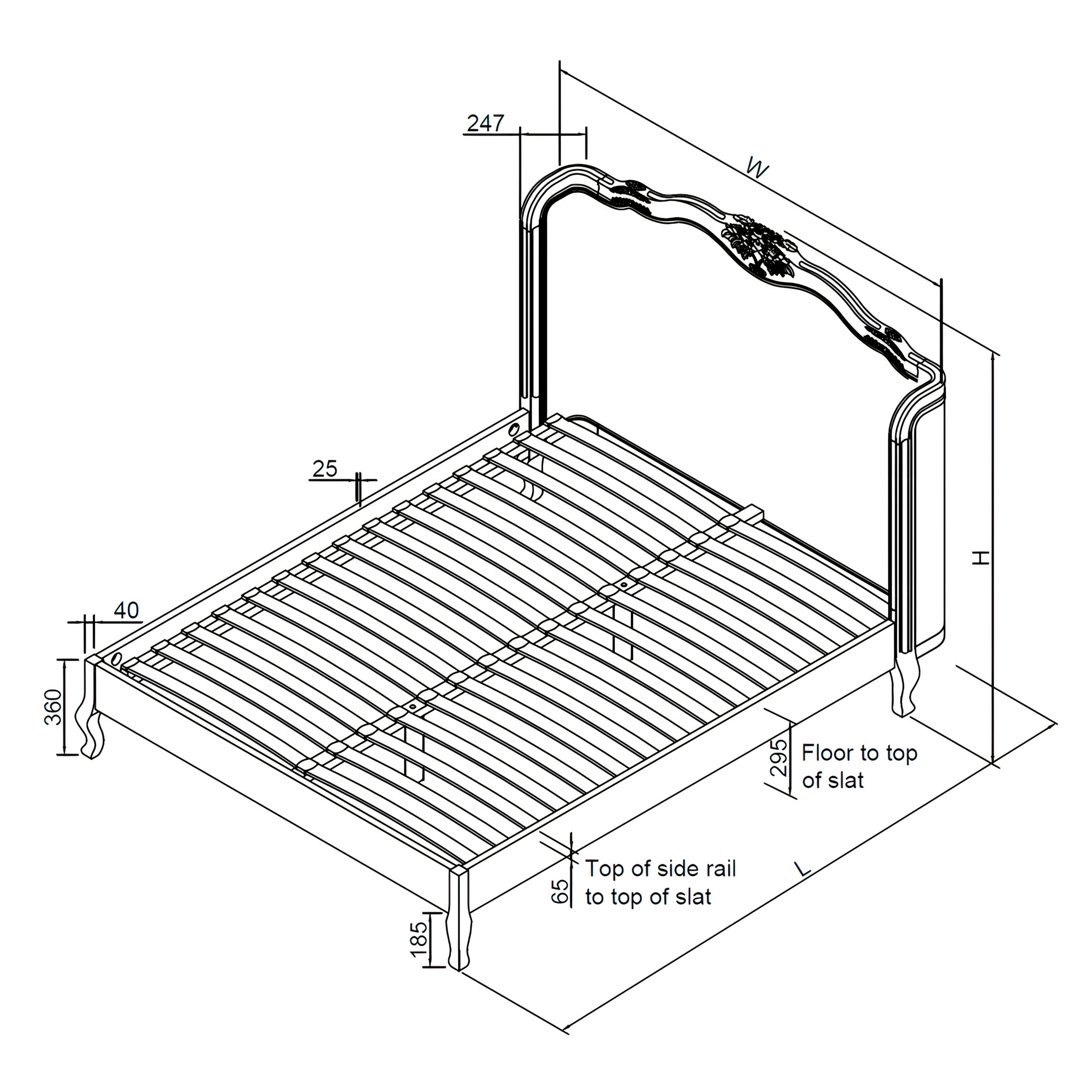

Width	149.5 cm
Length	202 cm
Height	129 cm

Tools

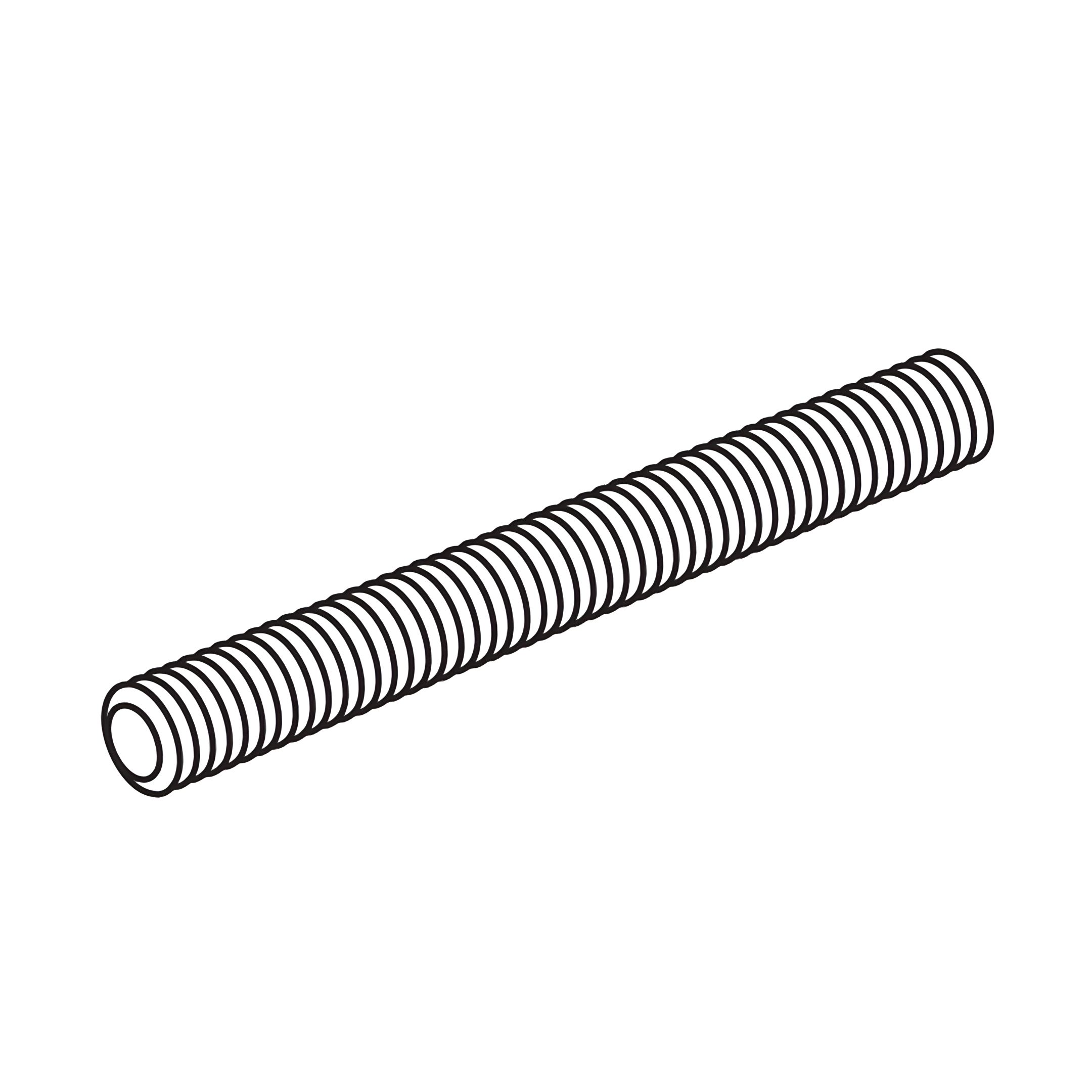

A - Threaded stud (M8x80mm)

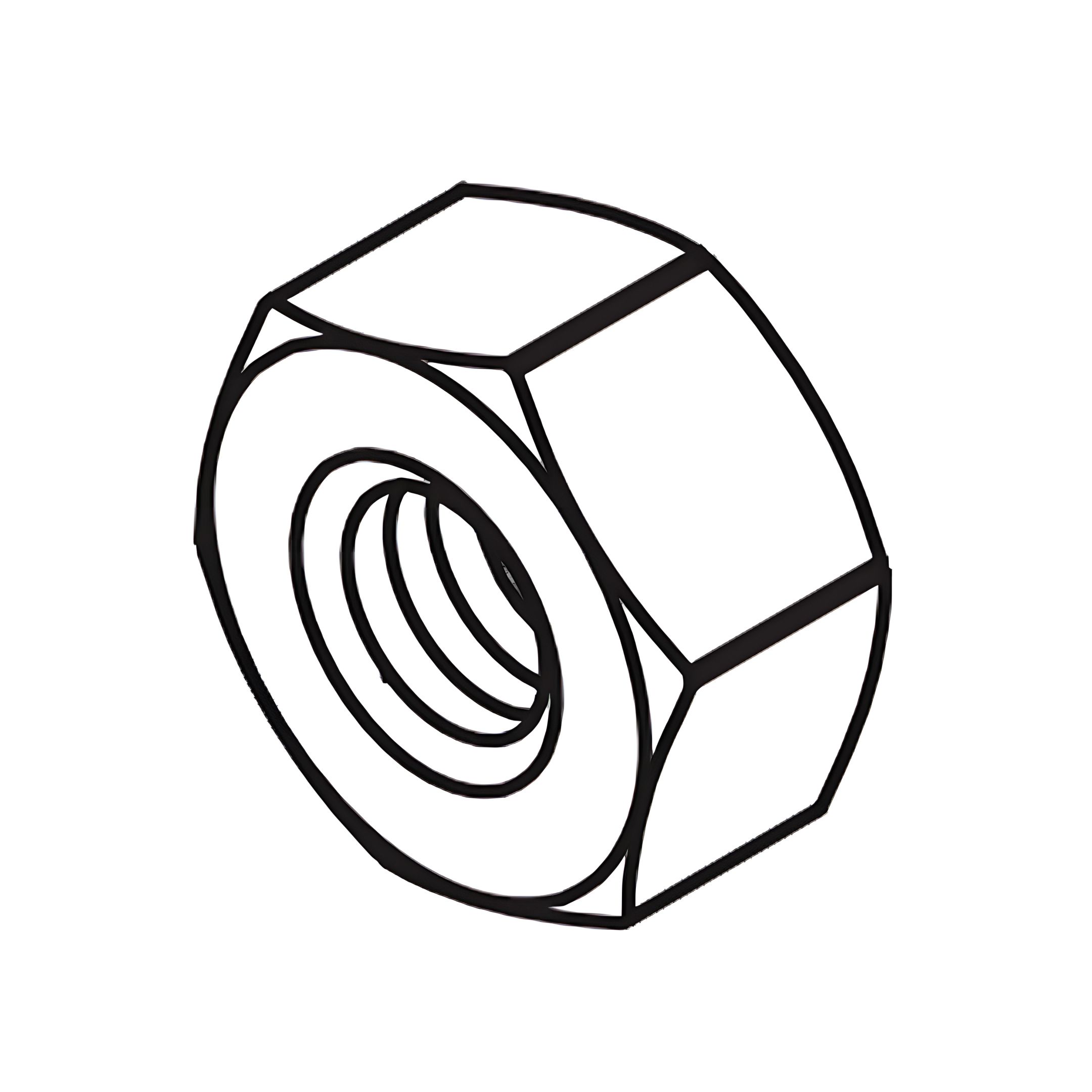

B - Nut for M8 stud

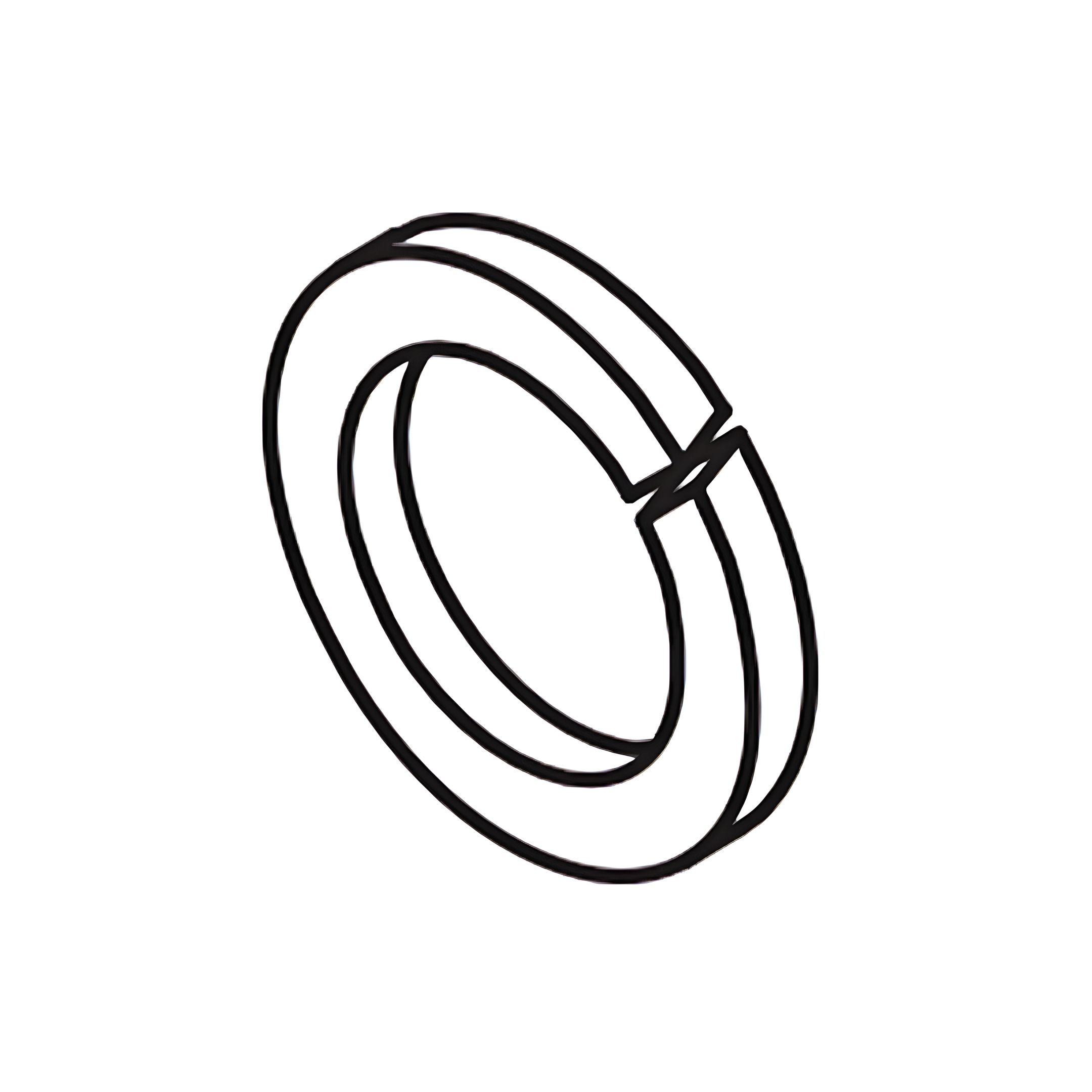

C - Spring washer

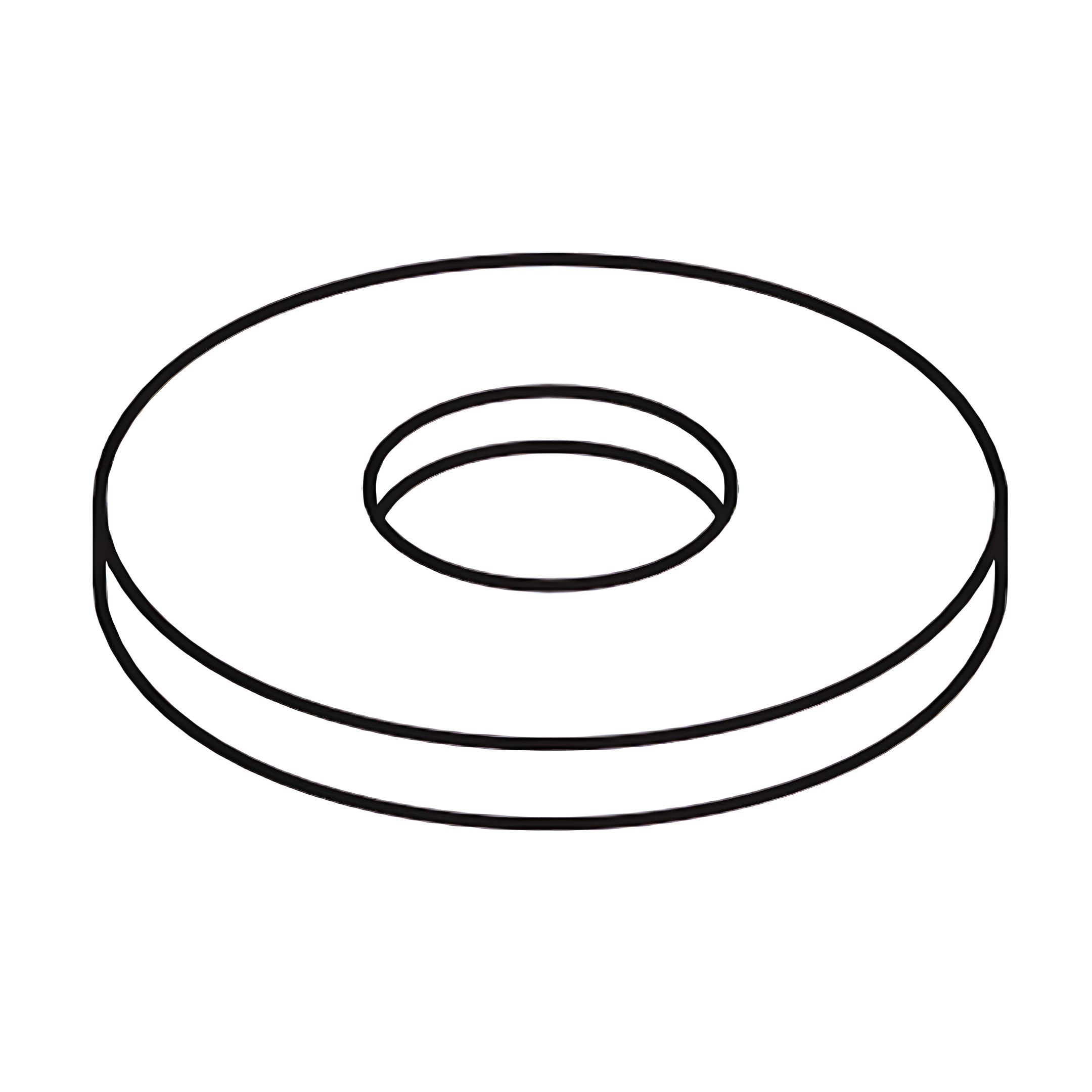

D - Flat washer (18 for Double & King, 24 for Super King)

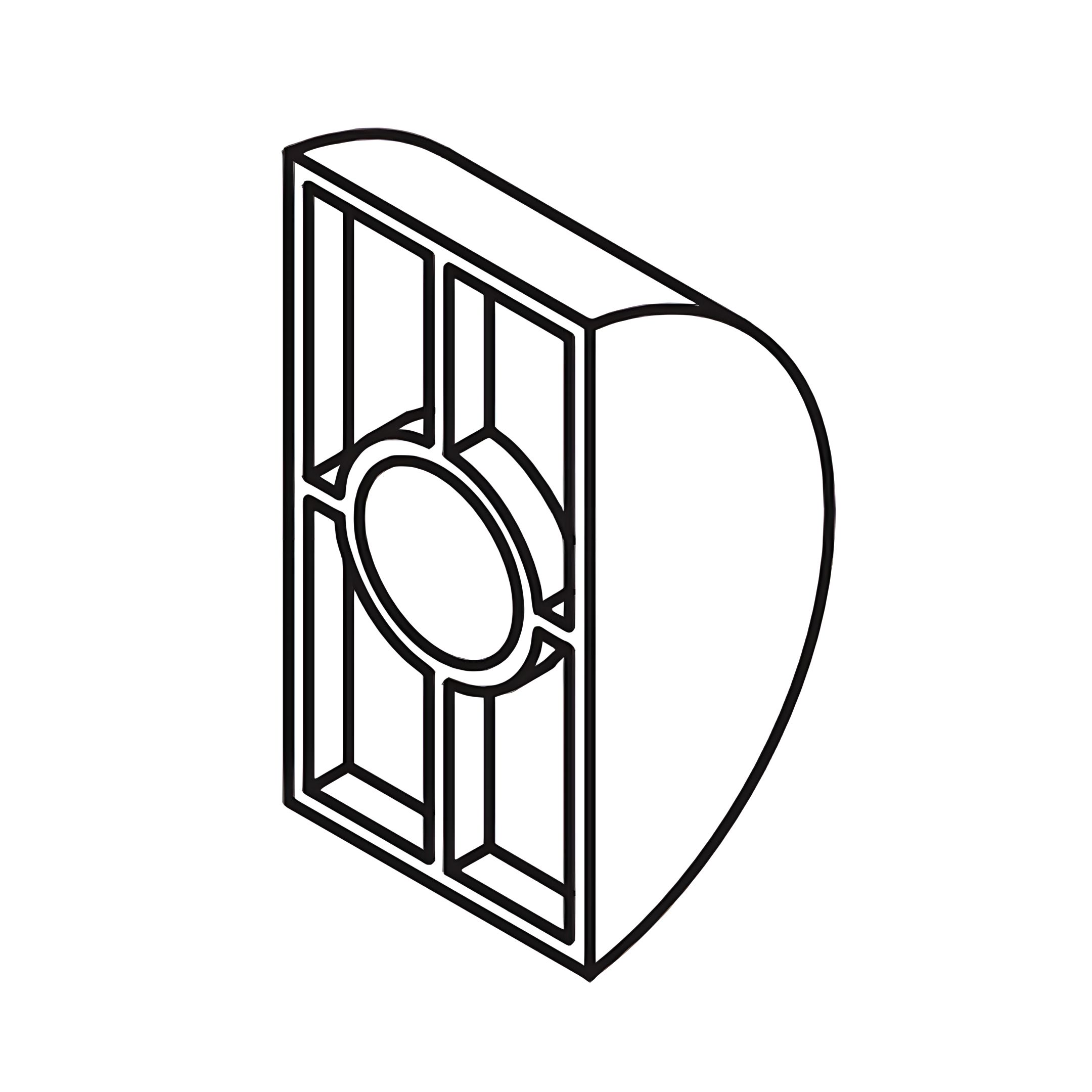

E - Half-moon bracket

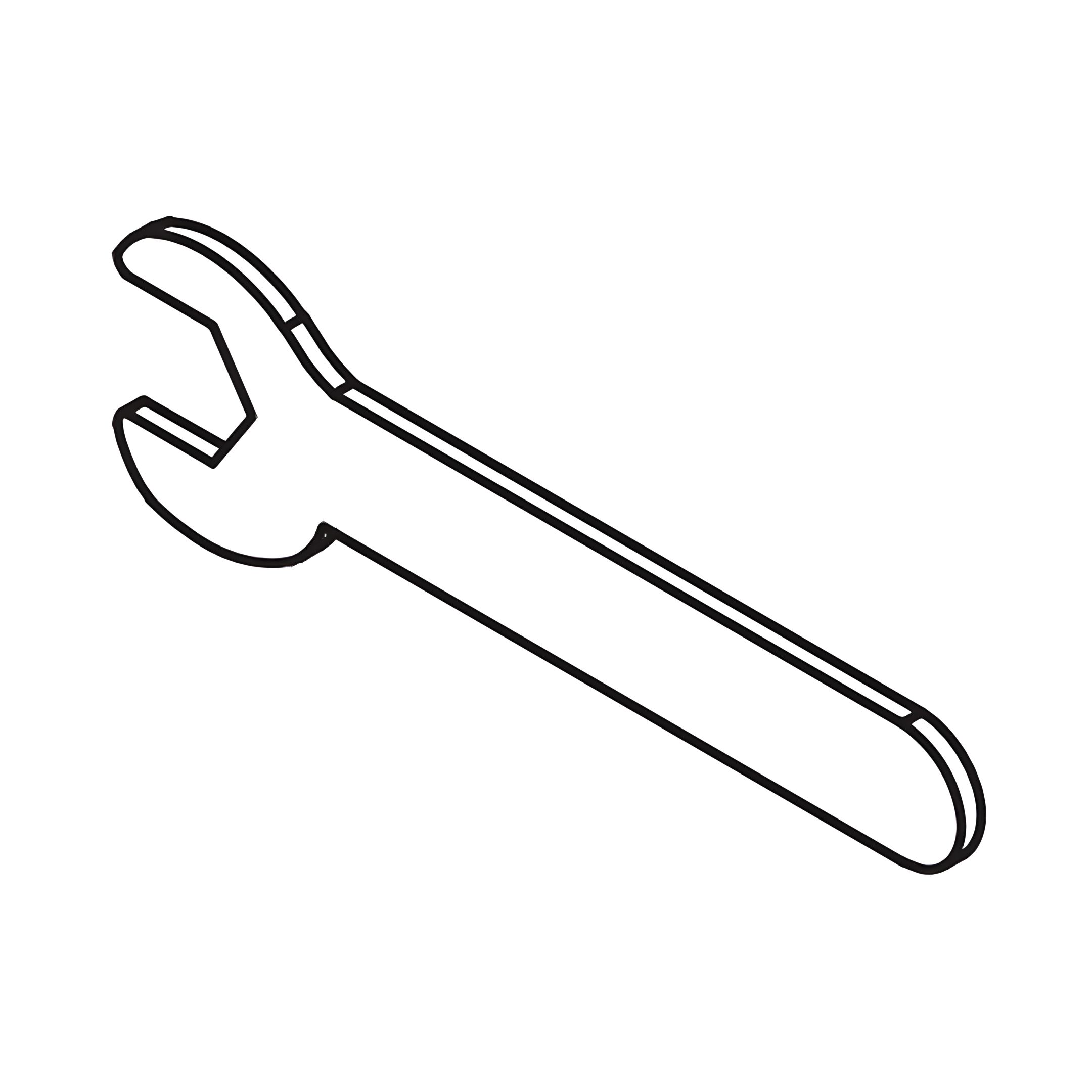

F - Spanner

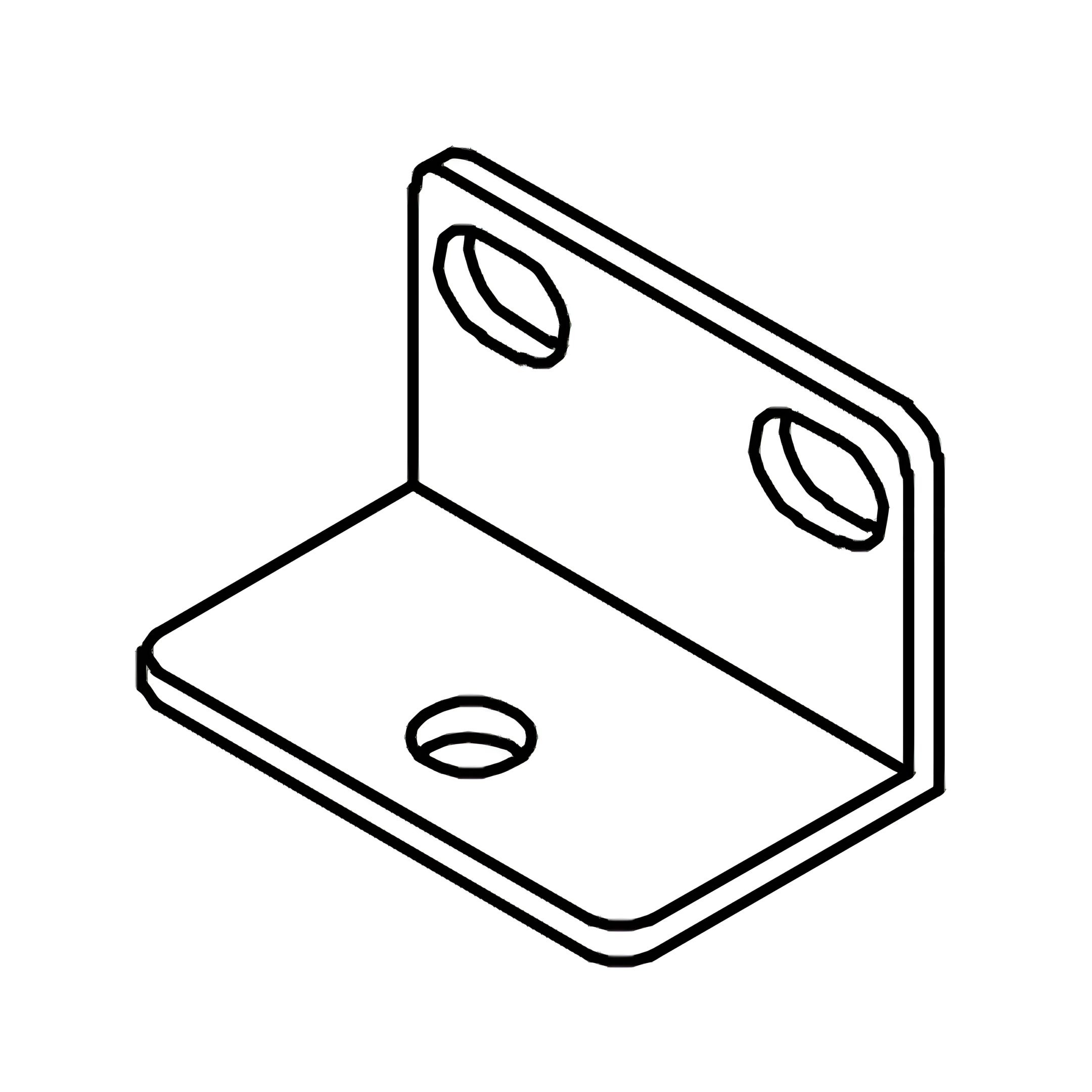

G - “L” Shape Bracket (2 for Double & King, 4 for Super King)

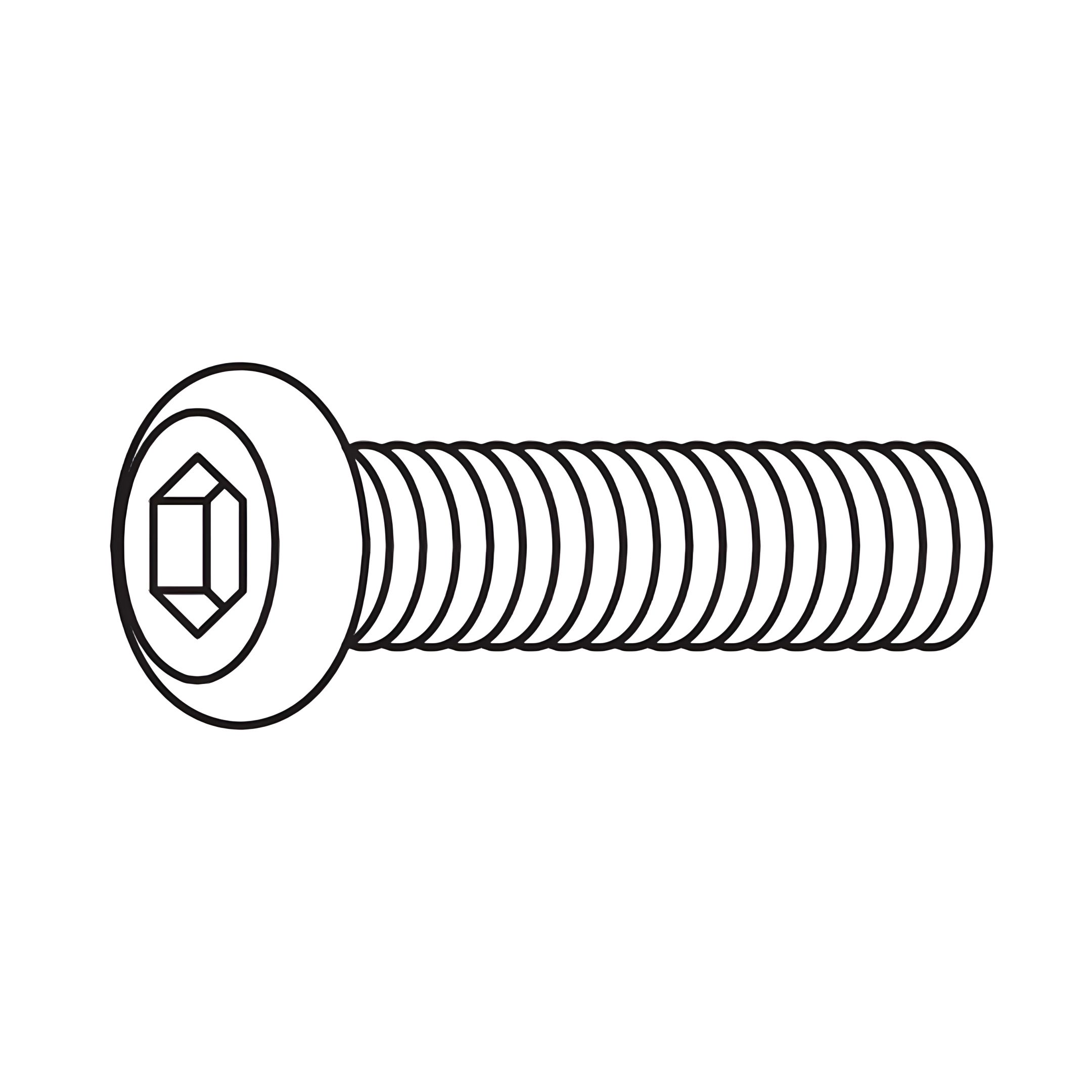

H - Bolt (M8x20mm) (6 for Double & King, 12 for Super King)

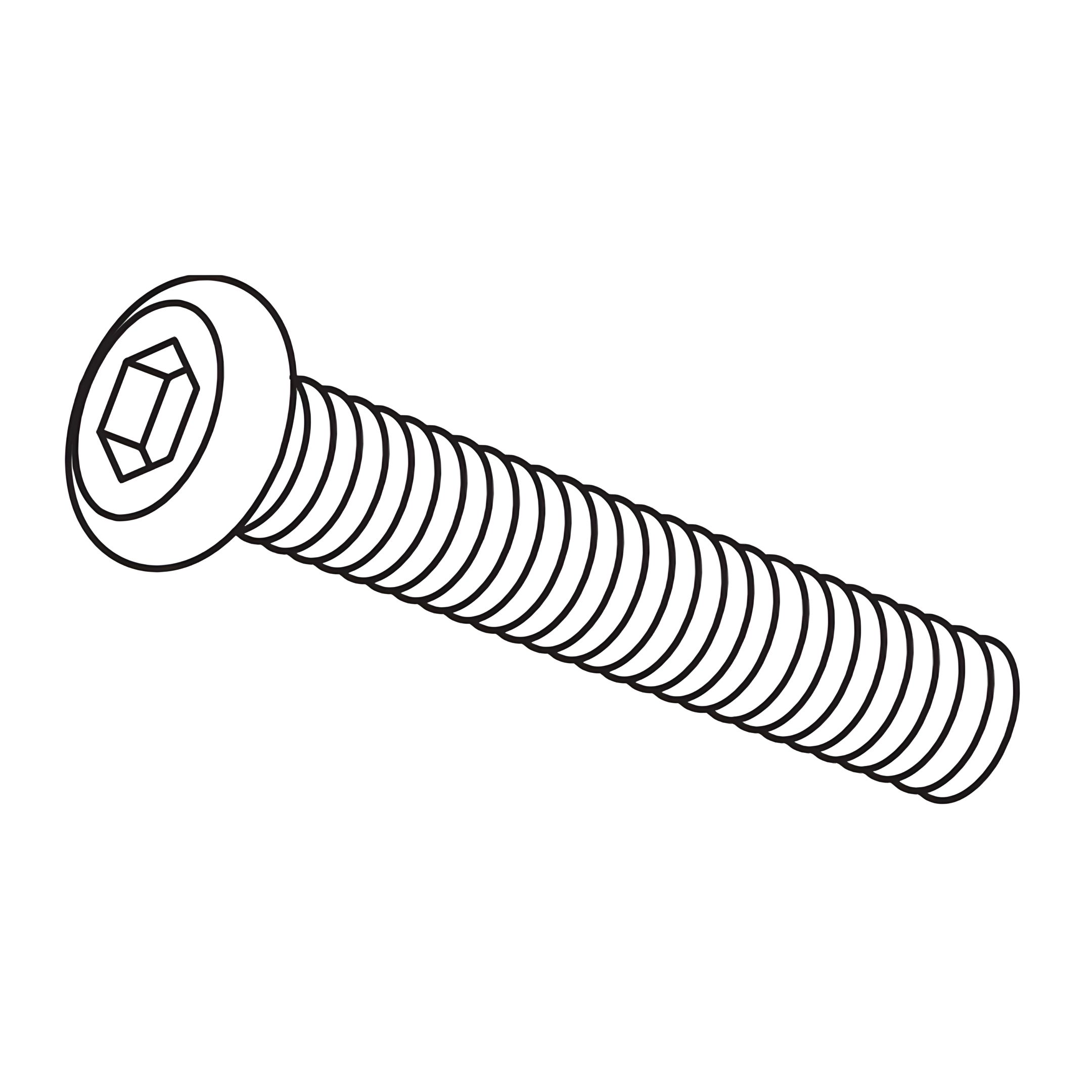

J - Bolt (M8x35mm)(2 for Double & King, 4 for Super King)

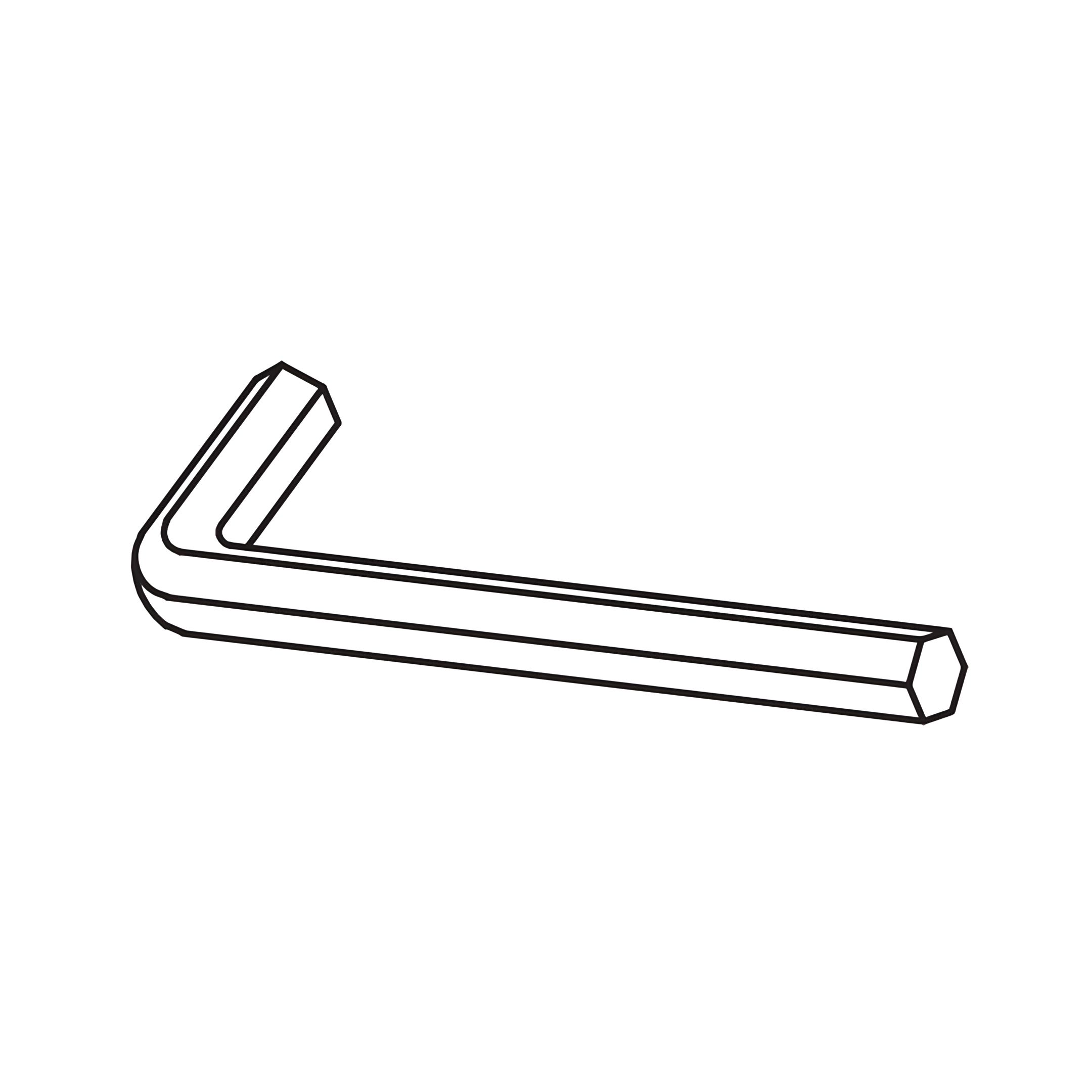

K - Allen Key

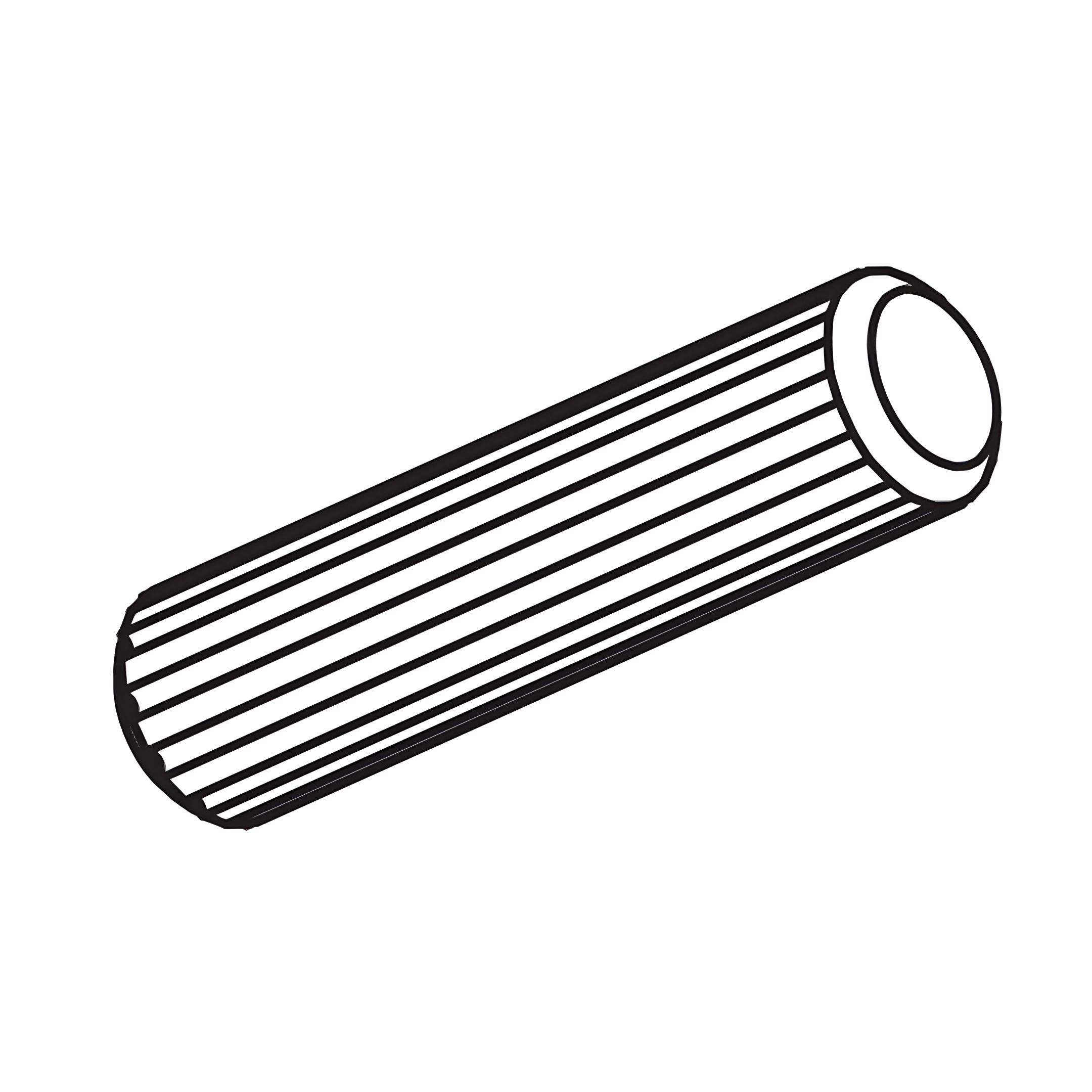

L - Dowel (Ø8x30mm)

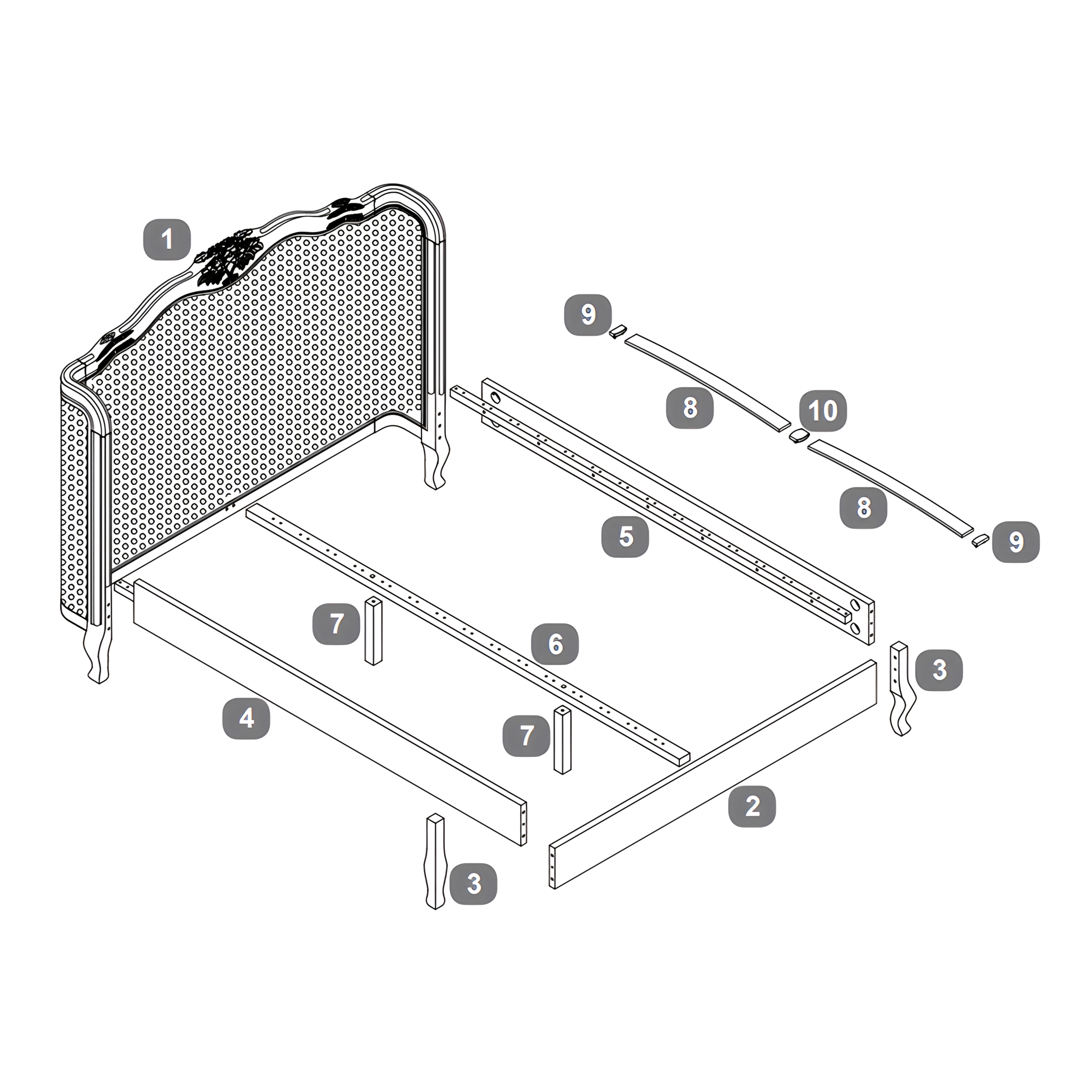

Parts

1Headboard

2Footboard

3Footbard Legs

4Side Rail - LH

5Side Rail - RH

6Centre Support Rail (1 for Double & King, 2 for Super King)

7Centre Support Rail Legs (2 for Double & King, 4 for Super King)

8Wooden Slats (28 for Double, 30 for King, 45 for Super King)

9 Single Plastic Caps (28 for Double, 30 for King, 30 for Super King)

10Double Plastic Caps (14 for Double, 15 for King, 30 for Super King)

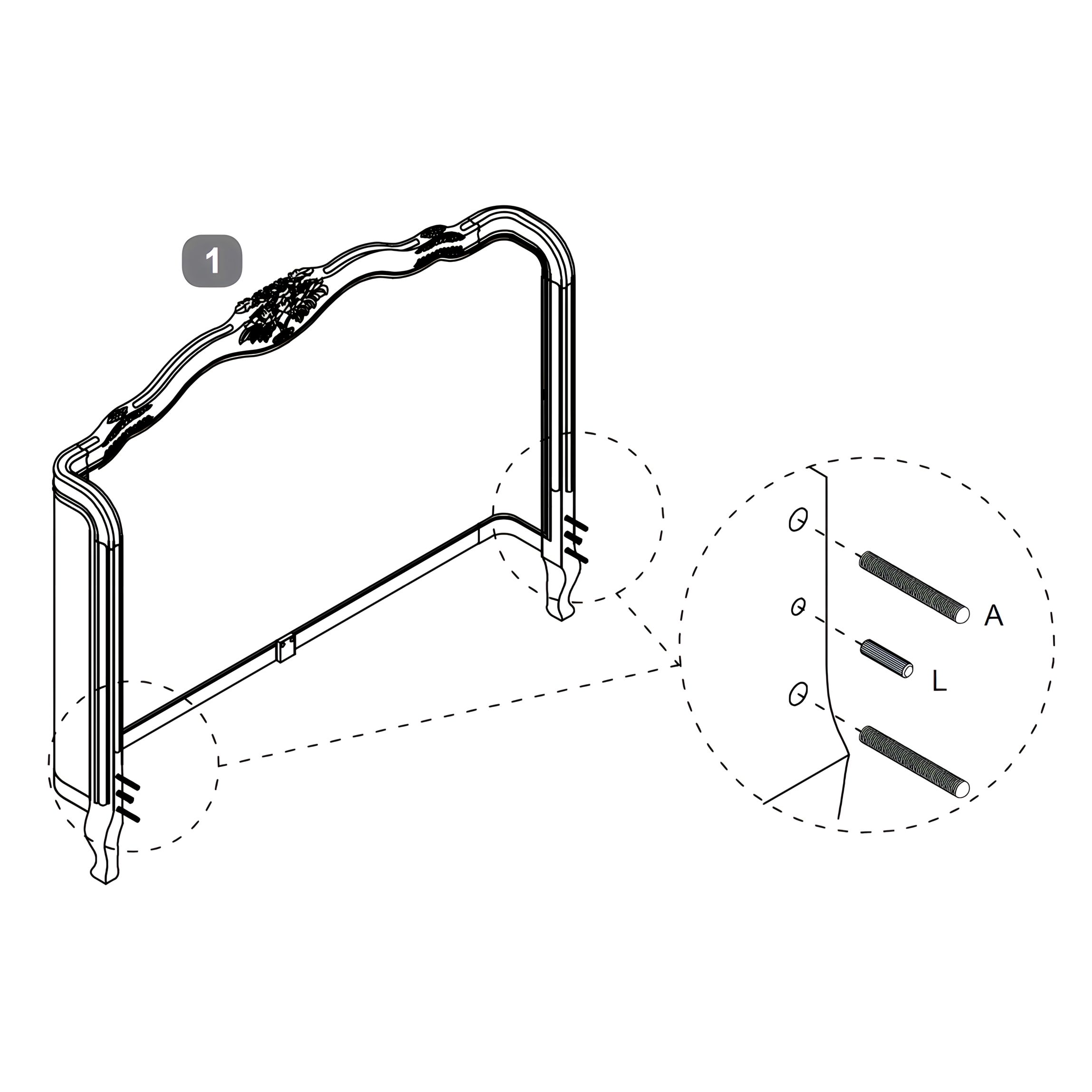

1. Prepare the Footboard Legs

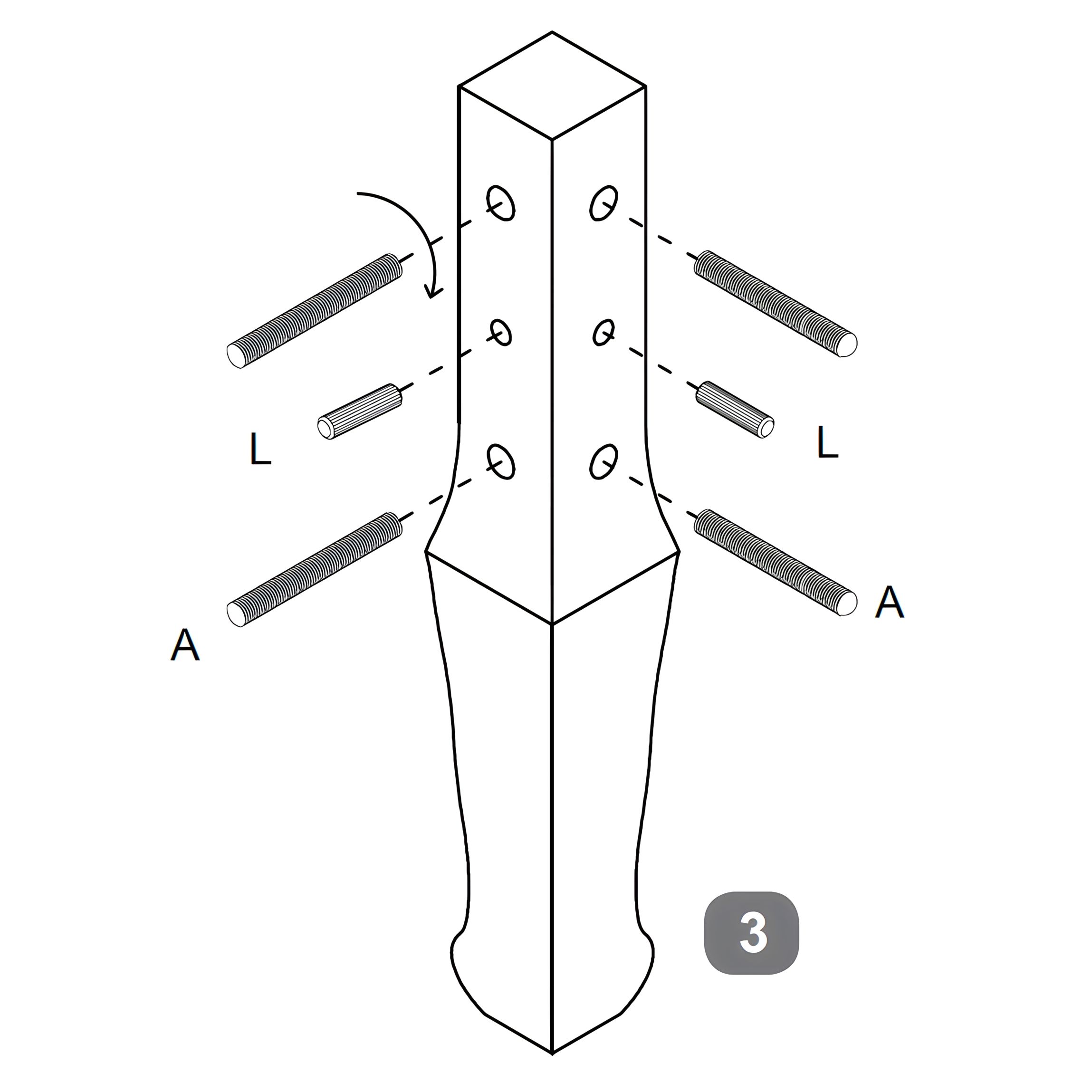

1. Insert 4 threaded studs (A) into the designated holes on one footboard leg.
2. Insert 2 dowels (L) into the remaining holes.
3. Ensure all hardware is securely in place.

Repeat the process for the other footboard leg

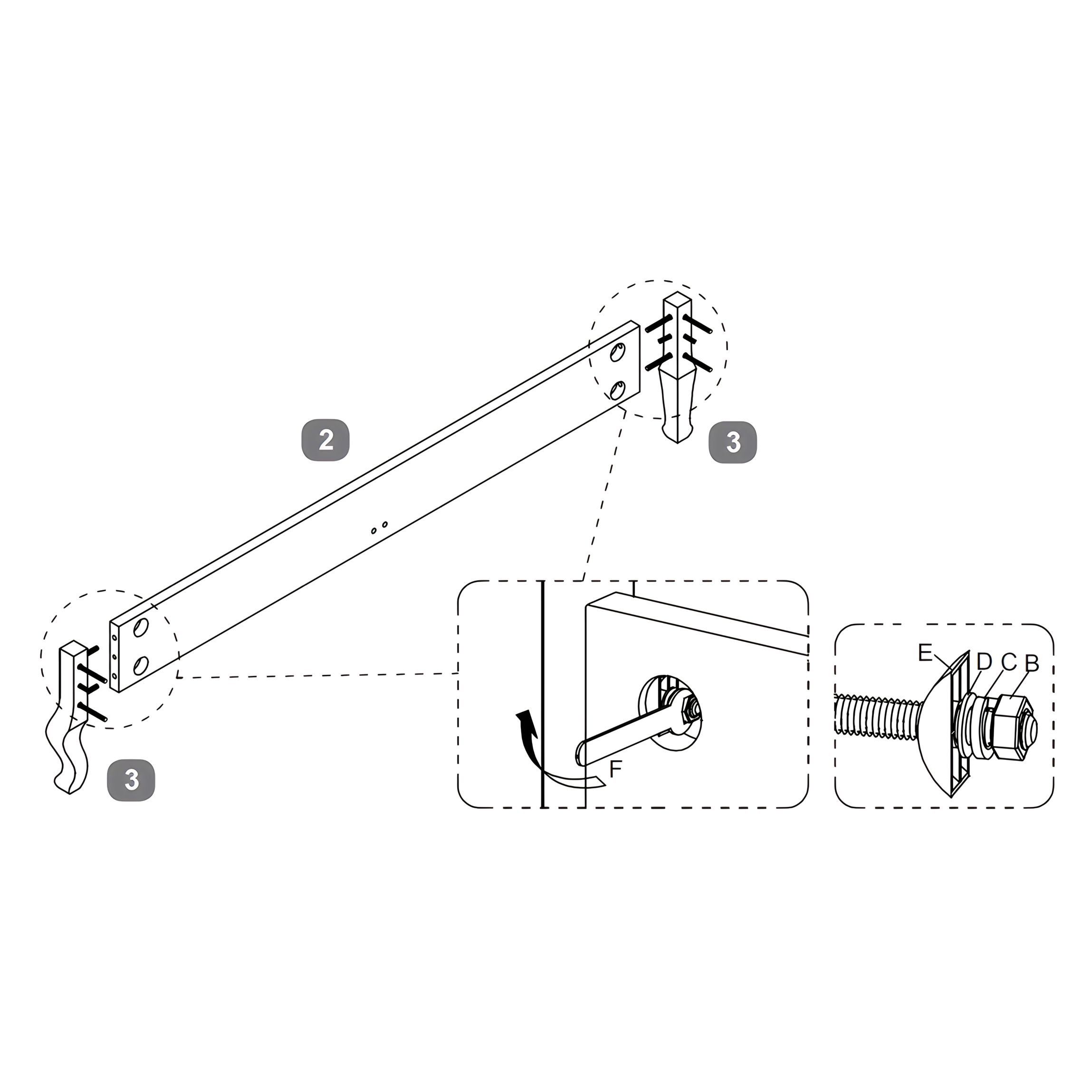

2. Attach the Legs to the Footboard

1. Align the footboard (2) with the pre-installed threaded studs on the footboard legs (3).
2. Secure each connection using a half-moon bracket (E), flat washer (D), spring washer (C), and nut (B).
3. Tighten the nuts using the spanner (F) to ensure a firm attachment.

Repeat for both sides.

3. Prepare the Headboard

1. Insert 2 threaded studs (A) into the designated holes on each side of the headboard (1).
2. Insert 1 dowel (L) into the remaining hole on each side.

4. Attach the Side Rails

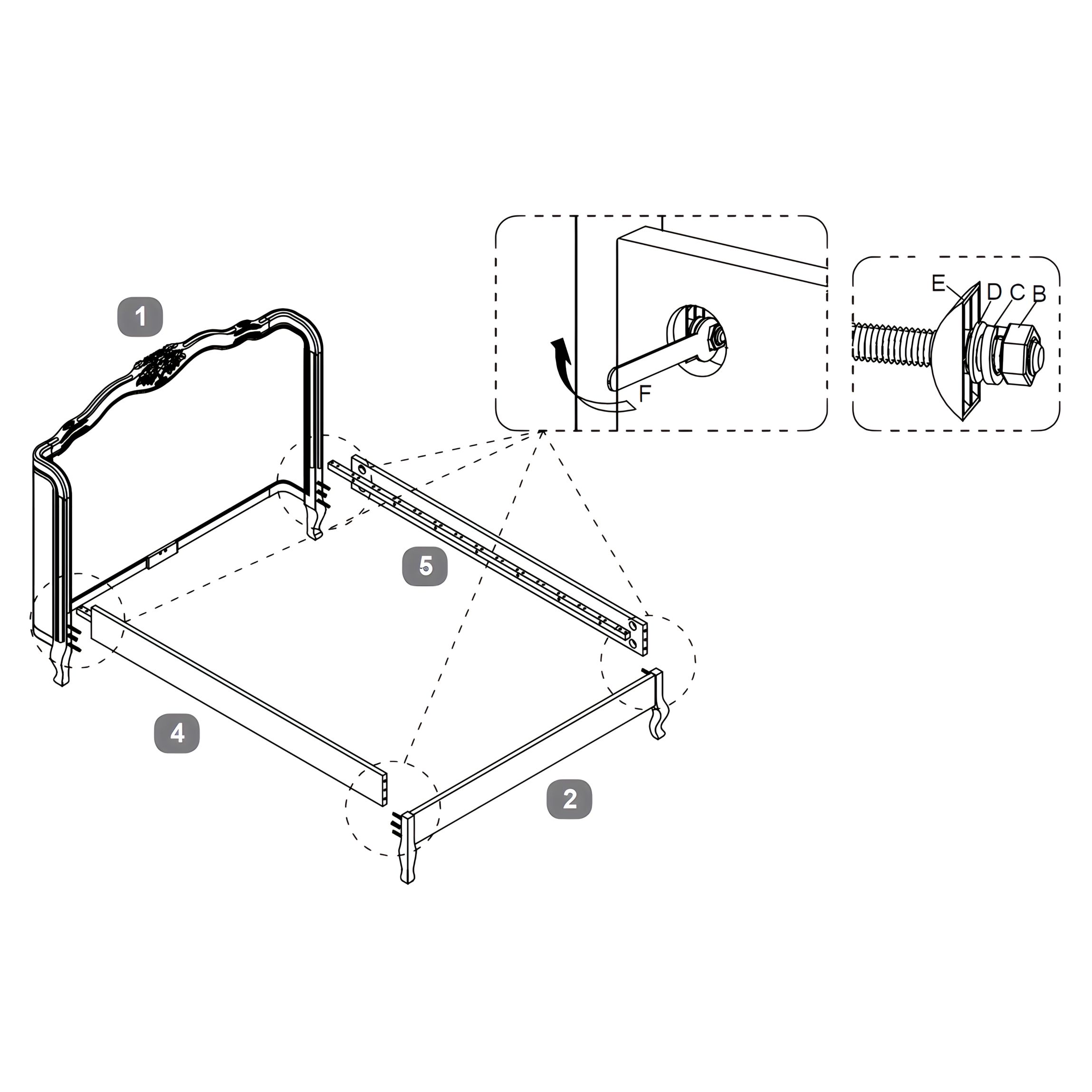

1. Align the left side rail (4) and right side rail (5) with the pre-installed threaded studs on the headboard (1) and footboard (2).
2. Secure each connection using a half-moon bracket (E), flat washer (D), spring washer (C), and nut (B).
3. Tighten all nuts using the spanner (F) to ensure a firm attachment.

5. Attach the L-Shape Brackets to the Centre Support Rail

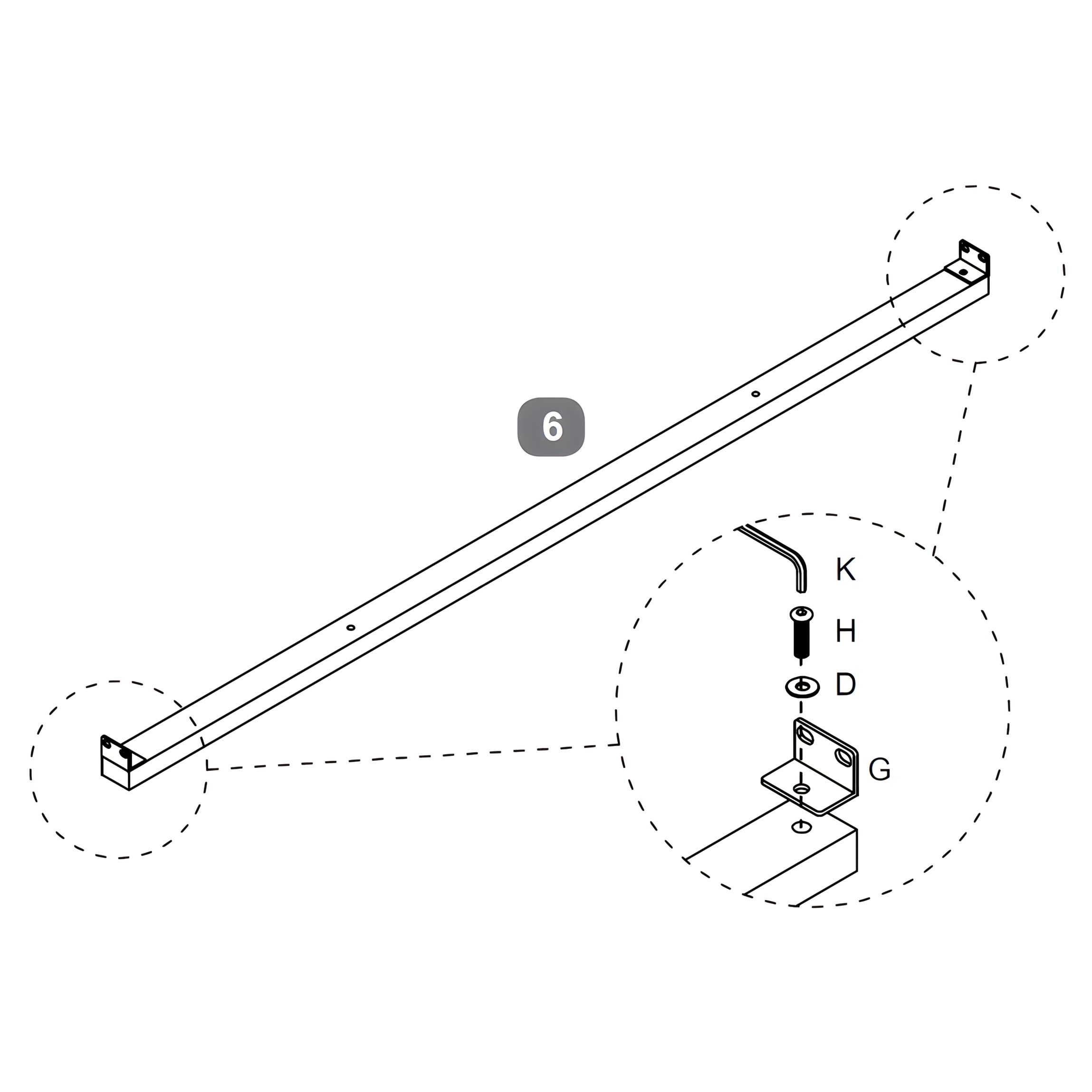

1. Position the "L" shape brackets (G) at both ends of the centre support rail (6).
2. Secure each bracket using bolts (H) and washers (D).
3. Tighten the bolts with the Allen key (K) to ensure a firm connection.

Note: If assembling the Super King size, repeat this step for both centre support rails (6).

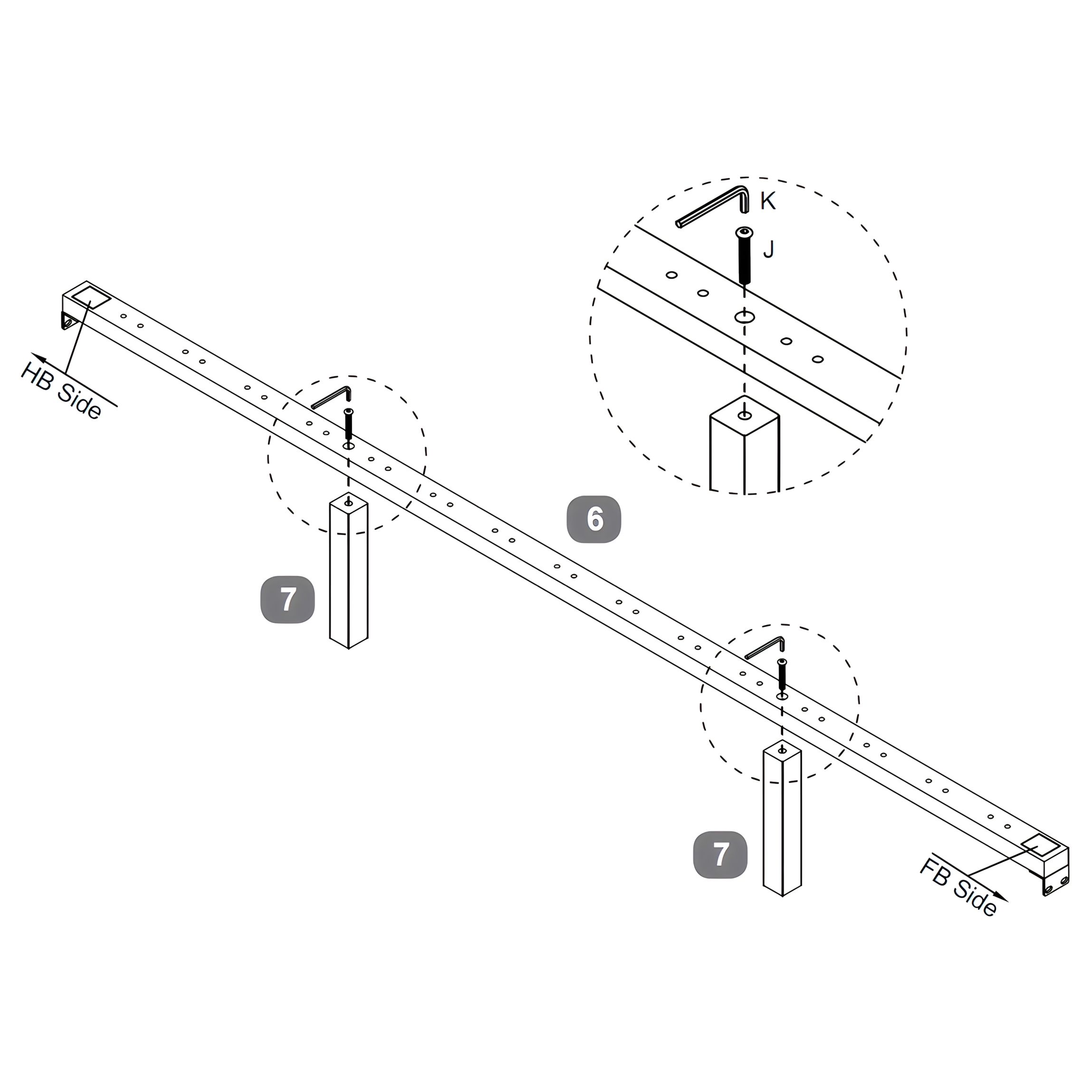

6. Attach the Centre Support Rail Legs

1. Align the centre support rail legs (7) with the designated holes on the centre support rail (6).
2. Secure each leg using bolts (J) and tighten them with the Allen key (K).
3. Ensure the legs are firmly attached to provide proper support.

Note: If assembling the Super King size, attach four centre support rail legs (7) instead of two, as there are two centre support rails (6).

7. Install the Centre Support Rail onto the Bed Frame

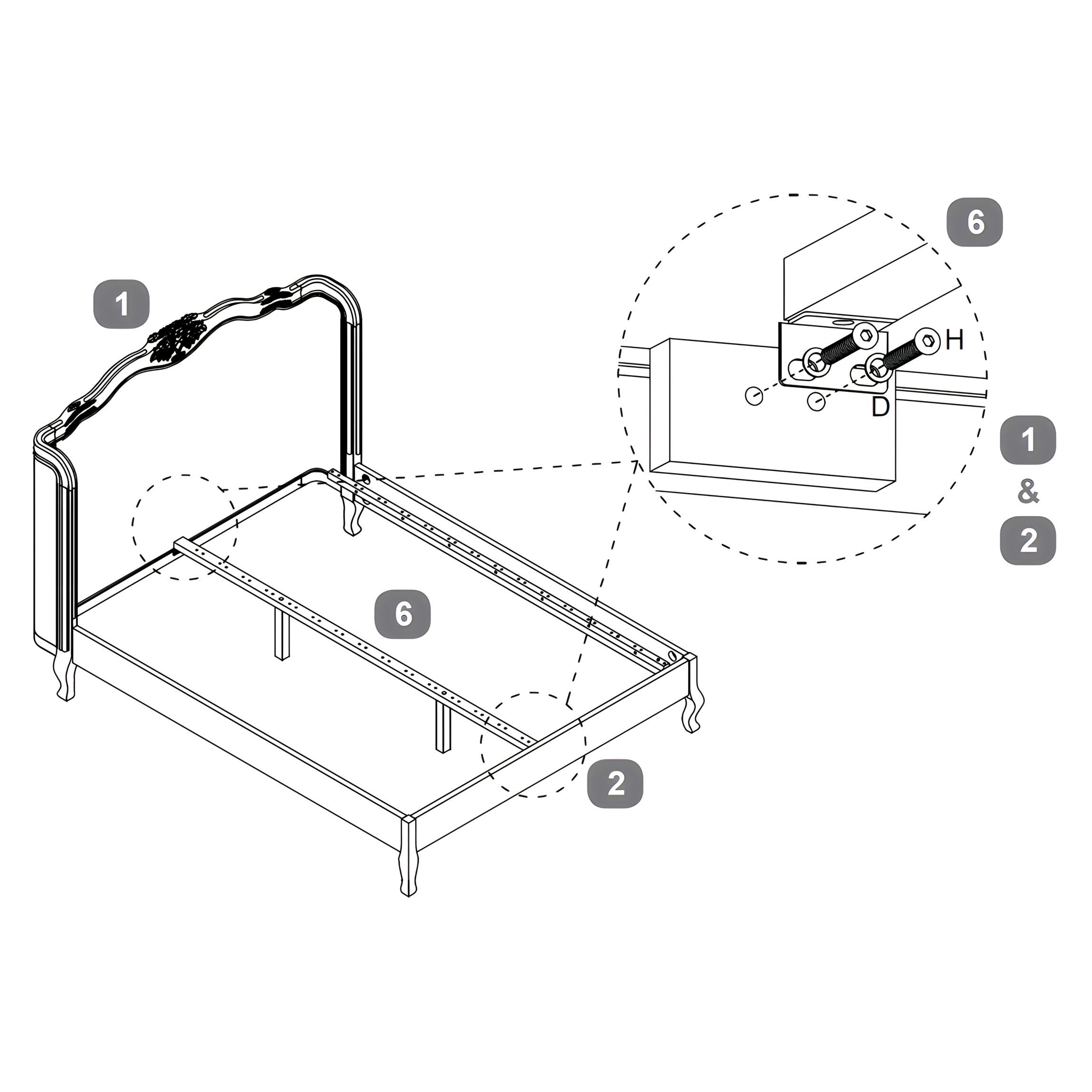

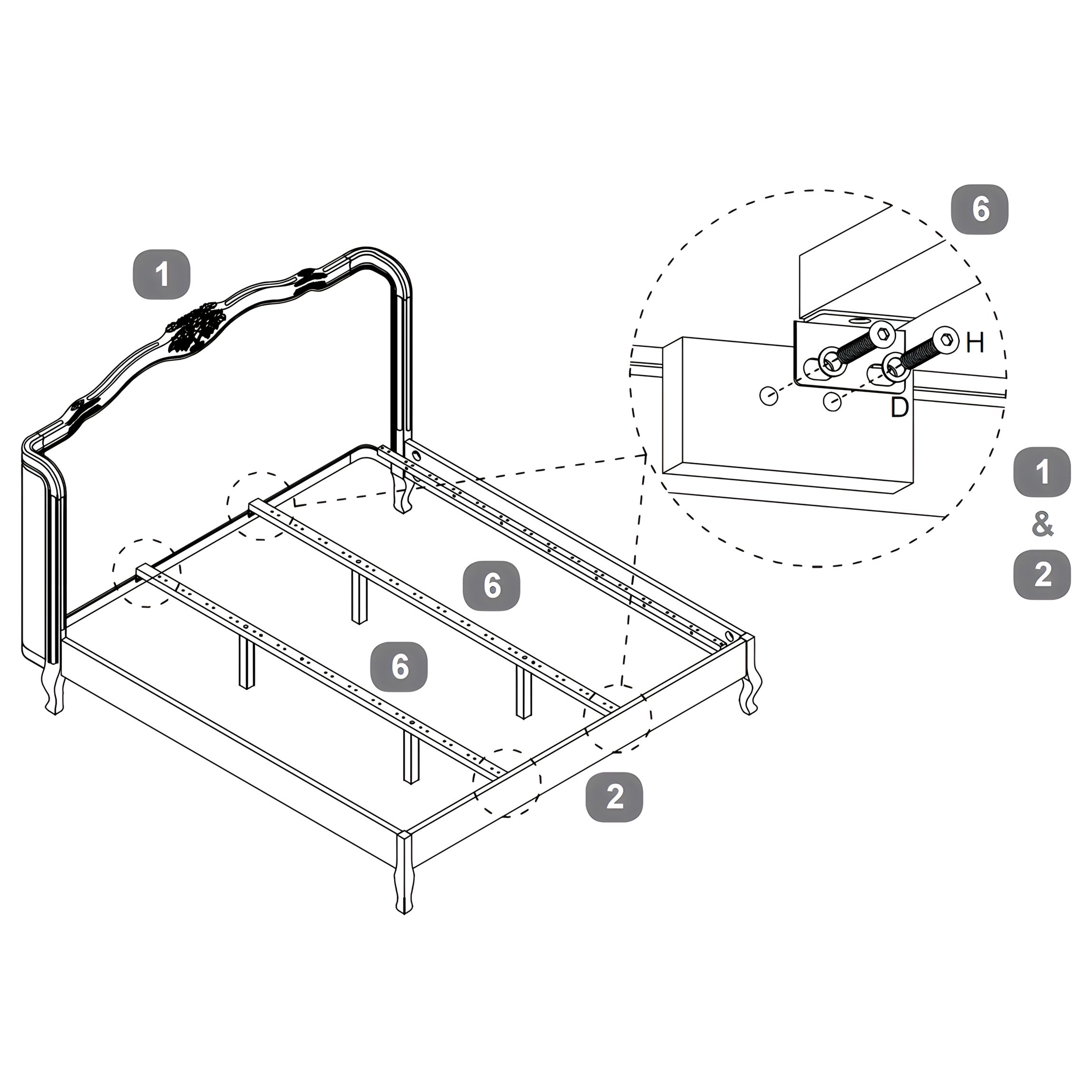

1. Position the centre support rail (6) so that the L-shape brackets (G) align with the pre-drilled holes on the headboard (1) and footboard (2).
2. Secure the rail by inserting and tightening the bolts and washers into the brackets using the Allen key (K).

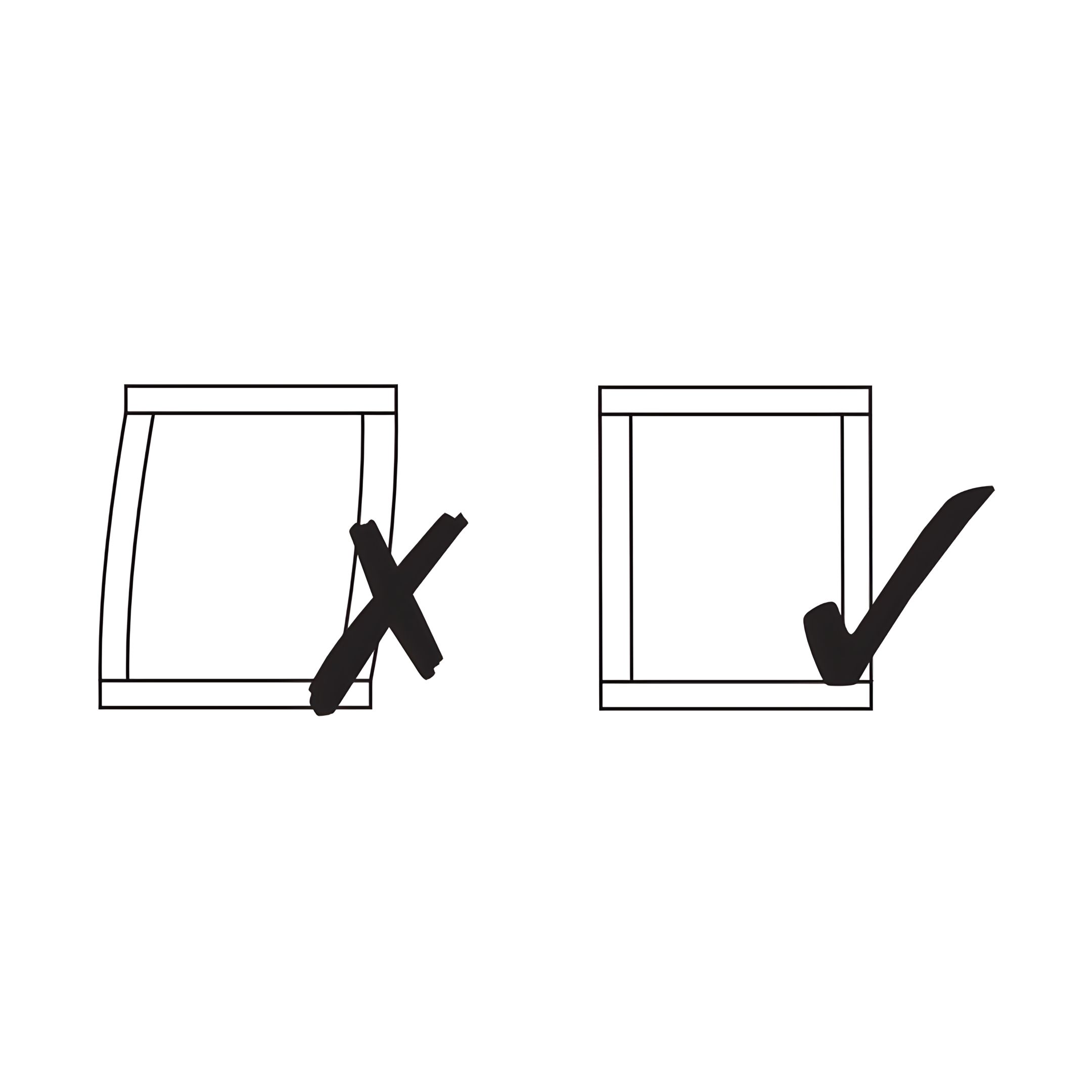

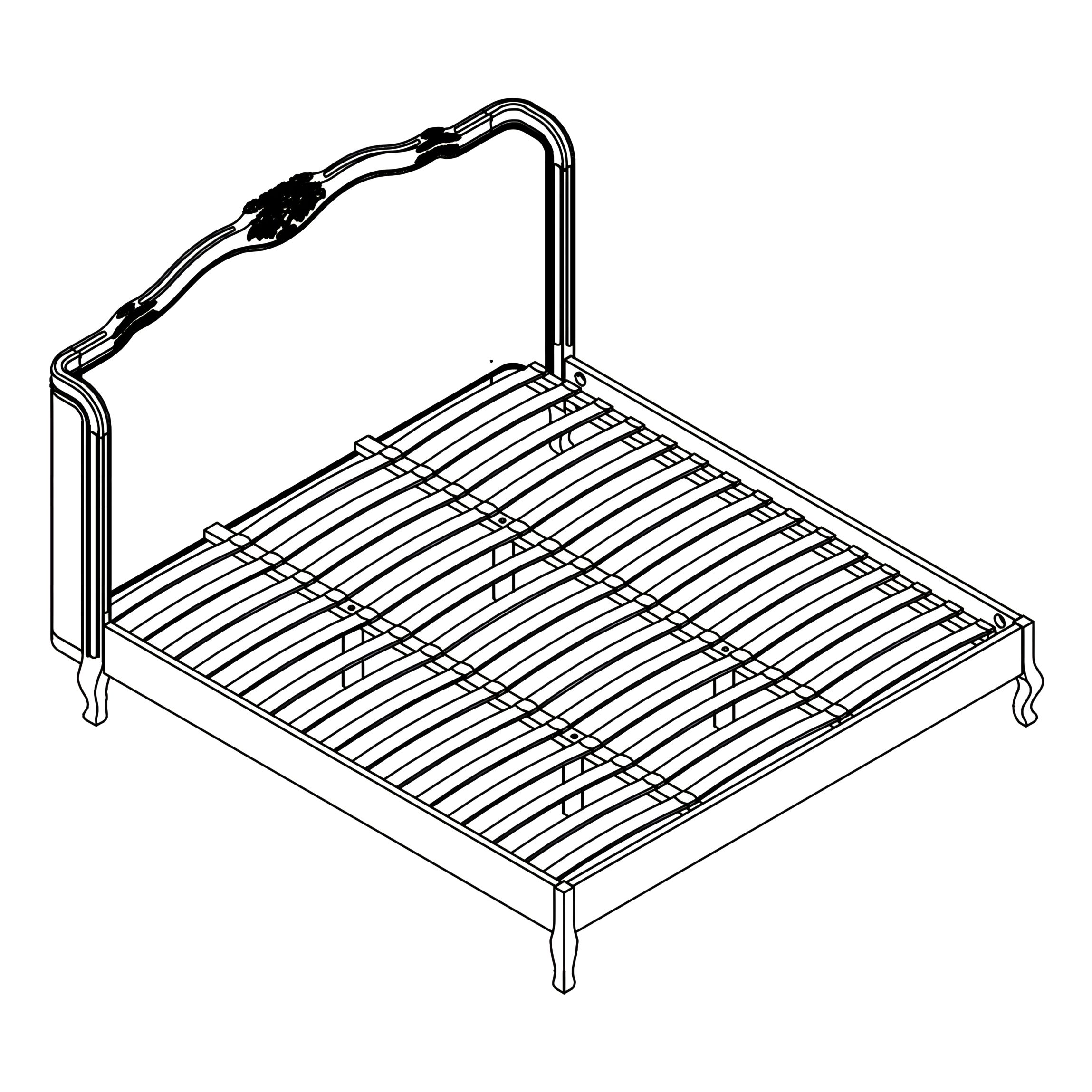

Note: Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.

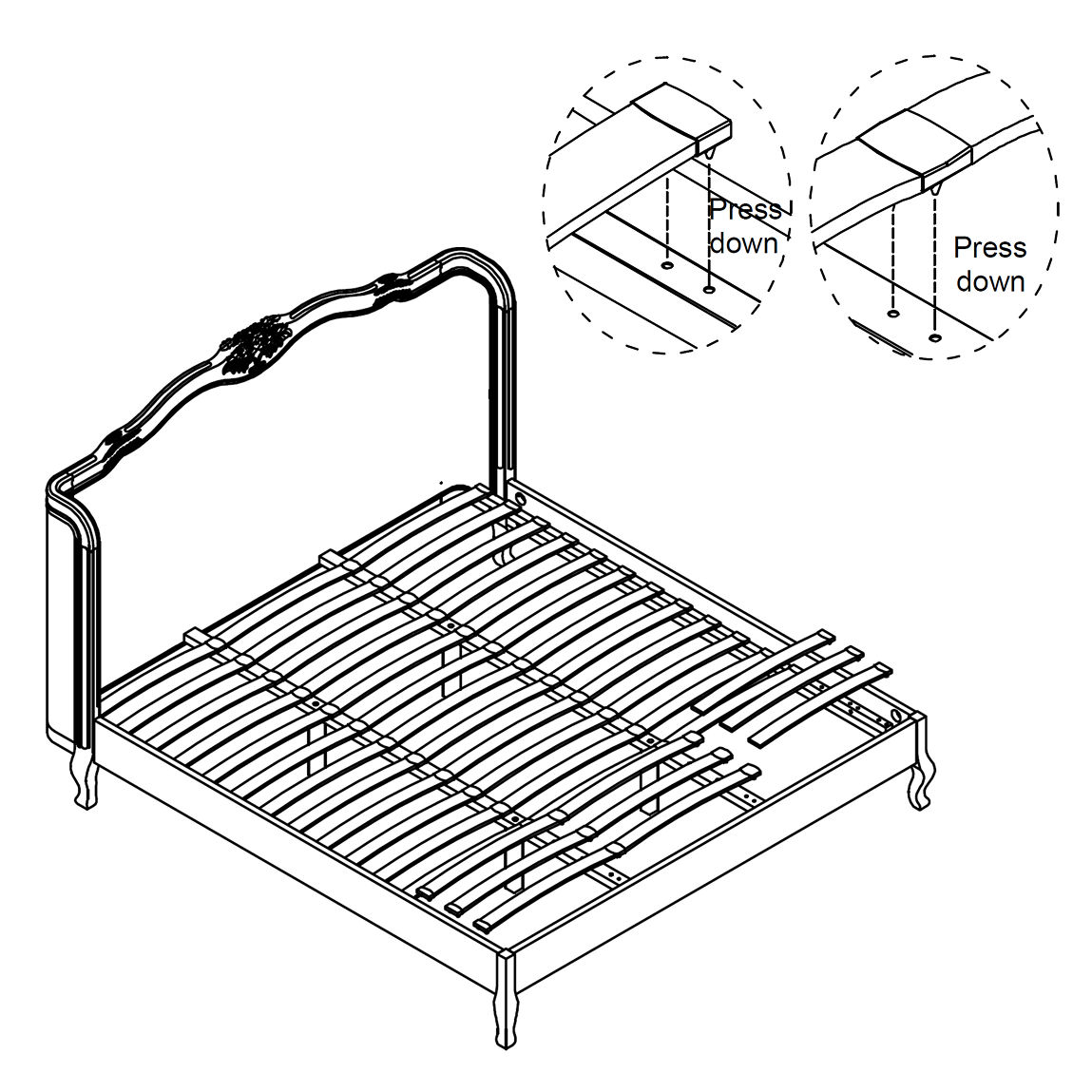

8. Install the Slats

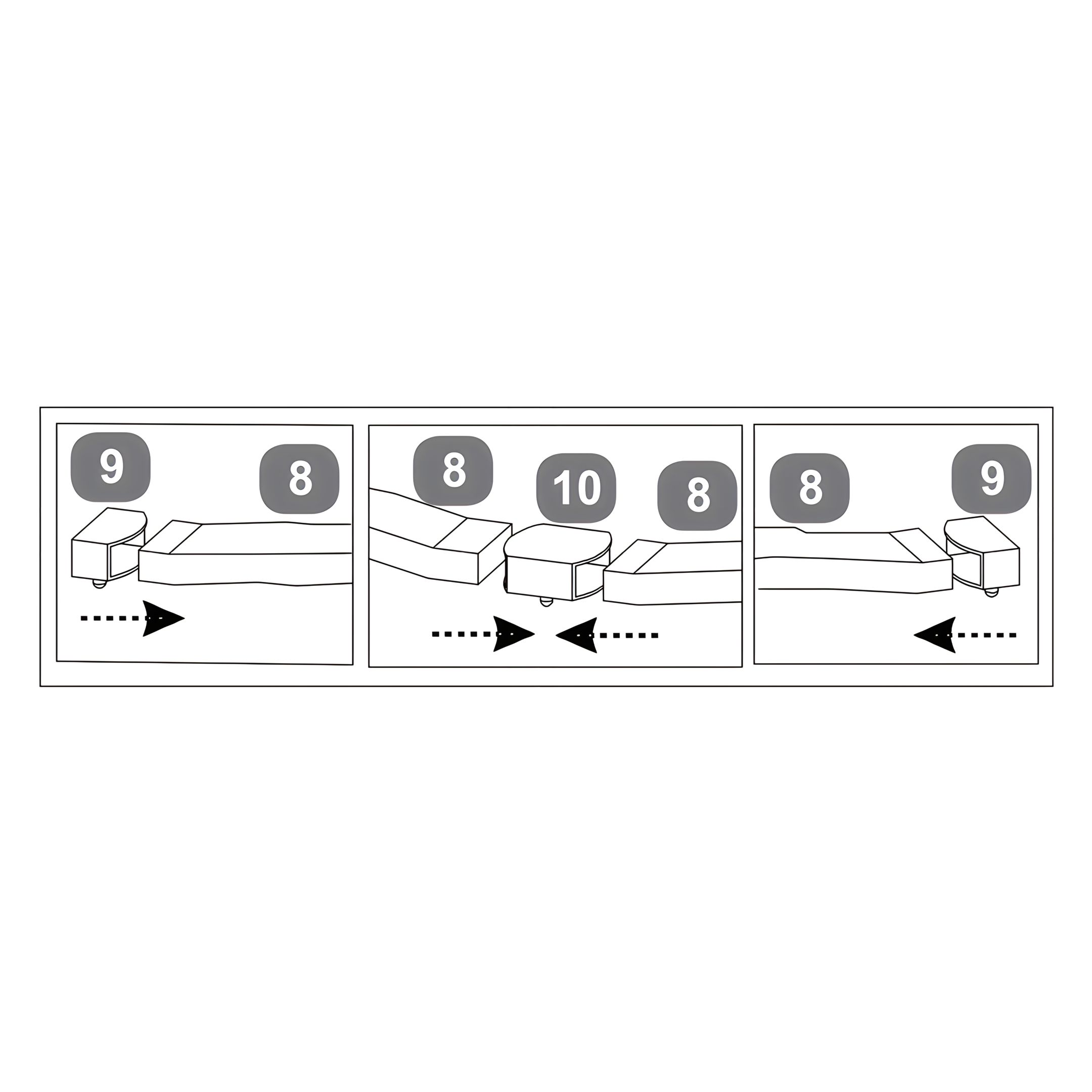

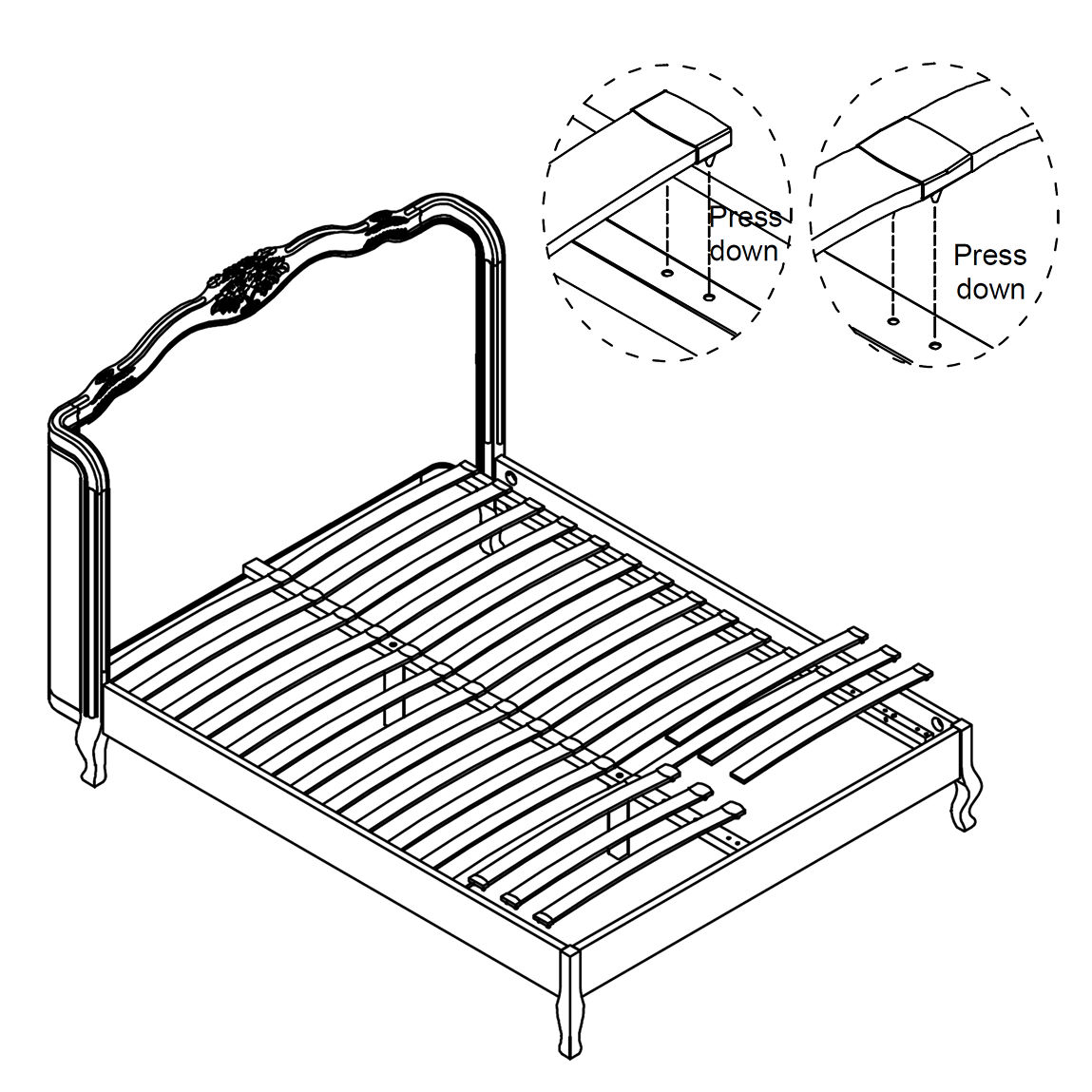

1. Attach Single Plastic Caps (9) to the ends of the Bentwood Slats (8) that will be inserted into the Side Rails (4 & 5).
2. Attach Double Plastic Caps (10) to the ends of the slats that will be inserted into the Centre Support Rail (6).
3. Insert each end of the slats into the designated slots on the Side Rails (4 & 5) and Centre Support Rail (6).
4. Press down firmly to ensure each slat is securely in place.

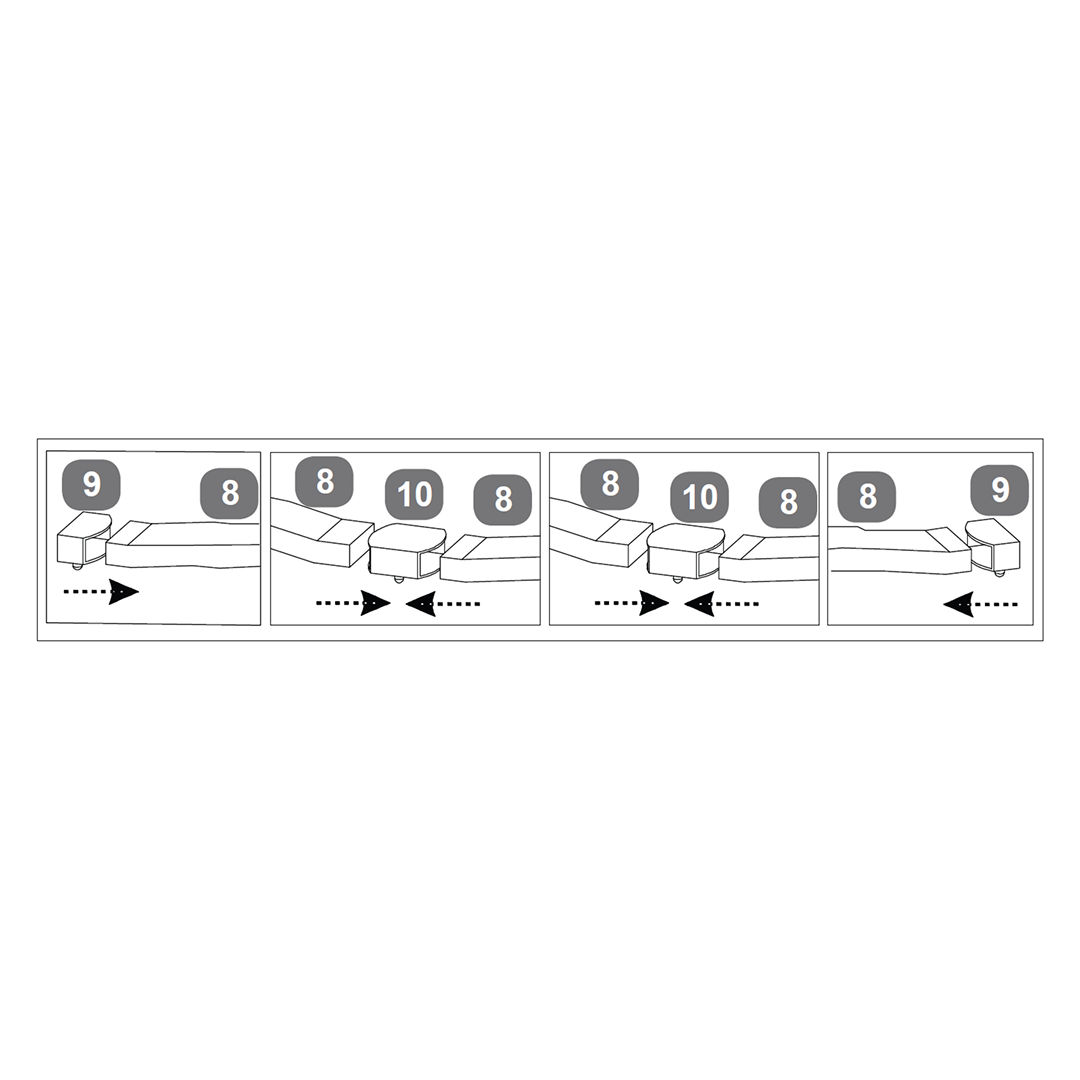

Number of slats for each size:

Double: 28 Bentwood Slats / 28 Single Plastic Caps / 14 Double Plastic Caps
King: 30 Bentwood Slats / 30 Single Plastic Caps / 15 Double Plastic Caps
Super King: 45 Bentwood Slats / 30 Single Plastic Caps / 30 Double Plastic Cap

9. Final Check

Verify that all slats are securely fastened and evenly spaced.
Check for any loose connections and tighten the screws if necessary
